9.1 Principles of Feedback Control
4 min read•july 30, 2024
are the backbone of modern engineering, allowing us to tame complex systems and achieve desired outcomes. By continuously monitoring and adjusting, these systems compensate for disturbances and uncertainties, improving performance and stability.
From cruise control to industrial robots, feedback control is everywhere. It's all about comparing what we want with what we've got, then tweaking things to make them match. This powerful concept forms the foundation for understanding PID controllers and more advanced control strategies.
Feedback Control Systems
Fundamental Concepts
Top images from around the web for Fundamental Concepts

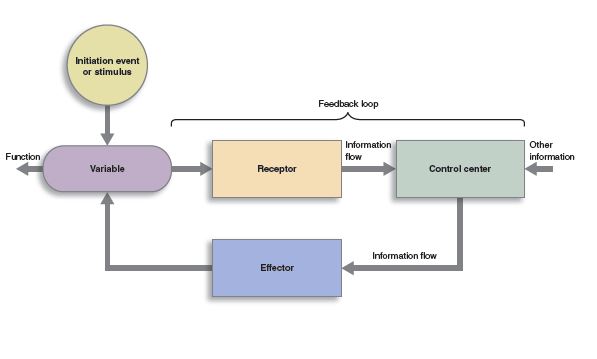

Homeostasis and Feedback Loops | Anatomy and Physiology I View original
Is this image relevant?
Control system principles | TikZ example View original
Is this image relevant?
Control system - Wikipedia View original
Is this image relevant?
Homeostasis and Feedback Loops | Anatomy and Physiology I View original
Is this image relevant?
Control system principles | TikZ example View original
Is this image relevant?
1 of 3
Top images from around the web for Fundamental Concepts
Homeostasis and Feedback Loops | Anatomy and Physiology I View original
Is this image relevant?
Control system principles | TikZ example View original
Is this image relevant?
Control system - Wikipedia View original
Is this image relevant?
Homeostasis and Feedback Loops | Anatomy and Physiology I View original
Is this image relevant?
Control system principles | TikZ example View original
Is this image relevant?
1 of 3
- Feedback control systems use measurements of the system output to adjust the input signal to achieve the desired output response
- This closed-loop configuration allows the system to compensate for disturbances and uncertainties
- The performance of a feedback control system is characterized by various metrics
- Stability margins
Components of Feedback Control Systems
- The basic components of a feedback control system include:
- Plant: The system to be controlled
- Sensors: Measure the output
- Controller: Generates the based on the error between the desired and actual output
- Actuators: Apply the control signal to the plant
- The control system compares the measured output with the reference input to determine the error signal
- The error signal is used by the controller to generate an appropriate control signal to drive the plant towards the desired output
- Feedback control systems can be classified as:
- Negative feedback: Reduces the error between the desired and actual output (thermostat)
- Positive feedback: Amplifies the error and can lead to instability (audio feedback in a microphone)
Feedback Effects on Systems
Stability and Robustness
- Feedback can improve system stability by reducing the sensitivity of the to external disturbances and parameter variations compared to open-loop systems
- However, improperly designed feedback can also introduce instability, especially if:
- The loop gain is too high
- There are significant delays in the
- The stability of a feedback control system can be assessed using techniques such as:
- Routh-Hurwitz criterion
- Root locus plots
- Nyquist plots
- Bode plots
- These techniques analyze the system's and determine the conditions for stability
- Robustness refers to a system's ability to maintain performance and stability in the presence of uncertainties (model inaccuracies, parameter variations, external disturbances)
- Feedback control can improve robustness by desensitizing the system to these uncertainties
Performance Enhancement
- Feedback can enhance system performance by:
- Reducing steady-state errors
- Improving transient response
- Increasing the system's ability to track reference inputs
- Examples of performance enhancement through feedback control:
- Cruise control in vehicles maintains a constant speed despite changes in road conditions or wind resistance
- Voltage regulators in power supplies maintain a constant output voltage despite fluctuations in load or input voltage
Open-Loop vs Closed-Loop Control
Open-Loop Control Systems
- Open-loop control systems do not use feedback to adjust the control signal based on the system output
- The control signal is determined solely by the input signal and the system model
- Open-loop systems are simpler to design and implement but are more sensitive to:
- Disturbances
- Parameter variations
- Modeling errors
- They cannot compensate for these factors as they do not monitor the system output
- Examples of open-loop control systems:
- Toaster with a fixed timer
- Traffic light with predetermined timing sequences
Closed-Loop Control Systems
- Closed-loop control systems, also known as feedback control systems, use measurements of the system output to continuously adjust the control signal to achieve the desired output response
- Closed-loop systems are more complex but offer:
- Improved performance
- Stability
- Robustness
- They continuously monitor the system output and adjust the control signal accordingly
- In some cases, a combination of open-loop and closed-loop control, known as feedforward-feedback control, can be used to leverage the advantages of both approaches
- Feedforward control anticipates disturbances and adjusts the control signal preemptively
- Feedback control corrects for any remaining errors or uncertainties
Advantages and Limitations of Feedback Control
Advantages
- Improved performance:
- Reduced steady-state errors
- Better transient response
- Increased robustness to uncertainties and disturbances
- Ability to stabilize unstable systems
- Wide range of applications:
- Process control (temperature, pressure, flow)
- Motion control (robotics, automotive systems)
- Power systems (voltage and frequency regulation)
Limitations
- Potential for instability if the system is not properly designed
- Need for accurate sensors and actuators
- Increased complexity and cost compared to open-loop systems
- May not be suitable for systems with large delays, as the delayed feedback can lead to:
- Instability
- Poor performance
- Limitations of sensor and actuator bandwidth may restrict the achievable performance in high-speed or high-precision systems
Key Terms to Review (19)
Automated systems: Automated systems refer to setups that utilize technology to perform tasks with minimal human intervention, often improving efficiency and consistency. These systems are designed to monitor processes, make decisions, and execute actions based on feedback without the need for continuous human oversight, allowing for enhanced productivity and reliability in various applications.
Bifurcation: Bifurcation refers to a phenomenon in which a slight change in the parameters of a system causes a sudden qualitative change in its behavior or structure. This concept is particularly relevant when analyzing nonlinear systems, where small variations can lead to entirely different outcomes, illustrating the complex nature of these systems. Bifurcations can be seen in various contexts, from the dynamics of phase planes to feedback control, and they play a critical role in understanding how nonlinear control systems function.
Closed-loop system: A closed-loop system is a control mechanism that uses feedback to compare the actual output with the desired output in order to minimize the difference between them. This type of system continuously monitors its own output and adjusts its input to achieve the desired performance, making it effective for maintaining stability and accuracy. Feedback is crucial, as it allows the system to respond dynamically to changes and disturbances in its environment.
Control signal: A control signal is a specific type of signal used in dynamic systems to guide the behavior of a system or component, typically to achieve desired outcomes such as stability or performance. It acts as an input that influences the operation of a system based on feedback or predefined conditions. By regulating parameters like speed, position, or force, control signals ensure that the system responds accurately to changes in its environment or set points.
Feedback control systems: Feedback control systems are systems that use feedback to regulate their operation and maintain desired outputs. These systems continuously monitor output, compare it to a desired reference value, and make adjustments based on the difference between the actual and desired outputs. This process ensures stability, accuracy, and responsiveness in dynamic environments.
Feedback Loop: A feedback loop is a process in which the outputs of a system are circled back and used as inputs, creating a dynamic interaction that can stabilize or destabilize the system. This concept is essential in understanding how systems self-regulate, influencing their behavior and performance across various applications.
Frequency Response: Frequency response refers to the measure of a system's output spectrum in response to a sinusoidal input signal. It illustrates how different frequency components of the input signal are amplified or attenuated by the system, giving insight into the system's behavior across various frequencies.
Lead-Lag Compensator: A lead-lag compensator is a type of control system that combines both lead and lag compensation techniques to improve system performance, specifically in terms of stability and transient response. By introducing additional poles and zeros into the system's transfer function, it enhances the phase margin and modifies the frequency response. This dual approach allows for better handling of both high-frequency noise and low-frequency disturbances, making it a powerful tool in feedback control design.
Open-loop system: An open-loop system is a type of control system that operates without feedback. In this system, the output is generated based on a predefined input, and there’s no mechanism to adjust or correct the output based on its actual performance. This lack of feedback makes open-loop systems simpler and often less expensive but can lead to inaccuracies if external factors change.
Overshoot: Overshoot refers to the phenomenon where a system exceeds its desired output level or target before settling down to the steady-state value. This behavior is crucial in dynamic systems, as it often indicates how well a system responds to changes and how quickly it stabilizes after a disturbance.
Pid controller: A PID controller is a control loop feedback mechanism widely used in industrial control systems to maintain a desired setpoint by adjusting the process inputs based on proportional, integral, and derivative terms. By tuning these three parameters, the controller can minimize error over time and achieve stable system behavior, making it essential in feedback control, steady-state response analysis, performance metrics, and closed-loop system dynamics.
Robotic control: Robotic control refers to the methods and algorithms used to manage and direct the behavior of robotic systems. It encompasses the principles of feedback control, where sensors provide real-time data about the robot's state, allowing for adjustments in motion and behavior to achieve desired outcomes. This process ensures that robots can effectively respond to their environment, maintain stability, and perform tasks with precision.
Settling Time: Settling time is the time taken for a dynamic system's response to reach and stay within a specified tolerance band around the desired final value after a disturbance or input change. This concept is crucial in understanding how quickly a system can stabilize after experiencing a change, which relates to the overall efficiency and performance of control systems and their responses to inputs.
Stability criterion: A stability criterion is a set of mathematical conditions or rules used to determine whether a dynamic system will return to equilibrium after a disturbance. Understanding stability is crucial for designing feedback control systems and analyzing discrete-time systems, as it helps predict system behavior over time, ensuring that systems perform reliably under varying conditions.
State-space representation: State-space representation is a mathematical framework used to model and analyze dynamic systems using a set of first-order differential equations. This method emphasizes the system's state variables, allowing for a comprehensive description of the system's dynamics and facilitating control analysis and design.
Steady-State Error: Steady-state error is the difference between the desired output of a system and the actual output as time approaches infinity, indicating how accurately a control system can achieve its target value. This concept is crucial in understanding system performance, particularly how well systems maintain their desired outputs despite disturbances or changes in input.
Time Constant: The time constant is a measure of the time it takes for a system to respond to changes, specifically in dynamic systems, defined as the time it takes for the system's response to reach approximately 63.2% of its final value after a step input. This concept is crucial in understanding how systems behave over time, particularly regarding stability, speed of response, and settling time.
Transfer function: A transfer function is a mathematical representation that describes the relationship between the input and output of a linear time-invariant (LTI) system in the Laplace domain. It captures how the system responds to different inputs, allowing for analysis and design of dynamic systems.
Transient Response: Transient response refers to the behavior of a dynamic system as it transitions from an initial state to a final steady state after a change in input or initial conditions. This response is characterized by a temporary period where the system reacts to external stimuli, and understanding this behavior is crucial in analyzing the overall performance and stability of systems.
