7.3 Controllability and Observability
5 min read•july 30, 2024
and are key concepts in state-space control systems. They determine if we can steer a system to any state and figure out its initial state from outputs. These properties are crucial for designing effective control strategies.
To assess controllability and observability, we use special matrices and rank conditions. Understanding these helps us modify systems, place sensors, and design better controllers. It's all about making our systems more controllable and easier to monitor.
Controllability and Observability of Systems
Defining Controllability and Observability
Top images from around the web for Defining Controllability and Observability
Control system principles | TikZ example View original
Is this image relevant?

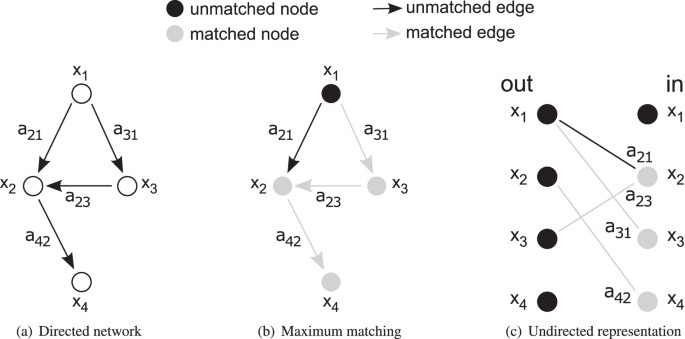

Controllability and observability in complex networks – the effect of connection types ... View original
Is this image relevant?
Controllability and observability in complex networks – the effect of connection types ... View original
Is this image relevant?
Control system principles | TikZ example View original
Is this image relevant?
Controllability and observability in complex networks – the effect of connection types ... View original
Is this image relevant?
1 of 3
Top images from around the web for Defining Controllability and Observability
Control system principles | TikZ example View original
Is this image relevant?
Controllability and observability in complex networks – the effect of connection types ... View original
Is this image relevant?
Controllability and observability in complex networks – the effect of connection types ... View original
Is this image relevant?
Control system principles | TikZ example View original
Is this image relevant?
Controllability and observability in complex networks – the effect of connection types ... View original
Is this image relevant?
1 of 3
- Controllability is the property of a system that indicates whether it is possible to transfer the system from any initial state to any desired final state within a finite time interval by applying an appropriate control input
- A system is said to be completely controllable if it is possible to drive the system from any initial state to any desired final state in a finite time interval by applying an appropriate control input (e.g., a robotic arm that can reach any position within its workspace)
- Observability is the property of a system that indicates whether it is possible to determine the initial state of the system based on the knowledge of the system's outputs over a finite time interval
- A system is said to be completely observable if it is possible to determine the initial state of the system based on the knowledge of the system's outputs over a finite time interval (e.g., estimating the position and velocity of a vehicle using GPS and speedometer readings)
Importance in Control Theory
- Controllability and observability are fundamental concepts in modern control theory and play a crucial role in the analysis and design of state-space control systems
- These properties are essential for understanding the system's behavior and designing appropriate control strategies
- The concepts of controllability and observability are closely related to the system's , which consists of the state equation and the output equation
- The state equation describes the dynamics of the system, while the output equation relates the system states to the measured outputs
Controllability and Observability Matrices
Constructing the Controllability Matrix
- The is a matrix that is constructed using the system matrices A and B from the state-space representation of the system
- The controllability matrix is defined as: , where n is the dimension of the state vector
- The controllability matrix is formed by concatenating the control input matrix B and its successive matrix products with the state matrix A
Constructing the Observability Matrix
- The is a matrix that is constructed using the system matrices A and C from the state-space representation of the system
- The observability matrix is defined as: , where n is the dimension of the state vector and the semicolon represents vertical concatenation
- The observability matrix is formed by vertically stacking the output matrix C and its successive matrix products with the state matrix A
Assessing Controllability and Observability
- The controllability and observability matrices provide a way to assess the controllability and observability of a system using rank conditions
- The rank of a matrix is the number of linearly independent rows or columns in the matrix
- These matrices encode essential information about the system's structure and the relationship between the system states, control inputs, and measured outputs
Controllability and Observability Assessment
Rank Condition for Controllability
- A system is completely controllable if and only if the controllability matrix C has full row rank, i.e., , where n is the dimension of the state vector
- If the controllability matrix has full row rank, it means that all the system states can be independently controlled by the input
- If a system is not completely controllable, it means that there exist certain states that cannot be reached from any initial state by applying a control input
- In such cases, the system may have uncontrollable modes or subspaces that cannot be influenced by the control input
Rank Condition for Observability
- A system is completely observable if and only if the observability matrix O has full column rank, i.e., , where n is the dimension of the state vector
- If the observability matrix has full column rank, it means that all the system states can be uniquely determined from the measured outputs
- If a system is not completely observable, it means that there exist certain initial states that cannot be determined based on the knowledge of the system's outputs
- In such cases, the system may have unobservable modes or subspaces that cannot be reconstructed from the output measurements
Applying the Rank Conditions
- The rank conditions for controllability and observability provide a straightforward way to assess these properties for a given state-space system
- To determine controllability, compute the controllability matrix C and check its rank using linear algebra techniques (e.g., Gaussian elimination or singular value decomposition)
- To determine observability, compute the observability matrix O and check its rank using similar techniques
- These rank conditions are necessary and sufficient for complete controllability and observability, respectively
Implications of Controllability vs Observability
Impact on Control System Design
- Controllability and observability have significant implications for the design and analysis of control systems
- A system that is completely controllable can be stabilized and its performance can be optimized using techniques
- State feedback control involves measuring the system states and using them to generate appropriate control inputs to achieve the desired system behavior
- A system that is completely observable allows for the design of state estimators or observers, which can estimate the system's internal states based on the measured outputs
- State estimators, such as Kalman filters, use the system model and output measurements to provide estimates of the system states that cannot be directly measured
System Modification and Sensor Placement
- If a system is not completely controllable, it may be necessary to modify the system's structure or add additional actuators to achieve the desired control objectives
- Adding actuators can increase the system's controllability by providing more independent control inputs
- If a system is not completely observable, it may be necessary to add additional sensors or modify the system's structure to ensure that all the necessary states can be estimated
- Adding sensors can increase the system's observability by providing more information about the system's internal states
Pole Placement and System Performance
- Controllability and observability also play a role in the technique, where the closed-loop system poles are placed at desired locations to achieve specific performance characteristics
- Pole placement requires the system to be completely controllable and observable to ensure that the desired pole locations can be achieved through state feedback and
- Understanding the controllability and observability of a system is crucial for designing effective control strategies and ensuring that the system meets the desired performance specifications
- By assessing these properties, control engineers can make informed decisions about system modifications, sensor placement, and control algorithm selection to optimize the system's performance and robustness
Key Terms to Review (20)
BIBO Stability: BIBO (Bounded Input Bounded Output) stability is a property of a system that indicates it will produce a bounded output in response to any bounded input. This concept is crucial in analyzing the behavior of dynamic systems, ensuring that the system remains controllable and observably stable under various conditions. When assessing the stability of discrete-time systems, BIBO stability becomes especially important, as it guarantees that the system behaves predictably and reliably, which is vital for control and performance.
Controllability: Controllability is a property of dynamic systems that indicates whether the state of the system can be driven to a desired state using appropriate inputs over a finite time period. This concept is crucial as it determines the ability to manipulate the system's behavior, ensuring that it can respond to control actions effectively. Understanding controllability connects various system representations, responses to inputs, and the relationships between controlling and observing states within dynamic systems.
Controllability Matrix: The controllability matrix is a mathematical tool used to determine the controllability of a linear dynamic system. It is constructed by combining the system's state matrix and input matrix in a specific way, allowing for an assessment of whether a system can be driven to any desired state using available inputs. This concept is crucial in understanding the behavior and control of dynamic systems, linking it closely to observability and stability.
Controllability Test: The controllability test is a method used to determine whether a system's state can be fully controlled by its inputs. This concept is crucial for understanding how to manipulate a dynamic system effectively, ensuring that it can be driven to desired states. It relates closely to the structure of the system's matrices, specifically the controllability matrix, which provides insight into how well the inputs can influence the outputs across the state space.
Kalman Rank Condition: The Kalman Rank Condition is a criterion used to determine whether a linear system is observable or controllable. It states that for a system to be observable, the observability matrix must have full rank, which means it should span the entire state space. This condition ensures that all states of the system can be inferred from the outputs over time.
Kalman's Theorem: Kalman's Theorem is a foundational result in control theory that provides necessary and sufficient conditions for the observability of a linear dynamic system. This theorem states that a system is observable if the observability matrix, constructed from the system's state and output matrices, has full rank. It connects closely with controllability, establishing key insights into how the internal state of a system can be inferred from its outputs.
Linear time-invariant systems: Linear time-invariant (LTI) systems are mathematical models used to describe a broad range of dynamic systems where the principles of superposition and time invariance apply. These systems exhibit linear behavior, meaning that their output is directly proportional to their input, and they remain consistent over time, which simplifies analysis and design. Understanding LTI systems is essential as they serve as the foundation for various topics including controllability, stability, and optimal control.
Lyapunov's Theorem: Lyapunov's Theorem provides conditions under which a dynamic system is stable or unstable by using a mathematical function known as a Lyapunov function. This theorem is significant because it helps determine the stability of equilibrium points without necessarily solving the differential equations of the system. It connects to various techniques for modeling systems, assessing stability criteria, and analyzing control systems by examining how perturbations affect the behavior of a system over time.
Minimal realization: Minimal realization refers to the simplest form of a state-space representation of a dynamic system that retains the same input-output behavior as the original system. It is crucial in analyzing systems for controllability and observability, ensuring that the representation is efficient with the least number of states necessary to describe the system's dynamics without losing any essential information.
Observability: Observability refers to the ability to determine the internal state of a dynamic system based solely on its external outputs. It is a crucial concept in control theory, linking how well one can infer the state of a system from its outputs to the overall effectiveness of system monitoring and control. A system is said to be observable if the current state can be reconstructed by examining the output over a finite time period.
Observability Matrix: The observability matrix is a mathematical tool used in control theory to determine if a system's internal states can be inferred from its outputs over time. It plays a crucial role in the analysis of a system's observability, which reflects the ability to deduce the state of the system based on output measurements. A system is considered observable if the observability matrix has full rank, indicating that all states can be uniquely determined from the outputs.
Observer Design: Observer design is a technique used in control systems to estimate the internal states of a dynamic system based on its outputs and inputs. This process is crucial when not all state variables are directly measurable, allowing for the reconstruction of system behavior. It leverages concepts like controllability and observability to determine the effectiveness of state estimation, ensuring accurate control and system response.
Output feedback control: Output feedback control is a control strategy that uses information from the system's output to regulate its behavior and maintain desired performance. By utilizing output measurements, this method helps adjust the control input to achieve stability and desired performance in dynamic systems, closely relating to concepts of controllability and observability, where understanding system dynamics is crucial for effective feedback implementation.
Pole Placement: Pole placement is a control system design technique that involves adjusting the poles of a system's transfer function to achieve desired dynamic characteristics. By strategically placing the poles in the left half of the complex plane, engineers can ensure system stability and optimize performance, which relates closely to concepts like controllability, observability, and state-space representations.
Reachability analysis: Reachability analysis is a method used to determine the states of a dynamic system that can be reached from a given initial state through allowable inputs over time. It plays a crucial role in assessing controllability, as it helps identify whether specific states can be attained based on the system's dynamics and control inputs. Understanding reachability is essential for designing effective control strategies and ensuring desired performance outcomes in various applications.
Reachable system: A reachable system is a type of dynamic system in which it is possible to move the state of the system from any initial state to any desired final state within a finite amount of time using appropriate control inputs. This concept plays a crucial role in understanding how a system can be manipulated and controlled, indicating its ability to achieve specific performance outcomes based on the applied controls.
State estimation: State estimation is the process of determining the internal state of a dynamic system based on available measurements and system dynamics. This technique is crucial for controlling and monitoring systems, especially when direct measurement of all state variables is not feasible. By utilizing mathematical models and algorithms, state estimation helps in approximating the true state of the system to improve decision-making and performance.
State feedback control: State feedback control is a technique used in control systems where the current state of a system is fed back into the controller to adjust the system's input for improved performance. This approach aims to achieve desired system behavior by using the state variables, allowing for precise control over system dynamics. By implementing state feedback, it becomes possible to enhance stability, responsiveness, and robustness in both linear and nonlinear systems.
State-space representation: State-space representation is a mathematical framework used to model and analyze dynamic systems using a set of first-order differential equations. This method emphasizes the system's state variables, allowing for a comprehensive description of the system's dynamics and facilitating control analysis and design.
System stabilization: System stabilization refers to the process of ensuring that a dynamic system returns to a desired state of equilibrium after being perturbed by external or internal forces. This concept is crucial in control theory, as it emphasizes the need for a system to maintain stability through appropriate control inputs and feedback mechanisms, thereby preventing undesired oscillations or divergence from target behavior.
