1.4 Measurements

Measurement Fundamentals

Scientific measurement is how chemists quantify and communicate findings. By using standard units and methods, you ensure results are consistent, reproducible, and verifiable across labs and experiments.

Measuring involves more than just numbers. It's about capturing physical properties like length, mass, and volume in a way that other scientists can trust. Understanding units, accuracy, and precision helps you interpret data and draw meaningful conclusions.

Fundamentals of Scientific Measurement

Every measurement follows the same basic process:

1. Identify the property you want to measure (e.g., length)
2. Select an appropriate instrument (e.g., a ruler)
3. Compare the quantity to a standard unit
4. Record the numerical value along with its unit

Using standard units is what makes science reproducible. If you measure a liquid's volume in milliliters and someone across the world does the same, you can directly compare results.

Components of a Measured Quantity

Every proper measurement has three parts:

• Numerical value: the number you read from the instrument (e.g., 5.2)
• Unit: the standard quantity used for comparison (e.g., meters). Without a unit, a number is meaningless. "5.2" tells you nothing; "5.2 meters" tells you a length.
• Uncertainty: the range within which the true value likely falls (e.g., ± 0.1 meters). Uncertainty comes from limitations of the instrument and the measurement process itself (like reading a meniscus slightly differently each time). It's expressed through significant figures (5.2 m has two significant figures) or error bars on graphs.

Measurement Quality

Accuracy is how close a measurement is to the true or accepted value. Precision is how close repeated measurements are to each other.

You can be precise without being accurate. Imagine throwing three darts that all land in a tight cluster, but far from the bullseye. That's precise but not accurate. For reliable results, you need both.

Physical Properties and Units

Key Physical Properties

Length measures the distance between two points. Common units are meters (m), centimeters (cm), and inches (in).

Mass quantifies the amount of matter in an object. It's measured in grams (g) or kilograms (kg). Mass is distinct from weight. Mass stays the same no matter where you are, but weight changes with gravity. You'd weigh less on the Moon, but your mass would be identical.

Volume is the amount of space an object occupies. It's expressed in liters (L), milliliters (mL), or cubic meters ($m^3$). For regular solids, you can calculate volume from dimensions. For irregular objects, you can measure volume by water displacement.

Density relates mass to volume:

$density = \frac{mass}{volume}$

Density lets you compare substances directly. Water has a density of about $1.0 \, g/mL$, while vegetable oil is roughly $0.92 \, g/mL$, which is why oil floats on water. Common units include $g/mL$ and $kg/m^3$.

Temperature measures the average kinetic energy of particles in a substance. Three scales are used in science:

• Celsius (°C): water freezes at 0°C, boils at 100°C
• Kelvin (K): the SI unit; 0 K is absolute zero (no particle motion). To convert, $K = °C + 273.15$
• Fahrenheit (°F): used mainly in the U.S.

Time is the duration between two events, measured in seconds (s), minutes (min), or hours (h). The SI base unit is the second.

Unit Conversions and Calculations

The metric system is a decimal-based system, which makes conversions straightforward. Prefixes indicate magnitude:

• kilo- = 1,000 × base unit (1 km = 1,000 m)
• centi- = 0.01 × base unit (1 cm = 0.01 m)
• milli- = 0.001 × base unit (1 mL = 0.001 L)

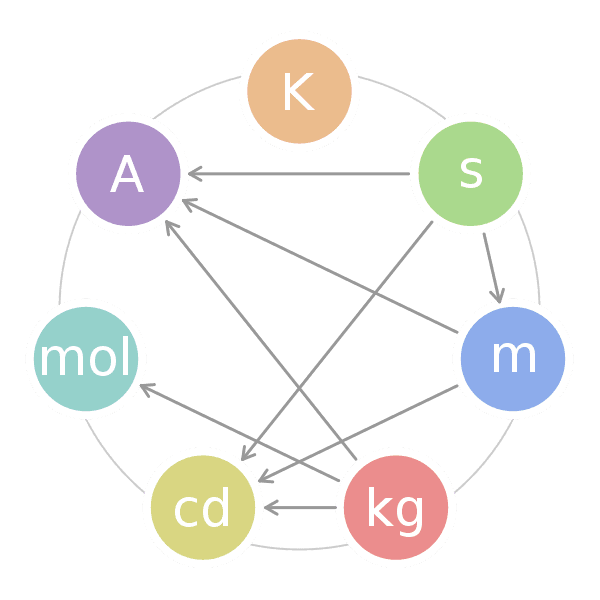

The International System of Units (SI) is the modern form of the metric system used globally in science. Its base units include the meter (length), kilogram (mass), second (time), and kelvin (temperature). You may also encounter U.S. customary units (inches, pounds) that require conversion.

Dimensional analysis is the go-to method for unit conversions. You multiply by conversion factors so that unwanted units cancel out, leaving only the unit you want.

Steps for dimensional analysis:

1. Write down the given quantity with its unit
2. Multiply by a conversion factor (a fraction equal to 1) that cancels the original unit
3. Check that units cancel, leaving only the desired unit
4. Calculate

Example: Convert 5 cm to meters.

$5 \, cm \times \frac{0.01 \, m}{1 \, cm} = 0.05 \, m$

The "cm" cancels top and bottom, leaving meters.

Scientific notation expresses very large or very small numbers compactly. Instead of writing 602,200,000,000,000,000,000,000, you write $6.022 \times 10^{23}$. The format is always a number between 1 and 10 multiplied by a power of 10.
