5.2 The Electromagnetic Spectrum
4 min read•june 12, 2024
The is a fascinating range of waves, from long to short . Each type of radiation has unique properties and interactions with Earth's atmosphere, shaping our world and our ability to observe the cosmos.
Understanding the spectrum is crucial for grasping how we perceive light, heat, and energy in the universe. It explains why we see certain colors, how we detect distant objects, and even how our planet maintains its temperature through the greenhouse effect.
The Electromagnetic Spectrum

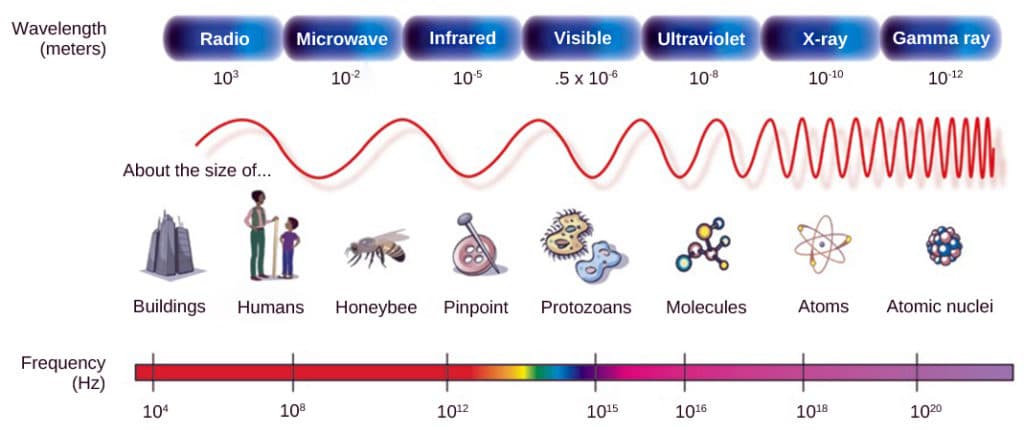

Bands of electromagnetic spectrum
Top images from around the web for Bands of electromagnetic spectrum
16.5 The Electromagnetic Spectrum – University Physics Volume 2 View original
Is this image relevant?
Vision | Biology I View original
Is this image relevant?
Electromagnetic Energy | Chemistry View original
Is this image relevant?
16.5 The Electromagnetic Spectrum – University Physics Volume 2 View original
Is this image relevant?
Vision | Biology I View original
Is this image relevant?
1 of 3
Top images from around the web for Bands of electromagnetic spectrum
16.5 The Electromagnetic Spectrum – University Physics Volume 2 View original
Is this image relevant?
Vision | Biology I View original
Is this image relevant?
Electromagnetic Energy | Chemistry View original
Is this image relevant?
16.5 The Electromagnetic Spectrum – University Physics Volume 2 View original
Is this image relevant?
Vision | Biology I View original
Is this image relevant?
1 of 3
-
- Possess the longest wavelengths and lowest energy in the
- Commonly used for transmitting radio and television signals over long distances
-
- Exhibit shorter wavelengths and higher energy compared to radio waves
- Utilized in ovens for heating food and in radar systems for detecting objects
- (IR)
- Features shorter wavelengths and higher energy than microwaves
- Emitted by objects with temperatures above absolute zero, used in night vision devices and remote sensing applications (weather satellites)
-
- Comprises a small range of wavelengths that can be detected by the human eye
- Colors span from red (longest visible ) to violet (shortest visible ) ()
- (UV)
- Possesses shorter wavelengths and higher energy compared to
- Can cause damage to living tissues (sunburns) and is employed in sterilization processes (water purification)
-
- Exhibit even shorter wavelengths and higher energy than UV radiation
- Commonly used in medical imaging (radiographs) and security scanners (airports)
-
- Represent the shortest wavelengths and highest energy in the electromagnetic spectrum
- Generated by radioactive decay processes and high-energy cosmic events (supernovae, pulsars)
Electromagnetic spectrum and Earth's atmosphere
- Radio waves
- Pass through Earth's atmosphere with minimal attenuation
- Enable ground-based radio telescopes to observe celestial objects
- Microwaves
- Largely pass through Earth's atmosphere unimpeded
- Experience some absorption by atmospheric water vapor and oxygen molecules
-
- Partially absorbed by Earth's atmosphere, primarily by water vapor and carbon dioxide
- Contributes to the greenhouse effect, where atmospheric gases absorb and re-emit IR radiation, warming the planet
- Visible light
- Mostly transmits through Earth's atmosphere without significant absorption
- Experiences scattering by air molecules and dust particles, resulting in blue skies and reddish sunsets ()
-
- Largely absorbed by the in Earth's stratosphere
- Ozone layer acts as a protective shield, preventing harmful UV radiation from reaching Earth's surface and damaging life
- X-rays and Gamma rays
- Completely absorbed by Earth's atmosphere at high altitudes
- Studying cosmic X-ray and gamma-ray sources requires space-based observatories (, )
Temperature and light emission
-
- Describes an idealized object that perfectly absorbs all incoming light and emits a spectrum dependent on its temperature
- Real objects approximate behavior to varying degrees (stars, planets)
-
- Relates an object's temperature to the peak wavelength of its emitted radiation:
- Hotter objects emit their peak radiation at shorter wavelengths (blue stars vs. red stars)
-
- Quantifies the total energy emitted per unit surface area of an object:
- Hotter objects emit significantly more energy across all wavelengths (luminosity)
- Examples
- The Sun, with a surface temperature of ~5800 K, emits most of its radiation in the visible light range
- Earth, with an average surface temperature of ~300 K, emits most of its radiation in the infrared
- Human bodies, with skin temperatures around 310 K, also emit primarily in the infrared (thermal imaging)
Properties of Electromagnetic Waves
- are transverse waves that propagate through space, carrying energy and information
- All electromagnetic waves travel at the in a vacuum, approximately 3 x 10^8 m/s
- refers to the maximum displacement of the wave from its equilibrium position, related to the wave's intensity
- describes the orientation of the electric field oscillations in an electromagnetic wave
- occurs when two or more waves interact, resulting in constructive or destructive combinations
- is the bending of waves around obstacles or through openings, allowing light to spread into regions of geometric shadow
- is the change in direction of a wave as it passes from one medium to another due to a change in its speed
Key Terms to Review (50)
Amplitude: Amplitude refers to the maximum displacement or the peak value of a wave from its resting or equilibrium position. It is a measure of the magnitude or strength of the wave and is an essential characteristic in understanding the properties and behavior of waves in the electromagnetic spectrum.
Angstrom: An angstrom is a unit of length used to measure extremely small distances, particularly in the context of atomic and molecular scales. It is named after the Swedish physicist Anders Jonas Ångström, who made significant contributions to the field of spectroscopy.
Black widow pulsar: A black widow pulsar is a type of millisecond pulsar that forms in a binary star system, where the pulsar's intense radiation and stellar wind gradually strip away and consume its companion star. This evolutionary process can lead to the eventual destruction of the companion star.
Blackbody: A blackbody is an idealized object that absorbs all incident electromagnetic radiation, regardless of frequency or angle of incidence. It also emits radiation at a characteristic spectrum that depends only on its temperature.
Blackbody Radiation: Blackbody radiation is the thermal electromagnetic radiation emitted by a perfect absorber and emitter of radiation, known as a blackbody. It is a fundamental concept in understanding the relationship between the temperature of an object and the spectrum of radiation it emits, which is crucial in various fields of astronomy, including the study of the electromagnetic spectrum, spectroscopy, and the formation of spectral lines.
Chandra X-Ray Observatory: The Chandra X-Ray Observatory is a space telescope launched by NASA in 1999 for detecting X-ray emissions from high-energy regions of the universe. It helps astronomers study phenomena such as black holes, supernovae, and galaxy clusters.
Chandra X-ray Observatory: The Chandra X-ray Observatory is a NASA space telescope that was launched in 1999 to study the universe in X-ray wavelengths. It is one of the world's most powerful X-ray observatories and has revolutionized our understanding of the high-energy universe, from black holes to galaxy clusters.
Diffraction: Diffraction is the bending and spreading of waves as they pass through an opening or around an obstacle. It is a fundamental phenomenon in the behavior of waves, including light and sound, and plays a crucial role in the understanding of the electromagnetic spectrum.
Electromagnetic spectrum: The electromagnetic spectrum encompasses all types of electromagnetic radiation, ranging from gamma rays to radio waves. It is organized by wavelength and frequency.
Electromagnetic Spectrum: The electromagnetic spectrum refers to the entire range of electromagnetic radiation, which includes various types of waves such as radio waves, microwaves, infrared, visible light, ultraviolet, X-rays, and gamma rays. This spectrum is fundamental to understanding the nature of science, the distinction between astronomy and astrology, the properties of different types of electromagnetic radiation, and their applications in spectroscopy and astronomy.
Electromagnetic Waves: Electromagnetic waves are a type of energy that travels through space in the form of oscillating electric and magnetic fields. These waves are part of the electromagnetic spectrum and can vary in wavelength and frequency, encompassing a wide range of phenomena from radio waves to gamma rays.
Energy: Energy is the capacity to do work or cause change. It is the fundamental currency of the universe, driving all physical and chemical processes. Energy manifests in various forms, including light, heat, electricity, and motion, and can be transformed from one form to another.
Fermi Gamma-ray Space Telescope: The Fermi Gamma-ray Space Telescope is a space observatory launched by NASA in 2008 to study the most energetic and explosive phenomena in the universe, including gamma-ray bursts, active galactic nuclei, and pulsars. It is a powerful tool for exploring the high-energy universe and has made significant contributions to our understanding of various cosmic phenomena.
Frequency: Frequency is the number of wave cycles that pass a given point per unit of time, typically measured in Hertz (Hz). In astronomy, it is crucial for understanding the properties of electromagnetic radiation such as light.
Frequency: Frequency is a fundamental concept in physics that describes the number of occurrences of a repeating event per unit of time. It is a measure of the rate at which a wave or oscillation completes a single cycle, and it is a crucial parameter in understanding various phenomena related to light, electromagnetic radiation, and sound.
Gamma rays: Gamma rays are the highest-energy form of electromagnetic radiation, with frequencies above 10^19 Hz and wavelengths shorter than 10 picometers. They are produced by nuclear reactions, such as those occurring in stars or during radioactive decay.
Gamma Rays: Gamma rays are the highest-energy form of electromagnetic radiation, with wavelengths shorter than X-rays and frequencies greater than 10^19 Hz. They are produced by the radioactive decay of atomic nuclei and have the ability to penetrate deep into matter, making them useful for various applications in science, medicine, and industry.
Hertz: Hertz (Hz) is the unit used to measure the frequency of a wave, specifically the number of cycles or oscillations that occur per second. It is a fundamental unit in the study of the behavior of light and the electromagnetic spectrum.
Infrared: Infrared is a type of electromagnetic radiation with wavelengths longer than visible light but shorter than microwaves. It is commonly used in astronomy to observe celestial objects that are not visible in the optical spectrum due to dust or distance.
Infrared: Infrared is a type of electromagnetic radiation with wavelengths longer than visible light but shorter than radio waves. It is a crucial part of the electromagnetic spectrum and plays a vital role in observations made outside Earth's atmosphere.
Interference: Interference is the phenomenon that occurs when two or more waves, such as light or sound, interact with each other to produce a new wave pattern. This interaction can result in either the reinforcement or the cancellation of the original waves, depending on the relative phases of the waves.
Microwave: Microwave radiation is a type of electromagnetic radiation with wavelengths ranging from one millimeter to one meter. It falls between infrared and radio waves on the electromagnetic spectrum.
Microwaves: Microwaves are a type of electromagnetic radiation with wavelengths ranging from about 1 millimeter to 1 meter, and frequencies between 300 MHz and 300 GHz. They are a crucial part of the electromagnetic spectrum and have a wide range of applications in modern technology.
Nanometer: A nanometer (nm) is a unit of length in the metric system, equal to one-billionth of a meter (10^-9 m). It is a fundamental unit used to measure extremely small lengths, particularly in the context of the electromagnetic spectrum and the study of atomic and molecular structures.
Ozone Layer: The ozone layer is a region in the Earth's upper atmosphere, the stratosphere, that contains a high concentration of ozone (O3) molecules. This layer plays a crucial role in absorbing and filtering out harmful ultraviolet (UV) radiation from the sun, protecting life on Earth from its damaging effects.
Photon: A photon is a quantum of electromagnetic radiation, essentially a particle of light. It has no mass, carries energy, and travels at the speed of light in a vacuum.
Photon: A photon is a fundamental particle that is the basic unit of light and all other forms of electromagnetic radiation. It is the smallest possible quanta, or discrete packet, of electromagnetic energy. Photons are essential to the understanding of the electromagnetic spectrum, spectroscopy in astronomy, and the structure of the atom.
Polarization: Polarization is a property of electromagnetic waves that describes the orientation of the wave's electric field as it propagates through space. It is a fundamental characteristic of light and other forms of electromagnetic radiation that has important implications for various applications in the field of astronomy and beyond.
Pulsar: A pulsar is a highly magnetized, rapidly rotating neutron star that emits beams of electromagnetic radiation from its poles. These beams of radiation are observed as regular pulses of light, radio waves, or other forms of electromagnetic energy as the pulsar rotates, making pulsars some of the most fascinating and unique objects in the universe.
Quasar: A quasar is an extremely luminous active galactic nucleus, powered by a supermassive black hole at its center. Quasars emit enormous amounts of energy, often outshining the entire galaxy in which they reside.
Quasar: A quasar is an extremely luminous active galactic nucleus (AGN) powered by a supermassive black hole at the center of a distant galaxy. Quasars are among the most energetic and distant objects in the observable universe, emitting vast amounts of electromagnetic radiation across the spectrum, from radio waves to X-rays and gamma rays.
Radio waves: Radio waves are a type of electromagnetic radiation with wavelengths longer than infrared light. They are used in various forms of communication, including radio and television broadcasting, radar, and astronomy observations.
Radio Waves: Radio waves are a type of electromagnetic radiation with wavelengths ranging from about a meter to over a thousand kilometers. They are used for various forms of communication, including radio and television broadcasting, as well as wireless technologies like Wi-Fi and Bluetooth.
Rayleigh Scattering: Rayleigh scattering is a physical process in which light is scattered by particles much smaller than the wavelength of the light. This type of scattering is responsible for the blue color of the sky and the reddish appearance of the Sun during sunrise and sunset.
Refraction: Refraction is the bending of light as it passes from one medium to another with a different density or refractive index. This phenomenon occurs when light travels from one material, such as air, into another material, like water or glass, causing the light to bend or change direction.
ROYGBIV: ROYGBIV is an acronym that represents the sequence of colors in the visible light spectrum: red, orange, yellow, green, blue, indigo, and violet. This term is crucial in understanding the nature of light and its applications in astronomy.
Spectrometer: A spectrometer is an instrument used to measure and analyze the spectrum of light emitted, absorbed, or scattered by materials. It helps in determining the composition, temperature, density, and motion of astronomical objects.
Spectrometer: A spectrometer is an instrument used to measure and analyze the spectrum of light, which is the distribution of light intensity across different wavelengths or frequencies. Spectrometers are essential tools in various fields, including astronomy, physics, chemistry, and materials science, as they provide valuable information about the composition and properties of matter and energy.
Spectroscopy: Spectroscopy is the study of the interaction between matter and electromagnetic radiation, which provides valuable information about the composition, temperature, and motion of celestial objects. This technique is widely used in astronomy to analyze the properties of stars, galaxies, and other cosmic phenomena.
Speed of Light: The speed of light is the maximum velocity at which all electromagnetic radiation, including visible light, can travel through a vacuum. It is a fundamental constant in the universe that has profound implications across various fields of study in astronomy and physics.
Stefan-Boltzmann Law: The Stefan-Boltzmann law describes the relationship between the total energy radiated per unit surface area of a black body and its absolute temperature. It states that the total energy radiated is proportional to the fourth power of the body's absolute temperature.
Ultraviolet: Ultraviolet (UV) radiation is a type of electromagnetic radiation with wavelengths shorter than visible light but longer than X-rays. It plays a significant role in astronomical observations and has various effects on celestial bodies.
Ultraviolet: Ultraviolet (UV) is a type of electromagnetic radiation with wavelengths shorter than visible light but longer than X-rays. It is a high-energy form of light that has important applications in astronomy, as well as significant impacts on life on Earth.
Visible light: Visible light is the portion of the electromagnetic spectrum that is detectable by the human eye. It ranges from approximately 400 to 700 nanometers in wavelength.
Visible Light: Visible light is the portion of the electromagnetic spectrum that is visible to the human eye. It is the only part of the electromagnetic spectrum that can be directly perceived by our visual system, allowing us to see the world around us in a range of colors.
Wavelength: Wavelength is the distance between successive peaks or troughs of a wave, usually measured in meters. It is a fundamental property of all types of waves, including light waves studied in astronomy.
Wavelength: Wavelength is a fundamental property of waves, referring to the distance between consecutive peaks or troughs of a wave. It is a crucial characteristic that defines the behavior and properties of various forms of electromagnetic radiation, including light, radio waves, and X-rays, as well as other types of waves such as sound waves.
Wien's Displacement Law: Wien's Displacement Law is a fundamental principle in astrophysics that describes the relationship between the temperature of a blackbody and the wavelength at which it emits the most radiation. It is a crucial concept in understanding the electromagnetic spectrum, spectroscopy in astronomy, and the spectra of stars and brown dwarfs.
Wien’s law: Wien's law states that the wavelength at which a blackbody radiates most intensely is inversely proportional to its temperature. This means hotter objects emit radiation at shorter wavelengths.
X-rays: X-rays are a type of high-energy electromagnetic radiation with wavelengths shorter than those of visible light. They are widely used in various fields, including astronomy, medicine, and scientific research, due to their unique properties and ability to interact with matter.
