11.2 Electron Counting and the 18-Electron Rule

Electron Counting Basics

Electron counting is how you track the total number of valence electrons around a transition metal in a complex. The central idea is the 18-electron rule: transition metal complexes tend to be most stable when the metal's valence shell holds 18 electrons (its own d electrons plus those donated by ligands). This mirrors the octet rule for main-group elements, but here you're filling nine valence orbitals (one s, three p, five d) instead of four.

This section covers the two main counting methods, how different ligands contribute electrons, and when the 18-electron rule breaks down.

Valence Electrons and Coordination

The valence electrons of a transition metal are those in its outermost s and d orbitals. For electron counting purposes, you use the metal's group number to determine how many valence electrons the neutral atom contributes. Iron (Group 8), for example, contributes 8 valence electrons.

The coordination number is the number of ligand atoms directly bonded to the metal. More ligands generally means more donated electrons, pushing the count toward 18.

A few related terms to keep straight:

• Oxidation state: the hypothetical charge on the metal if all metal-ligand bonds were broken and the bonding electrons were assigned to the more electronegative atom. This tells you the metal's d-electron count.
• Formal charge: the charge on an atom calculated by assuming all bonding electrons are shared equally. Different from oxidation state because it splits bonds 50/50 rather than giving electrons to the more electronegative partner.
• Effective atomic number (EAN): the total electron count around the metal (metal d electrons + ligand-donated electrons). When EAN equals the electron count of the next noble gas, you've hit 18 electrons.

Electron Counting Methods

There are two widely used approaches. Both give the same final electron count if done correctly. Pick whichever feels more intuitive and stick with it.

Neutral Atom (Covalent) Method:

1. Start with the number of valence electrons of the neutral metal (use its group number).
2. Add or subtract electrons to account for the overall charge on the complex.
3. Treat all ligands as neutral and count the electrons each donates in a covalent (homolytic) sense. Neutral donors like CO give 2e; radicals like $\text{CH}_3\cdot$ or $\text{Cl}\cdot$ give 1e.
4. Sum everything up.

Oxidation State (Ionic) Method:

1. Determine the metal's oxidation state by treating anionic ligands as having their full ionic charges.
2. Calculate the metal's d-electron count: group number minus oxidation state.
3. Add electrons donated by each ligand. In this method, neutral ligands donate 2e and anionic ligands (like $\text{Cl}^-$, $\text{CH}_3^-$) also donate 2e because you already removed electrons from the metal when you assigned the oxidation state.
4. Sum everything up.

Ligand Contributions

Neutral and Anionic Ligands

How many electrons a ligand donates depends on whether you're using the neutral atom or ionic method, and on the ligand's charge and bonding mode.

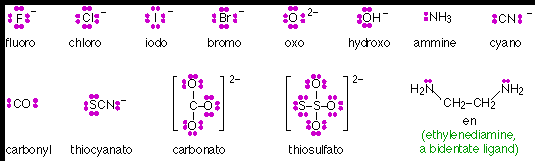

Neutral 2-electron donors bond to the metal through a lone pair without changing its oxidation state. Common examples:

• CO (carbon monoxide): donates 2e through the carbon lone pair
• $\text{NH}_3$ (ammonia): donates 2e
• $\text{PR}_3$ (phosphines): donates 2e
• $\text{H}_2\text{O}$: donates 2e

Anionic ligands carry a negative charge. In the ionic method, they donate 2e each (the full lone pair). In the neutral atom method, they donate 1e each (you treat them as neutral radicals sharing one electron with the metal). Examples:

• Halides ($\text{Cl}^-$, $\text{Br}^-$): 2e ionic / 1e covalent
• Alkyl groups ($\text{CH}_3^-$): 2e ionic / 1e covalent
• Hydride ($\text{H}^-$): 2e ionic / 1e covalent

Variable donors can contribute different numbers of electrons depending on their binding mode. The nitrosyl ligand (NO) is a classic case: when it binds in a linear fashion ($\text{M-N-O} \approx 180°$), it acts as a 3-electron donor (neutral method) or a 2-electron donor from $\text{NO}^+$ (ionic method). When it bends ($\text{M-N-O} \approx 120°$), it acts as a 1-electron donor (neutral method) or a 2-electron donor from $\text{NO}^-$ (ionic method).

Hapticity and Electron Donation

Hapticity (symbol: $\eta$, eta) describes how many contiguous atoms of a ligand are bonded to the metal. This directly controls how many electrons the ligand donates.

• $\eta^1$: one atom bound to the metal
• $\eta^2$: two atoms bound (e.g., an alkene coordinating through its $\pi$ bond)
• $\eta^5$: five atoms bound (e.g., cyclopentadienyl wrapping around the metal)

The cyclopentadienyl ligand ($\text{C}_5\text{H}_5$, often abbreviated Cp) is the textbook example:

• As $\eta^5\text{-Cp}^-$ (ionic method): donates 6e (5 carbon atoms all coordinated, anionic ligand)
• As $\eta^5\text{-Cp}$ (neutral method): donates 5e
• As $\eta^1\text{-Cp}$: donates only 1e (neutral) or 2e (ionic), since only one carbon is bound

Other common polyhapto ligands and their electron donations (neutral atom method):

• $\eta^2$-ethylene ($\text{C}_2\text{H}_4$): 2e
• $\eta^4$-butadiene ($\text{C}_4\text{H}_6$): 4e
• $\eta^6$-benzene ($\text{C}_6\text{H}_6$): 6e

Pi-acceptor ligands deserve a quick note here. Ligands like CO don't just donate electrons to the metal; they also accept electron density back from filled metal d-orbitals into their empty $\pi^*$ antibonding orbitals. This backbonding stabilizes metals in low oxidation states and shortens the M-C bond while weakening the C-O bond. For electron counting purposes, CO still counts as a 2e donor, but backbonding is why CO stabilizes electron-rich metals so effectively.

Complex Types

Electron-Deficient and Electron-Rich Complexes

Not every complex hits 18 electrons. Knowing where a complex falls tells you a lot about its reactivity.

Electron-deficient complexes (fewer than 18e) have empty orbitals available, making them electrophilic at the metal center. They're common for early transition metals (Groups 3-5) because these metals have fewer d electrons to start with and often can't coordinate enough ligands to reach 18e.

• $\text{TiCl}_4$: Ti (Group 4) in the +4 oxidation state has 0 d-electrons. Four $\text{Cl}^-$ donate 8e (ionic method), giving 8 valence electrons total. That's well short of 18, but the complex is still isolable.
• These complexes are often highly reactive toward incoming nucleophiles or additional ligands.

Electron-rich complexes (more than 18e) are less common and tend to be unstable. Extra electrons must occupy antibonding orbitals, which weakens metal-ligand bonds.

• 19-electron species like $\text{Co(CO)}_4$ (neutral, not the anion) are typically reactive radicals that quickly dimerize or lose a ligand to reach 18e.
• $[\text{Co(CO)}_4]^-$ is actually an 18-electron species (Co in the -1 oxidation state: 10 d-electrons + 4 × 2e from CO = 18e), so be careful with charges.

Exceptions to the 18-Electron Rule

The 18-electron rule is a guideline, not a law. Several important classes of stable complexes break it:

16-electron square planar complexes are the most significant exception. Metals with a $d^8$ configuration commonly adopt square planar geometry, leaving one metal orbital (the $d_{x^2-y^2}$) high enough in energy that it stays empty.

• $[\text{PtCl}_4]^{2-}$: Pt(II) has 8 d-electrons + 4 × 2e = 16e. Perfectly stable.
• Other $d^8$ examples: $[\text{RhCl(PPh}_3)_3]$ (Wilkinson's catalyst, 16e), $[\text{Ni(CN)}_4]^{2-}$ (16e), $[\text{IrCl(CO)(PPh}_3)_2]$ (Vaska's complex, 16e).

Sterically protected low-electron-count complexes survive because bulky ligands physically block additional ligands from coordinating.

• $\text{Ti(CH}_2\text{CMe}_3)_4$: only 8 valence electrons, but the neopentyl groups are so bulky that nothing else can get close to the titanium.

High-spin octahedral complexes of first-row metals with weak-field ligands can sometimes appear to exceed 18 electrons when you count naively, but this is better understood through ligand field theory. For example, $[\text{Mn(H}_2\text{O)}_6]^{2+}$ counts to 17e (Mn²⁺ = 5 d-electrons + 6 × 2e = 17e), and it's stable because the high-spin $d^5$ configuration is particularly favorable. The 18-electron rule is most reliable for organometallic complexes with strong-field ligands; it's less predictive for classical Werner-type coordination compounds with weak-field ligands.

Theoretical Framework

Ligand Field Theory and Molecular Orbital Approach

The 18-electron rule has a deeper justification in molecular orbital (MO) theory. In an octahedral complex, the metal's nine valence orbitals (5d + 3p + 1s) combine with ligand orbitals to form bonding, nonbonding, and antibonding molecular orbitals. The nine lowest-energy MOs (bonding + nonbonding) can hold 18 electrons. Filling all nine gives a stable, closed-shell configuration. Adding more electrons forces population of antibonding orbitals, destabilizing the complex.

Ligand field theory focuses on how ligands split the metal's d-orbital energies:

• In octahedral geometry, d-orbitals split into a lower $t_{2g}$ set (3 orbitals) and a higher $e_g$ set (2 orbitals). The energy gap between them is $\Delta_o$.
• In tetrahedral geometry, the splitting is inverted and smaller ($\Delta_t \approx \frac{4}{9}\Delta_o$).
• In square planar geometry, the splitting pattern leaves one orbital ($d_{x^2-y^2}$) at very high energy, which is why $d^8$ metals prefer to leave it empty (16e complexes).

Ligand field strength determines the size of $\Delta$. The spectrochemical series ranks ligands roughly as:

$\text{I}^- < \text{Br}^- < \text{Cl}^- < \text{F}^- < \text{H}_2\text{O} < \text{NH}_3 < \text{PPh}_3 < \text{CO} < \text{CN}^-$

Strong-field ligands (CO, $\text{CN}^-$) create large splittings, favoring low-spin configurations and making the 18-electron rule more predictive. Weak-field ligands (halides, water) create small splittings, and complexes with these ligands more frequently deviate from the rule.

The MO framework also explains the three types of metal-ligand bonding:

• σ-bonding: ligand donates electron density directly into a metal orbital along the bond axis. All ligands do this.
• π-bonding: sideways overlap between metal d-orbitals and ligand p or $\pi^*$ orbitals. CO backbonding is the classic example.
• δ-bonding: face-to-face overlap of d-orbitals, relevant mainly in metal-metal multiple bonds (e.g., in $[\text{Re}_2\text{Cl}_8]^{2-}$).

Applications of Electron Counting

Electron counting is a practical tool, not just a bookkeeping exercise. Here's where it matters most:

Predicting stability: 18-electron complexes like $\text{Fe(CO)}_5$ (Fe = 8e + 5 × 2e = 18e) and ferrocene \text{Fe(\eta^5\text{-Cp})}_2 (Fe = 8e + 2 × 5e = 18e) are notably stable. If your proposed complex doesn't reach 18e, ask whether there's a good reason (square planar $d^8$, steric protection, etc.) or whether the complex is likely to be reactive or unstable.

Understanding catalytic cycles: During a catalytic cycle, the metal's electron count changes at each step. A classic pattern in many catalytic reactions alternates between 16e and 18e intermediates:

1. A stable 18e complex loses a ligand → 16e (creates an open coordination site)
2. Substrate binds → 18e
3. Oxidative addition, insertion, or other bond-making/breaking step changes the count
4. Product dissociates → back to 16e or 18e

Tracking the electron count at each intermediate helps you predict which steps are favorable and where the cycle might stall.

Designing new complexes: If you want a complex that's catalytically active, you often want it slightly electron-deficient (16e) so substrates can bind. If you want a stable precursor for storage, 18e is better. Electron counting guides these design choices in catalysis, materials science, and medicinal chemistry.
