9.4 Bounding box regression
7 min read•august 21, 2024
regression is a crucial technique in computer vision for localizing objects in images. It involves predicting the coordinates of rectangular regions that enclose detected objects, enabling precise spatial information extraction for tasks like and tracking.
This topic covers the fundamentals of bounding boxes, regression algorithms, loss functions, and training strategies. It also explores evaluation metrics, challenges, advanced techniques, and applications in computer vision, providing a comprehensive overview of this essential component in image analysis.
Fundamentals of bounding boxes
- Bounding boxes form the foundation of object localization in computer vision tasks involving Images as Data
- Serve as rectangular regions of interest that enclose detected objects within an image
- Enable precise spatial information extraction for downstream tasks like object detection and tracking
Definition and purpose
Top images from around the web for Definition and purpose

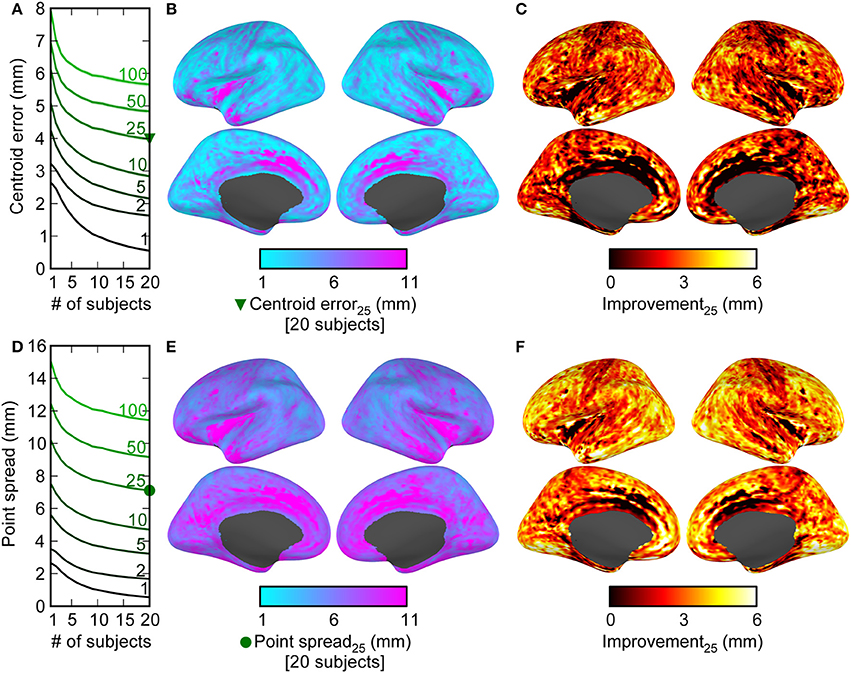

Frontiers | Improving spatial localization in MEG inverse imaging by leveraging intersubject ... View original
Is this image relevant?
(prerequisite-R-CNN) Bounding Box Regression View original
Is this image relevant?
RStudio AI Blog: Naming and locating objects in images View original
Is this image relevant?
Frontiers | Improving spatial localization in MEG inverse imaging by leveraging intersubject ... View original
Is this image relevant?
(prerequisite-R-CNN) Bounding Box Regression View original
Is this image relevant?
1 of 3
Top images from around the web for Definition and purpose
Frontiers | Improving spatial localization in MEG inverse imaging by leveraging intersubject ... View original
Is this image relevant?
(prerequisite-R-CNN) Bounding Box Regression View original
Is this image relevant?
RStudio AI Blog: Naming and locating objects in images View original
Is this image relevant?
Frontiers | Improving spatial localization in MEG inverse imaging by leveraging intersubject ... View original
Is this image relevant?
(prerequisite-R-CNN) Bounding Box Regression View original
Is this image relevant?
1 of 3
- Rectangular regions defined by coordinates that encompass objects in images
- Provide spatial localization of objects within a scene
- Enable quantitative analysis of object size, position, and relationships
- Facilitate object-level processing in computer vision pipelines (cropping, feature extraction)
Components of bounding boxes
- Four coordinates defining the box: (x, y) for top-left corner, width, and height
- Center point coordinates sometimes used as an alternative representation
- Confidence score indicating the likelihood of object presence
- Class label associating the box with a specific object category
Coordinate systems for boxes
- Pixel-based coordinates relative to image dimensions
- Normalized coordinates ranging from 0 to 1 for width and height
- Anchor-based systems defining boxes relative to predefined reference points
- Polar for rotated bounding boxes
Bounding box regression overview
- Regression techniques estimate continuous values for box coordinates
- Crucial for refining initial object proposals in two-stage detectors
- Enables end-to-end learning of object localization in single-stage detectors
Regression vs classification
- Regression predicts continuous box coordinates
- Classification determines object presence and category
- Regression optimizes for precise localization
- Classification focuses on discriminative features for object recognition
Objective of box regression
- Minimize the difference between predicted and ground truth box coordinates
- Refine initial object proposals to tightly fit detected objects
- Learn to adjust box dimensions and position based on image features
- Optimize for high with ground truth boxes
Input and output formats
- Input includes initial box proposals and corresponding image features
- Output consists of refined box coordinates (x, y, width, height)
- Coordinate offsets often predicted instead of absolute values
- Confidence scores and class probabilities may be included in output
Regression algorithms
- Various algorithms adapt regression techniques to bounding box prediction
- Range from simple linear models to complex deep learning architectures
- Trade-offs between computational efficiency and localization accuracy
Linear regression for boxes
- Simplest form of bounding box regression
- Learns a linear transformation of input features to box coordinates
- Fast and computationally efficient but limited in capturing complex relationships
- Often used as a baseline or in resource-constrained environments
Non-linear regression techniques
- Incorporate non-linear transformations to capture complex spatial relationships
- adapts support vector machines for box prediction
- combine multiple decision trees for robust box estimation
- models like XGBoost sequentially improve box predictions
Deep learning approaches
- extract hierarchical features for box regression
- Fully connected layers map CNN features to box coordinates
- generate and refine box proposals simultaneously
- leverage attention mechanisms for global context
Loss functions
- Guide the learning process by quantifying prediction errors
- Balance between coordinate accuracy and overall box overlap
- Influence the convergence and stability of training
IoU loss
- Measures the overlap between predicted and ground truth boxes
- Ranges from 0 (no overlap) to 1 (perfect overlap)
- Invariant to scale, addressing issues with coordinate-based losses
- Encourages tighter bounding boxes by maximizing intersection area
Smooth L1 loss
- Combines L1 and L2 losses to balance robustness and sensitivity
- Less sensitive to outliers compared to mean squared error
- Defined piecewise with different behaviors for small and large errors
- Commonly used in object detection frameworks ()
GIoU and DIoU losses
- Generalized IoU (GIoU) loss addresses limitations of standard IoU
- Accounts for the distance between non-overlapping boxes
- Distance IoU (DIoU) loss incorporates both overlap and central point distance
- Improve convergence speed and localization accuracy in various scenarios
Training strategies
- Techniques to enhance model generalization and performance
- Address challenges like class imbalance and scale variation
- Influence the efficiency and effectiveness of the training process
Data augmentation for boxes
- Random cropping and resizing to simulate scale variations
- Horizontal flipping to increase dataset diversity
- Rotation and shearing to improve robustness to object orientation
- Mixup and CutMix techniques for regularization and improved generalization
Anchor-based vs anchor-free
- use predefined reference boxes for regression
- directly predict box coordinates without references
- Trade-offs between computational efficiency and localization accuracy
- Recent trend towards anchor-free methods for simplicity and performance
Multi-scale training
- Trains models on images of varying resolutions
- Improves detection of objects at different scales
- Implements feature pyramid networks for multi-scale feature extraction
- Employs adaptive sampling strategies to balance scale representation
Evaluation metrics
- Quantify the performance of bounding box regression models
- Enable comparison between different algorithms and architectures
- Guide model selection and hyperparameter tuning
IoU threshold
- Defines the minimum overlap required for a true positive detection
- Typically set between 0.5 and 0.95 for different evaluation scenarios
- Higher thresholds emphasize localization accuracy
- Multiple thresholds often used to assess performance across different criteria
Mean Average Precision (mAP)
- Summarizes - curve across all classes
- Calculated by averaging AP scores for each object category
- Considers both classification accuracy and localization precision
- Standard metric for comparing object detection models (COCO, PASCAL VOC)
Recall vs precision
- Recall measures the proportion of ground truth objects detected
- Precision quantifies the accuracy of positive predictions
- Trade-off between recall and precision influenced by confidence threshold
- Precision-Recall curves visualize model performance across different operating points
Challenges and limitations
- Identify areas where bounding box regression faces difficulties
- Guide research efforts towards improving robustness and applicability
- Inform users about potential limitations in real-world scenarios
Occlusion handling
- Partial object visibility complicates accurate box regression
- Requires models to infer complete object extent from limited information
- Strategies include part-based models and occlusion-aware loss functions
- Datasets with occlusion annotations help in developing robust solutions
Small object detection
- Challenging due to limited pixel information and feature resolution
- Requires specialized architectures or high-resolution input images
- Techniques include feature pyramid networks and focused
- Applications in satellite imagery analysis and crowd monitoring
Crowded scene analysis
- Dense object arrangements lead to overlapping bounding boxes
- Difficulty in separating individual instances in close proximity
- Requires advanced non-maximum suppression techniques
- Relevant for urban scene understanding and crowd behavior analysis
Advanced techniques
- Cutting-edge methods pushing the boundaries of box regression performance
- Address limitations of traditional approaches
- Often combine multiple strategies for improved results
Cascade regression
- Sequential refinement of bounding boxes through multiple stages
- Each stage trained with increasingly strict IoU thresholds
- Improves localization accuracy, especially for high-quality detections
- Implemented in state-of-the-art frameworks (Cascade R-CNN)
Iterative refinement
- Applies multiple rounds of regression to a single box proposal
- Allows for fine-grained adjustments based on local image context
- Often implemented with recurrent neural networks or self-attention mechanisms
- Improves performance on challenging cases (partially occluded objects)
Attention mechanisms for boxes
- Leverages self-attention to capture long-range dependencies in images
- Allows for context-aware box refinement
- Transformer-based architectures (DETR) reformulate detection as a set prediction problem
- Enables end-to-end training without hand-crafted components (NMS, anchor generation)
Applications in computer vision
- Bounding box regression serves as a fundamental component in various tasks
- Enables object-centric analysis in complex visual scenes
- Facilitates higher-level reasoning about object relationships and behaviors
Object detection frameworks
- Two-stage detectors (Faster R-CNN) use separate proposal and refinement stages
- Single-stage detectors (, ) predict boxes and classes simultaneously
- Anchor-free methods (FCOS, CenterNet) directly regress box coordinates
- Real-time object detection crucial for autonomous driving and surveillance
Instance segmentation
- Extends bounding box detection to pixel-level object masks
- Mask R-CNN adds a parallel branch for mask prediction
- YOLACT performs real-time with prototype learning
- Applications in medical image analysis and autonomous robotic manipulation
Pose estimation
- Combines bounding box detection with keypoint localization
- Estimates human body joint positions within detected person boxes
- Multi-person in crowded scenes remains challenging
- Used in action recognition, sports analysis, and human-computer interaction
Future directions
- Emerging research areas pushing the boundaries of box regression
- Address current limitations and explore new problem formulations
- Potential for significant impact on computer vision applications
3D bounding box regression
- Extends 2D box prediction to 3D space for depth and orientation estimation
- Crucial for autonomous driving and robotics applications
- Challenges include dealing with limited depth information in 2D images
- LiDAR and multi-view fusion techniques enhance 3D box accuracy
Few-shot box regression
- Aims to learn box regression from limited labeled examples
- Leverages meta-learning and transfer learning techniques
- Enables rapid adaptation to new object categories or domains
- Particularly relevant for industrial applications with limited data
Self-supervised box learning
- Explores ways to learn bounding box representations without explicit annotations
- Leverages unlabeled video data or multi-view consistency for supervision
- Potential to significantly reduce annotation costs for large-scale datasets
- Combines contrastive learning with spatial consistency objectives
Key Terms to Review (43)
3d bounding box regression: 3D bounding box regression is a computer vision technique used to predict the dimensions and position of a 3D bounding box that encloses an object in a three-dimensional space. This method is essential for accurately localizing and understanding objects in environments such as autonomous driving, robotics, and augmented reality. By utilizing machine learning models, this technique refines the initial bounding box estimates to better fit the object's shape and orientation based on visual data.
Anchor boxes: Anchor boxes are predefined bounding boxes used in object detection algorithms to identify the location and size of objects within images. They serve as a reference point that helps the model predict and adjust bounding boxes for different object shapes and sizes. This approach allows for improved accuracy in detecting objects, especially in varying aspect ratios and scales, and is crucial for effective object localization, bounding box regression, region-based networks, and real-time detection algorithms.
Anchor-based methods: Anchor-based methods are techniques used in object detection and image localization that rely on predefined anchor boxes to predict the presence and location of objects within an image. These methods utilize a set of anchors with various sizes and aspect ratios, allowing for more accurate bounding box predictions as they can match multiple object scales and shapes effectively. By leveraging these anchors, models can streamline the detection process and improve performance in identifying objects in diverse scenarios.
Anchor-free approaches: Anchor-free approaches are methods in object detection that do not rely on predefined anchor boxes to localize objects within an image. Instead, these methods directly predict the positions and dimensions of bounding boxes based on features extracted from the image, allowing for greater flexibility and adaptability to varying object shapes and sizes. This can lead to improved accuracy and efficiency in detecting objects, especially in complex environments.
Attention mechanisms for boxes: Attention mechanisms for boxes are techniques used in computer vision to improve the performance of object detection models by focusing on specific regions of an image that are more likely to contain objects of interest. This approach enhances the model's ability to predict bounding boxes around objects, allowing it to allocate more computational resources to important areas, thereby increasing accuracy and efficiency in identifying and localizing objects within images.
Backpropagation: Backpropagation is a widely used algorithm for training artificial neural networks, enabling them to learn from errors by propagating the error gradients backward through the network. This process adjusts the weights of the connections between neurons based on the error produced in the output layer compared to the expected results, effectively minimizing the loss function. By utilizing this technique, networks can refine their predictions, enhancing their performance in tasks such as image recognition and classification.
Bounding box: A bounding box is a rectangular box that encapsulates an object within an image, defined by the coordinates of its top-left and bottom-right corners. It serves as a crucial tool in computer vision tasks like identifying the location of objects, allowing models to understand where to focus their attention. By providing a clear outline of objects, bounding boxes aid in various applications such as object detection and localization, making them foundational in modern image analysis techniques.
Cascade Regression: Cascade regression is a machine learning technique used primarily in object detection tasks, where a series of regression models are arranged in a sequence to progressively refine the predictions of bounding box parameters. This approach allows for quick and efficient learning, as each subsequent model in the cascade focuses on correcting the errors made by the previous one, ultimately leading to more accurate bounding box predictions for objects within images.
Convolutional neural networks (cnns): Convolutional neural networks (CNNs) are a class of deep learning models specifically designed for processing structured grid data, such as images. They utilize convolutional layers to automatically detect and learn features from the input data, which makes them particularly effective for tasks like image recognition, object detection, and more. By capturing spatial hierarchies and patterns in data, CNNs play a crucial role in advancements related to various applications, such as bounding box regression, deblurring techniques, augmented reality, and feature description.
Coordinate systems: Coordinate systems are frameworks used to uniquely determine the position of points in a space through ordered pairs or triples of numbers, known as coordinates. These systems allow for the representation of geometric shapes, movements, and relationships within various dimensions, making them essential in fields like computer vision and image processing, particularly when dealing with tasks such as bounding box regression.
Data augmentation: Data augmentation is a technique used to artificially increase the size and diversity of a training dataset by applying various transformations to the existing data. This process enhances model generalization and reduces overfitting by introducing variability in the training examples, which can significantly improve performance in tasks like image recognition and object detection.
Diou loss: Diou loss refers to the reduction of information caused by the misalignment between predicted bounding boxes and the ground truth boxes in object detection tasks. It plays a critical role in improving model accuracy by minimizing discrepancies between predicted and actual locations of objects within images, ensuring that the model learns to accurately identify and localize various objects.
Faster R-CNN: Faster R-CNN is an advanced deep learning framework designed for object detection that integrates region proposal networks (RPN) into the standard CNN architecture. By streamlining the process of generating object proposals, it significantly improves the speed and accuracy of object detection tasks. This model operates through supervised learning to train both the RPN and the classification layers simultaneously, making it efficient in identifying and localizing objects within images.
Feature Maps: Feature maps are the output of a convolutional layer in a neural network, representing specific features detected from the input data, such as edges or textures in an image. They are essential for transforming the raw pixel data into meaningful representations that can be used for tasks like object detection, including bounding box regression. Feature maps allow the network to capture spatial hierarchies and patterns, which are critical for understanding the context of images.
Few-shot box regression: Few-shot box regression is a technique in machine learning that focuses on the task of predicting the bounding box for an object using only a few annotated examples. This approach is essential when labeled data is scarce, allowing models to generalize and accurately predict object locations based on limited information. By leveraging prior knowledge and contextual cues, few-shot box regression improves the efficiency of object detection systems, particularly in scenarios where data collection is challenging or expensive.
GIoU Loss: GIoU Loss, or Generalized Intersection over Union Loss, is an enhancement over the traditional Intersection over Union (IoU) metric used for evaluating the accuracy of bounding box predictions in object detection tasks. It provides a more comprehensive measure by incorporating not only the overlap area between predicted and ground truth boxes but also the distance to the smallest enclosing box that can contain both. This makes GIoU Loss particularly useful for improving bounding box regression, as it addresses issues when the predicted box does not overlap with the ground truth at all.
Gradient Boosting: Gradient boosting is a machine learning technique that builds a predictive model in the form of an ensemble of weak learners, typically decision trees, and optimizes them by minimizing a loss function through gradient descent. This method is particularly effective for both classification and regression tasks, making it a powerful tool in supervised learning. By iteratively adding new models that correct the errors of existing ones, gradient boosting enhances the overall predictive performance.
Image Segmentation: Image segmentation is the process of dividing an image into multiple segments or regions to simplify its representation and make it more meaningful for analysis. This technique is essential for various applications, as it helps isolate objects or areas of interest within an image, facilitating tasks such as object recognition, classification, and retrieval.
Instance Segmentation: Instance segmentation is a computer vision task that involves detecting and delineating individual objects within an image at the pixel level. This technique not only identifies objects but also distinguishes between different instances of the same object class, allowing for precise localization and understanding of various elements in a scene. It plays a crucial role in scene understanding and can improve bounding box regression by providing more detailed shape information about detected objects.
Intersection over union (IoU): Intersection over Union (IoU) is a metric used to evaluate the accuracy of an object detection model by measuring the overlap between the predicted bounding box and the ground truth bounding box. It is calculated as the area of intersection divided by the area of union of these two boxes. A higher IoU value indicates a better fit between the predicted and actual locations of objects, making it essential for various tasks in computer vision.
Iou loss: IOU loss, or Intersection over Union loss, is a metric used to evaluate the accuracy of an object detection model by measuring the overlap between the predicted bounding box and the ground truth bounding box. This loss function quantifies how well a model's predictions align with the actual objects in an image, emphasizing the importance of precise localization in tasks like image segmentation and object detection.
Iou threshold: The IoU (Intersection over Union) threshold is a metric used to evaluate the accuracy of an object detection model by measuring the overlap between the predicted bounding box and the ground truth bounding box. A higher IoU threshold indicates a stricter criterion for determining whether a prediction is considered correct, directly influencing the performance metrics such as precision and recall in bounding box regression tasks.
Iterative refinement: Iterative refinement is a process used to improve the accuracy of predictions or models through repeated adjustments based on feedback. In the context of bounding box regression, it involves continuously fine-tuning the predicted bounding boxes to better fit the ground truth boxes, enhancing detection performance and reducing localization errors. This method emphasizes learning from previous outputs to incrementally enhance the quality of results.
Learning Rate: The learning rate is a hyperparameter that determines the step size at each iteration while moving toward a minimum of a loss function in optimization algorithms. A proper learning rate is crucial as it controls how much to adjust the weights of the model with respect to the loss gradient. It directly impacts how quickly and effectively a model can learn, particularly in processes like bounding box regression where precise localization is key.
Linear Regression: Linear regression is a statistical method used to model the relationship between a dependent variable and one or more independent variables by fitting a linear equation to observed data. This technique helps in predicting outcomes and understanding relationships by estimating the coefficients that minimize the difference between the observed values and the values predicted by the model.
Mean average precision (mAP): Mean average precision (mAP) is a metric used to evaluate the performance of object detection models by measuring the accuracy of predicted bounding boxes against ground truth annotations. It combines precision and recall across multiple classes, offering a comprehensive view of how well a model performs in locating and classifying objects within an image. mAP is especially relevant in assessing models that localize objects and predict their boundaries, making it a crucial factor in various detection algorithms and techniques.
Multi-scale training: Multi-scale training is a technique used in machine learning and computer vision that involves training models on images of different scales to improve their robustness and performance in detecting objects at various sizes. This approach helps models learn to recognize features that may appear differently depending on the scale, enhancing their ability to generalize across different contexts and resolutions.
Non-linear regression techniques: Non-linear regression techniques are statistical methods used to model complex relationships between variables where the relationship is not a straight line. These techniques are crucial when dealing with data that exhibits non-linear patterns, allowing for more accurate predictions and insights. They extend beyond simple linear models, incorporating various functional forms to fit the data better, which is particularly important in fields like image analysis where bounding boxes and object detection often involve complex geometric transformations.
Normalization: Normalization is the process of adjusting values measured on different scales to a common scale, often to improve the comparability of datasets. It helps to standardize the range of independent variables or features of data, making it crucial for tasks like analysis, training models, and image processing. By bringing diverse data into a uniform format, normalization facilitates better pattern recognition and enhances the performance of various algorithms.
Object detection: Object detection is a computer vision technique that identifies and locates objects within an image or video stream, providing both the classification of the object and its spatial coordinates. This process often involves the use of algorithms that can analyze visual data and determine the presence of various objects in different contexts, which ties into methods such as feature extraction and machine learning.
Pose Estimation: Pose estimation is the process of determining the orientation and position of a person or object in space, typically using visual data from images or video. This involves identifying key points or landmarks on the subject's body and calculating their coordinates in a three-dimensional space. Accurate pose estimation is crucial for applications such as motion capture, augmented reality, and robotics, as it provides the necessary information to understand movement and interactions within an environment.
Precision: Precision refers to the degree to which repeated measurements or classifications yield consistent results. In various applications, it's crucial as it reflects the quality of a model in correctly identifying relevant data, particularly when distinguishing between true positives and false positives in a given dataset.
Random forests: Random forests is an ensemble learning method used for classification and regression tasks that operates by constructing multiple decision trees during training and outputting the mode of their predictions or mean prediction for regression. This approach improves accuracy and controls overfitting, making it a popular choice for handling complex datasets with high dimensionality.
Recall: Recall is a measure of a model's ability to correctly identify relevant instances from a dataset, often expressed as the ratio of true positives to the sum of true positives and false negatives. In machine learning and computer vision, recall is crucial for assessing how well a system retrieves or classifies data points, ensuring important information is not overlooked.
Region Proposal Networks (RPNs): Region Proposal Networks are a crucial component of modern object detection systems, designed to predict candidate object bounding boxes from feature maps. They operate by using deep learning techniques to generate region proposals that likely contain objects, which can then be refined further by classification and bounding box regression methods. RPNs are typically integrated into frameworks like Faster R-CNN, allowing for efficient and accurate detection by narrowing down the search space for objects.
Regression loss: Regression loss is a measure of how well a predictive model approximates the actual outcomes in regression tasks. It quantifies the difference between predicted values and the true target values, guiding the optimization of models like bounding box regression in image analysis. Understanding regression loss is crucial for effectively training models to make accurate predictions and adjustments in applications like object detection.
RetinaNet: RetinaNet is a state-of-the-art object detection framework that combines the strengths of both one-stage and two-stage detectors, designed to handle the problem of class imbalance in object detection. It employs a unique loss function called the Focal Loss, which focuses more on hard-to-detect objects while down-weighting easy-to-classify examples. This approach allows RetinaNet to achieve high accuracy in identifying and localizing objects within images.
Self-supervised box learning: Self-supervised box learning is a technique that enables models to learn from unlabeled data by using the inherent structure of the data itself to create supervisory signals. This method leverages the relationships and features present in the data, allowing models to generate bounding boxes around objects without requiring extensive manual annotation. It significantly reduces the need for labeled datasets while improving object detection performance in various tasks.
Smooth l1 loss: Smooth l1 loss is a loss function used primarily in regression tasks, combining the properties of both L1 and L2 losses to provide robustness to outliers while maintaining smooth gradients. It is particularly useful in bounding box regression, where the objective is to predict the location of objects in images. The smooth l1 loss helps in reducing the impact of outliers, making it advantageous for tasks involving bounding boxes that may have noisy data.
SSD: SSD, or Single Shot MultiBox Detector, is an object detection algorithm that can detect multiple objects in images efficiently and accurately. It operates by using a single deep neural network to predict the bounding boxes and class scores for different objects in an image, making it a popular choice for real-time applications. SSD combines features from the image at multiple scales, which enhances its ability to detect objects of various sizes within a single pass.
Support Vector Regression (SVR): Support Vector Regression (SVR) is a type of machine learning algorithm used for regression tasks that aims to find a function that deviates from the actual target values by a value no greater than a specified margin. It uses the principles of Support Vector Machines (SVM) but adapts them for predicting continuous outcomes instead of classifying discrete labels. SVR is particularly useful when the data set has outliers, as it focuses on minimizing errors within a defined margin while ignoring points that lie outside this margin.
Transformer-based architectures: Transformer-based architectures are a type of neural network design that uses self-attention mechanisms to process data sequences in parallel, rather than sequentially. This enables them to handle long-range dependencies and context more effectively than previous models like recurrent neural networks (RNNs). They have become a cornerstone in tasks such as natural language processing and image analysis, making them essential for modern machine learning applications.
YOLO: YOLO, which stands for 'You Only Look Once,' is a state-of-the-art object detection algorithm that is designed to recognize and locate multiple objects in images in real-time. By treating object detection as a single regression problem, it dramatically speeds up the process compared to traditional methods. YOLO is particularly known for its efficiency and accuracy, making it highly relevant in applications like real-time surveillance, autonomous driving, and facial recognition systems.
