Template matching is a powerful technique in image processing for finding specific patterns within larger images. It's used in , , and medical imaging analysis, forming a foundation for advanced image analysis in the field of Images as Data.
The process involves sliding a template image over an input image, calculating similarity at each position. Various algorithms, such as cross-correlation and , are used to measure similarity and identify matching regions. Understanding these methods is crucial for effective image analysis.
Fundamentals of template matching
Template matching serves as a crucial technique in image processing and computer vision for locating specific patterns within larger images
This method finds applications in object detection, facial recognition, and medical imaging analysis
Understanding template matching principles forms a foundation for more advanced image analysis techniques in the field of Images as Data
Definition and purpose
Top images from around the web for Definition and purpose

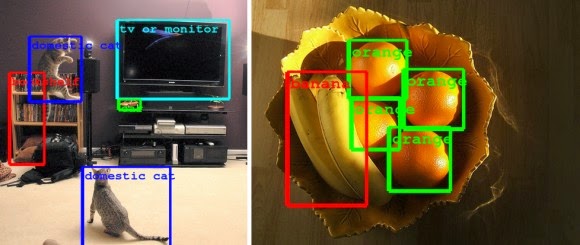

Google's Object Recognition Technology View original
Is this image relevant?
Walkthrough for template matching - Dynamo View original
Is this image relevant?
Google's Object Recognition Technology View original
Is this image relevant?
Walkthrough for template matching - Dynamo View original
Is this image relevant?
1 of 2
Top images from around the web for Definition and purpose
Google's Object Recognition Technology View original
Is this image relevant?
Walkthrough for template matching - Dynamo View original
Is this image relevant?
Google's Object Recognition Technology View original
Is this image relevant?
Walkthrough for template matching - Dynamo View original
Is this image relevant?
1 of 2
Pattern recognition technique used to find areas of an image that match a predefined template
Involves sliding the template image over the input image and calculating similarity at each position
Aims to identify regions in the target image that closely resemble the template
Useful for detecting objects, features, or patterns in various types of digital imagery
Types of template matching
Intensity-based matching compares pixel intensity values between the template and image regions
Feature-based matching focuses on identifying and comparing distinctive features or keypoints
Shape-based matching utilizes contour information to find similar shapes in the target image
Texture-based matching analyzes patterns and textures to locate similar regions
Applications in image processing
Object detection and recognition in computer vision systems
Facial feature localization for biometric authentication systems
Medical image analysis for identifying anatomical structures or abnormalities
Quality control in manufacturing for detecting defects or misalignments
Document analysis for locating specific elements (logos, signatures)
Template matching algorithms
Template matching algorithms form the core of the pattern recognition process in image analysis
These methods calculate similarity measures between the template and image regions to identify matches
Understanding different algorithms allows for selecting the most appropriate approach based on specific image data and application requirements
Cross-correlation method
Measures similarity by computing the dot product between the template and image region
Slides the template over the image, calculating correlation at each position
Higher correlation values indicate better matches between the template and image region
Computationally efficient but sensitive to changes in intensity and scale
Formula for cross-correlation: CC(x,y)=∑i,jT(i,j)∗I(x+i,y+j)
Where T is the template, I is the image, and (x,y) is the current position
Sum of squared differences
Calculates the squared difference between template and image region pixels
Lower values indicate better matches, with zero representing a perfect match
More robust to intensity variations compared to cross-correlation
Formula for sum of squared differences: SSD(x,y)=∑i,j[T(i,j)−I(x+i,y+j)]2
Computationally more expensive than cross-correlation but provides better in some cases
Normalized cross-correlation
Addresses limitations of standard cross-correlation by normalizing the values
Robust to changes in image brightness and contrast
Produces values between -1 and 1, with 1 indicating a perfect match
Formula for normalized cross-correlation:
NCC(x,y)=∑i,j[T(i,j)−Tˉ]2∗∑i,j[I(x+i,y+j)−Iˉ]2∑i,j[T(i,j)−Tˉ]∗[I(x+i,y+j)−Iˉ]
Widely used in practice due to its robustness and effectiveness
Feature-based vs pixel-based matching
Feature-based and pixel-based matching represent two fundamental approaches in template matching
The choice between these methods depends on the nature of the image data and specific application requirements
Understanding the strengths and weaknesses of each approach helps in selecting the most suitable technique for a given image analysis task
Advantages and limitations
Feature-based matching:
Advantages include robustness to scale and rotation changes
Faster computation time for large images
Better performance with partial occlusions
Limitations involve sensitivity to methods
May struggle with low-texture or repetitive patterns
Pixel-based matching:
Advantages include simplicity and effectiveness for well-defined templates
Works well for exact matches and controlled environments
Limitations include sensitivity to noise and illumination changes
Computationally intensive for large images or multiple templates
Choosing appropriate method
Consider the nature of the image data (texture, contrast, noise levels)
Evaluate the expected variations in scale, rotation, and illumination
Assess computational resources and processing time constraints
Analyze the level of accuracy required for the specific application
Experiment with both methods on sample data to compare performance
Template selection considerations
Proper template selection plays a crucial role in the success of template matching techniques
Choosing appropriate templates impacts the accuracy and efficiency of the matching process
Considering various factors in template selection helps optimize the performance of image analysis algorithms
Size and scale
Template size affects the specificity and computational cost of matching
Larger templates provide more detailed information but increase processing time
Smaller templates offer faster matching but may lead to more false positives
Consider multi-scale approaches to handle variations in object size within images
Balance between template size and expected object size in the target image
Rotation and orientation
Account for potential rotations of the object in the target image
Use rotation-invariant features or multiple rotated versions of the template
Consider techniques (Hough transform) for handling significant orientation changes
Evaluate the trade-off between rotation robustness and computational complexity
Implement orientation normalization techniques when applicable
Illumination variations
Address potential changes in lighting conditions between template and target image
Utilize illumination-invariant features or preprocessing techniques (histogram equalization)
Consider normalized correlation methods to mitigate the impact of brightness changes
Evaluate the use of edge-based templates to reduce sensitivity to illumination variations
Implement adaptive thresholding techniques to handle local illumination differences
Performance optimization techniques
Optimizing template matching performance enhances the efficiency and scalability of image analysis systems
These techniques aim to reduce computational complexity while maintaining accuracy
Implementing performance optimizations allows for processing larger datasets and real-time applications
Multi-scale approaches
Utilize image pyramids to perform matching at multiple resolutions
Start with coarse matching on downsampled images to identify regions of interest
Refine matches by progressively increasing resolution in promising areas
Reduces overall computation time by focusing on relevant image regions
Improves robustness to scale variations in the target objects
Hierarchical search strategies
Implement coarse-to-fine search methods to efficiently locate potential matches
Begin with a sparse grid search to identify promising regions
Progressively refine the search in areas with high similarity scores
Utilize branch and bound algorithms to prune the search space
Significantly reduces the number of comparisons required for large images
GPU acceleration
Leverage parallel processing capabilities of GPUs to speed up template matching
Implement matching algorithms using CUDA or OpenCL for massive parallelization
Utilize GPU memory hierarchy to optimize data access patterns
Achieve significant speedups, especially for large images or multiple templates
Enable real-time processing for video streams or high-resolution imagery
Challenges in template matching
Template matching faces various challenges that can impact its effectiveness in real-world scenarios
Understanding these challenges helps in developing robust solutions and interpreting results accurately
Addressing these issues often requires combining template matching with other image processing techniques
Occlusion and partial matching
Objects in images may be partially obscured or overlapping
Develop strategies to handle incomplete matches (partial template matching)
Utilize local feature matching to identify visible parts of occluded objects
Implement -aware similarity measures to improve robustness
Consider probabilistic approaches to estimate the likelihood of partial matches
Noise and distortion effects
Image noise and distortions can significantly impact matching accuracy
Apply preprocessing techniques (denoising filters) to reduce noise in input images
Utilize robust similarity measures less sensitive to local pixel variations
Consider template matching in transform domains (Fourier, wavelet) for noise reduction
Implement adaptive thresholding techniques to handle varying noise levels
Computational complexity
Template matching can be computationally expensive, especially for large images
Optimize algorithms to reduce the number of comparisons (hierarchical search)
Utilize parallel processing techniques (GPU acceleration) to speed up computations
Implement efficient data structures for fast template access and comparison
Consider approximate matching techniques for scenarios requiring real-time performance
Advanced template matching techniques
Advanced techniques in template matching extend the capabilities of traditional methods
These approaches address limitations and improve performance in challenging scenarios
Incorporating advanced techniques enhances the robustness and versatility of image analysis systems
Deformable templates
Allow for non-rigid transformations of the template to match object variations
Utilize active contour models or elastic matching algorithms
Enable matching of objects with slight shape or pose variations
Implement energy minimization techniques to find optimal deformations
Balance between flexibility and computational complexity in deformation models
Multiple template matching
Simultaneously match multiple templates to identify different objects or variations
Utilize efficient data structures (kd-trees) for fast template retrieval
Implement techniques to handle template similarities and resolve ambiguities
Consider hierarchical clustering of templates to reduce redundant comparisons
Develop strategies for handling varying numbers of instances in the target image
Machine learning approaches
Incorporate machine learning techniques to improve template matching performance
Utilize convolutional neural networks for feature extraction and similarity computation
Implement template matching as a classification or regression problem
Train models to learn optimal matching strategies from labeled datasets
Combine traditional template matching with learned features for hybrid approaches
Evaluation metrics
Evaluation metrics quantify the performance of template matching algorithms
These metrics help in comparing different methods and assessing their effectiveness
Understanding evaluation metrics aids in selecting appropriate techniques for specific applications
Precision and recall
Precision measures the proportion of correct matches among all detected matches
Recall quantifies the proportion of correct matches detected out of all actual matches
Calculate precision as TP / (TP + FP), where TP = true positives, FP = false positives
Compute recall as TP / (TP + FN), where FN = false negatives
Balance between precision and recall depends on the specific application requirements
Receiver operating characteristic
ROC curve visualizes the trade-off between true positive rate and false positive rate
Plot true positive rate (recall) against false positive rate at various threshold settings
Area under the ROC curve (AUC) provides a single measure of algorithm performance
Higher AUC indicates better overall performance across different threshold values
Useful for comparing algorithms and selecting optimal operating points
F1 score
F1 score combines precision and recall into a single metric
Calculated as the harmonic mean of precision and recall: F1=2∗precision+recallprecision∗recall
Provides a balanced measure of performance, especially for imbalanced datasets
Ranges from 0 to 1, with 1 indicating perfect precision and recall
Useful for scenarios where a single performance metric is required
Integration with other techniques
Integrating template matching with other image processing techniques enhances overall system performance
Combined approaches leverage the strengths of multiple methods to overcome individual limitations
Understanding integration strategies allows for developing more robust and versatile image analysis solutions
Combination with edge detection
Utilize edge information to improve template matching accuracy
Preprocess images using edge detection algorithms (Canny, Sobel) before matching
Match edge templates instead of intensity-based templates for improved robustness
Combine edge-based and intensity-based matching for complementary information
Implement edge-guided search strategies to focus on relevant image regions
Fusion with segmentation methods
Incorporate image segmentation to guide template matching process
Use segmentation results to identify regions of interest for targeted matching
Combine template matching with region-based analysis for improved object detection
Utilize segmentation information to adapt template matching parameters locally
Implement hierarchical approaches combining coarse segmentation and fine template matching
Integrate feature-based and pixel-based matching for improved robustness
Combine template matching with machine learning classifiers for enhanced accuracy
Utilize ensemble methods to aggregate results from multiple matching algorithms
Implement adaptive strategies to select optimal matching technique based on image characteristics
Real-world applications
Template matching finds widespread use in various real-world applications across different domains
Understanding these applications showcases the practical importance of template matching techniques
Exploring diverse use cases helps in adapting and optimizing template matching for specific scenarios
Object detection and tracking
Locate and track specific objects in images or video streams
Applications include surveillance systems, autonomous vehicles, and robotics
Implement multi-template matching to detect various object categories
Utilize temporal information in video sequences for improved tracking performance
Combine template matching with motion estimation for robust object tracking
Medical image analysis
Identify anatomical structures or abnormalities in medical imaging (X-rays, MRI, CT scans)
Locate specific features or landmarks for diagnosis and treatment planning
Implement deformable templates to account for anatomical variations
Utilize multi-modal template matching for fusing information from different imaging modalities
Combine template matching with machine learning for automated disease detection
Industrial quality control
Detect defects or anomalies in manufactured products
Inspect product alignment and positioning on assembly lines
Implement high-speed template matching for real-time quality assessment
Utilize multiple templates to identify various types of defects or product variations
Combine template matching with statistical process control for trend analysis and predictive maintenance
Key Terms to Review (18)
2D templates: 2D templates are predefined patterns or models used in image processing to identify or match specific features in an image. These templates serve as a reference for comparing against portions of other images to find matches based on pixel intensity and spatial arrangement. By utilizing 2D templates, image analysis can efficiently detect objects, shapes, or areas of interest within a larger image, which is crucial for applications like object recognition and computer vision.
3D Models: 3D models are digital representations of objects or scenes in three dimensions, created using various software tools. They provide a way to visualize complex structures and can be manipulated, animated, and rendered for various applications, including video games, simulations, and virtual reality environments.
Accuracy: Accuracy refers to the degree to which a measured or computed value aligns with the true value or the actual state of a phenomenon. In the context of data analysis, particularly in image processing and machine learning, it assesses how well a model's predictions match the expected outcomes, influencing the effectiveness of various algorithms and techniques.
David Lowe: David Lowe is a prominent figure in the field of computer vision, particularly known for his contributions to image processing techniques such as feature detection and matching. His work has significantly influenced algorithms that help machines recognize and interpret visual data, making it essential for applications like object recognition, image stitching, and 3D reconstruction.
Facial recognition: Facial recognition is a technology that uses algorithms to identify or verify a person’s identity based on their facial features. This process involves analyzing patterns and statistical information in images to differentiate one face from another, making it a vital component of automated identity verification systems and security measures.
Feature extraction: Feature extraction is the process of identifying and isolating specific attributes or characteristics from raw data, particularly images, to simplify and enhance analysis. This technique plays a crucial role in various applications, such as improving the performance of machine learning algorithms and facilitating image recognition by transforming complex data into a more manageable form, allowing for better comparisons and classifications.
Filtering Techniques: Filtering techniques are methods used to modify or enhance images by manipulating their pixel values based on certain criteria. These techniques are essential in image processing, as they can improve image quality, remove noise, and extract important features. They play a crucial role in tasks like template matching, where specific patterns or objects in an image need to be identified and isolated for further analysis.
Image preprocessing: Image preprocessing refers to the techniques applied to raw images to enhance their quality or prepare them for further analysis. This process can involve various operations like noise reduction, contrast enhancement, and normalization, all aimed at improving the effectiveness of subsequent image analysis tasks, such as template matching.
Image similarity: Image similarity refers to the quantitative assessment of how alike two or more images are in terms of their content, structure, or features. It plays a crucial role in various image processing tasks, such as identifying similar objects, recognizing patterns, and facilitating image retrieval. By measuring image similarity, algorithms can effectively compare images based on pixel values, color histograms, textures, and other characteristics to determine their degree of resemblance.
Lighting variations: Lighting variations refer to the differences in illumination that can affect how images are captured, processed, and interpreted. These variations can arise from factors such as the direction, intensity, and color of light, which play a crucial role in determining the appearance of objects within an image. Understanding these variations is essential in techniques like template matching, where consistent recognition of shapes or patterns is needed despite fluctuations in lighting conditions.
Normalized cross-correlation: Normalized cross-correlation is a technique used to measure the similarity between two signals or images, adjusting for differences in brightness and contrast. This method calculates the correlation coefficient between a template image and a search image, providing a value that indicates how well the template matches the search area. It helps identify patterns and can be especially useful in tasks like object detection and image recognition.
Object detection: Object detection is a computer vision technique that identifies and locates objects within an image or video stream, providing both the classification of the object and its spatial coordinates. This process often involves the use of algorithms that can analyze visual data and determine the presence of various objects in different contexts, which ties into methods such as feature extraction and machine learning.
Occlusion: Occlusion refers to the phenomenon where an object is partially or completely blocked from view by another object. This concept is critical in understanding how we perceive depth and spatial relationships in our environment, as it can affect stereo vision, template matching, and object localization. Occlusion challenges visual systems and algorithms by complicating the interpretation of overlapping objects, making it a key factor in accurately processing visual data.
Precision-recall: Precision-recall refers to a set of performance metrics used to evaluate the effectiveness of classification models, particularly in scenarios where class distributions are imbalanced. Precision measures the accuracy of positive predictions made by the model, while recall assesses the model's ability to identify all relevant instances. These metrics are crucial in applications where both false positives and false negatives can have significant consequences.
Rafael gonzalez: Rafael Gonzalez is a notable figure in the field of image processing, particularly recognized for his contributions to the development of template matching techniques. Template matching is a method used in image analysis to identify and locate patterns or objects within larger images by comparing sections of the target image to a template or reference image. Gonzalez's work has been instrumental in enhancing the accuracy and efficiency of these techniques, making them widely applicable in various domains such as computer vision and medical imaging.
Rotation invariance: Rotation invariance refers to the property of an image processing technique or algorithm to produce the same output regardless of the orientation of the input image. This characteristic is particularly important in template matching, where objects in images can appear in various orientations due to different perspectives or rotations. By ensuring rotation invariance, template matching can effectively identify and locate patterns even when they are rotated, enhancing the reliability and accuracy of image analysis.
Scale invariance: Scale invariance is a property of an object or process where its characteristics remain unchanged when it is scaled up or down in size. This means that the same patterns or structures can be recognized regardless of the scale at which they are viewed, making it a critical concept in image analysis, especially in template matching.
Template matching algorithm: A template matching algorithm is a technique used in image processing and computer vision that involves comparing a portion of an image with a predefined template to identify patterns or objects. This method relies on measuring the similarity between the template and the target region, often using correlation techniques, to determine if the template exists within the image. Its applications span various fields, including object detection, facial recognition, and medical imaging.
