4.1 Image registration

Image registration is a crucial technique in visual data analysis, aligning multiple images of the same scene taken from different viewpoints, times, or sensors. It enables meaningful comparison and integration of information across various domains, including medical imaging, remote sensing, and computer vision.

The process involves determining spatial transformations to map points between images, compensating for differences in acquisition conditions. Applications range from combining medical scans for diagnosis to integrating satellite images for environmental monitoring, showcasing its versatility in extracting valuable insights from diverse image sources.

Fundamentals of image registration

• Image registration aligns multiple images of the same scene taken from different viewpoints, times, or sensors into a common coordinate system
• Crucial for analyzing and comparing visual data across various domains including medical imaging, remote sensing, and computer vision
• Enables extraction of meaningful information from multiple image sources by establishing spatial correspondence between them

Definition and purpose

Top images from around the web for Definition and purpose

•

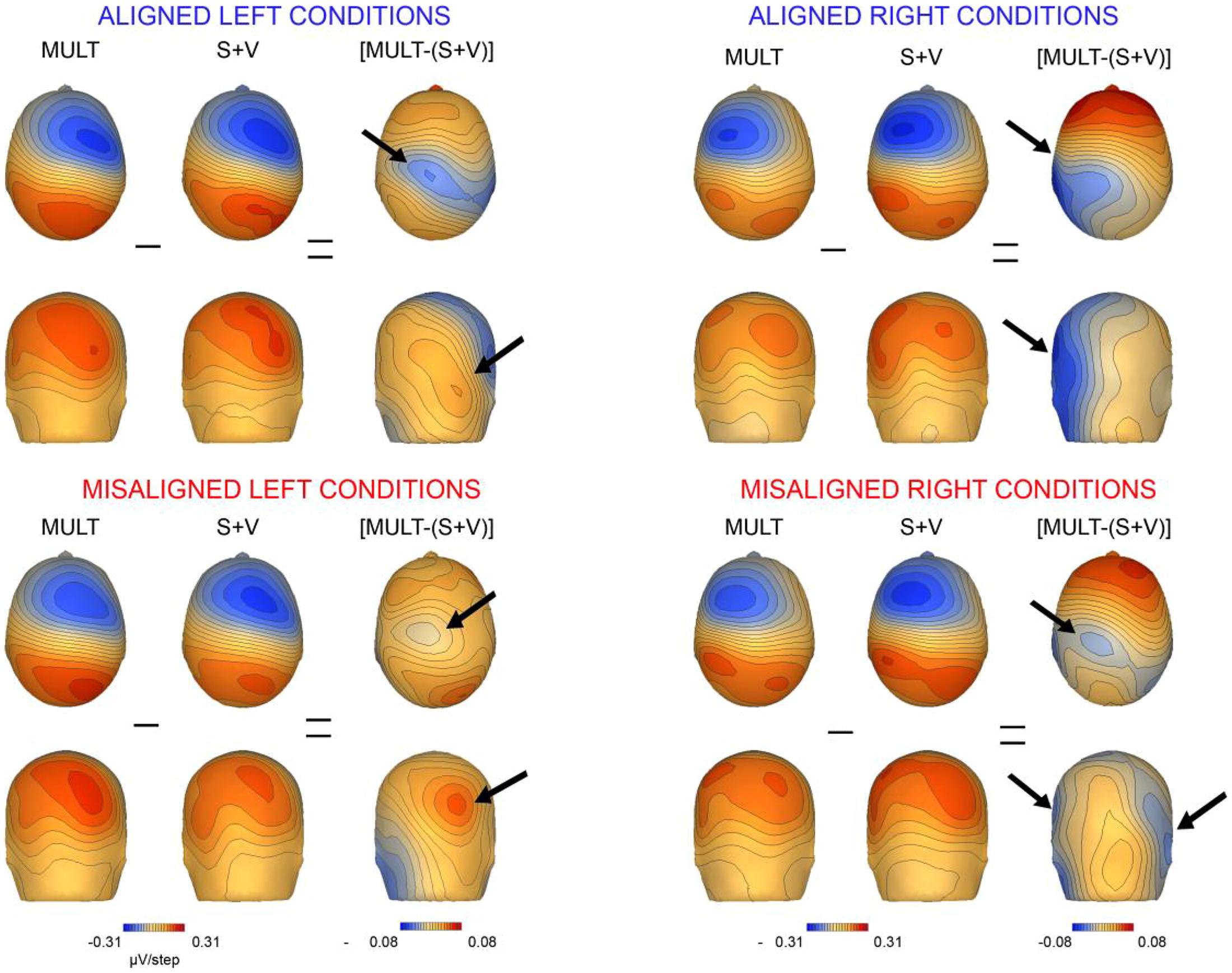

  Frontiers | Keeping in touch with the visual system: spatial alignment and multisensory ... View original

  Is this image relevant?

•

  Frontiers | Perspective: Assessing the Flexible Acquisition, Integration, and Deployment of ... View original

  Is this image relevant?

•

  Frontiers | Deep Learning-Based Concurrent Brain Registration and Tumor Segmentation View original

  Is this image relevant?

•

  Frontiers | Keeping in touch with the visual system: spatial alignment and multisensory ... View original

  Is this image relevant?

•

  Frontiers | Perspective: Assessing the Flexible Acquisition, Integration, and Deployment of ... View original

  Is this image relevant?

1 of 3

Top images from around the web for Definition and purpose

•

  Frontiers | Keeping in touch with the visual system: spatial alignment and multisensory ... View original

  Is this image relevant?

•

  Frontiers | Perspective: Assessing the Flexible Acquisition, Integration, and Deployment of ... View original

  Is this image relevant?

•

  Frontiers | Deep Learning-Based Concurrent Brain Registration and Tumor Segmentation View original

  Is this image relevant?

•

  Frontiers | Keeping in touch with the visual system: spatial alignment and multisensory ... View original

  Is this image relevant?

•

  Frontiers | Perspective: Assessing the Flexible Acquisition, Integration, and Deployment of ... View original

  Is this image relevant?

1 of 3

• Process of geometrically aligning two or more images of the same scene
• Determines spatial transformation to map points in one image to corresponding points in another
• Facilitates comparison, integration, and analysis of information from multiple images
• Compensates for differences in image acquisition conditions (viewpoint, time, sensor)

Applications in data analysis

• Medical imaging combines CT and MRI scans for comprehensive diagnosis
• Remote sensing integrates satellite images for environmental monitoring and urban planning
• Computer vision aligns images for 3D reconstruction and object tracking
• Microscopy combines multiple focal planes for extended depth of field
• Astrophysics aligns telescope images for improved resolution and signal-to-noise ratio

Types of image transformations

• Rigid transformations preserve distances between points (translation, rotation)
• Affine transformations maintain parallel lines (scaling, shearing)
• Projective transformations map lines to lines but not necessarily parallel ones
• Non-rigid transformations allow local deformations (elastic, fluid)
• Diffeomorphic transformations ensure smooth, invertible mappings between images

Spatial transformation models

• Spatial transformation models define mathematical functions to map coordinates between images
• Range from simple linear transformations to complex non-linear deformations
• Selection of appropriate model depends on nature of misalignment and application requirements

Rigid vs non-rigid registration

• Rigid registration allows only translation and rotation
  • Preserves distances and angles between points
  • Suitable for aligning images of rigid objects or structures
• Non-rigid registration permits local deformations
  • Accommodates shape changes and tissue deformations
  • Necessary for soft tissue alignment in medical imaging
• Rigid registration uses fewer parameters, computationally efficient
• Non-rigid registration offers more flexibility but increases complexity

Affine transformations

• Linear transformations that preserve straight lines and parallelism
• Includes translation, rotation, scaling, and shearing operations
• Represented by a 3x3 matrix for 2D images or 4x4 matrix for 3D volumes
• Equation for 2D affine transformation: $\begin{bmatrix} x' \\ y' \\ 1 \end{bmatrix} = \begin{bmatrix} a & b & t_x \\ c & d & t_y \\ 0 & 0 & 1 \end{bmatrix} \begin{bmatrix} x \\ y \\ 1 \end{bmatrix}$
• Widely used in medical image registration and computer vision applications

Deformable models

• Allow non-linear, localized deformations between images
• Free-form deformation uses a mesh of control points to model complex transformations
• Thin-plate splines interpolate smooth deformations based on landmark correspondences
• Elastic models treat image as a deformable elastic material
• Fluid registration models image deformation as a viscous fluid flow
• Diffeomorphic models ensure smooth, invertible transformations preserving topology

Feature-based registration

• Relies on identifying and matching distinctive features or landmarks in images
• Robust to intensity variations and partial occlusions
• Computationally efficient for large images or volumes
• Accuracy depends on reliable feature detection and matching

Landmark identification

• Manual selection of corresponding points by domain experts
• Anatomical landmarks in medical imaging (organ boundaries, bone structures)
• Ground control points in remote sensing (road intersections, coastlines)
• Fiducial markers artificially introduced for precise alignment
• Automatic landmark detection using machine learning algorithms
• Evaluation of landmark stability and distinctiveness across images

Feature detection algorithms

• Scale-Invariant Feature Transform (SIFT) detects keypoints invariant to scale and rotation
• Speeded Up Robust Features (SURF) provides faster computation than SIFT
• Oriented FAST and Rotated BRIEF (ORB) offers efficient binary feature descriptor
• Harris corner detector identifies corners based on intensity gradients
• Blob detection algorithms locate regions of interest in images
• Edge detection methods (Canny, Sobel) identify boundaries for feature extraction

Descriptor matching techniques

• Nearest neighbor search finds closest matching descriptors between images
• RANSAC algorithm robustly estimates transformation model from matched features
• Hough transform detects global patterns from local feature correspondences
• Graph matching techniques preserve spatial relationships between features
• Machine learning approaches (random forests, neural networks) for feature matching
• Optimization of matching criteria (distance ratio, cross-validation) to reduce false matches

Intensity-based registration

• Aligns images based on pixel or voxel intensity values directly
• Does not require explicit feature extraction or correspondence
• Suitable for images with smooth intensity variations or lacking distinct features
• Computationally intensive, especially for large 3D volumes

Similarity measures

• Sum of Squared Differences (SSD) measures intensity differences between aligned images
• Cross-Correlation (CC) quantifies linear relationship between image intensities
• Normalized Cross-Correlation (NCC) robust to linear intensity differences
• Mutual Information (MI) captures statistical dependence between image intensities
• Normalized Mutual Information (NMI) less sensitive to overlap region size
• Correlation Ratio (CR) measures functional dependence between intensities

Mutual information

• Information theoretic measure of statistical dependence between image intensities
• Calculated from joint histogram of aligned images
• Equation for mutual information: $MI(A,B) = H(A) + H(B) - H(A,B)$ where H(A) and H(B) are marginal entropies, H(A,B) is joint entropy
• Effective for multimodal image registration (CT to MRI, PET to MRI)
• Maximizing mutual information aligns images to optimal correspondence
• Extensions include normalized mutual information and conditional mutual information

Correlation coefficients

• Pearson correlation coefficient measures linear relationship between image intensities
• Spearman rank correlation assesses monotonic relationships, robust to outliers
• Local correlation coefficient computed in sliding windows for non-uniform intensity relationships
• Phase correlation uses Fourier transform to estimate translational offset between images
• Gradient correlation aligns images based on directional intensity changes
• Structural similarity index (SSIM) incorporates luminance, contrast, and structure information

Optimization algorithms

• Search for optimal transformation parameters to maximize similarity or minimize distance
• Balance between accuracy of alignment and computational efficiency
• Selection of appropriate algorithm depends on transformation model and similarity measure

Gradient descent methods

• Iteratively update transformation parameters in direction of steepest gradient
• Learning rate controls step size, affects convergence speed and stability
• Stochastic gradient descent uses random subsets of data for efficiency
• Momentum methods accelerate convergence and help escape local minima
• Adaptive learning rate techniques (AdaGrad, RMSProp, Adam) improve optimization
• Second-order methods (Newton's method, Levenberg-Marquardt) use curvature information

Evolutionary algorithms

• Genetic algorithms evolve population of potential solutions through selection and mutation
• Particle swarm optimization simulates social behavior of bird flocking or fish schooling
• Differential evolution combines aspects of genetic algorithms and simulated annealing
• Covariance Matrix Adaptation Evolution Strategy (CMA-ES) adapts search distribution
• Suitable for complex, non-convex optimization landscapes
• Parallel implementation possible for improved computational efficiency

Multi-resolution approaches

• Hierarchical registration starts with coarse alignment, progressively refines at finer scales
• Gaussian pyramid represents images at multiple resolutions
• Wavelet decomposition provides multi-scale representation of image features
• Coarse-to-fine strategy reduces computational complexity and improves robustness
• Helps avoid local minima by capturing global structure before local details
• Adaptive multi-resolution schemes adjust level of detail based on image content

Registration accuracy assessment

• Crucial for validating registration results and ensuring reliability of subsequent analysis
• Involves quantitative metrics and qualitative evaluation techniques
• Considers both global alignment accuracy and local deformation fidelity

Evaluation metrics

• Target Registration Error (TRE) measures distance between corresponding landmarks
• Fiducial Registration Error (FRE) assesses alignment of artificially introduced markers
• Dice coefficient quantifies overlap of segmented regions after registration
• Hausdorff distance measures maximum distance between registered image boundaries
• Jacobian determinant evaluates local volume changes in deformable registration
• Mutual information or correlation coefficients assess overall intensity alignment

Ground truth vs estimated alignment

• Ground truth obtained through phantom studies with known transformations
• Simulated deformations applied to real images for controlled evaluation
• Expert manual alignment serves as reference for automated methods
• Consistency checks compare results from different registration algorithms
• Leave-one-out validation assesses robustness of landmark-based registration
• Cross-validation techniques estimate generalization error of registration models

Error sources and mitigation

• Image noise reduced through pre-processing filters (Gaussian, median)
• Intensity inhomogeneities corrected using bias field estimation techniques
• Partial volume effects addressed by super-resolution or model-based approaches
• Motion artifacts minimized through gating or motion correction algorithms
• Geometric distortions corrected using phantom-based calibration
• Registration parameter sensitivity analyzed through perturbation studies

Multimodal image registration

• Aligns images from different imaging modalities or sensors
• Challenges arise from varying intensity distributions and feature appearances
• Critical for integrating complementary information from multiple imaging techniques

Cross-modality challenges

• Intensity relationships between modalities often complex and non-linear
• Feature appearance and contrast may differ significantly (CT bone vs MRI soft tissue)
• Modality-specific artifacts and distortions complicate alignment
• Varying spatial resolutions and field of view between imaging systems
• Temporal differences in acquisition may introduce physiological changes
• Lack of common intensity scale necessitates robust similarity measures

Information theory in registration

• Mutual information captures statistical dependence between modalities
• Joint entropy minimization aligns images to reduce uncertainty
• Kullback-Leibler divergence measures difference between intensity distributions
• Rényi entropy generalizes Shannon entropy for robust multimodal alignment
• Conditional mutual information incorporates spatial information
• Maximum likelihood estimation formulates registration as statistical inference problem

Hybrid registration approaches

• Combine feature-based and intensity-based methods for improved robustness
• Landmark initialization followed by intensity-based refinement
• Simultaneous optimization of feature correspondence and intensity similarity
• Multi-channel registration incorporates multiple image characteristics
• Modality-independent neighborhood descriptors capture local structure
• Deep learning approaches learn optimal features for cross-modality matching

Time series registration

• Aligns images acquired at different time points or during dynamic processes
• Crucial for motion correction, change detection, and longitudinal studies
• Addresses both spatial misalignment and temporal variations

Motion correction techniques

• Prospective motion correction uses real-time tracking during image acquisition
• Retrospective correction applies post-processing to acquired image series
• Rigid body transformation corrects for head motion in brain imaging
• Non-rigid registration accounts for physiological motion (breathing, cardiac)
• Slice-to-volume registration corrects for inter-slice motion in 2D acquisitions
• Optical flow estimation tracks dense motion fields between consecutive frames

Temporal alignment strategies

• Dynamic time warping aligns time series with non-linear temporal distortions
• Fourier-based registration exploits periodicity in cardiac or respiratory cycles
• Manifold alignment finds common low-dimensional representation of time series
• Temporal clustering groups similar time points for efficient registration
• Spatio-temporal diffeomorphic registration models continuous trajectories
• 4D registration simultaneously optimizes spatial and temporal transformations

Dynamic image registration

• Accounts for time-varying deformations in moving structures
• Free-form deformation with temporal regularization ensures smooth motion
• Biomechanical models incorporate physical constraints for realistic deformations
• Kalman filtering predicts and updates motion parameters over time
• Groupwise registration aligns entire time series to a common space
• Motion-compensated reconstruction integrates registration into image formation

Medical image registration

• Aligns anatomical or functional images for diagnosis, treatment planning, and monitoring
• Addresses challenges of inter-subject variability and intra-subject changes
• Critical for image-guided interventions and quantitative analysis

Anatomical vs functional imaging

• Anatomical imaging (CT, MRI) provides structural information
  • High spatial resolution, clear tissue boundaries
  • Registration based on morphological features
• Functional imaging (PET, fMRI) captures physiological processes
  • Lower spatial resolution, dynamic signal changes
  • Registration often relies on corresponding anatomical scans
• Multimodal registration combines structural and functional information
  • Fusion of PET/CT or PET/MRI for precise localization of metabolic activity
  • Integration of fMRI activation maps with high-resolution anatomical MRI

Intra-subject vs inter-subject registration

• Intra-subject registration aligns images of the same patient
  • Longitudinal studies track disease progression or treatment response
  • Multimodal fusion combines information from different imaging techniques
  • Motion correction in time series data (fMRI, DCE-MRI)
• Inter-subject registration aligns images between different individuals
  • Creation of population atlases for statistical analysis
  • Morphometric studies of anatomical variability
  • Transfer of segmentation or annotations between subjects
• Challenges in inter-subject registration include anatomical variability and pathology

Atlas-based registration

• Aligns individual images to a standardized template or atlas
• Enables automated segmentation and labeling of anatomical structures
• Facilitates statistical analysis in common coordinate space
• Single-atlas approaches use one reference image for entire population
• Multi-atlas methods select most similar atlases for each target image
• Probabilistic atlases incorporate population variability information
• Deformable atlases adapt to individual anatomy during registration process

Remote sensing registration

• Aligns satellite or aerial images for environmental monitoring and mapping
• Addresses challenges of large-scale imagery, varying acquisition conditions, and temporal changes
• Critical for change detection, land cover classification, and data fusion

Satellite image alignment

• Accounts for differences in sensor characteristics and orbital parameters
• Orthorectification corrects for terrain-induced distortions using digital elevation models
• Sensor model-based registration uses rigorous mathematical models of imaging geometry
• Feature-based methods robust to radiometric differences between sensors
• Global registration aligns entire scenes, while local registration focuses on specific regions
• Multi-temporal registration handles seasonal variations and land cover changes

Georeferencing techniques

• Assigns geographic coordinates to image pixels
• Ground control points (GCPs) establish correspondence between image and map coordinates
• Automatic GCP detection using road networks or other stable features
• Sensor orientation data (GPS, IMU) provides initial georeferencing estimates
• Bundle adjustment optimizes camera parameters and GCP locations simultaneously
• Photogrammetric techniques reconstruct 3D geometry from overlapping images

Change detection applications

• Bi-temporal change detection compares two images acquired at different times
• Multi-temporal analysis tracks changes over multiple time points
• Difference imaging subtracts aligned images to highlight changes
• Post-classification comparison detects land cover transitions
• Object-based change detection focuses on specific features or structures
• Continuous monitoring using time series analysis (e.g., MODIS, Landsat)

Computational aspects

• Addresses challenges of processing large-scale image data efficiently
• Leverages parallel computing and hardware acceleration for improved performance
• Develops optimized algorithms and data structures for registration tasks

Parallel processing in registration

• Distributed computing divides registration tasks across multiple machines
• Multi-core CPU implementations exploit thread-level parallelism
• Parallel optimization of transformation parameters for multiple image pairs
• Decomposition of large images into overlapping blocks for parallel processing
• MapReduce frameworks for large-scale distributed image registration
• Load balancing strategies ensure efficient utilization of computing resources

GPU acceleration techniques

• Utilizes graphics processing units for massively parallel computations
• CUDA and OpenCL frameworks for general-purpose GPU programming
• GPU-accelerated image interpolation and similarity measure calculation
• Parallel implementation of optimization algorithms (gradient descent, evolutionary)
• GPU-based feature detection and matching for faster registration initialization
• Hybrid CPU-GPU approaches optimize workload distribution

Registration software tools

• Open-source packages (ITK, SimpleITK, ANTs) provide comprehensive registration frameworks
• MATLAB-based tools (SPM, FAIR) popular in neuroimaging research
• Cloud-based platforms (Google Earth Engine) for large-scale remote sensing registration
• Commercial software suites (Analyze, MIM) offer integrated registration and analysis
• Domain-specific tools (FSL, FreeSurfer) tailored for brain image registration
• Extensible frameworks allow customization and integration of novel algorithms

Ethical considerations

• Addresses ethical implications of image registration in various applications
• Ensures responsible use of technology and protection of individual rights
• Considers potential misuse or unintended consequences of registration techniques

Privacy in medical image registration

• De-identification of medical images removes personal identifiers
• Anonymization techniques preserve privacy while enabling research use
• Secure multi-party computation allows collaborative analysis without sharing raw data
• Differential privacy adds controlled noise to protect individual information
• Ethical guidelines for sharing and using medical image datasets
• Patient consent considerations for secondary use of clinical images

Data integrity and manipulation

• Validation protocols ensure accuracy and reliability of registration results
• Detection of malicious tampering or unauthorized modifications
• Watermarking techniques for image authentication and provenance tracking
• Audit trails record processing steps and parameter choices
• Reproducibility challenges in complex registration pipelines
• Ethical considerations in image enhancement and restoration techniques

Informed consent for image use

• Clear communication of potential uses and risks to study participants
• Specific consent for data sharing and future research applications
• Considerations for incidental findings in research imaging studies
• Cultural sensitivities in use of medical images from diverse populations
• Ethical review processes for image-based research protocols
• Balancing scientific progress with individual privacy and autonomy
