3.7 Histogram equalization

Histogram equalization is a powerful technique in digital image processing that enhances contrast by redistributing pixel intensities. It's a key tool in Images as Data analysis, improving visual quality and making features more visible for various image analysis tasks.

This method transforms the intensity distribution of an image to utilize the full dynamic range. By adjusting pixel values, it enhances details in both dark and bright regions, making it particularly effective for images with poor contrast or limited dynamic range.

Histogram equalization basics

• Histogram equalization transforms image intensity distribution to enhance contrast and improve visual quality in digital image processing
• Plays a crucial role in Images as Data analysis by redistributing pixel intensities to utilize the full dynamic range
• Serves as a fundamental preprocessing step for various image analysis tasks, enhancing feature visibility and detection

Definition and purpose

Top images from around the web for Definition and purpose

•

  Выравнивание гистограммы View original

  Is this image relevant?

•

  image processing - Explanation of the Histogram Equalization function in MATLAB - Stack Overflow View original

  Is this image relevant?

•

  Adaptive Histogram Equalization Image Filter — v5.3.0 View original

  Is this image relevant?

•

  Выравнивание гистограммы View original

  Is this image relevant?

•

  image processing - Explanation of the Histogram Equalization function in MATLAB - Stack Overflow View original

  Is this image relevant?

1 of 3

Top images from around the web for Definition and purpose

•

  Выравнивание гистограммы View original

  Is this image relevant?

•

  image processing - Explanation of the Histogram Equalization function in MATLAB - Stack Overflow View original

  Is this image relevant?

•

  Adaptive Histogram Equalization Image Filter — v5.3.0 View original

  Is this image relevant?

•

  Выравнивание гистограммы View original

  Is this image relevant?

•

  image processing - Explanation of the Histogram Equalization function in MATLAB - Stack Overflow View original

  Is this image relevant?

1 of 3

• Nonlinear method that adjusts image intensities to enhance overall contrast
• Redistributes pixel values across the available intensity range (typically 0-255 for 8-bit images)
• Improves visibility of details in both dark and bright regions of an image
• Particularly effective for images with poor contrast or limited dynamic range

Visual representation of histograms

• Graphical depiction of pixel intensity distribution in an image
• X-axis represents intensity levels (0-255 for 8-bit grayscale images)
• Y-axis shows frequency or count of pixels at each intensity level
• Narrow histograms indicate low contrast, while wider histograms suggest higher contrast
• Peaks in histograms represent dominant intensity levels in the image

Cumulative distribution function

• Derived from the image histogram, representing the cumulative sum of pixel frequencies
• Monotonically increasing function ranging from 0 to 1
• Used to map original pixel intensities to new, equalized values
• Calculated as $CDF(i) = \sum_{j=0}^{i} \frac{n_j}{N}$, where $n_j$ is the number of pixels with intensity $j$ and $N$ is the total number of pixels
• Forms the basis for the histogram equalization transformation function

Image contrast enhancement

• Histogram equalization significantly improves image contrast by redistributing pixel intensities
• Enhances visibility of features and details that may be obscured in the original image
• Critical for various image analysis tasks in the field of Images as Data, including object detection and feature extraction

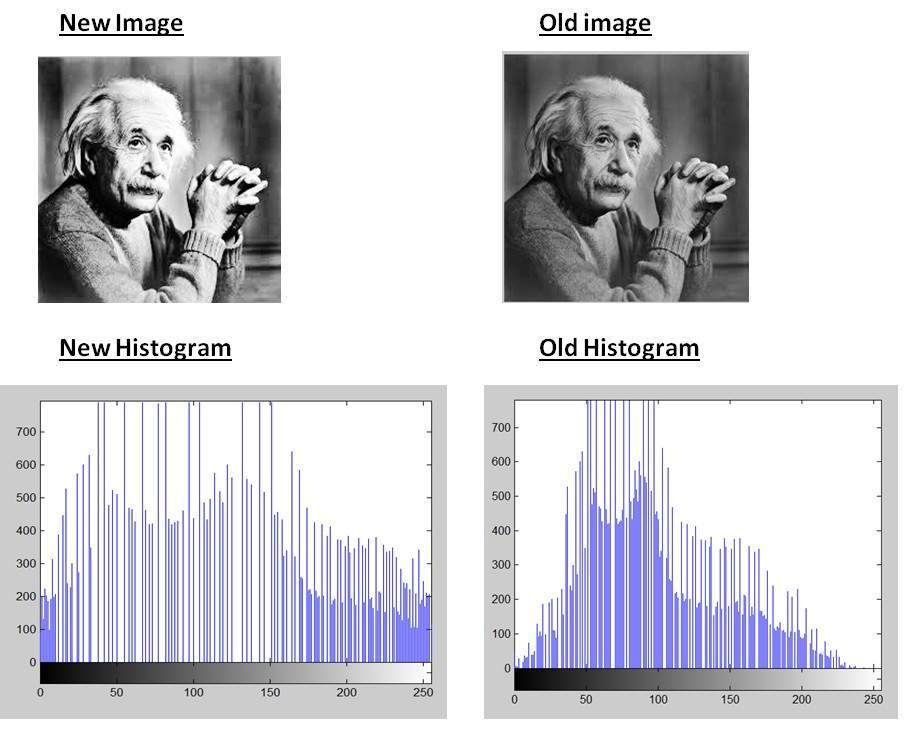

Before vs after comparison

• Original images often have limited contrast, with pixel intensities clustered in a narrow range
• Equalized images show a more uniform distribution of intensities across the full dynamic range
• Enhanced images reveal details in both shadows and highlights that were previously difficult to discern
• Histograms of equalized images typically show a more spread-out distribution compared to original histograms
• Visual comparison demonstrates improved overall contrast and clarity in equalized images

Limitations of histogram equalization

• Can lead to over-enhancement, resulting in unnatural-looking images
• May amplify noise in low-contrast regions of the image
• Not always suitable for images with bimodal or multimodal intensity distributions
• Can cause loss of detail in areas with very high or very low original intensities
• May produce unrealistic effects in color images if applied to each channel independently

Implementation process

• Histogram equalization involves a series of steps to transform the original image
• Requires careful consideration of the input image characteristics and desired output
• Can be implemented using various programming languages and image processing libraries

Step-by-step algorithm

1. Compute the histogram of the input image
2. Calculate the cumulative distribution function (CDF) from the histogram
3. Normalize the CDF to map input intensities to output intensities
4. Apply the transformation function to each pixel in the original image
5. Generate the equalized output image

Pixel intensity mapping

• Creates a lookup table that maps original pixel intensities to new, equalized values
• Utilizes the normalized CDF to determine the new intensity for each input level
• Ensures that the full range of available intensities is utilized in the output image
• Mapping function: $h(v) = round((L-1) * CDF(v))$, where $L$ is the number of possible intensity levels
• Results in a more uniform distribution of pixel intensities across the available range

Normalization techniques

• Min-max normalization scales the CDF to fit the desired output range (typically 0-255 for 8-bit images)
• Z-score normalization adjusts pixel intensities based on the mean and standard deviation of the original distribution
• Histogram stretching expands the intensity range to cover the full available spectrum
• Gamma correction can be applied to fine-tune the contrast enhancement effect
• Adaptive normalization techniques adjust parameters based on local image characteristics

Applications in image processing

• Histogram equalization finds wide-ranging applications across various domains in image processing
• Enhances image quality and facilitates improved analysis in numerous fields of study
• Serves as a crucial preprocessing step for many advanced image analysis algorithms

Medical imaging

• Enhances contrast in X-ray images to improve visibility of bone structures and soft tissues
• Improves clarity in MRI scans, aiding in the detection of abnormalities and tumors
• Enhances ultrasound images to provide better visualization of fetal development and internal organs
• Assists in the analysis of microscopy images for cell structure examination
• Facilitates more accurate diagnosis and treatment planning in various medical specialties

Satellite imagery

• Improves visibility of land features, vegetation, and urban areas in remote sensing images
• Enhances contrast in multispectral satellite images for better differentiation of land cover types
• Aids in the detection of changes in Earth's surface over time (deforestation, urban expansion)
• Improves the clarity of ocean and atmospheric features in weather satellite imagery
• Facilitates more accurate mapping and monitoring of natural resources and environmental changes

Photography enhancement

• Improves overall contrast and visual appeal of digital photographs
• Recovers details in underexposed or overexposed areas of an image
• Enhances visibility of textures and fine details in landscape and portrait photography
• Improves the dynamic range of high-contrast scenes (sunsets, indoor-outdoor shots)
• Assists in post-processing of RAW image files to maximize image quality

Variations and improvements

• Advanced techniques build upon basic histogram equalization to address its limitations
• These methods aim to provide more natural-looking results and better preserve image details
• Adaptive approaches consider local image characteristics for improved contrast enhancement

Adaptive histogram equalization

• Applies histogram equalization to small regions (tiles) of the image independently
• Combines results from adjacent tiles using bilinear interpolation to eliminate boundary artifacts
• Enhances local contrast while preserving overall image appearance
• More effective for images with varying contrast across different regions
• Allows for better preservation of details in both bright and dark areas of the image

Contrast limited adaptive histogram equalization

• Extension of adaptive histogram equalization that limits contrast enhancement to reduce noise amplification
• Clips the histogram at a predefined threshold before computing the CDF
• Redistributes clipped pixels equally across all histogram bins
• Prevents over-enhancement in homogeneous areas of the image
• Provides a good balance between contrast improvement and noise reduction
• Particularly useful for medical imaging applications (CT scans, X-rays)

Mathematical foundations

• Histogram equalization is grounded in probability theory and statistical concepts
• Understanding the mathematical basis helps in developing and optimizing equalization algorithms
• Provides insights into the behavior and limitations of histogram equalization techniques

Probability density function

• Represents the likelihood of a pixel having a particular intensity value in the image
• Approximated by normalizing the histogram: $p(i) = \frac{n_i}{N}$, where $n_i$ is the number of pixels with intensity $i$ and $N$ is the total number of pixels
• Continuous analog of the discrete histogram for theoretical analysis
• Forms the basis for deriving the cumulative distribution function used in equalization
• Helps in understanding the statistical properties of image intensity distributions

Histogram as discrete function

• Represents the frequency distribution of pixel intensities in a digital image
• Defined as $h(i) = n_i$, where $n_i$ is the number of pixels with intensity $i$
• Provides a discrete approximation of the underlying continuous intensity distribution
• Serves as the starting point for histogram equalization calculations
• Can be normalized to represent relative frequencies: $p(i) = \frac{h(i)}{\sum_{j=0}^{L-1} h(j)}$, where $L$ is the number of possible intensity levels

Transformation function derivation

• Based on the principle of equalizing the cumulative distribution function
• Aims to transform the input CDF into a linear function spanning the full intensity range
• Derived as: $T(k) = floor((L-1) \sum_{i=0}^{k} p(i))$, where $L$ is the number of possible intensity levels
• Ensures that the output image has a more uniform distribution of intensities
• Can be modified to achieve different equalization effects (contrast-limited, adaptive)

Practical considerations

• Implementing histogram equalization requires careful attention to various factors
• Different approaches may be necessary depending on the type and characteristics of the input image
• Consideration of potential side effects is crucial for achieving optimal results

Color image equalization

• Can be applied to individual color channels (R, G, B) independently
• RGB channel equalization may lead to color distortions and unnatural hue shifts
• Alternative approach: convert to HSV or LAB color space and equalize only the luminance/intensity channel
• Preserves color relationships while enhancing overall contrast
• May require additional color balancing or saturation adjustments for optimal results

Local vs global equalization

• Global equalization applies the same transformation to all pixels in the image
• Local equalization (adaptive) considers pixel neighborhoods for more context-aware enhancement
• Global methods are computationally efficient but may not handle varying contrast well
• Local methods provide better results for images with non-uniform lighting or contrast
• Hybrid approaches combine global and local techniques for balanced enhancement

Noise amplification issues

• Histogram equalization can amplify noise, especially in low-contrast regions
• High-frequency noise becomes more visible after contrast enhancement
• Preprocessing with noise reduction filters (Gaussian, median) can mitigate this issue
• Post-processing with edge-preserving smoothing techniques may help reduce noise while maintaining sharpness
• Contrast-limited approaches (CLAHE) inherently address noise amplification by limiting enhancement

Performance evaluation

• Assessing the effectiveness of histogram equalization is crucial for optimizing image processing pipelines
• Combines objective metrics with subjective visual assessment to determine overall image quality improvement
• Helps in comparing different equalization techniques and parameter settings

Image quality metrics

• Peak Signal-to-Noise Ratio (PSNR) measures the ratio between maximum possible signal power and distorting noise power
• Structural Similarity Index (SSIM) evaluates perceived change in structural information
• Contrast Improvement Index (CII) quantifies the increase in contrast after equalization
• Entropy measures the amount of information content in the image
• Edge preservation index assesses how well edge details are maintained after equalization

Subjective vs objective assessment

• Objective metrics provide quantitative measures of image quality and improvement
• Subjective assessment involves human observers rating image quality based on visual perception
• Mean Opinion Score (MOS) aggregates subjective ratings from multiple observers
• Blind/Referenceless Image Spatial Quality Evaluator (BRISQUE) predicts human perception of image quality without a reference image
• Combination of objective and subjective methods provides a comprehensive evaluation of equalization performance

Software implementation

• Various software libraries and tools provide implementations of histogram equalization
• Choice of implementation depends on the programming language, performance requirements, and integration with existing systems
• Understanding different implementations helps in selecting the most suitable approach for specific applications

OpenCV library usage

• Provides

  cv2.equalizeHist()

  function for basic global histogram equalization
• Implements

  cv2.createCLAHE()

  for Contrast Limited Adaptive Histogram Equalization
• Supports both grayscale and color image equalization
• Offers high-performance C++ implementation with Python bindings
• Example usage:

  equalized = cv2.equalizeHist(image)

MATLAB implementation

• Built-in

  histeq()

  function for global histogram equalization

• adapthisteq()

  function for adaptive histogram equalization, including CLAHE
• Supports various input types (uint8, uint16, double) and color spaces
• Provides visualization tools for comparing original and equalized histograms
• Example usage:

  equalized = histeq(image);

Python with scikit-image

• skimage.exposure.equalize_hist()

  for global histogram equalization

• skimage.exposure.equalize_adapthist()

  for adaptive histogram equalization
• Supports both 2D and 3D (multichannel) images
• Provides additional exposure adjustment functions (contrast stretching, gamma correction)
• Example usage:

  from skimage import exposure; equalized = exposure.equalize_hist(image)

Limitations and challenges

• While histogram equalization is a powerful technique, it has several limitations that need to be considered
• Understanding these challenges helps in choosing appropriate alternatives or modifications when necessary
• Awareness of limitations ensures proper interpretation of equalized image results

Over-enhancement problems

• Can lead to unrealistic or artificial-looking images with exaggerated contrast
• May cause loss of subtle details in areas of originally low contrast
• Can create banding artifacts in smooth gradient regions of the image
• Particularly problematic in images with large uniform areas (sky, walls)
• Mitigation strategies include contrast limiting and adaptive approaches

Loss of image details

• Aggressive equalization can merge nearby intensity levels, reducing fine texture details
• May cause loss of information in very bright or very dark regions of the image
• Can lead to the disappearance of subtle edges or gradients
• Particularly challenging for images with important details across a wide intensity range
• Careful parameter tuning and use of local equalization techniques can help preserve details

Suitability for different image types

• Not equally effective for all types of images or content
• May produce undesirable results for images with bimodal or multimodal intensity distributions
• Can distort the appearance of certain medical images where intensity relationships are diagnostically important
• May not be suitable for images where preserving the original intensity scale is crucial (scientific data visualization)
• Alternative techniques (contrast stretching, gamma correction) may be more appropriate for certain image types

Advanced topics

• Ongoing research in image enhancement continues to develop new and improved equalization techniques
• Advanced methods aim to address limitations of traditional histogram equalization
• Incorporation of machine learning and AI approaches opens new possibilities for intelligent image enhancement

Multi-histogram equalization

• Divides the image histogram into multiple sub-histograms before equalization
• Allows for more fine-grained control over the enhancement process
• Can preserve mean brightness of the original image better than traditional methods
• Techniques include Brightness Preserving Bi-Histogram Equalization (BBHE) and Dualistic Sub-Image Histogram Equalization (DSIHE)
• Helps in maintaining a more natural appearance while still improving contrast

Fuzzy histogram equalization

• Applies fuzzy set theory to the histogram equalization process
• Allows for handling of uncertainty and imprecision in pixel intensity values
• Can provide smoother transitions and more natural-looking results
• Particularly useful for images with noise or ill-defined boundaries
• Techniques include Fuzzy Clipped Contrast-Limited Adaptive Histogram Equalization (FCLAHE)

Deep learning approaches

• Utilizes neural networks to learn optimal image enhancement strategies
• Can adapt to specific image types or content based on training data
• Enables content-aware enhancement that considers semantic information
• Techniques include Convolutional Neural Networks (CNNs) for adaptive histogram equalization
• Allows for end-to-end learning of complex enhancement pipelines that go beyond traditional equalization
