11.3 Animation and interpolation techniques
5 min read•july 30, 2024
Animation and interpolation techniques are crucial in computer graphics, bringing static objects to life. Geometric Algebra offers a powerful framework for these tasks, simplifying complex transformations and enabling smooth, visually pleasing animations.
From for rotations to for combined motions, Geometric Algebra provides efficient tools for animators. It unifies various transformations, making it easier to create complex, realistic movements in 3D space.
Geometric Algebra for Animation
Representing and Manipulating Geometric Objects
Top images from around the web for Representing and Manipulating Geometric Objects
Making Math Visual: Translations with Geogebra View original
Is this image relevant?
DMS 423 - Class 5 View original
Is this image relevant?
Geometric algebra - Wikipedia View original
Is this image relevant?
Making Math Visual: Translations with Geogebra View original
Is this image relevant?
DMS 423 - Class 5 View original
Is this image relevant?
1 of 3
Top images from around the web for Representing and Manipulating Geometric Objects
Making Math Visual: Translations with Geogebra View original
Is this image relevant?
DMS 423 - Class 5 View original
Is this image relevant?
Geometric algebra - Wikipedia View original
Is this image relevant?
Making Math Visual: Translations with Geogebra View original
Is this image relevant?
DMS 423 - Class 5 View original
Is this image relevant?
1 of 3
- Geometric Algebra provides a unified framework for representing and manipulating geometric objects and transformations, making it well-suited for animation tasks
- Rotations in Geometric Algebra can be performed using rotor objects, which are even-grade that encode information
- Rotors can be applied to vectors or other geometric objects to rotate them in space (e.g., rotating a character's arm)

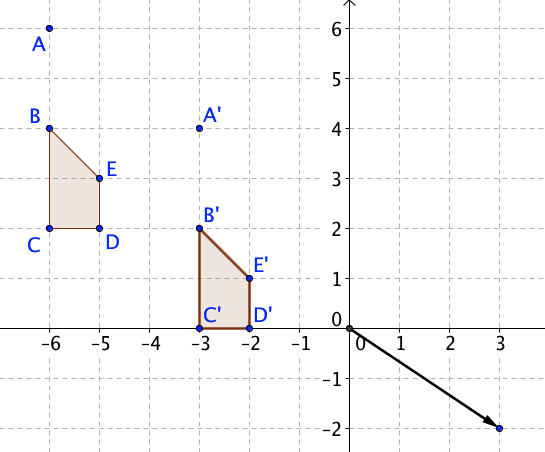

- Translations in Geometric Algebra can be represented using vectors, which can be added to other vectors or geometric objects to move them in space
- Example: Translating a character's position by adding a displacement vector
- in Geometric Algebra can be achieved by multiplying vectors or geometric objects with scalar values
- Example: Scaling an object's size by multiplying its vector representation with a scalar factor
Efficient Combined Transformations and Interpolation
- Combined transformations, such as rotating and translating an object simultaneously, can be efficiently performed using a single multivector operation in Geometric Algebra
- This reduces the computational overhead compared to applying multiple separate transformations
- Geometric Algebra allows for the interpolation of transformations, enabling smooth animations between different states or poses of objects
- Interpolation methods in Geometric Algebra, such as slerp and screwlerp, produce visually pleasing and geometrically correct animations
- Geometric Algebra supports the composition and inversion of transformations, making it easier to combine and manipulate complex animations
- Transformations can be chained together by multiplying their corresponding multivectors
Interpolation Methods with Geometric Algebra
Linear and Spherical Linear Interpolation
- Interpolation is the process of generating intermediate values between keyframes to create smooth animations
- (lerp) is a basic interpolation method that can be implemented using Geometric Algebra by linearly interpolating between two vectors or multivectors representing the start and end states of an animation
- Example: Interpolating between two positions to create a smooth animation
- is a more advanced interpolation method specifically designed for rotations
- It interpolates between two rotors, ensuring a constant angular velocity and producing visually pleasing rotational animations
- Slerp can be implemented in Geometric Algebra using the exponential and logarithm functions of rotors, which map between the rotor space and the bivector space
Advanced Interpolation Techniques
- Screw linear interpolation (screwlerp) is an interpolation method that combines rotations and translations, allowing for smooth animations of objects that simultaneously rotate and translate
- Screwlerp can be implemented in Geometric Algebra by interpolating between two , which represent combined rotation and translation transformations
- Geometric Algebra also supports higher-dimensional interpolation methods, such as interpolating between or other geometric primitives
- This enables more complex and expressive animations (e.g., interpolating between different shapes or deformations)
- Interpolation methods in Geometric Algebra can be extended to handle and
- These transformations can be challenging to animate using traditional methods, but Geometric Algebra provides a natural and efficient way to interpolate them
Advantages of Geometric Algebra in Animation
Unified and Intuitive Representation
- Geometric Algebra provides a unified and compact representation for various geometric transformations, reducing the complexity and computational overhead compared to traditional matrix-based approaches
- This simplifies the implementation and optimization of animation systems
- The use of rotors in Geometric Algebra eliminates the need for separate rotation representations like Euler angles or
- Rotors avoid gimbal lock and other singularity issues that can occur with other rotation representations
- Geometric Algebra allows for the direct manipulation and interpolation of geometric objects, such as , , and spheres
- This enables more intuitive and geometrically meaningful animations (e.g., animating a character's limbs using line segments)
Efficient Computation and Composition
- The algebraic structure of Geometric Algebra supports the composition and inversion of transformations, making it easier to combine and manipulate complex animations
- Transformations can be efficiently composed by multiplying their corresponding multivectors
- Geometric Algebra provides a natural and efficient way to handle non-uniform scaling and shearing transformations
- These transformations can be represented and interpolated using multivectors, avoiding the need for separate matrix operations
- The interpolation methods in Geometric Algebra, such as slerp and screwlerp, produce visually pleasing and geometrically correct animations
- These methods avoid artifacts and discontinuities that can occur with other interpolation techniques
Combining Transformations and Interpolations
Hierarchical and Layered Animations
- Complex animations can be created by combining multiple transformations and interpolations using Geometric Algebra
- can be achieved by applying transformations to parent objects and propagating them to child objects in a scene graph
- Geometric Algebra allows for the efficient computation of relative transformations between objects in a hierarchy (e.g., animating a character's skeleton)
- Animations can be layered by blending multiple transformations or interpolations using Geometric Algebra operations, such as addition or multiplication
- This enables the creation of complex and expressive animations by combining different animation components (e.g., layering facial expressions on top of body animations)
Advanced Animation Techniques
- can be solved using Geometric Algebra to determine the transformations required to achieve a desired end-effector position or orientation
- Conformal Geometric Algebra can be particularly useful for solving inverse kinematics problems, as it provides a unified representation for , lines, planes, and spheres
- Geometric Algebra can be used to create physically-based animations by incorporating constraints, collisions, and dynamics into the animation system
- The geometric primitives and operations in Geometric Algebra can be used to efficiently detect and resolve collisions between objects
- Advanced animation techniques, such as motion capture data processing and character skinning, can be implemented using Geometric Algebra
- Motion capture data can be represented and manipulated using multivectors, enabling efficient data processing and retargeting
- Character skinning can be performed by blending the transformations of skeletal bones using Geometric Algebra operations, resulting in smooth and realistic deformations
Key Terms to Review (29)
Bezier curves: Bezier curves are parametric curves commonly used in computer graphics and animation to model smooth curves that can be easily manipulated by controlling points. These curves are defined by a set of control points, with the simplest form being a linear interpolation between two points, while more complex forms involve multiple control points, resulting in higher-degree curves. This flexibility allows for creating intricate shapes and animations, making Bezier curves an essential tool in animation and interpolation techniques.
Bivectors: Bivectors are mathematical entities that represent oriented areas in geometric algebra, typically formed as the outer product of two vectors. They are essential for understanding the geometric interpretations of physical phenomena, as they help describe rotations, areas, and transformations in various contexts, including inner and outer products, conformal geometry, special relativity, and animation techniques.
Blender: Blender is a powerful open-source 3D computer graphics software used for creating animated films, visual effects, art, 3D games, and more. It offers a wide range of features including modeling, sculpting, texturing, shading, and rendering, making it a versatile tool in animation production. The software's ability to integrate various animation techniques allows users to create complex and visually appealing animations efficiently.
Catmull-Rom splines: Catmull-Rom splines are a type of interpolating spline that are defined by a set of control points, providing smooth and continuous curves. They are particularly useful for animation and modeling because they allow for the creation of natural paths that pass through specific points, making them ideal for designing motion paths in 3D environments and optimizing rotations.
Conformal Transformations: Conformal transformations are functions that preserve angles but not necessarily distances between points in a given space. They play a critical role in geometry and physics, particularly in contexts where angle preservation is essential, such as in conformal geometry, fluid dynamics, and computer graphics. These transformations can be utilized to map complex shapes into simpler ones while maintaining their angular relationships, making them valuable in various fields including animation and interpolation techniques.
David Hestenes: David Hestenes is a prominent mathematician known for his pioneering work in Geometric Algebra, particularly for developing the algebraic framework that unifies various mathematical concepts such as vector algebra, complex numbers, and quaternions. His contributions have significantly impacted various fields including physics, engineering, and computer science, providing powerful tools for representing and manipulating geometric transformations.
Hierarchical Animations: Hierarchical animations refer to a method of animating complex objects by breaking them down into a structured hierarchy of simpler components, allowing for coordinated movement and interactions. This approach enables animators to manage relationships between different parts of an object, ensuring that when one part moves, related parts respond in a logical and fluid manner. Hierarchical animations are particularly useful in 3D modeling and animation, where the relationships among objects can greatly enhance the realism and efficiency of the animation process.
Inverse Kinematics: Inverse kinematics is a mathematical method used in animation and robotics to determine the joint angles needed to position a robotic arm or animated character's end effector at a desired location. This technique plays a crucial role in creating realistic movements, as it allows for the calculation of required joint movements while considering the constraints and limits of the system. By solving the inverse problem, it enables animators and engineers to manipulate complex structures efficiently and effectively.
Ken Shoemake: Ken Shoemake is a prominent figure in computer graphics known for his contributions to animation and interpolation techniques, particularly in the development of the 'Spherical Linear Interpolation' (slerp) method. This technique is vital for smoothly transitioning between orientations in 3D space, making it essential for character animations and various graphical applications. His work has influenced the way animations are created and rendered, allowing for more natural movements and fluid transitions in digital environments.
Keyframing: Keyframing is a fundamental animation technique where specific frames, called keyframes, are defined to mark the start and end points of a transition or movement. This allows animators to create fluid motion by interpolating the in-between frames, resulting in smooth animations. It serves as the backbone for both 2D and 3D animation, providing control over timing and spacing of movements.
Linear interpolation: Linear interpolation is a method of estimating unknown values that fall within two known values on a line or curve. This technique is widely used in animation and interpolation techniques to create smooth transitions between keyframes, allowing for a more fluid representation of motion and changes over time.
Lines: In geometry, lines are straight one-dimensional figures that extend infinitely in both directions without width, defined by two distinct points or a linear equation. They play a fundamental role in various mathematical concepts, especially in the context of transformations and intersections, influencing how geometric figures relate to one another in space.
Maya: Maya is a powerful 3D computer graphics software used extensively in animation, modeling, simulation, and rendering. It plays a crucial role in animation and interpolation techniques by allowing artists to create detailed and lifelike animations through a variety of tools and features. The software's robust capabilities enable the seamless integration of characters, environments, and effects to produce professional-grade animated content.
Motion representation: Motion representation refers to the methods and techniques used to describe and visualize movement within a geometric framework. It integrates various mathematical tools to analyze how objects move through space and time, often focusing on transformations, trajectories, and the relationships between different motion parameters. This concept is essential for understanding both physical motion in the real world and the simulated motion used in computer graphics and animations.
Motor objects: Motor objects are mathematical constructs used in geometric algebra to represent transformations and motions in space, such as rotations and translations. They combine both the algebraic properties of geometric entities and the operational aspects of motion, enabling smooth animation and interpolation techniques for objects in a digital environment.
Multivectors: Multivectors are elements of geometric algebra that represent quantities with both magnitude and direction, combining scalars, vectors, bivectors, and higher-dimensional entities. They play a crucial role in encoding geometric transformations and relationships, allowing for a unified treatment of various mathematical operations like rotations and reflections.
Non-uniform scaling: Non-uniform scaling refers to the transformation of an object in which its dimensions are changed by different factors along different axes. This technique allows for more complex and visually appealing animations, enabling artists and designers to create effects such as stretching or compressing objects in a controlled manner, adding depth and realism to animated sequences.
Path Interpolation: Path interpolation is a technique used in animation that creates smooth transitions between keyframes along a defined path. It allows for the generation of intermediate frames by calculating positions and orientations over time, ensuring that animated objects move fluidly and realistically along the specified trajectory. This method is essential for achieving lifelike motion in animations, making it easier to create complex movements without manually defining every frame.
Planes: In geometric algebra, a plane is a flat, two-dimensional surface that extends infinitely in all directions within a three-dimensional space. Planes are important for understanding how geometric transformations, reflections, and inversions interact with shapes and spaces in various contexts.
Points: Points are fundamental elements in geometry, representing specific locations in space without any dimension. They serve as the building blocks for more complex geometric entities and play crucial roles in defining shapes, transformations, and spatial relationships. In the context of geometry, points are often utilized to represent intersections, alignments, and transformations, which help in visualizing and manipulating figures within a geometric space.
Quaternions: Quaternions are a number system that extends complex numbers, consisting of a scalar part and a three-dimensional vector part, typically expressed in the form 'a + bi + cj + dk' where 'a', 'b', 'c', and 'd' are real numbers and 'i', 'j', and 'k' are the fundamental quaternion units. This mathematical structure is particularly useful in 3D computer graphics and robotics for representing orientations and rotations, making them valuable in applications involving path planning and obstacle avoidance as well as animation and interpolation techniques.
Rotation: Rotation refers to the circular movement of an object around a center point or axis. This concept is fundamental in understanding how objects change orientation in space and is deeply linked to various mathematical and physical frameworks, particularly in geometric algebra where it helps describe transformations and symmetries in multidimensional spaces.
Rotors: Rotors are geometric elements that represent rotations in a multi-dimensional space within the framework of geometric algebra. They provide a powerful way to describe and manipulate rotations, allowing for concise expressions of complex rotational transformations, which are essential in various physical and mathematical applications.
Scaling: Scaling refers to the process of enlarging or reducing an object’s size while maintaining its proportions. This concept plays a crucial role in various mathematical and geometric contexts, including transformations that affect shape, distance, and angles without altering the fundamental properties of the figures involved. It’s particularly significant in understanding how different systems represent and manipulate dimensions across various applications.
Screwlerp: Screwlerp is a geometric algebra technique used for smooth interpolation of rotations and translations in 3D space, particularly in animation and computer graphics. It combines the principles of screw motion, which involves a rotation around an axis and translation along that same axis, enabling more natural and fluid movements in animated sequences. This method helps achieve precise transformations while maintaining visual coherence during transitions.
Shearing transformations: Shearing transformations are geometric operations that displace points in a specified direction, causing a distortion that skews the shape of an object without altering its area. This type of transformation can be applied to animate objects, making them appear to stretch or skew, and plays a significant role in creating dynamic and realistic movements in animation and interpolation techniques.
Spherical linear interpolation (slerp): Spherical linear interpolation, or slerp, is a method used to interpolate between two points on a sphere, commonly represented as unit quaternions in 3D space. This technique is especially useful in animation and computer graphics, allowing for smooth rotations and transitions between orientations while maintaining constant speed along the shortest path. By using slerp, you can create more natural and visually appealing animations without the distortions that can occur with linear interpolation methods.
Translation: Translation refers to the geometric operation of shifting every point of a figure or space by the same fixed distance in a specified direction. This operation preserves the shape and size of geometric objects, making it a fundamental concept in various fields, including computer graphics and physics. By moving objects within a coordinate system, translation enables transformations that are crucial for modeling and analyzing physical systems or rendering scenes.
Tweening: Tweening, short for 'in-betweening', is a technique in animation that generates intermediate frames between two keyframes to create smooth transitions. This process allows animators to efficiently produce fluid movements without manually drawing each frame. Tweening can involve transformations such as movement, scaling, and rotation, which help in creating a more dynamic visual experience.
