6.3 Nucleic Acid Organization in Cells

DNA packaging is a marvel of biological engineering. Our cells squeeze two meters of DNA into a tiny nucleus by wrapping it around proteins called histones. This forms nucleosomes, which are further organized into chromatin fibers and eventually chromosomes.

Chromatin comes in two flavors: euchromatin and heterochromatin. Euchromatin is like an open book, ready for genes to be read. Heterochromatin is more like a locked vault, keeping genes silent. RNA, made from DNA, has its own journey through the cell.

DNA Packaging and Chromatin Organization

DNA packaging into chromatin

• DNA packaged into chromatin to fit inside the nucleus
  • Naked DNA approximately 2 meters long in human cells
  • Packaging allows DNA to fit into a nucleus with a diameter of only 6 micrometers (the size of a small bacterial cell)
• Histones are proteins that play a crucial role in DNA packaging
  • Core histones (H2A, H2B, H3, and H4) form an octamer around which DNA wraps (like thread around a spool)
  • Linker histone (H1) helps stabilize the structure (acts as a clamp to hold the DNA in place)
• DNA wraps around histone octamers to form nucleosomes
  • Each nucleosome consists of 147 base pairs of DNA wrapped around a histone octamer (like beads on a string)
  • Nucleosomes connected by linker DNA, forming a "beads on a string" structure (resembling a necklace)

Levels of chromatin organization

• Nucleosomes are the most basic level of chromatin organization
  • DNA wraps around histone octamers to form nucleosomes (the "beads" on the string)
  • Nucleosomes connected by linker DNA (the "string" between the beads)
• Chromatin fibers are the next level of organization
  • Nucleosomes further compacted into 30-nanometer fibers (like a coiled telephone cord)
  • Histone H1 helps stabilize the 30-nanometer fiber structure (acts as a fastener to hold the coils together)
• Chromosomes are the highest level of chromatin organization
  • Chromatin fibers further condensed and looped to form chromosomes (like a tightly packed suitcase)
  • Chromosomes visible during cell division (mitosis and meiosis)
  • Each chromosome consists of two sister chromatids connected at the centromere (like identical twins holding hands)

Chromatin States and RNA Organization

Euchromatin vs heterochromatin

• Euchromatin is a less condensed form of chromatin
  • Associated with actively transcribed genes (like an open book, ready to be read)
  • More accessible to transcription factors and RNA polymerase (like a welcoming open door)
  • Typically found in regions with high gene density (like a bustling city center)
• Heterochromatin is a more condensed form of chromatin
  • Associated with inactive or silenced genes (like a locked vault, hiding its contents)
  • Less accessible to transcription factors and RNA polymerase (like a guarded fortress)
  • Typically found in regions with low gene density or repetitive sequences (like a quiet, remote village)
• Chromatin state can change depending on cell type and developmental stage

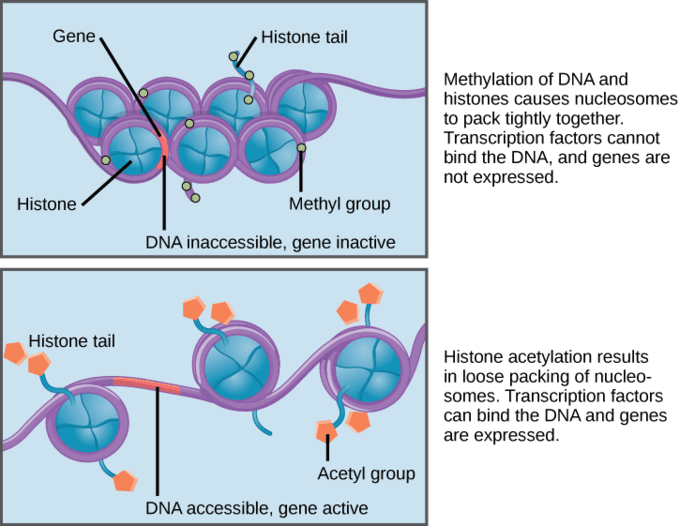

  • Epigenetic modifications, such as histone modifications and DNA methylation, regulate chromatin state and gene expression (like a dimmer switch, turning genes on or off as needed)

RNA organization in cells

• RNA synthesized in the nucleus and exported to the cytoplasm
  1. RNA polymerase transcribes DNA into pre-mRNA (like a scribe copying a manuscript)
  2. Pre-mRNA undergoes processing, including splicing, capping, and polyadenylation (like an editor polishing a draft)
  3. Mature mRNA exported through nuclear pores into the cytoplasm (like a finished book leaving the printing press)
• In the cytoplasm, mRNA associates with ribosomes for translation
  • Ribosomes consist of rRNA and proteins (like a factory with machinery and workers)
  • Ribosomes can be free in the cytoplasm or bound to the endoplasmic reticulum (ER) (like a factory on an assembly line)
  • Translation occurs in the cytoplasm, with ribosomes reading the mRNA and synthesizing proteins (like a chef following a recipe to create a dish)
• Other types of RNA have specific functions and cellular locations
  • tRNA carries amino acids to the ribosome during translation (like a delivery truck bringing ingredients to the factory)
  • rRNA is a structural and catalytic component of ribosomes (like the framework and tools in the factory)
  • Small nuclear RNAs (snRNAs) involved in splicing and other nuclear processes (like specialized technicians in the editing room)
  • Small nucleolar RNAs (snoRNAs) guide chemical modifications of other RNAs (like a foreman directing workers to refine the product)
