10.2 Nanomaterials and their applications

Nanomaterials: Properties, Types, and Synthesis

Nanomaterials are materials with at least one dimension between 1 and 100 nanometers. At this scale, materials behave differently than they do in bulk form, exhibiting unique chemical, optical, and mechanical properties. Understanding why these changes happen connects directly to concepts you've seen throughout this course: surface chemistry, electronic structure, and intermolecular forces.

Properties of Nanomaterials

The defining feature of nanomaterials is their extraordinarily high surface area-to-volume ratio. As particles shrink, a much larger fraction of their atoms sit on the surface rather than buried in the interior. Surface atoms are less coordinated (bonded to fewer neighbors), which makes them more reactive. This single geometric fact drives most of what makes nanomaterials special.

• Enhanced reactivity and catalytic activity. More exposed surface atoms means more sites available for chemical reactions. Gold in bulk form is famously inert, but gold nanoparticles (< 5 nm) can catalyze reactions like CO oxidation at low temperatures.
• Altered electronic and optical properties. When a particle is small enough, electrons become confined in a tiny space. This quantum confinement changes the energy levels available to electrons, which shifts the wavelengths of light the material absorbs or emits. Cadmium selenide ($CdSe$) quantum dots, for example, glow different colors depending on their size: smaller dots emit blue light, larger ones emit red.
• Improved mechanical strength. Carbon nanotubes have tensile strengths roughly 100 times greater than steel at a fraction of the weight, making them candidates for reinforcing composite materials.

Two key phenomena to know at the nanoscale:

• Quantum confinement occurs in semiconductor nanoparticles when the particle diameter approaches the material's exciton Bohr radius. The bandgap widens as particle size decreases, making optical and electronic properties tunable by simply changing the size during synthesis.
• Surface plasmon resonance (SPR) occurs in metal nanoparticles like gold and silver. Incoming light causes the conduction electrons on the particle surface to oscillate collectively. This produces intense absorption at specific wavelengths, which is why colloidal gold solutions appear red rather than gold-colored.

Because these properties depend on size, shape, and composition, scientists can engineer nanomaterials for specific tasks. Changing a gold nanoparticle from a sphere to a rod shifts its plasmon resonance from visible to near-infrared wavelengths. Coating the surface of carbon nanotubes with functional groups can make them soluble in water or able to bind specific biomolecules.

Types and Synthesis of Nanomaterials

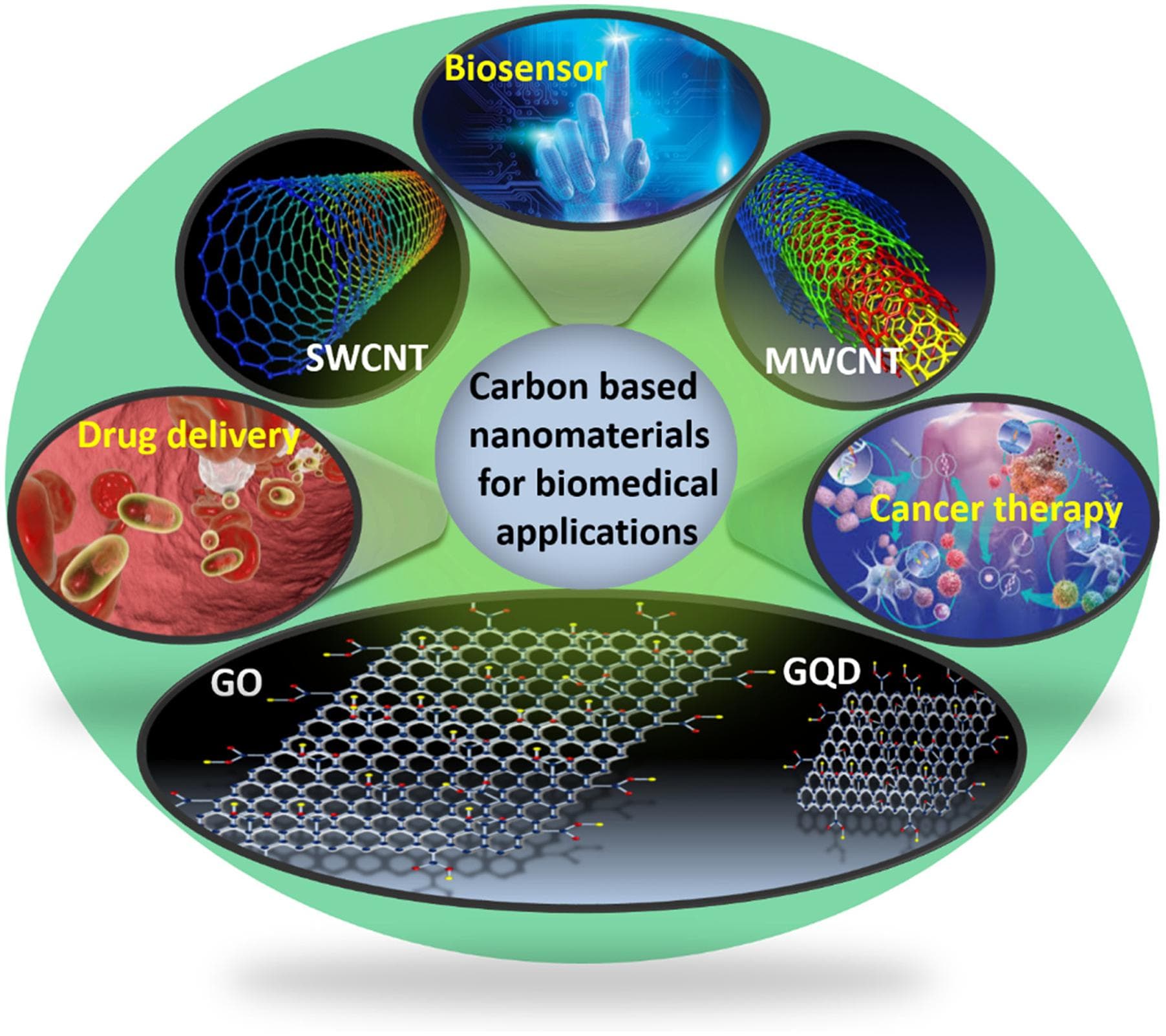

Carbon-Based Nanomaterials

Carbon's ability to form different bonding arrangements produces a family of distinct nanostructures:

• Fullerenes ($C_{60}$, $C_{70}$) are hollow, cage-like molecules. $C_{60}$ has the geometry of a soccer ball (truncated icosahedron) and was one of the first nanomaterials discovered (1985). Fullerenes have applications in organic electronics and as radical scavengers.
• Carbon nanotubes (CNTs) are rolled-up sheets of graphene. Single-walled nanotubes (SWCNTs) have one layer; multi-walled nanotubes (MWCNTs) have several concentric layers. They conduct electricity better than copper along their length and have exceptional tensile strength.
• Graphene is a single atomic layer of carbon in a hexagonal lattice. It has remarkable electron mobility, thermal conductivity, and mechanical strength. Derivatives like graphene oxide are easier to process in solution and can be partially reduced to restore conductivity.

Metal and Metal Oxide Nanoparticles

• Gold, silver, and copper nanoparticles are widely used in catalysis and sensing. Silver nanoparticles also have antimicrobial properties and appear in wound dressings and water purification systems.
• Iron oxide ($Fe_3O_4$) nanoparticles are superparamagnetic, meaning they respond to external magnetic fields but don't stay magnetized afterward. This makes them useful as MRI contrast agents. Titanium dioxide ($TiO_2$) nanoparticles are photocatalysts and UV absorbers found in sunscreens and self-cleaning coatings. Zinc oxide ($ZnO$) nanoparticles serve similar UV-protective roles.

Semiconductor Nanoparticles (Quantum Dots)

Quantum dots made from $CdSe$, $CdS$, or $PbS$ have size-tunable fluorescence. They're used in biological imaging (brighter and more stable than traditional fluorescent dyes), solar cells, and LED displays.

Polymeric Nanomaterials

• Dendrimers are tree-like, highly branched polymers with well-defined sizes and many surface functional groups. Their interior cavities can encapsulate drug molecules for controlled delivery.
• Block copolymer micelles self-assemble in solution when one block is hydrophilic and the other hydrophobic, forming nanoscale carriers that can encapsulate and release drugs.

Synthesis Methods

Nanomaterial synthesis falls into two broad categories:

Top-down approaches start with bulk material and break it down:

1. Lithography (electron beam, nanoimprint) patterns nanoscale features onto surfaces, commonly used in semiconductor manufacturing.
2. Etching (reactive ion etching, wet chemical etching) selectively removes material to carve out nanostructures.
3. Mechanical milling uses high-energy ball mills to grind bulk material into nanoparticles. It's simple but gives less control over particle size and shape.

Bottom-up approaches build nanomaterials from atomic or molecular precursors:

1. Chemical vapor deposition (CVD) flows gas-phase precursors over a heated substrate, where they react and deposit as a thin film or nanostructure. This is the primary method for growing carbon nanotubes and graphene.
2. Sol-gel methods start with molecular precursors in solution that undergo hydrolysis and condensation to form a gel network, which is then dried and processed into nanoparticles or thin films.
3. Self-assembly relies on non-covalent interactions (hydrogen bonding, van der Waals forces, hydrophobic effects) to spontaneously organize molecules or nanoparticles into ordered structures.

Applications Across Diverse Fields

Medicine

• Targeted drug delivery. Nanoparticles like liposomes and polymer-based carriers can be functionalized with molecules that recognize specific cell types (e.g., tumor cells). This concentrates the drug where it's needed and reduces side effects on healthy tissue.
• Diagnostic imaging. Superparamagnetic iron oxide nanoparticles enhance MRI contrast, while quantum dots provide bright, stable fluorescent labels for tracking biological processes.
• Tissue engineering. Nanofiber scaffolds mimic the structure of the natural extracellular matrix, providing a framework that guides cell growth and tissue regeneration.

Electronics

• Nanoelectronic devices. Carbon nanotube-based transistors can switch faster and consume less power than conventional silicon transistors at very small scales.
• Transparent conductive films. Networks of carbon nanotubes or graphene sheets can replace brittle indium tin oxide (ITO) in touchscreens, flexible displays, and solar cells.
• Quantum computing. Quantum dots can serve as qubits, exploiting quantum superposition and entanglement for computation that classical computers can't efficiently perform.

Energy

• Solar cells. Nanostructured designs like dye-sensitized and perovskite solar cells use nanoscale architectures to improve light absorption and charge transport.
• Batteries. Silicon nanoparticle anodes can store roughly 10 times more lithium per gram than conventional graphite anodes, though managing their volume expansion during cycling remains a challenge.
• Fuel cells and hydrogen storage. Platinum nanoparticle catalysts increase the surface area of expensive catalytic material, reducing the amount needed while maintaining performance.

Risks and Challenges of Nanomaterials

The same properties that make nanomaterials useful also raise safety concerns. Their small size lets them penetrate biological barriers that larger particles cannot.

Health risks:

• Inhalation is the primary exposure route in occupational settings. Nanoparticles can penetrate deep into the alveoli of the lungs, where they may cause inflammation and, with chronic exposure, fibrosis. Carbon nanotubes have drawn particular concern because their shape resembles asbestos fibers.
• Dermal absorption is debated. $TiO_2$ nanoparticles in sunscreens generally don't penetrate intact skin, but damaged or compromised skin may allow uptake. Research is ongoing.
• Bioaccumulation of nanoparticles in organs like the liver, spleen, and kidneys has been observed in animal studies, but long-term effects in humans remain poorly understood.

Environmental risks:

• Nanomaterials enter the environment through manufacturing waste, consumer product use, and disposal. Silver nanoparticles washing out of antimicrobial textiles, for instance, can accumulate in wastewater and harm aquatic organisms.
• Detecting and quantifying nanoparticles in environmental samples is difficult because standardized analytical methods are still being developed.

Regulatory challenges:

• No universally accepted testing protocols exist yet for evaluating nanomaterial toxicity. Traditional chemical safety tests don't always account for size-dependent behavior.
• Regulators face the task of balancing innovation against precaution, since many nanomaterial applications (cancer treatment, clean energy) offer significant societal benefits.

Research and Future of Nanomaterials

Characterization Techniques

Understanding what you've made is just as important as making it. Key tools include:

• Electron microscopy: Scanning electron microscopy (SEM) images surface morphology; transmission electron microscopy (TEM) reveals internal structure at atomic resolution.
• Atomic force microscopy (AFM) maps surface topography by scanning a sharp tip across the sample, achieving sub-nanometer height resolution.
• X-ray diffraction (XRD) identifies crystal structure and phase composition. Small-angle X-ray scattering (SAXS) measures particle size distributions in the 1-100 nm range.
• Spectroscopic methods: UV-vis spectroscopy tracks optical absorption (useful for confirming nanoparticle size via plasmon peaks), Raman spectroscopy probes vibrational modes (essential for characterizing carbon nanomaterials), and X-ray photoelectron spectroscopy (XPS) determines surface chemical composition.

Emerging Systems

• 2D materials beyond graphene. Transition metal dichalcogenides like $MoS_2$ and $WSe_2$ have intrinsic bandgaps (unlike graphene), making them suitable for transistors and photodetectors.
• Perovskite nanocrystals have tunable bandgaps and high quantum efficiencies, pushing solar cell efficiencies above 25% in lab settings and enabling vivid LED displays.
• Nanomaterial-based sensors exploit high surface area and surface sensitivity for detecting trace amounts of gases, biomolecules, or pollutants. Graphene-based gas sensors, for example, can detect single molecules adsorbing onto their surface.

Interdisciplinary Directions

• Nanomedicine combines nanomaterials with biotechnology for theranostics (combined therapy and diagnostics), where a single nanoparticle platform can image a tumor and deliver a drug simultaneously.
• Computational modeling using molecular dynamics and density functional theory (DFT) accelerates the design of new nanomaterials by predicting properties before synthesis.
• Sustainability applications include photocatalytic water splitting (using sunlight to produce $H_2$ fuel), nanofiltration membranes for water purification, and nanostructured thermoelectric materials for waste heat recovery.
