8.1 UART/USART communication
3 min read•august 7, 2024
and are essential serial communication protocols in embedded systems. They enable devices to talk to each other by converting parallel data to serial form, with UART handling and USART supporting both async and sync modes.
These protocols use start and stop bits to frame data, with optional parity for error checking. The determines transmission speed, while different communication modes like full-duplex allow for flexible data exchange between devices.
UART/USART Fundamentals
Serial Communication Protocols
Top images from around the web for Serial Communication Protocols

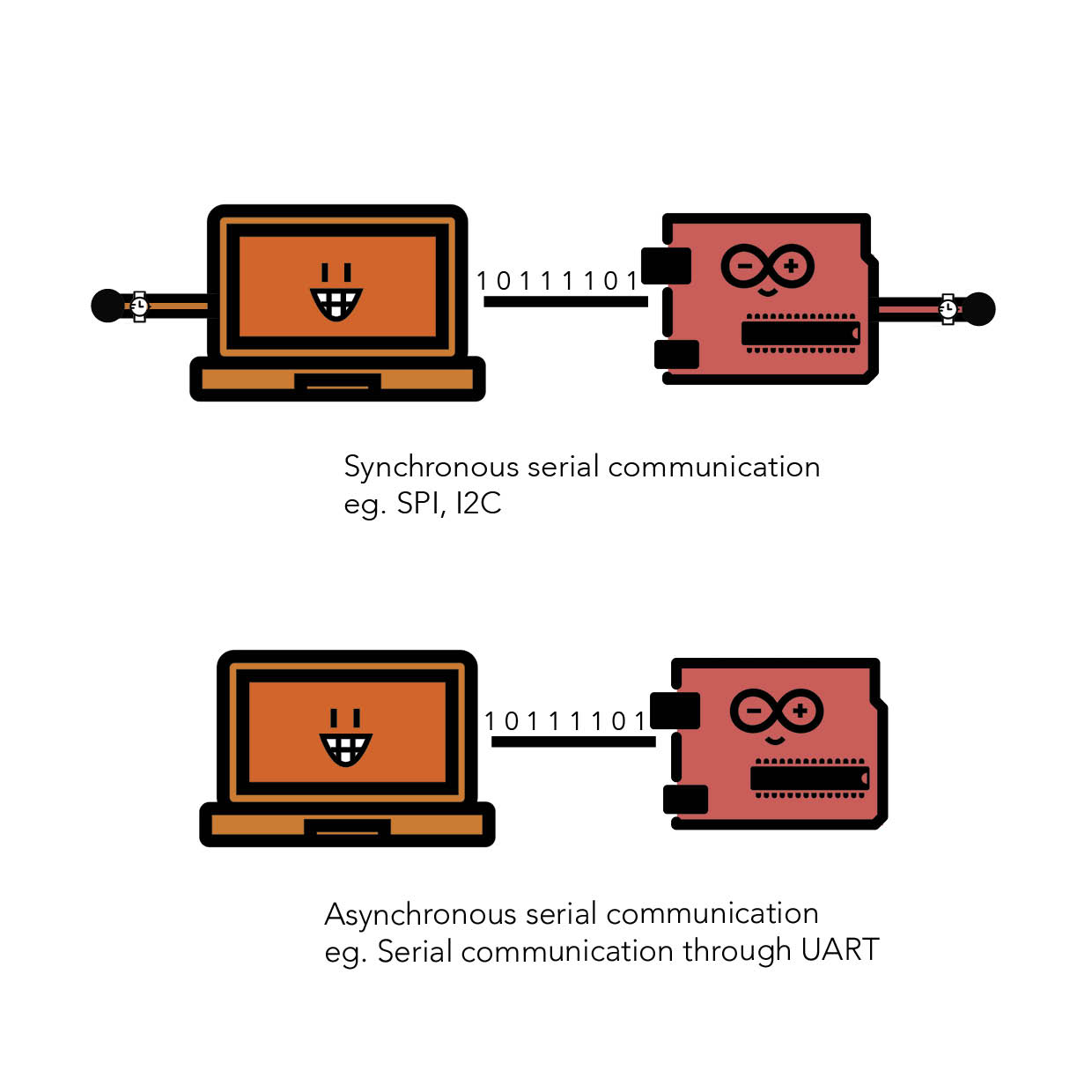

Communication protocols: UART and SPI | Physical Computing View original
Is this image relevant?
Communication protocols: UART and SPI | Physical Computing View original
Is this image relevant?

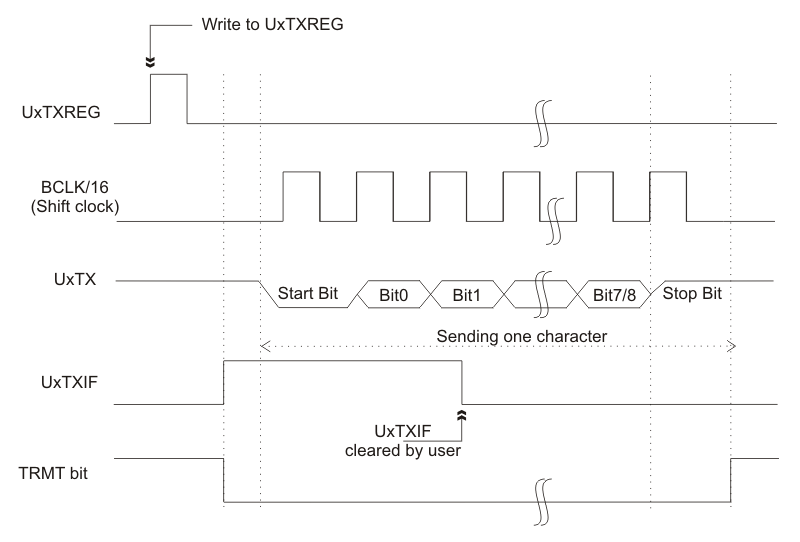

10.3 UART transmitter | Programming dsPIC MCUs in C View original
Is this image relevant?
Communication protocols: UART and SPI | Physical Computing View original
Is this image relevant?
Communication protocols: UART and SPI | Physical Computing View original
Is this image relevant?
1 of 3
Top images from around the web for Serial Communication Protocols
Communication protocols: UART and SPI | Physical Computing View original
Is this image relevant?
Communication protocols: UART and SPI | Physical Computing View original
Is this image relevant?
10.3 UART transmitter | Programming dsPIC MCUs in C View original
Is this image relevant?
Communication protocols: UART and SPI | Physical Computing View original
Is this image relevant?
Communication protocols: UART and SPI | Physical Computing View original
Is this image relevant?
1 of 3
- UART (Universal Asynchronous Receiver/Transmitter) enables asynchronous serial communication between devices, converting parallel data to serial data for transmission and vice versa for reception
- USART (Universal Synchronous/Asynchronous Receiver/Transmitter) supports both asynchronous and synchronous serial communication, offering flexibility in communication modes
- Asynchronous communication does not require a shared clock signal between the transmitter and receiver, allowing for variable timing between transmitted characters ()
- requires a common clock signal shared between the transmitter and receiver, ensuring precise timing and higher data transfer rates (SPI, I2C)
- Baud rate represents the number of signal or symbol changes per second in a communication channel, determining the speed of data transmission (9600, 115200)
Data Transmission Characteristics
- signals the beginning of a data frame, alerting the receiver to incoming data and synchronizing the communication
- indicates the end of a data frame, providing a brief pause for the receiver to process the received data and prepare for the next frame
- adds an extra bit for error detection, ensuring data integrity by checking if the number of 1's in the data frame is even or odd
- represent the actual information being transmitted, typically ranging from 5 to 9 bits per frame (8 data bits)
Data Framing
Frame Structure
- Start bit initiates the data frame, usually a single low bit (logic 0) to signal the beginning of the transmission
- Stop bit concludes the data frame, typically one or two high bits (logic 1) to indicate the end of the transmission and provide time for the receiver to process the data
- Parity bit, when used, is an additional bit added to the data frame for error detection purposes, calculated based on the number of 1's in the data bits (even parity, odd parity)
- Data bits carry the actual information being transmitted, with the number of data bits per frame agreed upon by the transmitter and receiver (7 data bits for ASCII characters)
Error Detection and Synchronization
- Start bit synchronizes the transmitter and receiver, ensuring they are ready to send and receive data at the same time
- Stop bit provides a brief pause for the receiver to process the received data and resynchronize for the next frame, preventing data overflow and maintaining communication stability
- Parity bit enables basic error detection by checking if the number of 1's in the data frame matches the expected parity (even or odd), helping identify single-bit errors
- Data bits are framed by the start and stop bits, with the least significant bit (LSB) transmitted first and the most significant bit (MSB) transmitted last
Communication Modes
Duplex Communication
- Full-duplex communication allows simultaneous bidirectional data transmission, where both devices can send and receive data at the same time (telephone conversation)
- Half-duplex communication supports bidirectional data transmission, but only one device can transmit at a time while the other receives, requiring the devices to take turns (walkie-talkie)
Unidirectional Communication
- enables unidirectional data transmission, where one device can only transmit and the other can only receive, without the ability to switch roles (radio broadcast)
