Time-based control is crucial in embedded systems, allowing precise timing and scheduling of tasks. This section explores techniques like for power control and frequency generation for signal creation, essential for applications like motor control and LED dimming.
We'll also dive into , , and . These concepts are vital for creating responsive and efficient embedded systems that can handle multiple tasks and accurately track time intervals.
Pulse Width Modulation and Frequency Control
Generating Pulse Width Modulation (PWM) Signals
Pulse Width Modulation (PWM) is a technique used to control the average power delivered to a load by rapidly switching a power source on and off
PWM signals are generated by varying the pulse width (on-time) while maintaining a constant frequency
The average voltage delivered to the load is proportional to the duty cycle, which is the ratio of the pulse width to the total period
PWM is commonly used in applications such as motor speed control, LED dimming, and power regulation
Controlling Frequency and Duty Cycle
Frequency generation involves producing a periodic signal with a specific frequency using or
The frequency of the generated signal is determined by the timer's clock source and the value loaded into the timer's register
Duty cycle control refers to adjusting the percentage of time a signal is in the active state (high or low) within one period
The duty cycle can be modified by changing the pulse width while keeping the frequency constant

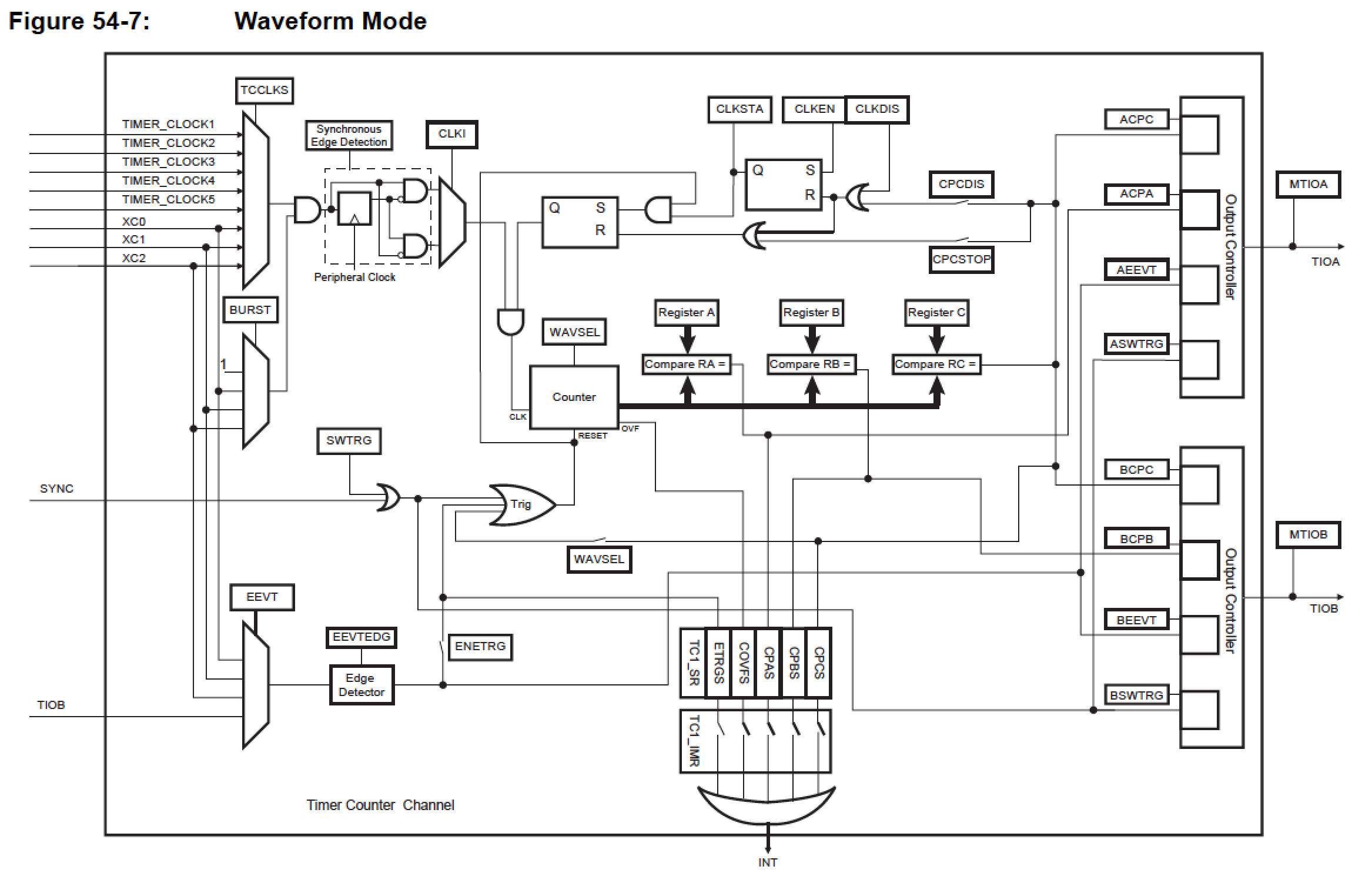

Timers with output compare functionality can be used to generate PWM signals with precise frequency and duty cycle control
Timing and Scheduling
Implementing Periodic Task Scheduling
Periodic task scheduling involves executing tasks or functions at regular intervals using timers or
Timers can be configured to generate interrupts at specific intervals, allowing the execution of periodic tasks
The associated with the timer interrupt is used to trigger the execution of the periodic task
Scheduling multiple periodic tasks requires careful consideration of task priorities and execution times to ensure
Measuring Time and Implementing Delays
Time measurement involves using timers to determine the elapsed time between events or to measure the duration of specific operations
Timers can be configured to count clock cycles or external events, allowing accurate time measurement
Delay implementation refers to introducing precise time delays in the execution of code
Delays can be achieved by configuring timers to generate interrupts after a specific time period and waiting for the interrupt to occur
can also be used for short delays, but they consume CPU cycles and may not be suitable for longer delays
Signal Conditioning
Debouncing Techniques for Digital Inputs
is the process of removing the unwanted transitions (bounces) that occur when mechanical switches or buttons are pressed or released
Mechanical switches can generate multiple rapid transitions due to the physical contacts bouncing against each other
Debouncing techniques are used to filter out these spurious transitions and ensure a clean and stable digital input signal
Software debouncing involves sampling the input signal at regular intervals and applying a debounce delay to determine the stable state of the switch
Hardware debouncing uses RC filters or dedicated debounce ICs to smooth out the bouncing transitions before the signal reaches the microcontroller
Key Terms to Review (13)
Busy-waiting loops: Busy-waiting loops are a synchronization technique where a thread repeatedly checks a condition or waits for an event to occur, consuming CPU resources without yielding control. This approach is often used in time-based control applications to ensure that the system can react promptly to changes in state or timing requirements. However, while busy-waiting can provide responsiveness, it may also lead to inefficiencies and wasted processing power, especially if the waiting period is lengthy.
Counters: Counters are digital devices or circuits that keep track of the number of occurrences of an event, typically in a sequential manner. They are essential in time-based control applications, allowing systems to measure time intervals, generate specific timing sequences, and control state changes based on the passage of time.
Debouncing: Debouncing is the process of eliminating false signals or noise from mechanical switches or buttons in electronic systems, ensuring that only a single clean signal is registered for each user input. This is crucial because mechanical switches can produce multiple unwanted signals (bounces) when they are pressed or released, which can lead to erratic behavior in systems that rely on precise control and timing.
Delay implementation: Delay implementation refers to the method of introducing intentional pauses or waits within a system's execution to manage timing and synchronization. This technique is crucial in time-based control applications, as it allows systems to coordinate activities, manage resource usage, and ensure that processes occur in the correct sequence without overwhelming hardware resources.
Deterministic behavior: Deterministic behavior refers to the property of a system where the output is predictable and consistent given a specific set of inputs and conditions. This means that the system will always produce the same output when presented with the same initial state, ensuring reliability and repeatability. In embedded systems and time-based control applications, deterministic behavior is crucial as it enables precise control and timing, which are essential for the correct functioning of devices and processes.
Digital inputs: Digital inputs refer to binary signals that can represent two discrete states, typically '0' (low) and '1' (high). These inputs are fundamental in embedded systems, as they allow devices to receive information from external sources, like sensors or switches, for processing and decision-making. Digital inputs are crucial for time-based control applications because they can trigger actions based on specific time intervals or conditions.
Interrupt Service Routine (ISR): An Interrupt Service Routine (ISR) is a special block of code that gets executed in response to an interrupt signal, allowing the system to respond to external events quickly. ISRs are crucial for managing time-sensitive tasks without disrupting the main program flow, ensuring efficient use of processing resources in applications that require immediate attention, like handling timers or responding to hardware signals.
Periodic Task Scheduling: Periodic task scheduling is a method used in real-time systems to manage and execute tasks at regular intervals. This approach is essential for ensuring that time-based control applications can meet their timing constraints and provide predictable performance. By allocating CPU time to tasks based on their periods, it allows systems to handle multiple tasks concurrently while maintaining the integrity of time-sensitive operations.
Pulse Width Modulation (PWM): Pulse Width Modulation (PWM) is a technique used to encode a message into a pulsing signal, where the width of the pulses represents the amplitude of the signal. This method is widely utilized in time-based control applications to regulate power delivery, control motor speed, and manage light intensity by varying the duty cycle of the pulse signal. By adjusting the duration of the 'on' versus 'off' states, PWM allows for efficient control of devices without significant energy loss.
Real-time operating systems (RTOS): Real-time operating systems (RTOS) are specialized software designed to manage hardware resources and execute tasks within strict timing constraints. These systems are crucial for applications where timing is critical, ensuring that tasks are completed within predefined deadlines. RTOS is foundational in time-based control applications, utilizes specific scheduling algorithms for optimal task management, and plays a vital role throughout the embedded system development lifecycle.
Signal conditioning: Signal conditioning is the process of manipulating a signal in such a way that it meets the requirements for further processing or analysis. This includes filtering, amplifying, and converting signals from sensors to make them suitable for digital processing or control applications. It plays a vital role in ensuring accurate data capture and effective system response, particularly in time-based control systems, sensor characteristics, and interfacing techniques.
Time Measurement: Time measurement refers to the process of quantifying time intervals in order to control and synchronize processes in embedded systems. It is crucial for determining how long an event takes, ensuring that actions occur at the right moments, and managing timing for various system operations. Accurate time measurement allows systems to perform tasks in a predictable manner, making it essential in scenarios such as time-based control applications and utilizing timer/counter architectures effectively.
Timers: Timers are essential components in microcontrollers that help track time intervals and generate delays or schedule events. They work by counting clock cycles from a reference frequency, allowing the system to execute tasks at precise time intervals. Timers are crucial for both controlling the timing of operations and ensuring the synchronization of processes in various applications.
