Real-time scheduling algorithms are crucial for managing tasks in time-sensitive systems. They ensure critical operations are completed within strict deadlines. This topic covers fixed and dynamic priority scheduling, preemption, and time-triggered approaches.
We'll explore , , and . We'll also dive into preemptive vs , and time-triggered methods like and . These concepts are key to understanding real-time system design.
Fixed vs Dynamic Priority Scheduling

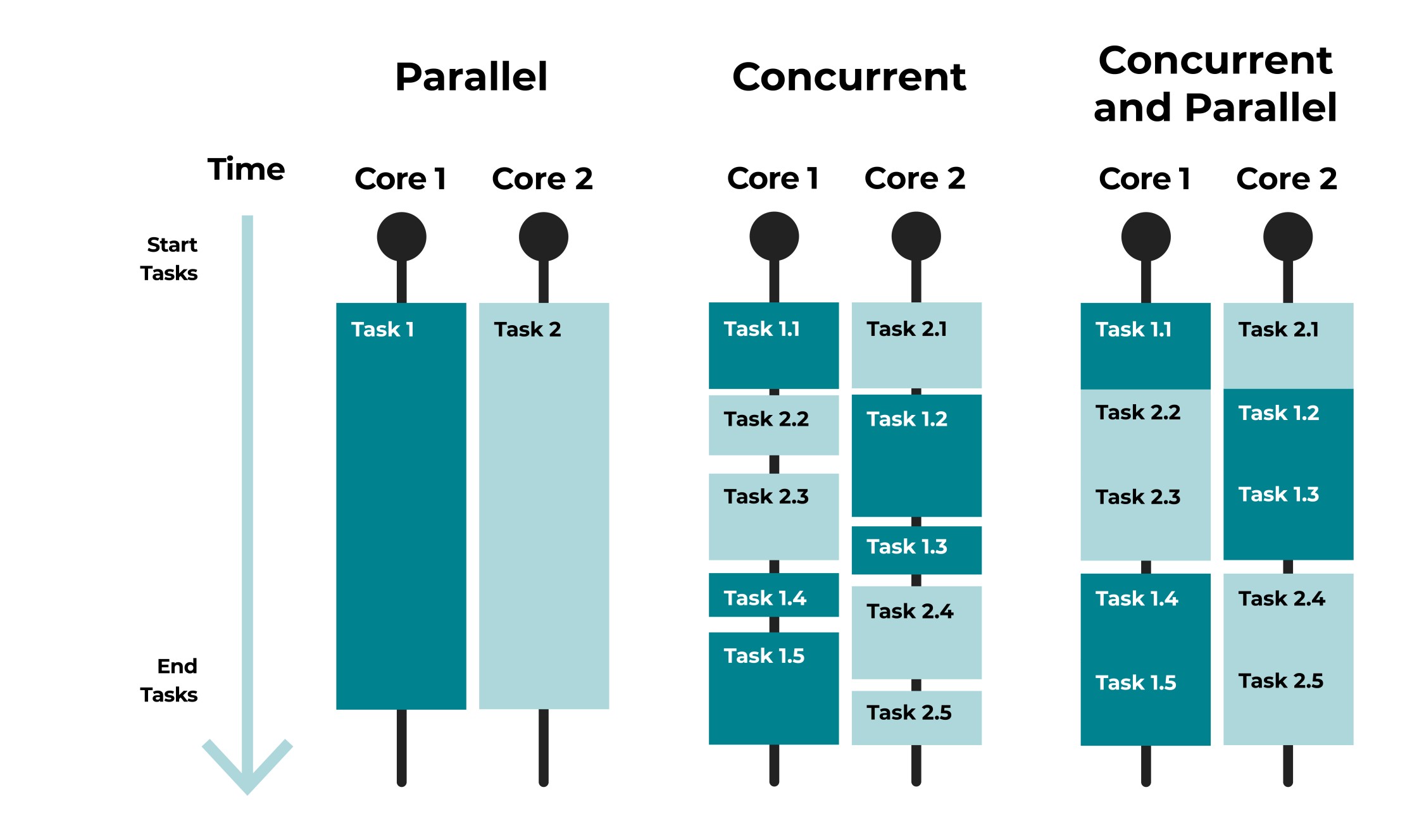

Rate Monotonic Scheduling (RMS)
Assigns fixed priorities to tasks based on their periods
Tasks with shorter periods are assigned higher priorities
Assumes tasks are periodic, independent, and have deadlines equal to their periods
Optimal fixed-priority scheduling algorithm for periodic tasks with deadlines equal to periods
Guarantees if the total CPU utilization is less than or equal to a specific bound (Liu and Layland bound)
Earliest Deadline First (EDF) and Deadline Monotonic Scheduling (DMS)
EDF is a dynamic-priority scheduling algorithm that assigns priorities based on the absolute deadlines of tasks
Tasks with earlier absolute deadlines are assigned higher priorities
Optimal dynamic-priority scheduling algorithm for periodic and sporadic tasks
DMS is a fixed-priority scheduling algorithm that assigns priorities based on the relative deadlines of tasks
Tasks with shorter relative deadlines are assigned higher priorities
Optimal fixed-priority scheduling algorithm for periodic tasks with arbitrary deadlines
Fixed-Priority vs Dynamic-Priority Scheduling
Fixed-priority scheduling assigns priorities to tasks statically before execution (RMS, DMS)
Dynamic-priority scheduling assigns priorities to tasks dynamically during execution based on their current state (EDF)
Fixed-priority scheduling is simpler to implement and analyze but may result in lower CPU utilization
Dynamic-priority scheduling can achieve higher CPU utilization but is more complex to implement and analyze
The choice between fixed-priority and dynamic-priority scheduling depends on the system requirements, task characteristics, and available resources
Preemption in Scheduling
Preemptive Scheduling
Allows a higher-priority task to interrupt (preempt) the execution of a lower-priority task
The preempted task is suspended, and its context is saved
Enables responsive execution of high-priority tasks and better CPU utilization
Requires overhead and careful synchronization to avoid race conditions and
Examples: most modern operating systems (Linux, Windows, macOS)
Non-Preemptive Scheduling
Once a task starts executing, it runs to completion without being interrupted by other tasks
Simpler to implement and analyze compared to
Avoids context switching overhead and reduces the need for synchronization primitives
May result in longer response times for high-priority tasks and potential priority inversion
Suitable for systems with short, deterministic tasks or when preemption is not allowed (e.g., in certain embedded systems)
Time-Triggered Approaches
Cyclic Executive
A simple, time-triggered approach to real-time scheduling
Tasks are executed in a fixed, predefined order within a major cycle
The major cycle is divided into minor cycles, each containing a subset of tasks
Tasks are scheduled based on their time slots in the minor cycles
Provides predictable and deterministic behavior but lacks flexibility and scalability
Suitable for small, static systems with well-defined timing requirements (automotive embedded systems)
Time-Triggered Architecture (TTA)
A comprehensive time-triggered approach for distributed real-time systems
Relies on a global time base synchronized across all nodes in the system
Communication and task execution are triggered by the progression of time
Provides a predictable and composable system architecture
Supports fault tolerance through redundancy and error containment
Requires careful design and configuration to ensure correct timing and synchronization
Used in safety-critical applications (aerospace, automotive, industrial control systems)
Key Terms to Review (21)
Context Switching: Context switching is the process of storing the state of a currently running task or process so that it can be resumed later, allowing multiple tasks to share a single CPU. This mechanism is crucial for multitasking operating systems and plays a significant role in managing interrupts, exceptions, and task scheduling.
Cyclic executive: A cyclic executive is a scheduling method used in real-time systems where tasks are executed in a fixed, repeating sequence within a specific time frame, ensuring that all tasks are completed within their deadlines. This approach relies on predetermined time slots for each task, making it deterministic and predictable, which is crucial for systems that require timely responses to external events.
David C. Lee: David C. Lee is a notable figure in the field of real-time systems and scheduling algorithms, known for his contributions to the analysis and design of scheduling techniques that ensure timely task execution in embedded systems. His work often emphasizes the importance of meeting deadlines and managing resources efficiently, which are critical in applications like robotics, automotive systems, and telecommunications.
Deadline Monotonic Scheduling: Deadline monotonic scheduling is a priority scheduling algorithm used in real-time systems where tasks are assigned priorities based on their deadlines; the shorter the deadline, the higher the priority. This method ensures that tasks with tighter deadlines are given precedence over those with longer deadlines, aiming to meet all task deadlines within their specified time constraints. It is particularly effective for periodic tasks, where the same task is executed repeatedly at regular intervals.
Dynamic scheduling: Dynamic scheduling is a technique used in operating systems and real-time systems to allocate CPU resources to tasks based on their current state and priority rather than a fixed order. This allows the system to respond in real-time to varying workloads and timing constraints, making it crucial for systems where timely task execution is essential. Dynamic scheduling adapts to changes in task priorities and resource availability, ensuring that critical tasks receive the attention they need when they need it.
Earliest Deadline First: Earliest Deadline First (EDF) is a dynamic scheduling algorithm used in real-time systems that prioritizes tasks based on their deadlines, assigning the highest priority to the task with the closest deadline. This method ensures that tasks are completed before their respective deadlines, making it crucial for maintaining system reliability and performance in real-time applications. EDF helps address real-time system requirements by providing an effective way to manage tasks that have strict timing constraints.
Hard real-time systems: Hard real-time systems are computing systems that require strict adherence to timing constraints, where missing a deadline can lead to catastrophic consequences. These systems are designed to ensure that critical tasks are completed within specific time limits, making them essential in applications such as medical devices, automotive safety systems, and industrial control. The reliability of hard real-time systems heavily relies on their ability to meet these stringent timing requirements under various operational conditions.
J. W. S. Liu: J. W. S. Liu is a prominent figure in the field of real-time systems, particularly known for his contributions to scheduling algorithms that are crucial for ensuring the timely execution of tasks in real-time applications. His work has laid the foundation for various scheduling strategies that balance efficiency with the strict timing requirements of embedded systems. The principles established by Liu have influenced both theoretical and practical aspects of real-time system design.
Jitter: Jitter refers to the variability in time delay of packets arriving over a network or the fluctuation in timing for events in computing systems. This inconsistency can significantly affect the performance of real-time systems, where precise timing is crucial for tasks such as audio/video streaming, communications, and embedded applications. Understanding jitter is essential for optimizing resource allocation and ensuring that interrupt priorities are appropriately managed.
Non-preemptive scheduling: Non-preemptive scheduling is a method of process management where a running process cannot be interrupted or preempted until it voluntarily yields control back to the operating system. This approach ensures that once a task begins execution, it runs to completion without being disrupted by other tasks, which can simplify resource management but may lead to delays in task responsiveness.
Preemptive scheduling: Preemptive scheduling is a method used by operating systems to manage task execution, allowing higher-priority tasks to interrupt and take control of the CPU from lower-priority tasks. This approach ensures that critical tasks can respond quickly to changes or events, which is especially important in environments requiring timely processing, such as real-time systems. By enabling immediate response to higher-priority interrupts, preemptive scheduling enhances system responsiveness and efficiency.
Priority Inversion: Priority inversion is a situation in real-time systems where a higher-priority task is preempted by a lower-priority task, causing delays in the execution of the higher-priority task. This phenomenon can lead to system failures when critical tasks miss their deadlines, significantly affecting the reliability and predictability of real-time operations. Understanding how priority inversion impacts scheduling, task management, and inter-task communication is crucial for designing robust embedded systems.
Rate Monotonic Scheduling: Rate monotonic scheduling (RMS) is a fixed-priority algorithm used in real-time systems where tasks are assigned priorities based on their periodicity; shorter period tasks receive higher priority. This method ensures that critical tasks meet their deadlines by prioritizing them over less critical ones, which is essential for the effective management of system resources. RMS is especially significant when considering how interrupts can affect task execution, as well as when evaluating the requirements and constraints that real-time systems must meet.
Real-time operating systems (RTOS): Real-time operating systems (RTOS) are specialized software designed to manage hardware resources and execute tasks within strict timing constraints. These systems are crucial for applications where timing is critical, ensuring that tasks are completed within predefined deadlines. RTOS is foundational in time-based control applications, utilizes specific scheduling algorithms for optimal task management, and plays a vital role throughout the embedded system development lifecycle.
Response Time: Response time is the duration it takes for a system to react to an input or stimulus, often measured from the moment an event occurs until the system produces an output. This measure is critical for ensuring that systems behave predictably and meet operational requirements, especially under constraints where timely responses are essential for functionality.
Schedulability: Schedulability is the ability of a real-time system to guarantee that all tasks will meet their deadlines under a given scheduling policy. This concept is crucial in real-time systems as it determines whether the system can function correctly and reliably, especially when tasks have strict timing constraints. Understanding schedulability involves analyzing task characteristics, such as execution time, period, and deadlines, to assess if the scheduling algorithm can accommodate all tasks without missing any deadlines.
Static scheduling: Static scheduling is a method of scheduling tasks in real-time systems where the timing and order of task execution are determined before runtime. This approach contrasts with dynamic scheduling, where decisions about task execution are made on-the-fly based on current system conditions. By assigning fixed priorities and execution slots to tasks, static scheduling ensures predictable behavior and allows for better resource management in time-critical applications.
Task Activation: Task activation refers to the process of making a task ready for execution in real-time systems, signaling the operating system to initiate or resume a task. This process is essential for ensuring that tasks are executed within their specified timing constraints, which is critical for meeting the requirements of real-time applications. Task activation can involve various strategies, including immediate activation upon event occurrence or scheduled activation based on timing parameters.
Task Blocking: Task blocking refers to a situation in real-time systems where a task cannot proceed because it is waiting for resources or conditions to become available. This can lead to delays in task execution, potentially affecting the timing and performance guarantees that are crucial for real-time applications. Task blocking is closely linked with resource management and scheduling algorithms, which play a significant role in determining how tasks are prioritized and executed in time-sensitive environments.
Throughput: Throughput is the measure of how many units of information or tasks are successfully processed in a given amount of time. It's essential in evaluating the efficiency of systems, as it directly influences performance and resource utilization across various functions.
Time-triggered architecture: Time-triggered architecture is a design paradigm for real-time systems where actions are executed at predetermined time intervals, ensuring that tasks are completed within specific deadlines. This approach relies on the concept of time as a primary scheduling criterion, promoting predictability and reliability in system behavior, which is crucial for applications that demand strict timing constraints.
