16.1 Technical Report Writing and Documentation
3 min read•august 6, 2024
Technical report writing is crucial for engineers to communicate their findings effectively. From executive summaries to , each section serves a specific purpose in presenting information clearly and logically. Mastering this skill is essential for success in mechanical engineering.
Visual aids like and play a key role in making complex data more digestible. By following proper and using consistent , engineers can create reports that are both informative and professional. This skill ties into the broader theme of project presentations.
Report Structure
Overview of Main Sections
Top images from around the web for Overview of Main Sections

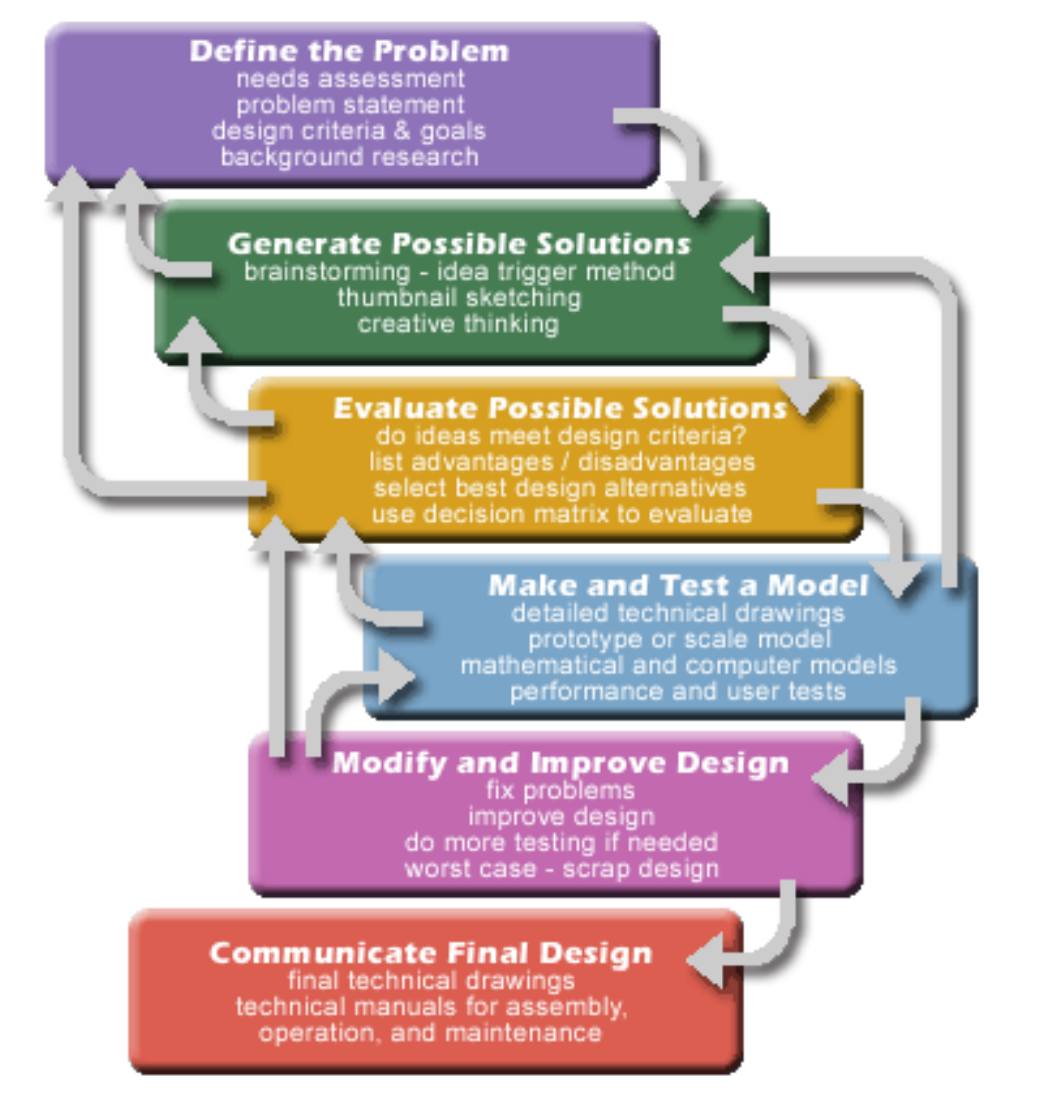

Technical Writing Essentials View original
Is this image relevant?
Technical Writing Essentials View original
Is this image relevant?
9.12: Front Sections of a Report - Business LibreTexts View original
Is this image relevant?
Technical Writing Essentials View original
Is this image relevant?
Technical Writing Essentials View original
Is this image relevant?
1 of 3
Top images from around the web for Overview of Main Sections
Technical Writing Essentials View original
Is this image relevant?
Technical Writing Essentials View original
Is this image relevant?
9.12: Front Sections of a Report - Business LibreTexts View original
Is this image relevant?
Technical Writing Essentials View original
Is this image relevant?
Technical Writing Essentials View original
Is this image relevant?
1 of 3
- provides a concise overview of the report's key findings, conclusions, and recommendations for decision-makers who may not read the full report
- summarizes the purpose, methods, , and conclusions of the report in a brief paragraph, typically 150-300 words, to help readers quickly understand the content
- sets the context for the report, including background information, problem statement, objectives, and scope of the work
- describes the procedures, techniques, and tools used to gather and analyze data, allowing readers to assess the validity and reliability of the results
Presenting Findings and Analysis
- Results present the key findings and data obtained from the study, often using , , and charts to visualize the information and highlight trends (, )
- interprets the results, explaining their significance, implications, and how they relate to the research objectives and existing knowledge in the field
- summarizes the main points of the report, draws final insights, and offers recommendations for future action or research based on the findings
Supporting Elements
References and Citations
- list all sources cited in the report, following a consistent citation style (, ) to acknowledge the work of others and allow readers to locate the original sources
- are used throughout the report to indicate when information is borrowed from another source, typically including the author's name and year of publication (Smith, 2021)
Supplementary Materials
- provide additional information that is too detailed or extensive to include in the main body of the report, such as raw data, detailed calculations, or supplementary figures (survey questionnaires, technical drawings)
- Appendices are labeled sequentially (Appendix A, Appendix B) and referenced in the main text to direct readers to the relevant information
Writing Style
Clarity and Consistency
- ensure a professional and consistent appearance throughout the report, including font style, font size, heading hierarchy, and margin settings
- Technical language is used to convey information precisely and accurately, but should be defined when introduced and used consistently throughout the report
- and acronyms specific to the field should be spelled out at first mention and used judiciously to maintain for a broader audience
Visual Aids
- enhances the presentation of results by using appropriate charts, graphs, and to illustrate key findings and trends
- Effective visuals are clear, concise, and properly labeled with titles, axes, and legends to help readers quickly grasp the information being conveyed (, )
- Tables are used to organize and present large amounts of numerical data or to compare multiple variables in a structured format
