16.3 Design Review and Evaluation
4 min read•august 6, 2024
Design reviews are crucial for ensuring project success. They involve evaluating designs against criteria, assessing feasibility, and gathering feedback from peers. This process helps identify issues early, refine solutions, and make informed decisions.
Continuous improvement is key in design. Through iterative cycles of prototyping, testing, and analysis, designers can optimize their solutions. and further guide decision-making and mitigate potential problems.
Design Evaluation
Establishing Design Criteria and Performance Metrics
Top images from around the web for Establishing Design Criteria and Performance Metrics
Performance Prism Framework Template for PowerPoint View original
Is this image relevant?

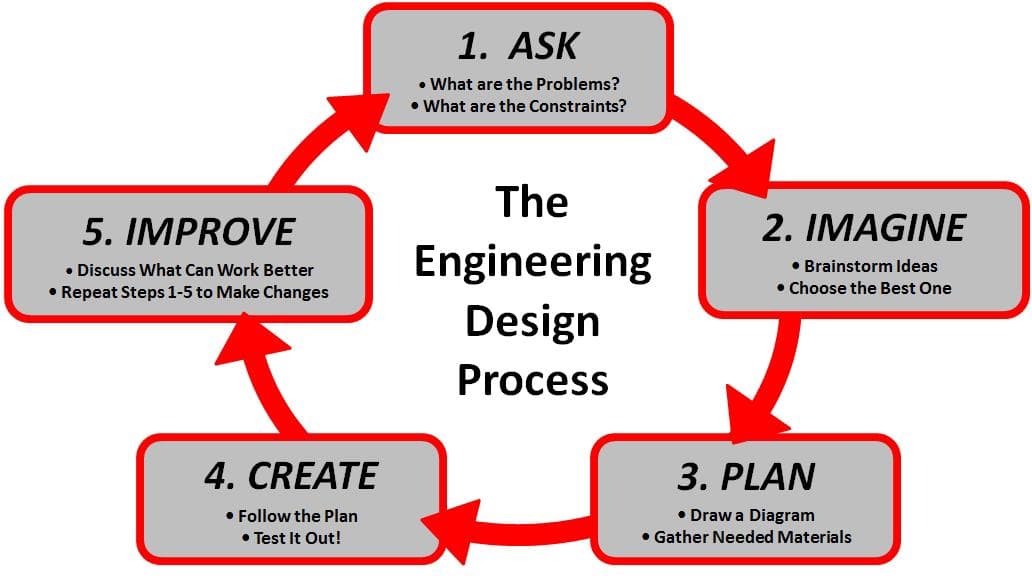

Try an engineering design approach to program planning View original
Is this image relevant?
eGFI – For Teachers » Lesson: The Engineering Design Process View original
Is this image relevant?
Performance Prism Framework Template for PowerPoint View original
Is this image relevant?
Try an engineering design approach to program planning View original
Is this image relevant?
1 of 3
Top images from around the web for Establishing Design Criteria and Performance Metrics
Performance Prism Framework Template for PowerPoint View original
Is this image relevant?
Try an engineering design approach to program planning View original
Is this image relevant?
eGFI – For Teachers » Lesson: The Engineering Design Process View original
Is this image relevant?
Performance Prism Framework Template for PowerPoint View original
Is this image relevant?
Try an engineering design approach to program planning View original
Is this image relevant?
1 of 3
- Design criteria establish the essential requirements and desired characteristics of a design solution
- Includes functional requirements, performance targets, and constraints
- Examples: maximum weight, minimum , cost ceiling, safety standards
- quantify how well a design meets the established criteria
- Measurable indicators used to assess and compare design alternatives
- Examples: power output, fuel consumption, response time, accuracy,
- Defining clear and comprehensive design criteria and performance metrics is crucial for guiding the design process and evaluating the success of the final solution
Conducting Feasibility Assessments
- determine the practicality and viability of a design solution
- Considers technical, economic, legal, and environmental factors
- Helps identify potential challenges, limitations, and risks early in the design process
- evaluates whether the design can be realistically implemented using available technologies and resources
- Assesses the complexity, scalability, and compatibility of the proposed solution
- Examples: manufacturing capabilities, material properties, system integration
- analyzes the cost-effectiveness and financial viability of the design
- Considers development costs, production costs, market demand, and potential return on investment
- Helps determine if the design is economically justified and sustainable
Design Review
Importance of Peer Review in Design
- involves subjecting a design to scrutiny and feedback from experts and stakeholders
- Provides diverse perspectives, identifies potential issues, and suggests improvements
- Helps ensure the design meets requirements, standards, and best practices
- Peer review can be conducted at various stages of the design process
- Concept review, preliminary design review, , etc.
- Each review focuses on specific aspects and progressively refines the design
- Effective peer review requires clear communication, open-mindedness, and constructive criticism
- Reviewers should provide specific, actionable feedback supported by evidence and reasoning
- Designers should actively listen, consider feedback, and justify design decisions
Iterative Design Process and Continuous Improvement
- The involves repeatedly refining and improving a design based on feedback and testing
- Recognizes that initial designs are rarely perfect and require multiple iterations
- Allows for the incorporation of new insights, changing requirements, and technological advancements
- Each iteration cycle typically includes design, prototyping, testing, and evaluation phases
- Design: creating or modifying the design based on previous feedback and new requirements
- Prototyping: building physical or virtual models to test and demonstrate the design
- Testing: evaluating the prototype's performance, usability, and compliance with criteria
- Evaluation: analyzing test results, gathering feedback, and identifying areas for improvement
- The iterative process continues until the design meets all requirements and performance targets
- May involve multiple iterations and significant changes to the original design
- Requires a balance between perfection and practicality, considering time and resource constraints
Design Analysis
Cost-Benefit Analysis for Informed Decision Making
- Cost-benefit analysis is a systematic approach to evaluating the potential costs and benefits of a design solution
- Quantifies and compares the expected costs (resources, time, money) and benefits (performance, value, savings)
- Helps determine if the benefits outweigh the costs and if the design is worth pursuing
- Costs include direct expenses (materials, labor, equipment) and indirect costs (overhead, maintenance, training)
- Should consider both initial costs and lifecycle costs over the design's entire lifespan
- Examples: raw material costs, manufacturing costs, installation costs, operating costs
- Benefits can be tangible (measurable financial gains) or intangible (improved safety, customer satisfaction, brand reputation)
- Should be quantified whenever possible using relevant metrics and monetary values
- Examples: increased productivity, reduced downtime, energy savings, market share growth
- Cost-benefit analysis provides a rational basis for decision making and resource allocation
- Helps prioritize design alternatives, justify investments, and communicate value to stakeholders
- Sensitivity analysis can be used to assess the impact of uncertainties and assumptions on the results
Identifying and Mitigating Risks through Risk Assessment
- Risk assessment is the process of identifying, analyzing, and evaluating potential risks associated with a design
- Risks can relate to technical, financial, safety, environmental, or other aspects of the design
- Examples: component failure, cost overruns, regulatory non-compliance, negative public perception
- involves systematically examining the design and its context to uncover potential risk factors
- Uses techniques such as brainstorming, , and expert judgment
- Considers both internal risks (design flaws, resource limitations) and external risks (market changes, supplier issues)
- assesses the likelihood and impact of each identified risk
- Likelihood: the probability of the risk occurring, often expressed as low, medium, or high
- Impact: the severity of the consequences if the risk materializes, ranging from negligible to catastrophic
- prioritizes risks based on their likelihood and impact
- Helps focus attention and resources on the most significant risks
- Risk matrix is a common tool for visualizing and ranking risks
- involves developing and implementing strategies to reduce the likelihood or impact of risks
- Examples: design redundancy, quality control, contingency planning, insurance, training
- Requires a proactive approach and ongoing monitoring and adaptation throughout the design process
Key Terms to Review (36)
Action items: Action items are specific tasks or steps that need to be completed, typically assigned during meetings or reviews to ensure progress and accountability. They serve as a roadmap for what needs to be accomplished, often with designated responsible individuals and deadlines. Clear action items help teams focus on priorities and track their progress towards achieving goals.
Checklists: Checklists are structured tools used to ensure that all necessary steps or items are completed in a specific process or task. They serve as a reliable reference to prevent oversight and improve efficiency during the design review and evaluation phases, allowing designers and engineers to systematically verify that all requirements are met.
Constructive feedback: Constructive feedback refers to specific, actionable, and positive criticism provided to enhance performance or improve a design. It focuses on identifying areas for improvement while also recognizing strengths, allowing for growth and development. This type of feedback is essential in design reviews as it encourages collaboration, fosters a positive environment, and ultimately leads to better outcomes.
Cost-benefit analysis: Cost-benefit analysis is a systematic approach to estimating the strengths and weaknesses of alternatives used to determine options that provide the best approach to achieve benefits while preserving savings. It helps in decision-making by comparing the expected costs and benefits associated with a project, ensuring that resources are allocated efficiently. This analysis is crucial for selecting concepts, evaluating designs, understanding economic constraints, and implementing value engineering strategies.
Critical Design Review: A Critical Design Review (CDR) is a formal evaluation process that assesses the detailed design of a system or product to ensure it meets all requirements and is ready for production. This review phase allows stakeholders to identify potential issues, validate design choices, and confirm that the project is on track before proceeding further. It emphasizes risk management and ensures that all engineering disciplines are integrated effectively into the design.
Design Engineer: A design engineer is a professional responsible for creating and developing new products or systems by applying engineering principles and design techniques. They work collaboratively in teams, focusing on innovation and functionality, while considering cost, manufacturability, and safety. Their role often involves iterative processes, including drafting designs, testing prototypes, and refining solutions based on feedback.
Design engineer: A design engineer is a professional responsible for creating and developing new products, systems, or structures by applying engineering principles and design techniques. This role involves working collaboratively with other team members, including project managers and manufacturing engineers, to ensure that the design meets the required specifications and standards. Design engineers must consider functionality, aesthetics, cost, and sustainability in their designs while adhering to project timelines and budgets.
Design evaluation: Design evaluation is the systematic process of assessing a design's effectiveness, functionality, and overall quality to ensure it meets specified requirements and objectives. This process involves reviewing various design elements, collecting feedback from stakeholders, and analyzing performance metrics to identify areas for improvement or modification.
Design for manufacturability: Design for manufacturability (DFM) is the practice of designing products in such a way that they are easy to manufacture, minimizing production costs and time while maximizing quality. This concept plays a critical role in various stages of product development, ensuring that designs are practical and can be effectively produced within economic and technical constraints.
Design Matrices: Design matrices are systematic frameworks used in engineering design processes to evaluate and compare different design alternatives based on multiple criteria. They serve as a tool to organize data, clarify relationships between design requirements and solutions, and facilitate decision-making during the design review and evaluation stages. By quantifying attributes and incorporating stakeholder inputs, design matrices help teams identify the most effective options while ensuring that essential requirements are met.
Design prototypes: Design prototypes are preliminary versions of a product or system created to test and validate ideas, concepts, and functionalities before full-scale production. They serve as a tangible representation of design concepts, allowing designers and engineers to explore various aspects of the design, identify potential problems, and gather user feedback early in the development process.
Design Review Report: A design review report is a comprehensive document that outlines the findings, recommendations, and conclusions from a design review meeting, aimed at evaluating a product or system's design against established criteria. This report serves as a critical communication tool among stakeholders, ensuring that design objectives are met while also identifying areas for improvement and risk mitigation.
Design Specifications: Design specifications are detailed, precise descriptions of the criteria and requirements that a design must meet to be considered successful. They serve as a vital roadmap throughout the design process, ensuring that all stakeholders have a clear understanding of the project's goals, constraints, and performance criteria. By establishing clear parameters, design specifications help streamline decision-making and evaluations during design reviews and assessments.
Design validation: Design validation is the process of ensuring that a design meets the specified requirements and functions as intended in real-world conditions. It involves verifying that the design fulfills its intended purpose, which can include testing prototypes and gathering feedback to confirm that the design aligns with user needs and regulatory standards.
Design verification: Design verification is the process of ensuring that a product or system meets specified requirements and functions as intended. This process involves checking, testing, and evaluating the design against predetermined criteria to confirm its accuracy and reliability, helping to identify any potential issues before production. It is essential for validating both the design's compliance with regulations and its performance under expected conditions.
Economic feasibility: Economic feasibility refers to the assessment of whether a proposed project or design is financially viable and sustainable, taking into account the costs, benefits, and potential financial risks involved. It evaluates the overall economic impact of a project, ensuring that the investment will generate sufficient returns to justify the initial expenditure. This concept often includes analysis of costs such as materials, labor, and operational expenses in relation to expected revenue or savings from the project.
Efficiency: Efficiency refers to the ratio of useful output to total input in a system, indicating how well a process converts resources into desired results. It highlights the importance of maximizing performance while minimizing waste, making it a critical aspect in various mechanical designs, from energy transmission systems to operational processes in machines. Understanding efficiency helps engineers design systems that meet functional requirements and performance specifications effectively.
Evaluation reports: Evaluation reports are structured documents that assess the performance and effectiveness of a project, design, or product. They provide a comprehensive analysis of the outcomes against predetermined criteria and help guide decision-making processes for future improvements or modifications.
Failure Mode and Effects Analysis (FMEA): Failure Mode and Effects Analysis (FMEA) is a systematic approach used to identify potential failure modes within a design, process, or system, and evaluate their effects on performance and safety. It aims to prioritize risks based on their severity, occurrence, and detectability, allowing teams to implement corrective actions before issues arise. This proactive analysis is crucial in the design review process, as it helps in minimizing failures and enhancing product reliability.
Feasibility assessments: Feasibility assessments are evaluations conducted to determine the practicality and viability of a proposed project or design. They help in identifying potential obstacles and whether the goals can be realistically achieved within certain constraints, such as time, cost, and technology. These assessments are crucial during design reviews as they provide insights into the strengths and weaknesses of a project, enabling informed decision-making.
Functionality: Functionality refers to the specific features and capabilities of a product or system that determine its purpose and how well it performs the tasks for which it was designed. It encompasses not just the operations that a product can carry out, but also how effectively those operations meet user needs and expectations. Understanding functionality is crucial in evaluating design quality and value, especially when making trade-offs in engineering and design processes.
Iterative design process: The iterative design process is a repetitive cycle of prototyping, testing, analyzing, and refining a product or system to improve its design and functionality. This approach emphasizes continuous improvement, allowing designers to incorporate feedback from users and stakeholders at each stage, which ultimately leads to a more effective final product.
Peer review: Peer review is a process used to evaluate the quality and credibility of research, designs, or proposals by subjecting them to the scrutiny of experts in the same field. This critical evaluation helps ensure that the work meets certain standards of quality, accuracy, and relevance before it is published or implemented. The peer review process not only fosters collaboration and accountability among professionals but also enhances the overall integrity and trustworthiness of the design evaluation process.
Performance metrics: Performance metrics are quantifiable measures used to evaluate the effectiveness, efficiency, and success of a design or product in meeting specified requirements. These metrics help in assessing how well a design performs against established functional requirements and performance specifications, guiding improvements and ensuring that the end product meets user needs.
Preliminary review: A preliminary review is an early stage evaluation process that assesses the feasibility, viability, and potential risks of a design concept before proceeding to more detailed development. This step is crucial for identifying major issues and making necessary adjustments early in the design phase, which can save time and resources in the long run. It serves as a checkpoint to ensure that the project aligns with established goals and requirements.
Prototype testing: Prototype testing is the process of evaluating a preliminary version of a product or system to identify any design flaws and validate functionality before full-scale production. This critical phase ensures that the design meets specified requirements and helps to assess factors like usability, performance, and safety, allowing engineers to make necessary adjustments before finalization.
Qualitative Assessment: Qualitative assessment refers to the evaluation process that focuses on non-numeric data, emphasizing understanding and interpretation of qualities or characteristics rather than measuring them in terms of quantity. This type of assessment often involves gathering subjective insights, opinions, and experiences, which can be crucial in evaluating design aspects such as usability, aesthetics, and overall functionality during a design review.
Reliability: Reliability is the probability that a system or component will perform its required functions under stated conditions for a specified period of time. It is a critical measure that helps ensure that designs meet user needs by providing consistent performance and minimizing the likelihood of failure. This concept is vital across various stages of design, from defining functional requirements to evaluating designs through review processes, ultimately impacting the overall mechanical design process.
Risk analysis: Risk analysis is the process of identifying, assessing, and prioritizing potential risks that could negatively impact a project or design. This process helps in making informed decisions by evaluating the likelihood of adverse events and their potential consequences, allowing designers and engineers to implement strategies to mitigate those risks effectively.
Risk Assessment: Risk assessment is the systematic process of evaluating potential risks that may be involved in a projected activity or undertaking. It connects the identification of hazards, analysis of potential consequences, and the implementation of measures to mitigate risks across various areas, including environmental safety, regulatory compliance, project management, and ethical considerations in design.
Risk evaluation: Risk evaluation is the process of assessing potential risks associated with a project or design by analyzing the likelihood and impact of adverse events. It plays a crucial role in decision-making, allowing teams to prioritize risks and determine the best strategies for mitigation. This process ensures that resources are effectively allocated and helps in maintaining safety and reliability throughout the design lifecycle.
Risk identification: Risk identification is the process of recognizing and documenting potential risks that could affect a project or design. It involves assessing various factors that might lead to uncertainty and challenges, ensuring that teams can proactively address these issues during the design review and evaluation stages. By identifying risks early, teams can create strategies to mitigate them, which is essential for successful project outcomes.
Risk mitigation: Risk mitigation refers to the process of identifying, assessing, and prioritizing risks followed by coordinated efforts to minimize, monitor, and control the probability or impact of unforeseen events. This approach is essential in ensuring that potential problems are addressed before they occur, thus enhancing the reliability and success of designs.
Safety Factor: The safety factor is a design principle that provides a margin of safety in engineering, ensuring that structures and components can withstand unexpected loads or conditions. It is calculated as the ratio of the material's strength to the actual applied load, allowing for uncertainties in material properties, loading conditions, and potential flaws. A higher safety factor means greater reliability, particularly in dynamic situations, regulatory frameworks, and during evaluations of design integrity.
Stakeholder: A stakeholder is any individual, group, or organization that has an interest in or is affected by a project, decision, or outcome. Stakeholders can influence the direction and success of a project through their involvement and input, making their perspectives vital during evaluations and reviews.
Technical Feasibility: Technical feasibility refers to the assessment of whether a proposed project or solution can be realistically developed and implemented using current technology and resources. This evaluation encompasses analyzing the technical aspects, constraints, and potential challenges involved in achieving the project goals, ensuring that the solution is not only possible but also practical and efficient. It is crucial in decision-making processes to ensure that concepts can be successfully transformed into viable products or systems.
