Dimensional tolerancing is crucial in engineering design, ensuring parts fit and function correctly. It defines acceptable variations in size and shape, allowing for manufacturing imperfections while maintaining product quality and performance.
Tolerances, limits, and fits are key concepts in this field. Understanding these fundamentals helps engineers create precise specifications, control manufacturing processes, and ensure components work together seamlessly in assemblies.
Tolerances and Limits

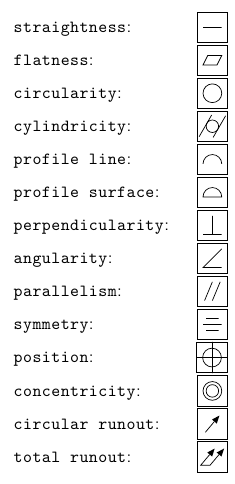

Defining Tolerances and Their Types
- Tolerance specifies the permissible variation in a dimension or feature of a part
- Bilateral tolerance allows variation in both positive and negative directions from the nominal size (±0.1 mm)
- Unilateral tolerance permits variation in only one direction, either positive or negative, from the nominal size (+0.1 mm or -0.1 mm)

Limit Dimensions and Sizes
- Limit dimensions define the maximum and minimum permissible sizes of a feature
- Maximum limit is the largest permissible size
- Minimum limit is the smallest permissible size
- Basic size is the size from which the limits are derived by applying the tolerances (50 mm)
- Nominal size represents the ideal or theoretical size of a feature, often used for identification purposes (M10 bolt)
- Actual size is the measured size of a manufactured feature, which must fall within the specified limits

Allowances and Fits
Understanding Allowances
- Allowance is the intentional difference between the maximum material limits of mating parts
- Positive allowance occurs when the hole size is larger than the shaft size, resulting in clearance
- Negative allowance occurs when the hole size is smaller than the shaft size, resulting in interference
Types of Fits
- Fit describes the degree of tightness or looseness between two mating parts
- Clearance fit occurs when there is always a positive allowance between the mating parts, allowing them to assemble freely (H7/g6)
- Interference fit occurs when there is always a negative allowance, requiring force to assemble and disassemble the parts (H7/p6)
- Transition fit has an allowance that may be either positive or negative, depending on the actual sizes of the mating parts (H7/k6)
- Transition fits may result in either clearance or interference, depending on the specific dimensions of the manufactured parts
