11.1 Principles of DFMA
3 min read•august 6, 2024
DFMA principles are crucial for creating efficient, cost-effective products. They focus on optimizing design for easy manufacturing and assembly, reducing complexity and costs. These principles help engineers streamline production processes and improve product quality.
Integrating DFMA into the design process leads to better outcomes. By considering manufacturing and assembly early on, engineers can avoid costly redesigns and create products that are easier to produce and maintain. This approach ultimately results in faster and higher .
Design Principles
Manufacturing and Assembly Considerations
Top images from around the web for Manufacturing and Assembly Considerations
DFMA Self Locating | AllAboutLean.com View original
Is this image relevant?

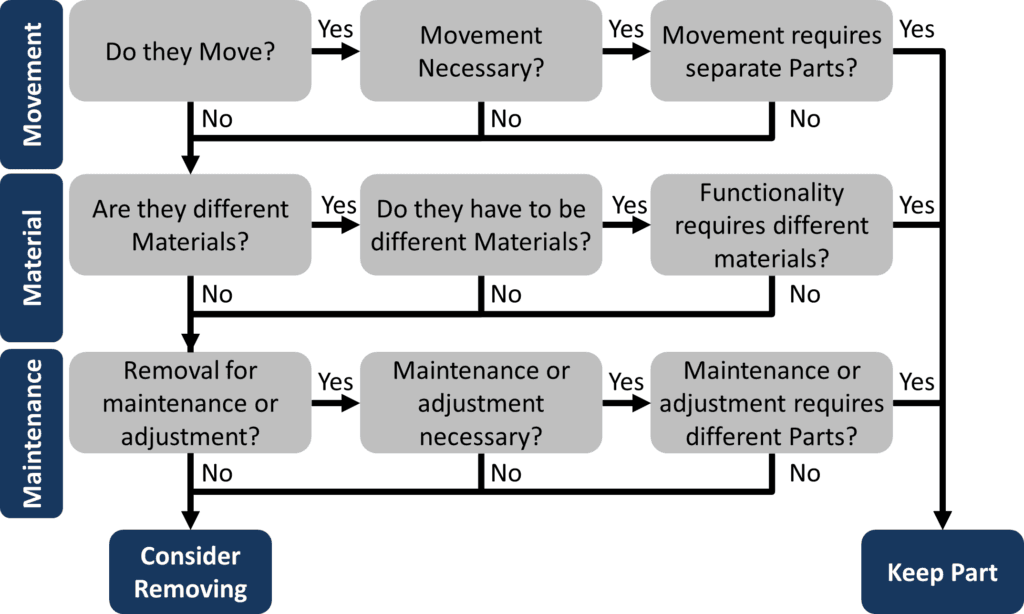

DFMA Logic Tree Remove Part | AllAboutLean.com View original
Is this image relevant?
DFMA Two Parts Eliminate One | AllAboutLean.com View original
Is this image relevant?
DFMA Self Locating | AllAboutLean.com View original
Is this image relevant?
DFMA Logic Tree Remove Part | AllAboutLean.com View original
Is this image relevant?
1 of 3
Top images from around the web for Manufacturing and Assembly Considerations
DFMA Self Locating | AllAboutLean.com View original
Is this image relevant?
DFMA Logic Tree Remove Part | AllAboutLean.com View original
Is this image relevant?
DFMA Two Parts Eliminate One | AllAboutLean.com View original
Is this image relevant?
DFMA Self Locating | AllAboutLean.com View original
Is this image relevant?
DFMA Logic Tree Remove Part | AllAboutLean.com View original
Is this image relevant?
1 of 3
- (DFM) focuses on optimizing product design to facilitate efficient and cost-effective manufacturing processes
- Involves designing parts that are easy to fabricate using available manufacturing methods (injection molding, CNC machining)
- Aims to minimize , reduce material waste, and improve production yields
- Design for Assembly (DFA) emphasizes simplifying product design to streamline the assembly process and reduce and costs
- Involves designing products with fewer parts, using standardized components, and incorporating features that facilitate easy assembly (snap-fits, self-aligning parts)
- Aims to minimize the number of assembly steps, reduce the need for specialized tools, and improve assembly efficiency
Integrated Design Approaches
- involves the simultaneous design and development of a product and its associated manufacturing processes
- Encourages collaboration between cross-functional teams (design, engineering, manufacturing, and quality) from the early stages of product development
- Enables early identification and resolution of potential design and manufacturing issues, reducing the need for costly redesigns and delays
- involves dividing a product into smaller, independent modules or subsystems that can be designed, manufactured, and assembled separately
- Allows for parallel development of modules, enabling faster time-to-market and increased
- Facilitates easier maintenance, upgrades, and customization of products by allowing modules to be replaced or modified independently
Product Optimization
Cost and Quality Enhancements
- involves identifying and implementing strategies to minimize the overall cost of a product throughout its lifecycle
- Includes optimizing material selection, simplifying product design, reducing , and leveraging in manufacturing
- Aims to lower , , and while maintaining product functionality and quality
- focuses on enhancing the overall quality and reliability of a product to meet or exceed customer expectations
- Involves implementing , conducting thorough testing and validation, and incorporating customer feedback into product iterations
- Aims to reduce defects, improve product performance, and enhance customer satisfaction
Standardization Benefits
- Standardization involves the use of common parts, components, and processes across multiple products or product families
- Enables economies of scale in purchasing and manufacturing, reducing costs through bulk ordering and streamlined production
- Simplifies inventory management, reduces the need for specialized tooling, and facilitates
- Promotes consistency in product quality and performance, as standardized components are well-tested and proven
Development Efficiency
Product Lifecycle Management
- Product Lifecycle encompasses all stages of a product's existence, from initial conception to retirement and disposal
- Includes phases such as ideation, design, development, manufacturing, marketing, sales, support, and end-of-life management
- Effective management of the product lifecycle involves coordinating activities across all phases to optimize resources, minimize costs, and maximize customer value
- Time-to-Market refers to the duration from product conception to its availability for sale in the market
- Faster time-to-market allows companies to gain a competitive advantage, respond quickly to market demands, and capture market share
- Strategies to reduce time-to-market include parallel development, rapid prototyping, agile methodologies, and early supplier involvement
