4.2 FM and phase distortion synthesis
3 min read•july 22, 2024
Frequency Modulation (FM) and are powerful techniques for creating complex, evolving sounds. FM uses one waveform to modulate another, generating rich harmonic spectra. Phase distortion alters a waveform's shape, producing unique timbres.
Both methods offer vast sonic possibilities, from subtle variations to drastic transformations. By experimenting with parameters and combining techniques, composers can craft expressive, dynamic sounds for their electronic music compositions. These tools open up a world of creative sound design opportunities.
Frequency Modulation (FM) Synthesis
Principles of FM synthesis
Top images from around the web for Principles of FM synthesis

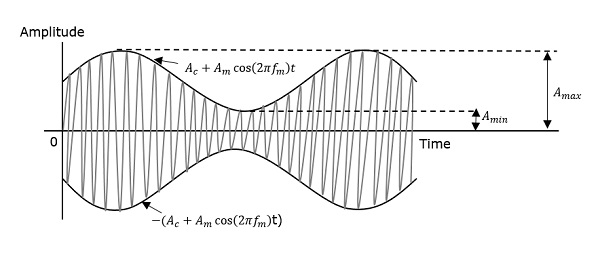

Modulação de amplitude View original
Is this image relevant?
Frequency modulation synthesis - Wikipedia View original
Is this image relevant?
Interference and Complex Tones – Introduction to Sensation and Perception View original
Is this image relevant?
Modulação de amplitude View original
Is this image relevant?
Frequency modulation synthesis - Wikipedia View original
Is this image relevant?
1 of 3
Top images from around the web for Principles of FM synthesis
Modulação de amplitude View original
Is this image relevant?
Frequency modulation synthesis - Wikipedia View original
Is this image relevant?
Interference and Complex Tones – Introduction to Sensation and Perception View original
Is this image relevant?
Modulação de amplitude View original
Is this image relevant?
Frequency modulation synthesis - Wikipedia View original
Is this image relevant?
1 of 3
- Uses one waveform (modulator) to modulate the frequency of another waveform (carrier) generates complex timbres
- Modulator waveform's frequency determines speed of carrier's frequency modulation (vibrato, tremolo)
- Modulator waveform's amplitude determines depth of carrier's frequency modulation (pitch deviation)
- Creates complex, dynamic timbres that evolve over time produces rich harmonic spectra
- Generates around resulting in a diverse range of sounds (bell-like, metallic, percussive)
- Number and amplitude of sidebands depend on , the ratio of modulator's amplitude to its frequency (higher index = more sidebands, brighter sound)
- Relationship between carrier and modulator frequencies () affects resulting
- Simple integer ratios produce harmonic sounds (1:1 octave, 2:1 perfect fifth)
- Complex ratios create inharmonic timbres (1:√2 bell-like, 1:π metallic)
- Modulating parameters over time creates evolving, expressive sounds
- Modulating modulation index, C:M ratio, or waveform shapes produces dynamic timbral changes (morphing, swelling, pulsating)
Concept of phase distortion synthesis
- Manipulates phase of a waveform to create complex timbres alters waveform shape
- Waveform's phase altered using a , maps input phase values to output phase values (linear, exponential, logarithmic, custom-designed)
- Transfer function shape determines resulting waveform and its (sawtooth, square, triangle, pulse)
- Creates a wide range of timbres, from subtle variations to drastic transformations
- Applying different transfer functions to the same waveform produces vastly different timbres (warm, bright, harsh, mellow)
- Combining multiple phase-distorted waveforms enhances complexity and richness of sound (layering, stacking)
- Creates evolving sounds by modulating transfer function over time
- Modulating shape, depth, or speed of transfer function creates dynamic timbral changes (morphing, swelling, pulsating)
- Modulating phase distortion parameters in real-time enables expressive performance control (keyboard velocity, aftertouch, modulation wheel)
FM vs phase distortion techniques
- Both FM and phase distortion synthesis create complex, evolving timbres through different means
- FM synthesis modulates frequency of carrier waveform (pitch)
- Phase distortion synthesis alters phase of waveform (shape)
- FM synthesis relies on interaction between carrier and modulator frequencies to generate sidebands and create complex spectra
- C:M ratio and modulation index are key parameters in determining resulting timbre (harmonic content, brightness)
- Phase distortion synthesis relies on shape of transfer function to alter waveform's phase and create unique timbres
- Transfer function's shape and its modulation over time are crucial in determining resulting sound (waveform shape, harmonic content)
- FM synthesis well-suited for creating metallic, bell-like, or percussive sounds, as well as evolving pad sounds (electric piano, bass, lead)
- Phase distortion synthesis can create a wide range of timbres, from subtle variations to more extreme, distorted sounds (synth brass, strings, vocals)
Application in electronic music compositions
- Experiment with different carrier and modulator waveforms, frequencies, and amplitudes in FM synthesis to create unique timbres
- Adjust C:M ratio and modulation index to control harmonic content and complexity of sound (brightness, density)
- Modulate FM parameters over time to create evolving, expressive sounds ( sweeps, )
- Explore various transfer function shapes and their impact on resulting timbre in phase distortion synthesis
- Design custom transfer functions to achieve specific timbral characteristics (warmth, harshness, clarity)
- Modulate transfer function parameters over time to create dynamic, evolving sounds (, key tracking)
- Combine FM and phase distortion synthesis techniques to create layered, complex sounds
- Use FM synthesis for base timbre and phase distortion for additional timbral shaping (bass with distorted overtones, evolving pad with metallic sheen)
- Experiment with parallel or serial processing of FM and phase-distorted sounds (parallel layering, serial effects chain)
- Integrate FM and phase distortion synthesis with other sound design techniques to further enhance expressiveness and depth of sounds
- Apply filtering, envelopes, and effects processing to shape and refine timbres (low-pass filter, ADSR envelope, , )
- Modulate synthesis parameters using LFOs, envelopes, and MIDI controllers for real-time expression (vibrato, filter cutoff, volume)
Key Terms to Review (24)
1980s synth culture: 1980s synth culture refers to the musical and aesthetic movement that emerged during the 1980s, characterized by the widespread use of synthesizers and electronic instruments in popular music. This era saw the rise of genres such as synth-pop, new wave, and electronic dance music, where artists utilized innovative production techniques to create distinctive sounds that defined the decade's music scene. The combination of affordable synthesizers, advanced production methods, and a vibrant visual style contributed to a cultural phenomenon that shaped the music industry and influenced future genres.
C:m ratio: The c:m ratio, or control-to-modulation ratio, refers to the relationship between the control signal and the modulation depth in various synthesis techniques. It plays a crucial role in shaping sound by determining how much influence a modulation source, such as an LFO (Low-Frequency Oscillator), has on a target parameter, like pitch or amplitude. This ratio is vital for achieving specific effects in modulation techniques and is particularly significant in the realms of frequency modulation and phase distortion synthesis.
Carrier frequency: Carrier frequency is the specific frequency of a waveform that is used to carry information in modulation processes like frequency modulation (FM) and phase distortion synthesis. It serves as the base signal that is altered by input signals, enabling the creation of complex sounds and tones. In synthesis, it plays a crucial role in determining the overall pitch and character of the output sound.
Chorus: Chorus is an audio effect that creates the illusion of multiple sound sources by duplicating a signal and varying the pitch and timing of the duplicates. This effect adds depth, richness, and a sense of spaciousness to sound, making it a popular choice in various genres of music for enhancing melodies and harmonies.
Delay: Delay is an audio effect that creates a distinct echo by repeating a sound at set intervals after its initial playback. This effect is commonly used to enhance the spatial quality of music, create rhythmic patterns, and add depth to soundscapes.
Digital synthesis revolution: The digital synthesis revolution refers to the transformative shift in music production that emerged with the advent of digital technology, significantly altering how sounds are created and manipulated. This shift introduced new methods like FM synthesis and phase distortion synthesis, enabling composers and musicians to explore a wider sonic palette and create complex, rich textures that were previously difficult or impossible to achieve with analog equipment.
Electronic Dance Music: Electronic dance music (EDM) is a genre of music primarily produced for nightclubs, raves, and festivals, characterized by its rhythmic beats and synthesized sounds. It emerged from the evolution of electronic music and has been shaped by various styles and technological advancements, making it a significant part of contemporary music culture.
Envelope Generator: An envelope generator is a component in synthesis that shapes the amplitude of a sound over time, typically controlling how the sound evolves from the moment a note is played until it stops. It defines key aspects of a sound's dynamics, such as attack, decay, sustain, and release (ADSR), which are crucial for creating expressive sounds in various synthesis methods. Envelope generators can be found in subtractive synthesis, integrated into analog synthesizer architecture, and utilized in various forms of synthesis like FM and additive synthesis.
Envelope modulation: Envelope modulation is a technique used in sound synthesis to control the amplitude or other parameters of a sound over time through an envelope generator. This process shapes the sound's dynamics and character by adjusting how a sound evolves from its initial attack through its sustain and release phases. It plays a crucial role in creating expressive sounds in various synthesis methods, particularly in FM and phase distortion synthesis.
Filter: A filter is a tool used in audio processing to manipulate the frequency content of a sound by allowing certain frequencies to pass through while attenuating others. In synthesis, filters play a crucial role in shaping timbre and texture, enabling musicians to create a wide range of sounds by altering harmonics. They can be applied to various synthesis methods, affecting how the sound is perceived and providing control over resonance and cutoff frequency.
FM Synthesis: FM synthesis, or Frequency Modulation synthesis, is a sound synthesis technique that generates complex audio signals by varying the frequency of one oscillator (the carrier) with another oscillator (the modulator). This method allows for the creation of rich and harmonically complex sounds, making it a popular choice in electronic music for generating everything from lush pads to punchy basses.
Harmonic content: Harmonic content refers to the specific frequencies present in a sound that contribute to its overall character or timbre. It encompasses the fundamental frequency and the various overtones or harmonics that accompany it, shaping how we perceive the sound. The harmonic content plays a crucial role in defining the richness and texture of audio, influencing how sounds blend together and how they are perceived in different contexts like synthesis and mixing.
Korg DW-8000: The Korg DW-8000 is a digital synthesizer released in 1985 that utilizes a unique combination of phase distortion synthesis and analog-style subtractive synthesis. This instrument features a 61-key velocity-sensitive keyboard and is known for its distinctive sound character, which stems from its ability to produce complex waveforms that can be shaped further using analog filters.
LFO Modulation: LFO modulation refers to the use of a Low-Frequency Oscillator (LFO) to create variations in different parameters of sound, such as pitch, filter cutoff, and amplitude. This technique adds movement and complexity to sounds by modulating various aspects of synthesis, enhancing expressiveness and depth. By employing LFO modulation, electronic musicians can create dynamic textures that evolve over time, making their compositions more engaging.
Modulation index: The modulation index is a numerical value that quantifies the extent of modulation applied to a carrier wave in amplitude modulation (AM) and frequency modulation (FM). It represents the ratio of the amplitude of the modulating signal to the amplitude of the carrier signal in AM, and in FM, it indicates how much the frequency of the carrier wave varies due to the modulating signal. This key measurement is crucial in determining the characteristics and quality of sound produced in various modulation techniques.
Oscillator: An oscillator is a device or circuit that generates a periodic waveform, typically in the form of an audio signal. In the realm of sound synthesis, oscillators serve as the foundation for creating and manipulating sound waves, often producing various waveforms like sine, square, triangle, and sawtooth. The output of an oscillator can be shaped and transformed through different synthesis techniques, modulation methods, and signal processing, making it a crucial component in sound design.
Phase distortion synthesis: Phase distortion synthesis is a sound synthesis technique that alters the phase of a waveform to create complex sounds. This method allows for a wider range of harmonic content and timbral variation compared to traditional methods, making it particularly effective for generating rich, dynamic tones. By manipulating the phase relationships within a waveform, phase distortion synthesis can produce unique audio textures that stand out in electronic music.
Reverb: Reverb is an audio effect that simulates the natural reverberation that occurs when sound waves reflect off surfaces in an environment. This effect adds depth and space to a sound, making it feel more immersive and realistic, and it plays a crucial role in enhancing the emotional quality of music by contributing to its atmosphere and texture.
Sidebands: Sidebands are frequency components that arise when a signal is modulated, specifically in techniques like frequency modulation (FM) and phase distortion synthesis. These additional frequencies appear above and below the original carrier frequency and are crucial for creating complex sounds and timbres in electronic music. Understanding sidebands helps in grasping how modulation affects sound synthesis, enabling composers to create rich textures and nuanced audio landscapes.
Synth-pop: Synth-pop is a genre of music that emerged in the late 1970s and gained popularity in the 1980s, characterized by the use of synthesizers, drum machines, and sequencers to create melodic pop music. This genre blends electronic sounds with catchy melodies and often features futuristic or romantic themes, reflecting the technological advancements of its time. Synth-pop played a significant role in the development of electronic music and influenced many other genres, making it a vital component of the music landscape during its peak.
Timbre: Timbre is the quality or color of sound that distinguishes different types of sound production, such as musical instruments or voices, even when they produce the same pitch and loudness. It is influenced by various factors like the harmonic content, envelope, and dynamics of a sound, which helps us identify different sounds in music and audio.
Transfer Function: A transfer function is a mathematical representation that describes the relationship between the input and output of a system in the frequency domain. It is expressed as a ratio of polynomials and provides insights into the system's behavior, stability, and response characteristics, making it essential for analyzing both FM and phase distortion synthesis.
Waveform shaping: Waveform shaping is the process of altering the harmonic content and overall shape of a waveform to create desired sounds in electronic music synthesis. This technique allows for the modification of a sound's timbre by adjusting its spectral characteristics, making it a crucial aspect of various synthesis methods. By employing techniques like filtering and modulation, waveform shaping can dramatically change the sonic qualities of a sound source, allowing for rich and complex textures in music production.
Yamaha DX7: The Yamaha DX7 is a digital synthesizer released in 1983, known for being one of the first widely successful instruments to use frequency modulation (FM) synthesis. It revolutionized music production during the 1980s by offering a new range of sounds and capabilities that were distinct from traditional analog synthesizers. Its affordability and versatility made it a staple in pop, rock, and electronic music, solidifying its place in the history of electronic music technology.
