Oscillators and waveforms are the building blocks of electronic sound synthesis. Different waveforms produce unique timbres, from pure sine waves to harmonically rich sawtooth and square waves. Understanding these shapes helps create diverse sounds in electronic music.
Filters and envelopes shape and sculpt synthesized sounds over time. Filters remove or emphasize specific frequencies, while envelopes control how parameters change. Combining these elements allows for endless sonic possibilities, from punchy basses to evolving pads.
Oscillators and Waveforms
Oscillator waveforms and harmonics
Top images from around the web for Oscillator waveforms and harmonics
Category:Audio spectrums - Wikimedia Commons View original
Is this image relevant?
Oscillator - Ascension Glossary View original
Is this image relevant?
Harmonics - Electronics-Lab.com View original
Is this image relevant?
Category:Audio spectrums - Wikimedia Commons View original
Is this image relevant?
Oscillator - Ascension Glossary View original
Is this image relevant?
1 of 3
Top images from around the web for Oscillator waveforms and harmonics
Category:Audio spectrums - Wikimedia Commons View original
Is this image relevant?
Oscillator - Ascension Glossary View original
Is this image relevant?

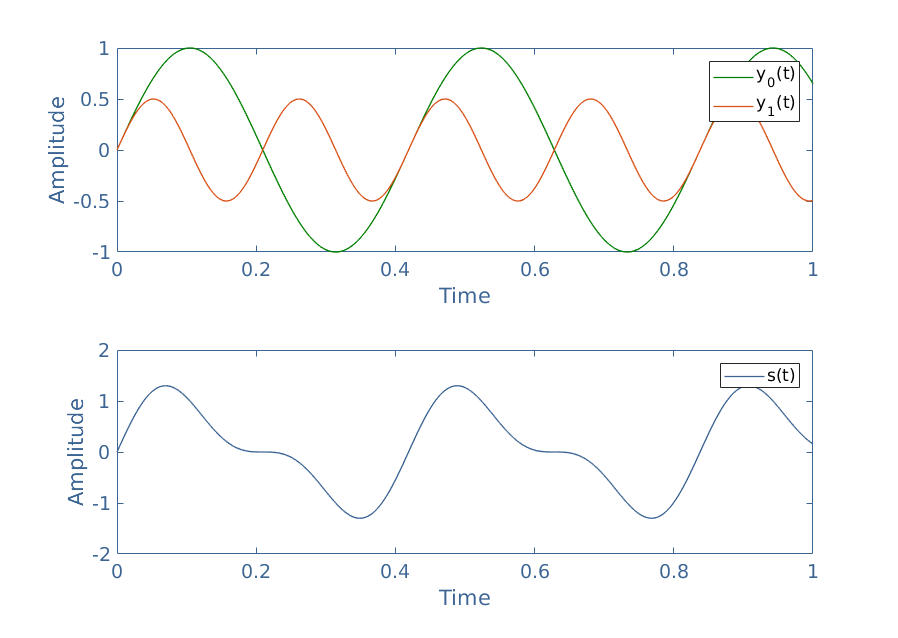

Harmonics - Electronics-Lab.com View original
Is this image relevant?
Category:Audio spectrums - Wikimedia Commons View original
Is this image relevant?
Oscillator - Ascension Glossary View original
Is this image relevant?
1 of 3
- Sine wave generates the purest waveform containing only the fundamental frequency without additional harmonics
- Square wave contains the fundamental frequency and odd harmonics producing a bright, hollow, and buzzy sound (clarinet)
- Sawtooth wave contains the fundamental frequency and all harmonics creating a rich, bright, and buzzy sound (brass instruments)
- Harmonics in both square and sawtooth waves decrease in amplitude as they increase in frequency following a relationship
- Triangle wave contains the fundamental frequency and odd harmonics resulting in a mellow, flute-like sound
- Harmonics decrease in amplitude more rapidly than square waves following a relationship
- Pulse wave resembles a square wave but features an adjustable pulse width
- Pulse width modulation () alters the harmonic content and timbre (reed organs)
Filters and Envelopes
Filters in subtractive synthesis
- (LPF) allows frequencies below the to pass through while attenuating frequencies above it creating a darker, muffled sound (bass instruments)
- (HPF) allows frequencies above the cutoff frequency to pass through while attenuating frequencies below it producing a thinner, brighter sound (hi-hats)
- (BPF) allows a specific range of frequencies around the center frequency to pass through while attenuating frequencies outside the specified range creating a focused, narrow sound (wah-wah effect)
- (Q) emphasizes frequencies around the cutoff frequency
- Higher resonance values create a more pronounced peak at the cutoff frequency (TB-303 acid bass)
Envelope generators for parameter control
- (, , , ) envelope shapes sound over time
- Attack: time taken for the envelope to reach its maximum level (percussive vs. slow attack)
- Decay: time taken for the envelope to fall from the maximum level to the sustain level (short decay for plucks, longer for pads)
- Sustain: level maintained while the key is held down (high sustain for organ sounds, low for piano)
- Release: time taken for the envelope to fall from the sustain level to zero when the key is released (short release for staccato, longer for ambient tails)
- controls the volume of the sound over time shaping the overall dynamics (piano vs. strings)
- modulates the cutoff frequency of the filter over time creating time-varying timbral changes (filter sweeps)
- Envelopes can be applied to other parameters such as pitch or modulation depth (pitch envelopes for drum sounds)
Combining elements for synth patches
- Layer multiple oscillators with different waveforms and tunings to create complex timbres and rich, evolving sounds (detuned sawtooth waves for thick leads)
- Adjust filter settings and modulate them with envelopes to create time-varying timbral changes (filter plucks and sweeps)
- Use different envelope settings for amplitude and filter to shape the overall dynamics and timbral evolution (short amp envelope with long filter envelope for punchy basses)
- Modulate oscillator pitch with envelopes or LFOs to create pitch variations (vibrato for string patches, pitch slides for sound effects)
- Experiment with different filter types and resonance settings to explore a wide range of timbres from smooth and mellow to bright and aggressive (low-pass with high resonance for acid basses, band-pass with medium resonance for vowel-like sounds)
