occurs when changing current in one inductor creates an EMF in another nearby inductor. This phenomenon is crucial for understanding and their applications in electrical systems. It's measured in henries and represented by the symbol M.
Coupled inductors are used in , , and power transfer systems. The measures the strength of between inductors. , which doesn't contribute to mutual coupling, can be minimized through proper design and placement.
Mutual inductance
Mutual inductance is a phenomenon where a change in current through one inductor induces an electromotive force (EMF) in another nearby inductor
It is a key concept in understanding the behavior of coupled inductors and their applications in various electrical and electronic systems
Mutual inductance is represented by the symbol M and is measured in henries (H)
Coupled inductors
Coupled inductors are two or more inductors that are physically close to each other, allowing their magnetic fields to interact
The interaction between the magnetic fields of coupled inductors leads to mutual inductance, where a change in current in one inductor induces an EMF in the other inductor(s)
Coupled inductors are used in various applications, such as transformers, systems, and wireless charging devices
Coupling coefficient
Top images from around the web for Coupling coefficient

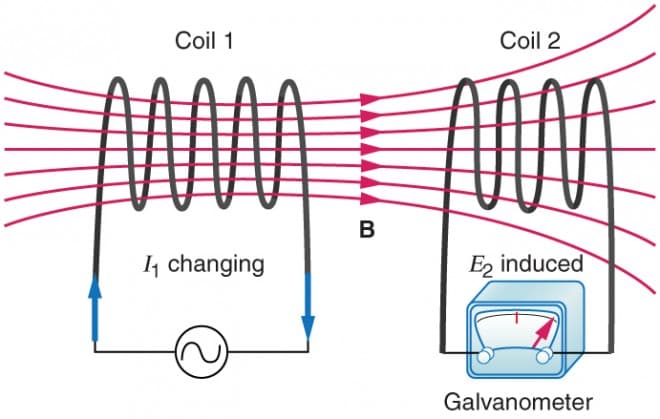

File:Mutually inducting inductors.PNG - Wikimedia Commons View original
The coupling coefficient, denoted as k, is a dimensionless quantity that represents the degree of magnetic coupling between two inductors
It ranges from 0 to 1, where 0 indicates no coupling and 1 indicates perfect coupling
The coupling coefficient is calculated as k=L1L2M, where M is the mutual inductance and L1 and L2 are the self-inductances of the two inductors
Leakage inductance
Leakage inductance refers to the portion of the total inductance that does not contribute to the mutual coupling between inductors
It is caused by the magnetic flux that does not link with the other inductor(s) in a coupled system
Leakage inductance can be minimized by proper design and placement of the inductors to maximize the magnetic coupling between them
Mutual inductance calculation
Mutual inductance can be calculated using various methods, depending on the geometry and arrangement of the inductors
The calculation of mutual inductance involves determining the magnetic flux linkage between the inductors and applying the appropriate formulas
Neumann formula
The is a general expression for calculating the mutual inductance between two current-carrying conductors
It is given by M=4πμ0∫C1∫C2rdl1⋅dl2, where μ0 is the permeability of free space, C1 and C2 are the contours of the two conductors, dl1 and dl2 are the infinitesimal length elements along the conductors, and r is the distance between the elements
The Neumann formula can be applied to various geometries, but it often requires complex integration techniques
Coaxial coils
are a common arrangement of coupled inductors, where one coil is placed inside the other, sharing the same axis
The mutual inductance between coaxial coils can be calculated using the formula M=lμ0N1N2πr2, where N1 and N2 are the number of turns in each coil, r is the radius of the inner coil, and l is the length of the coils
Coaxial coils are often used in transformers and applications
Coplanar coils
are another arrangement of coupled inductors, where the coils are placed side by side in the same plane
The mutual inductance between coplanar coils can be approximated using the formula M=2(r12+r22)3/2μ0N1N2πr12r22, where N1 and N2 are the number of turns in each coil, and r1 and r2 are the radii of the coils
Coplanar coils are used in applications such as wireless power transfer systems and RFID tags
Energy in coupled inductors
The presence of mutual inductance between coupled inductors affects the energy storage and transfer in the system
Understanding the energy relationships in coupled inductors is essential for analyzing and designing systems that utilize mutual inductance
Stored energy
The total energy stored in a system of coupled inductors is given by W=21L1I12+21L2I22+MI1I2, where L1 and L2 are the self-inductances of the inductors, I1 and I2 are the currents flowing through them, and M is the mutual inductance
The first two terms represent the energy stored in the individual inductors, while the third term represents the energy associated with the mutual inductance
The sign of the mutual inductance term depends on the direction of the currents in the inductors
Energy transfer
Mutual inductance enables the transfer of energy between coupled inductors
When the current in one inductor changes, it induces an EMF in the other inductor, causing a current to flow and energy to be transferred
The rate of between coupled inductors is proportional to the mutual inductance and the rate of change of the currents
Energy transfer through mutual inductance is the basis for many applications, such as transformers and wireless power transfer systems
Mutual inductance applications
Mutual inductance is utilized in various electrical and electronic applications, where the coupling between inductors is exploited for energy transfer, isolation, or signal conditioning
Transformers
Transformers are devices that use mutual inductance to transfer electrical energy between two or more circuits while providing electrical isolation
They consist of two or more coils wound on a common magnetic core, with the primary coil connected to the input circuit and the secondary coil(s) connected to the output circuit(s)
Transformers are used for voltage and current transformation, impedance matching, and electrical isolation in power systems, electronics, and communication devices
Ideal vs real transformers
An is a theoretical model that assumes perfect coupling between the primary and secondary coils, no energy losses, and no leakage inductance
In an ideal transformer, the voltage ratio is equal to the turns ratio, and the power is conserved between the primary and secondary sides
Real transformers, however, have imperfect coupling, energy losses (core losses and copper losses), and leakage inductance, which affect their performance and efficiency
The design of real transformers involves minimizing these non-ideal effects to approach the behavior of an ideal transformer
Inductive power transfer
Inductive power transfer (IPT) is a method of wirelessly transmitting electrical power using the principle of mutual inductance
In an IPT system, a primary coil is energized by an alternating current, creating a varying magnetic field
A secondary coil placed in close proximity to the primary coil captures the magnetic field and induces an EMF, which can be used to power a load or charge a battery
IPT is used in various applications, such as charging electric vehicles, powering implantable medical devices, and supplying power to consumer electronics
Wireless charging
Wireless charging is a specific application of inductive power transfer, where mutual inductance is used to charge batteries in portable devices without the need for a physical connection
A charging pad contains a primary coil that generates a varying magnetic field, while the device to be charged contains a secondary coil that captures the magnetic field and converts it into electrical energy to charge the battery
Wireless charging standards, such as Qi and PMA, define the communication protocols and coil designs to ensure compatibility between different devices and charging pads
Mutual inductance vs self-inductance
Mutual inductance and are two related but distinct concepts in electromagnetism
Similarities
Both mutual inductance and self-inductance are measured in henries (H)
They both involve the interaction between electric currents and magnetic fields
Both concepts are important in understanding the behavior of inductors and their applications in electrical and electronic systems
Key differences
Self-inductance is the property of a single inductor, representing the ratio of the to the rate of change of current in the inductor itself
Mutual inductance, on the other hand, is the property of two or more inductors, representing the ratio of the induced EMF in one inductor to the rate of change of current in another inductor
Self-inductance is always positive, while mutual inductance can be positive, negative, or zero, depending on the relative orientation of the inductors and the direction of the currents
The energy stored in an inductor due to self-inductance is given by W=21LI2, while the energy associated with mutual inductance is given by W=MI1I2
Mutual inductance in AC circuits
Mutual inductance plays a significant role in the behavior of AC circuits containing coupled inductors
The presence of mutual inductance affects the impedance, voltage, and current relationships in the circuit
Impedance matrix
In AC circuits with coupled inductors, the is used to represent the relationship between the voltages and currents in the system
The impedance matrix includes the self-impedances of the inductors (which depend on their self-inductances and resistances) and the mutual impedances (which depend on the mutual inductances)
The off-diagonal elements of the impedance matrix represent the mutual impedances, while the diagonal elements represent the self-impedances
The impedance matrix allows for the analysis of voltage and current distributions in the circuit using matrix algebra
Equivalent circuits
Coupled inductors in AC circuits can be represented by that model their behavior
The most common equivalent circuit for coupled inductors is the T-network, which consists of three inductors: two self-inductances (L1 and L2) and a mutual inductance (M)
The T-network equivalent circuit allows for the analysis of the circuit using standard circuit analysis techniques, such as Kirchhoff's laws and impedance calculations
Other equivalent circuits, such as the Pi-network and the coupled inductors with an ideal transformer, can also be used to model coupled inductors in AC circuits
Mutual inductance measurement
Measuring mutual inductance is essential for characterizing coupled inductors and verifying their performance in various applications
There are several methods for measuring mutual inductance, which can be broadly classified into and
Direct measurement methods
Direct measurement methods involve physically connecting the coupled inductors to measurement instruments and observing the voltage or current responses
One common direct measurement method is the voltage divider method, where a known voltage is applied to one inductor, and the voltage across the other inductor is measured
Another direct method is the current measurement method, where a known current is passed through one inductor, and the induced current in the other inductor is measured
Direct measurement methods provide accurate results but may require specialized equipment and careful setup to minimize measurement errors
Indirect calculation techniques
Indirect calculation techniques involve measuring other parameters of the coupled inductors and using mathematical relationships to calculate the mutual inductance
One indirect technique is the self-inductance measurement method, where the self-inductances of the individual inductors are measured, and the mutual inductance is calculated using the coupling coefficient formula
Another indirect technique is the resonance method, where the coupled inductors are connected in a resonant circuit, and the resonant frequency is measured to determine the mutual inductance
Indirect calculation techniques can be more convenient than direct methods, as they often require only standard LCR meters or impedance analyzers, but their accuracy depends on the accuracy of the measured parameters and the validity of the mathematical models used
Key Terms to Review (31)
Coaxial coils: Coaxial coils are two or more wire coils that share a common axis and are typically arranged one inside the other. This configuration is important in understanding mutual inductance, as the magnetic field generated by one coil can link with the other coil, leading to a measurable inductive coupling between them.
Coplanar coils: Coplanar coils are two or more coils that lie in the same geometric plane and can influence each other through magnetic fields when they are in proximity. This arrangement allows for efficient transfer of magnetic flux between the coils, which is fundamental in understanding mutual inductance. The interaction between coplanar coils is often analyzed in contexts such as transformers and inductive coupling applications.
Coupled inductors: Coupled inductors are two or more inductors that are magnetically linked together, enabling them to influence each other's magnetic fields and inductances. This coupling allows for the transfer of energy between the inductors, which is particularly useful in applications like transformers and various types of circuits where mutual inductance plays a key role in functionality and design.
Coupling coefficient: The coupling coefficient is a measure of how effectively energy is transferred between two systems, such as inductors or transmission lines, when they are in proximity to each other. This concept helps to quantify the interaction between elements, influencing performance in various applications including signal transmission and electromagnetic compatibility. A higher coupling coefficient indicates stronger interaction, leading to more efficient energy transfer.
Cross-talk: Cross-talk refers to the unintended interaction or interference between two or more inductive circuits, where the magnetic field from one circuit induces a voltage in another nearby circuit. This phenomenon can lead to unwanted signals and noise in electrical systems, affecting the performance of devices such as transformers and communication lines. Understanding cross-talk is essential in designing circuits to minimize these effects and improve overall system reliability.
Direct measurement methods: Direct measurement methods refer to techniques used to obtain the value of a physical quantity through observation or instrumentation without relying on intermediate calculations or extrapolations. This approach allows for more straightforward assessments of properties like inductance in circuits, facilitating a clearer understanding of the relationships between electrical components and their interactions.
Energy conservation in inductive circuits: Energy conservation in inductive circuits refers to the principle that energy within these circuits is neither created nor destroyed but rather transformed and stored in magnetic fields. This concept is vital for understanding how inductors operate, especially when they are subjected to changing currents, which induces a voltage opposing the change. The interplay between electric and magnetic energy is crucial, as it helps maintain a balance, ensuring that energy is efficiently transferred and utilized within the circuit.
Energy transfer: Energy transfer is the process through which energy moves from one system or object to another, often manifesting in various forms such as electrical, thermal, or mechanical energy. This concept is crucial in understanding how energy flows in systems, particularly in the context of electromagnetic interactions, where energy can be transferred through fields and currents.
Equivalent Circuits: Equivalent circuits are simplified representations of complex electrical circuits that maintain the same electrical characteristics at their terminals. These representations allow for easier analysis and understanding of the circuit behavior, particularly in the context of mutual inductance where the interaction between different inductors is key. By using equivalent circuits, one can simplify the relationships between voltages and currents to better understand energy transfer and coupling effects.
Faraday's Law of Electromagnetic Induction: Faraday's Law states that a change in magnetic flux through a circuit induces an electromotive force (emf) in that circuit. This fundamental principle connects the concepts of electric and magnetic fields, demonstrating how a varying magnetic field can produce electric currents, which leads to the understanding of inductance and mutual inductance.
Henry: The henry (H) is the SI unit of inductance, representing the amount of induced electromotive force (emf) generated in a circuit when the current flowing through it changes at a rate of one ampere per second. This unit captures the relationship between magnetic fields and electric current, highlighting how changes in current can lead to induced voltages in conductors. Understanding henry is essential for analyzing circuits that involve inductors and mutual inductance, as it provides a measure of how effectively a coil can store energy in its magnetic field.
Ideal transformer: An ideal transformer is a theoretical device that efficiently transfers electrical energy between two or more circuits through electromagnetic induction, with no losses in energy due to heat or resistance. It operates under the principles of mutual inductance, where the primary coil creates a magnetic field that induces a voltage in the secondary coil, allowing for the transfer of power while maintaining the conservation of energy.
Impedance Matrix: The impedance matrix is a mathematical representation used to describe the relationship between voltages and currents in a multi-port electrical network. It is particularly useful in analyzing systems with mutual inductance, where multiple inductors or coils interact with each other, allowing for the calculation of how each coil affects the others in terms of their voltage and current characteristics.
Indirect calculation techniques: Indirect calculation techniques are methods used to determine physical quantities by relating them to other measurable quantities, rather than measuring them directly. This approach is often necessary in electromagnetism, where direct measurements may be challenging or impossible due to the complexity of the systems involved. These techniques often involve mathematical relationships and principles, such as those found in mutual inductance, to derive the desired results from known values.
Induced emf: Induced electromotive force (emf) refers to the voltage generated in a circuit due to a change in the magnetic environment around that circuit. This phenomenon occurs when there is a variation in magnetic flux through a loop or coil of wire, leading to an electric current if the circuit is closed. Induced emf is a fundamental concept that helps explain how electrical energy can be generated and transmitted, playing a crucial role in both self-induction and mutual induction processes.
Inductive coupling: Inductive coupling is the transfer of energy between two circuits through mutual inductance, allowing for wireless energy transfer or signal transmission. It relies on the magnetic fields produced by alternating currents in one coil inducing a voltage in a nearby coil. This concept is crucial in various applications, including transformers and wireless charging technologies, which leverage the principles of inductance and mutual inductance for efficient energy transfer.
Inductive Power Transfer: Inductive power transfer is a method of transferring electrical energy wirelessly between two coils through electromagnetic induction. This process relies on the principle of mutual inductance, where a changing magnetic field created by a current in one coil induces a voltage in a nearby coil, allowing for efficient energy transfer without the need for physical connections.
Inductors in Series: Inductors in series refers to a configuration where multiple inductors are connected end-to-end in an electrical circuit, causing the total inductance to increase. When inductors are arranged this way, their individual inductances add together to create a cumulative effect, influencing the overall impedance and behavior of the circuit. This configuration is essential for understanding how inductors interact with each other, especially in contexts involving mutual inductance.
Leakage inductance: Leakage inductance refers to the portion of magnetic flux in a transformer that does not link both the primary and secondary windings. This inductance results from the imperfect coupling between the coils, leading to energy losses when the transformer is in operation. Understanding leakage inductance is essential for analyzing transformer performance and efficiency, particularly in the context of mutual inductance, where the interaction between coupled inductors plays a significant role.
Lenz's Law: Lenz's Law states that the direction of an induced current will always be such that it opposes the change in magnetic flux that produced it. This law is essential for understanding how electromagnetic induction works, as it provides insight into the relationship between magnetic fields and electrical currents, highlighting the principle of conservation of energy.
M = k√(l1*l2): The equation m = k√(l1*l2) represents the mutual inductance between two coils in an electromagnetic system, where 'm' is the mutual inductance, 'k' is a constant that depends on the geometrical configuration of the coils, and 'l1' and 'l2' are the self-inductances of each coil. This relationship illustrates how the inductance of one coil affects the other through their mutual interaction. Understanding this equation helps in analyzing energy transfer in coupled inductors and transformers.
Magnetic coupling: Magnetic coupling refers to the interaction between two or more magnetic circuits that allows for the transfer of energy through magnetic fields. This phenomenon is essential in systems like transformers and inductors, where the magnetic field generated by one coil induces a current in another coil nearby. Understanding magnetic coupling is crucial for analyzing how electrical energy can be transferred efficiently between components in electromagnetic devices.
Mutual inductance: Mutual inductance is a phenomenon where a change in current in one coil induces an electromotive force (EMF) in a nearby coil due to the magnetic field produced by the first coil. This concept illustrates how two circuits can influence each other through their magnetic interactions, and it plays a significant role in understanding electromagnetic induction, energy transfer between circuits, and transformer operation.
N1/n2 = √(l1/l2): The equation $$n_1/n_2 = \sqrt{l_1/l_2}$$ relates the refractive indices of two media to their respective wavelengths. This relationship is crucial in understanding how light behaves when transitioning between different materials, especially in the context of mutual inductance where changes in inductance can affect electromagnetic interactions.
Neumann Formula: The Neumann Formula is an expression used to calculate the mutual inductance between two current-carrying loops or coils, which is essential in understanding the interactions between electromagnetic fields. This formula highlights how the induced electromotive force (emf) in one coil depends on the current in another coil, emphasizing the significance of their geometric arrangement and the magnetic flux linkage between them.
Real Transformer: A real transformer is an electrical device that transfers electrical energy between two or more circuits through electromagnetic induction, with inherent losses due to resistance, leakage flux, and other non-ideal factors. It operates on the principle of mutual inductance, where a changing current in one coil induces a voltage in another coil, but it also involves energy losses that affect efficiency.
Self-inductance: Self-inductance is the property of a coil or circuit that enables it to generate an electromotive force (EMF) in response to changes in the current flowing through it. This phenomenon arises due to the magnetic field created by the current, which induces a voltage that opposes the change in current according to Lenz's law. Understanding self-inductance is crucial for grasping concepts related to electromagnetic induction, energy storage in inductors, and interactions between different circuits.
Stored Energy: Stored energy refers to the energy that is held within a system or an object, which can be converted to other forms of energy when needed. In the context of mutual inductance, stored energy is particularly significant as it relates to the magnetic fields generated by current-carrying coils and how this energy can be transferred between these coils through induction.
Superposition Principle: The superposition principle states that in a linear system, the total response at a given point caused by multiple stimuli is equal to the sum of the individual responses from each stimulus acting independently. This principle is foundational in understanding how various fields interact and combine, allowing for complex systems to be simplified into manageable calculations by considering each source separately.
Transformers: Transformers are electrical devices that transfer electrical energy between two or more circuits through electromagnetic induction. They are essential for stepping up or stepping down voltage levels in AC power systems, making them crucial for efficient power distribution and transmission over long distances.
Wireless Charging: Wireless charging is a technology that allows electrical energy to be transferred from a power source to a device without the need for physical connectors or cables. This process primarily relies on the principles of electromagnetic induction, where energy is transferred through coils in two nearby devices, enabling the charging of batteries in smartphones, electric vehicles, and other electronic devices.
