is a crucial concept in electromagnetism that explains the apparent flow of current in capacitors and empty space. It generalizes electric current to include , maintaining continuity where traditional conduction current fails.
Maxwell's introduction of displacement current resolved inconsistencies in Ampère's law and led to the prediction of . This concept is fundamental to understanding capacitor behavior, wave propagation, and the interplay between electric and magnetic fields in various applications.
Displacement current concept
Displacement current is a crucial concept in electromagnetism that explains the apparent flow of current in a capacitor or in empty space
It is a generalization of electric current to include time-varying electric fields, in addition to the motion of charges
Displacement current maintains the continuity of current in situations where the traditional conduction current fails to do so

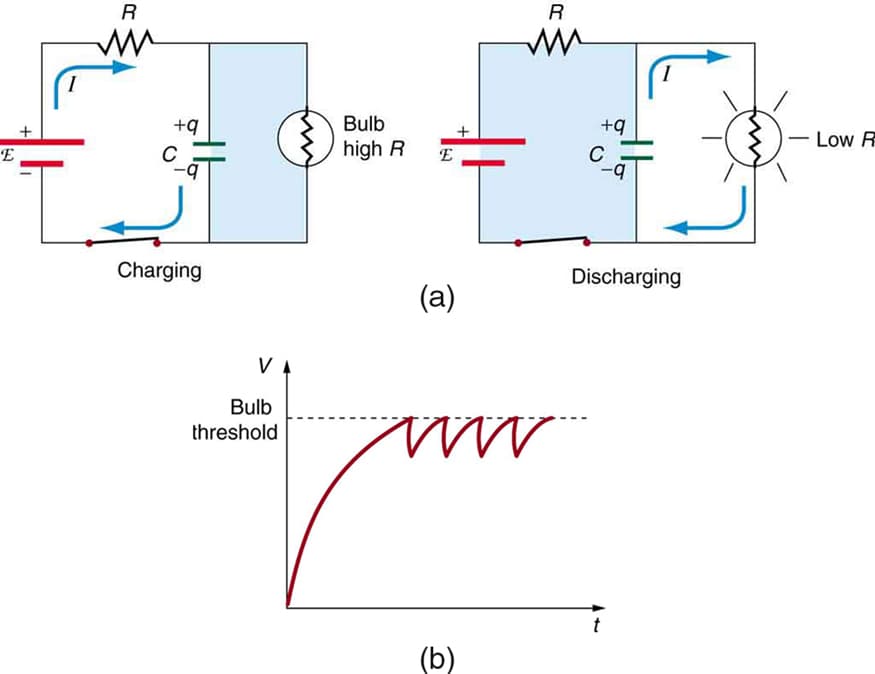

Capacitor charging and current
Top images from around the web for Capacitor charging and current
DC Circuits Containing Resistors and Capacitors · Physics View original
Is this image relevant?
4.11 DC Circuits Containing Resistors and Capacitors – Douglas College Physics 1207 View original
DC Circuits Containing Resistors and Capacitors · Physics View original
Is this image relevant?
4.11 DC Circuits Containing Resistors and Capacitors – Douglas College Physics 1207 View original
Is this image relevant?
1 of 3
When a capacitor is charging, there is a current flowing in the circuit, even though no actual charges are crossing the gap between the plates
The charging current is due to the changing electric field between the capacitor plates, which induces a displacement current
Displacement current in a capacitor is proportional to the rate of change of the electric field between the plates
Electric field and displacement current
Displacement current arises from a time-varying electric field, as described by
It is defined as the rate of change of the electric displacement field D, given by JD=∂t∂D
The electric displacement field is related to the electric field E by the permittivity of the medium ε, as D=εE
Displacement current vs conduction current
Conduction current is the flow of electric charges in a conductor, caused by an electric field
Displacement current is the apparent flow of current due to a changing electric field, even in the absence of moving charges
In a closed loop, the total current (conduction + displacement) is always continuous, ensuring charge conservation
Displacement current equation
The displacement current equation is a fundamental relation in electromagnetism that quantifies the contribution of time-varying electric fields to the total current
It is an essential part of Maxwell's equations, which form the foundation of classical electromagnetism
Understanding the displacement current equation is crucial for analyzing electromagnetic phenomena in various contexts
Displacement current formula
The JD is given by the formula: JD=∂t∂D
Here, D is the electric displacement field, which is related to the electric field E by the permittivity ε of the medium
The displacement current ID through a surface S is the integral of the displacement current density over that surface: ID=∫SJD⋅dS
Permittivity and electric flux
Permittivity ε is a physical quantity that describes the ability of a medium to store electrical energy in an electric field
It relates the electric field E to the electric displacement field D as D=εE
The electric flux ΦE through a surface is the integral of the electric displacement field over that surface: ΦE=∫SD⋅dS
Displacement current derivation
The displacement current can be derived from Maxwell's equations, specifically from Ampère's circuital law and Gauss's law for electric fields
By taking the divergence of Ampère's law and using the continuity equation, one can show that a time-varying electric field contributes to the total current
This contribution is the displacement current, which is necessary to maintain the conservation of charge and the consistency of Maxwell's equations
Displacement current applications
Displacement current has numerous applications in various fields of physics and engineering, ranging from capacitor circuits to electromagnetic wave propagation
It plays a crucial role in understanding the behavior of time-varying electromagnetic fields and their interactions with matter
Analyzing displacement current is essential for designing and optimizing electronic devices, antennas, and communication systems
Displacement current in capacitors
In a charging or discharging capacitor, the displacement current between the plates is equal to the conduction current in the connecting wires
This ensures the continuity of current in the circuit, even though no charges are physically moving across the capacitor gap
The displacement current in a capacitor is proportional to the rate of change of the voltage across the plates
Displacement current in vacuum
In a vacuum, where there are no free charges, displacement current can still exist due to time-varying electric fields
This is a crucial insight from Maxwell's equations, which predicts the existence of electromagnetic waves in vacuum
The displacement current in vacuum is proportional to the rate of change of the electric field
Displacement current in dielectrics
In dielectric materials, the displacement current is modified by the presence of bound charges, which polarize in response to an applied electric field
The displacement current in a dielectric is related to the rate of change of the electric displacement field D, which includes the effect of polarization
Understanding displacement current in dielectrics is important for analyzing capacitors with dielectric materials and the propagation of electromagnetic waves in media
Ampère's circuital law
Ampère's circuital law is a fundamental relation in electromagnetism that relates the magnetic field around a closed loop to the electric current passing through the loop
It is one of Maxwell's equations and plays a crucial role in understanding the generation and properties of magnetic fields
The original form of Ampère's law, without the displacement current term, is inconsistent with the continuity equation and requires modification
Ampère's law without displacement current
The original form of Ampère's circuital law states that the integral of the magnetic field B around a closed loop is equal to μ0 times the total current I enclosed by the loop
Mathematically, ∮B⋅dl=μ0I, where μ0 is the permeability of free space
This form of Ampère's law does not account for the possibility of a time-varying electric field generating a magnetic field
Inconsistency with continuity equation
The continuity equation, which expresses the conservation of electric charge, requires that the divergence of the current density J is equal to the negative rate of change of the charge density ρ
Mathematically, ∇⋅J=−∂t∂ρ
Ampère's law without the displacement current term violates the continuity equation in situations where there is a time-varying electric field, such as in a charging capacitor
Generalized Ampère's law with displacement current
To resolve the inconsistency and make Ampère's law compatible with the continuity equation, Maxwell introduced the concept of displacement current
The generalized Ampère's law, also known as the , includes the displacement current term ε0∂t∂E
The complete equation becomes ∮B⋅dl=μ0(I+ε0dtdΦE), where ΦE is the electric flux through the loop
Maxwell's equations
Maxwell's equations are a set of four fundamental equations that describe the behavior of electric and magnetic fields and their interactions with matter
They are the foundation of classical electromagnetism and provide a unified framework for understanding a wide range of electromagnetic phenomena
The four equations are Gauss's law for electric fields, Gauss's law for magnetic fields, Faraday's law of induction, and the Ampère-Maxwell law
Gauss's law for electric fields
Gauss's law for electric fields states that the total electric flux through any closed surface is equal to the total electric charge enclosed by the surface divided by the permittivity of free space ε0
Mathematically, ∮E⋅dS=ε0Q, where Q is the total electric charge enclosed
This law relates the electric field to the distribution of electric charges
Gauss's law for magnetic fields
Gauss's law for magnetic fields states that the total magnetic flux through any closed surface is always zero
Mathematically, ∮B⋅dS=0
This law implies that magnetic monopoles do not exist, and magnetic always form closed loops
Faraday's law of induction
Faraday's law of induction states that a time-varying magnetic flux through a loop induces an electromotive force (EMF) in the loop, which is equal to the negative rate of change of the magnetic flux
Mathematically, E=−dtdΦB, where E is the induced EMF and ΦB is the magnetic flux
This law describes the generation of electric fields by changing magnetic fields
Ampère-Maxwell law
The Ampère-Maxwell law is a generalization of Ampère's circuital law that includes the displacement current term
It states that the magnetic field around a closed loop is related to the total current (conduction current + displacement current) passing through the loop
Mathematically, ∮B⋅dl=μ0(I+ε0dtdΦE), where I is the conduction current and ΦE is the electric flux
This law describes the generation of magnetic fields by electric currents and time-varying electric fields
Electromagnetic waves
Electromagnetic (EM) waves are oscillating disturbances in the electric and magnetic fields that propagate through space at the speed of light
They are a fundamental consequence of Maxwell's equations and play a crucial role in numerous applications, from radio communication to optical imaging
Understanding the properties and behavior of EM waves is essential for many areas of physics and engineering
Displacement current and EM waves
The displacement current, introduced by Maxwell, is a key concept in the theory of electromagnetic waves
It allows for the generation of magnetic fields by time-varying electric fields, even in the absence of conduction currents
The interplay between the electric and magnetic fields, coupled through the displacement current, gives rise to self-sustaining EM waves that propagate through space
Wave equation derivation
The wave equation for electromagnetic waves can be derived from Maxwell's equations by taking the curl of Faraday's law and the Ampère-Maxwell law
This leads to second-order partial differential equations for the electric and magnetic fields, which have the form of wave equations
The wave equations describe the spatial and temporal evolution of the electric and magnetic fields in an EM wave
Propagation of EM waves in vacuum
In a vacuum, electromagnetic waves propagate at the speed of light, denoted by c, which is approximately 3×108 m/s
The speed of light in vacuum is related to the permittivity ε0 and permeability μ0 of free space by c=ε0μ01
The electric and magnetic fields in an EM wave in vacuum are perpendicular to each other and to the direction of propagation, forming a transverse wave
Propagation of EM waves in media
When electromagnetic waves propagate through a medium, their speed and other properties are affected by the medium's permittivity ε and permeability μ
The speed of an EM wave in a medium is given by v=εμ1, which is generally lower than the speed of light in vacuum
The presence of the medium can also cause the EM wave to be partially reflected, refracted, or absorbed, depending on the material properties
Poynting vector and energy flow
The Poynting vector is a quantity that represents the direction and magnitude of energy flow in an electromagnetic field
It is a crucial concept for understanding the propagation and distribution of energy in EM waves and is widely used in antenna theory, optical physics, and other areas
The Poynting vector is closely related to the energy density of the electromagnetic field and the power transmitted by EM waves
Poynting vector definition
The Poynting vector S is defined as the cross product of the electric field E and the magnetic field H, i.e., S=E×H
It has units of power per unit area (W/m²) and points in the direction of energy flow
The magnitude of the Poynting vector represents the intensity of the electromagnetic energy flow at a given point
Energy density of EM fields
The energy density of an electromagnetic field is the sum of the electric and magnetic field energy densities
The electric field energy density is given by uE=21ε∣E∣2, where ε is the permittivity of the medium
The magnetic field energy density is given by uB=21μ∣H∣2, where μ is the permeability of the medium
The total electromagnetic energy density is u=uE+uB
Power flow in EM waves
The power flow in an electromagnetic wave is described by the Poynting vector
The instantaneous power per unit area flowing through a surface perpendicular to the Poynting vector is given by the magnitude of S
The average power flow, or intensity, of an EM wave is given by the time average of the Poynting vector, ⟨S⟩=21Re(E×H∗), where H∗ is the complex conjugate of H
Displacement current experiments
Experimental verification of the displacement current concept has been crucial for validating Maxwell's equations and the theory of electromagnetic waves
Various experiments have been designed and conducted to measure and demonstrate the existence of displacement current in different contexts
These experiments have not only confirmed the theoretical predictions but also led to practical applications in electronics, telecommunications, and other fields
Capacitor charging experiments
One of the most straightforward ways to observe displacement current is through capacitor charging experiments
By measuring the current in the connecting wires of a charging capacitor, one can indirectly detect the presence of displacement current between the capacitor plates
The displacement current in the capacitor is equal to the conduction current in the wires, ensuring the continuity of current in the circuit
Hertzian dipole and EM waves
The Hertzian dipole, named after Heinrich Hertz, is a simple antenna consisting of a center-fed dipole that can generate and detect electromagnetic waves
Hertz used this setup to experimentally demonstrate the existence of EM waves, as predicted by Maxwell's equations
By measuring the electromagnetic fields at a distance from the dipole, Hertz confirmed the presence of displacement current and the propagation of EM waves in free space
Displacement current measurement techniques
Various techniques have been developed to directly measure displacement current in different scenarios
One approach is to use a split-ring resonator, which is a metamaterial structure that can enhance the displacement current and make it easier to detect
Another technique involves using a modified Rogowski coil, which is a toroidal coil that can measure the magnetic field induced by the displacement current
These and other measurement methods have provided valuable insights into the behavior of displacement current and its role in electromagnetic phenomena
Key Terms to Review (17)
Ampère-Maxwell Law: The Ampère-Maxwell Law is a fundamental principle in electromagnetism that relates the magnetic field around a closed loop to the electric current flowing through that loop, along with the displacement current. This law extends Ampère's circuital law by including the concept of displacement current, which accounts for changing electric fields, making it crucial for understanding electromagnetic waves and how electric and magnetic fields interact.
André-Marie Ampère: André-Marie Ampère was a French physicist and mathematician best known for his foundational contributions to the field of electromagnetism, particularly through the formulation of Ampère's circuital law. His work established a relationship between electric current and the magnetic fields they produce, which is crucial for understanding how electric currents interact with each other and their surrounding environments.
Capacitive Charging: Capacitive charging refers to the process by which a capacitor accumulates electric charge when connected to a voltage source. During this process, current flows into the capacitor until it reaches its maximum charge, which is determined by the capacitance and the applied voltage. This phenomenon is crucial for understanding how capacitors behave in electric circuits, especially in relation to displacement current and changing electric fields.
Capacitor Experiments: Capacitor experiments involve the study and observation of how capacitors store and release electrical energy in an electric field. These experiments can demonstrate fundamental concepts such as capacitance, the behavior of dielectric materials, and the effects of charge and voltage on capacitors, which are all essential for understanding electromagnetic theory.
Coulombs per second: Coulombs per second is the unit of electric current, representing the flow of electric charge. It indicates how many coulombs of charge pass through a given point in a circuit per second. This measurement is crucial for understanding how displacement current behaves, especially when dealing with time-varying electric fields in capacitors and other components.
Dielectric polarization: Dielectric polarization is the phenomenon where a dielectric material becomes polarized when exposed to an electric field, resulting in the alignment of electric dipoles within the material. This process leads to the creation of bound charges on the surface of the dielectric, affecting its overall behavior in an electric field and contributing to the concept of displacement current, especially in situations involving time-varying electric fields.
Displacement current: Displacement current is a term introduced by James Clerk Maxwell to account for changing electric fields in situations where there are no conduction currents, particularly in the context of electromagnetic waves. It essentially serves to extend Ampère's circuital law by including a term that considers the rate of change of the electric field, allowing for the continuity of current even in the absence of actual charge movement.
Displacement current density: Displacement current density is a concept introduced by James Clerk Maxwell to describe a term that accounts for changing electric fields in situations where traditional conduction current is not present, such as in capacitors. It helps in understanding how time-varying electric fields can produce magnetic fields, which is essential for the unification of electricity and magnetism. This term is significant in both theoretical and practical applications of electromagnetic theory.
Electromagnetic waves: Electromagnetic waves are oscillations of electric and magnetic fields that propagate through space, carrying energy from one place to another. These waves travel at the speed of light and can exist in various forms, such as radio waves, microwaves, visible light, and X-rays. The behavior of these waves is essential for understanding key concepts like the interaction of electric currents and magnetic fields, the significance of changing electric fields in circuits, and the principles of energy conservation in electromagnetic systems.
Farads per meter: Farads per meter (F/m) is a unit of measurement used to quantify the permittivity of a material, representing its ability to store electrical energy in an electric field. This term is essential when understanding how materials respond to electric fields and how they affect the propagation of electromagnetic waves, especially in the context of displacement current, which relates to changing electric fields.
Field Lines: Field lines are visual representations used to illustrate the strength and direction of a field, such as electric or magnetic fields. They help in understanding how forces are distributed in space, indicating the path that a positive test charge would take under the influence of the field. The density of the lines shows the strength of the field: closer lines indicate a stronger field while further apart lines represent weaker areas.
Gauss's Law for Electricity: Gauss's Law for Electricity states that the electric flux through a closed surface is directly proportional to the charge enclosed within that surface. This law provides a powerful tool for calculating electric fields, especially in situations with high symmetry, and connects the electric field to charge distributions through the concept of flux.
James Clerk Maxwell: James Clerk Maxwell was a Scottish physicist best known for formulating the classical theory of electromagnetic radiation, bringing together electricity, magnetism, and light as manifestations of the same phenomenon. His equations, now known as Maxwell's equations, describe how electric and magnetic fields interact and propagate through space and time, forming the foundation of modern electromagnetism.
Maxwell's Equations: Maxwell's Equations are a set of four fundamental equations that describe how electric and magnetic fields interact and propagate. They form the foundation of classical electromagnetism, unifying previously separate concepts of electricity and magnetism into a cohesive framework that explains a wide range of physical phenomena.
Non-conductive media: Non-conductive media are materials that do not allow the flow of electric current through them, meaning they have high electrical resistance. This characteristic is crucial in various applications, particularly when isolating conductive elements or in the design of capacitors, where these media can store electric energy without allowing current to pass. Understanding non-conductive media is essential when analyzing electric fields and displacement currents, as they play a vital role in how electromagnetic fields behave in different environments.
Oscillating Circuits: Oscillating circuits are electrical circuits that produce oscillations, typically in the form of alternating current (AC) or electromagnetic waves, due to the interaction between inductance and capacitance. These circuits play a vital role in generating and controlling oscillations, which are essential in various applications like radio transmitters and receivers. Their behavior can be analyzed through the principles of displacement current, particularly in contexts where changing electric fields occur, such as in capacitors during oscillation.
Time-varying electric fields: Time-varying electric fields refer to electric fields that change with time, which can produce magnetic fields according to Maxwell's equations. These variations are crucial for understanding electromagnetic waves and their propagation, as they highlight the dynamic relationship between electric and magnetic fields in space. This concept is foundational for explaining how changing electric fields can create displacement currents, thereby bridging the gap between static and dynamic electromagnetism.
