Filtering effectiveness measurement is crucial for ensuring electromagnetic compatibility in electronic systems. It quantifies how well EMI filters reduce unwanted signals, helping designers meet regulatory standards and prevent interference between devices.
Various techniques are used to evaluate filter performance, including measurements, scattering parameter analysis, and time domain reflectometry. These methods provide insights into filter behavior across different frequency ranges and operating conditions.
Principles of filtering effectiveness
Filtering effectiveness measures how well electromagnetic interference (EMI) filters reduce unwanted signals in electronic systems
Crucial for ensuring electromagnetic compatibility (EMC) and preventing interference between devices
Involves understanding frequency-dependent behavior of filters and their interaction with source and load impedances
Definition of filtering effectiveness

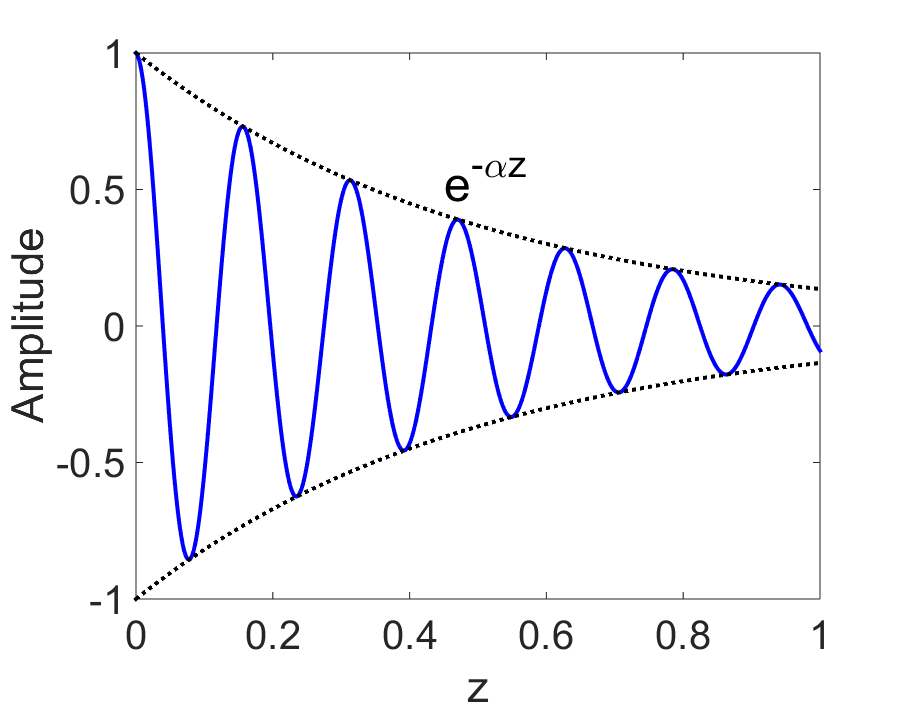

Top images from around the web for Definition of filtering effectiveness
Roll-off rate (dB/decade or dB/octave) quantifies attenuation increase in stopband
Impedance matching considerations
Crucial for maximizing power transfer and minimizing reflections in filter circuits
Mismatched impedances can lead to reduced attenuation and increased insertion loss
Source and load impedances affect filter performance, especially at high frequencies
Techniques like impedance transformation networks can improve matching
Bandwidth and cutoff frequency
defines the frequency range over which the filter operates effectively
Cutoff frequency marks the transition between passband and stopband regions
-3 dB point often used to define cutoff frequency for low-pass and high-pass filters
Bandwidth and cutoff frequency selection impacts filter size, component values, and overall performance
Measurement equipment
Specialized instruments used to characterize and evaluate filter performance
Selection of appropriate equipment depends on frequency range, accuracy requirements, and measurement type
Modern equipment often integrates multiple measurement capabilities in a single device
Network analyzers
Measure complex S-parameters of filters over a wide frequency range
Provide magnitude and phase information for both transmission and reflection characteristics
Vector network analyzers (VNAs) offer higher accuracy and dynamic range compared to scalar analyzers
Often include time domain analysis capabilities for advanced filter characterization
Spectrum analyzers
Analyze frequency content of signals passing through filters
Useful for measuring filter attenuation and identifying spurious responses
Can be combined with tracking generators to perform swept frequency measurements
Real-time spectrum analyzers capture transient events and intermittent interference
Signal generators
Provide test signals for filter evaluation across various frequencies
Include options for modulation and pulse generation to simulate real-world signals
Precision signal generators offer low phase noise and high spectral purity
Vector signal generators can produce complex modulated signals for advanced testing
Test setups
Configurations used to accurately measure filter performance under various conditions
Proper setup crucial for obtaining reliable and repeatable measurement results
Consider factors like cable lengths, connectors, and grounding to minimize measurement errors
Common mode vs differential mode
Common mode setup measures filter performance for signals present on all conductors simultaneously
Differential mode setup evaluates filter response to signals between two conductors
Different test fixtures and baluns may be required for each mode
Some filters designed specifically for common mode or differential mode suppression
Conducted vs radiated measurements
Conducted measurements focus on filter performance for signals propagating through wires and cables
Radiated measurements assess filter effectiveness in suppressing electromagnetic fields
Conducted tests typically use line impedance stabilization networks (LISN) for power line filters
Radiated tests may require anechoic chambers or open area test sites (OATS) for accurate results
Ground plane considerations
Proper grounding essential for accurate high-frequency measurements
Ground plane simulates realistic operating conditions and provides return path for currents
Size and material of ground plane affect measurement results, especially at higher frequencies
Techniques like ground plane isolation help minimize unwanted coupling and resonances
Standards and specifications
Established guidelines and requirements for measuring and evaluating filter performance
Ensure consistency and comparability of results across different laboratories and manufacturers
Often referenced in regulatory compliance testing for EMI/EMC certification
MIL-STD-220 requirements
Military standard for measuring insertion loss of RF filters
Specifies test methods, frequency ranges, and measurement accuracy requirements
Defines standard impedance values (typically 50 ohms) for consistent measurements
Includes procedures for both small signal and high power filter testing
CISPR 17 guidelines
International standard for measuring passive EMI filter characteristics
Covers frequency range from 9 kHz to 1 GHz
Specifies methods for measuring insertion loss, input impedance, and output impedance
Includes procedures for both symmetrical (balanced) and asymmetrical (unbalanced) filters
IEEE standards
IEEE Std 1560 provides guidelines for time domain network analysis of filters
IEEE Std 1597.1 defines methods for validation of computational electromagnetics computer modeling and simulations
IEEE Std C63.14 includes standard dictionary of EMC terms and definitions
Various other IEEE standards address specific aspects of EMI/EMC testing and measurement
Data analysis and interpretation
Processes and techniques used to extract meaningful information from filter measurements
Involves understanding measurement limitations, sources of error, and performance trade-offs
Critical for optimizing filter designs and ensuring compliance with EMI/EMC requirements
Frequency response curves
Graphical representation of filter attenuation vs frequency
Analyze passband ripple, stopband attenuation, and transition region characteristics
Compare measured results with theoretical or simulated performance
Identify unexpected resonances or anomalies in filter response
Insertion loss calculations
Compute insertion loss from measured S-parameters or power measurements
Account for cable losses, connector mismatches, and other systematic errors
Convert insertion loss to effective shielding effectiveness for EMI suppression applications
Analyze insertion loss variation across different source and load impedances
Error sources and uncertainties
Identify and quantify measurement uncertainties in filter characterization
Consider effects of impedance mismatch, noise floor limitations, and dynamic range constraints
Evaluate impact of temperature variations and mechanical vibrations on measurement stability
Use statistical techniques to estimate confidence intervals for measured parameters
Filter types and effectiveness
Various filter configurations designed to address different EMI/EMC challenges
Selection based on frequency range, attenuation requirements, and circuit topology
Understanding strengths and limitations of each filter type crucial for effective EMI suppression
Passive vs active filters
Passive filters use only passive components (inductors, capacitors, resistors)
Active filters incorporate active devices (op-amps, transistors) for enhanced performance
Passive filters offer simplicity and reliability, especially at high frequencies
Active filters provide higher Q-factors, easier tuning, and potential for gain in the passband
Low-pass vs high-pass vs band-pass
Low-pass filters attenuate high-frequency signals while passing low frequencies
High-pass filters block low-frequency signals and allow high frequencies to pass
Band-pass filters allow a specific range of frequencies to pass while attenuating others
Filter type selection depends on the nature of the interference and desired signal characteristics
Common mode vs differential mode filters
Common mode filters attenuate signals common to multiple conductors (noise coupled to all lines)
Differential mode filters suppress signals between two conductors (normal signal path)
Common mode chokes effective for reducing EMI on power lines and data cables
Some filter designs combine both common mode and differential mode suppression
Practical considerations
Real-world factors that impact filter performance and long-term effectiveness
Address challenges in implementing and maintaining filters in actual applications
Consider trade-offs between ideal performance and practical constraints
Environmental factors
Ambient temperature variations affect component values and filter characteristics
Humidity can impact insulation resistance and introduce parasitic capacitances
Mechanical shock and vibration may alter component positioning or cause intermittent connections
Electromagnetic fields from nearby sources can couple into filter components, reducing effectiveness
Temperature and humidity effects
Temperature coefficients of components lead to drift in filter characteristics
Extreme temperatures can cause permanent changes in material properties
High humidity increases risk of corrosion and electrical leakage
Temperature cycling can induce mechanical stress, affecting component stability
Aging and degradation impact
Component values may drift over time due to material aging and environmental exposure
Solder joint fatigue can introduce intermittent connections or increased resistance
Capacitor dielectric breakdown voltage may decrease with prolonged high-voltage stress
Magnetic core materials in inductors can lose permeability over time, reducing filter effectiveness
Optimization techniques
Methods to enhance filter performance and achieve desired EMI suppression goals
Involve iterative design processes, component selection, and topology refinements
Balance competing factors like size, cost, and performance to meet application requirements
Component selection strategies
Choose high-quality components with tight tolerances and stable characteristics
Consider parasitic effects (ESR, ESL) when selecting capacitors for high-frequency applications
Use low-loss magnetic materials for inductors to minimize core losses at high frequencies
Evaluate trade-offs between component size, performance, and cost for optimal design
Filter topology improvements
Explore advanced filter configurations (elliptic, Chebyshev) for steeper roll-off characteristics
Implement multistage filters to achieve higher overall attenuation
Use T-section or pi-section configurations for improved impedance matching
Consider balanced filter designs for better common-mode rejection in differential signaling
Cascading multiple filters
Combine different filter types to address both broadband and narrowband EMI
Use low-pass/high-pass combinations to create notch filters for specific interference frequencies
Implement feed-forward techniques to cancel specific frequency components
Optimize interstage matching to minimize interactions between cascaded filter sections
Key Terms to Review (18)
Anechoic Chamber: An anechoic chamber is a specialized room designed to eliminate reflections of sound or electromagnetic waves, creating an environment that is acoustically and electromagnetically isolated. This controlled setting is critical for accurately measuring emissions and immunity of devices without interference from external signals or reflections, thus ensuring precise compliance with various standards.
Attenuation: Attenuation refers to the reduction in strength or amplitude of a signal as it travels through a medium or system. This phenomenon is crucial in understanding how signals degrade over distance, which impacts wave propagation, transmission lines, and the effectiveness of various filtering and shielding methods.
Bandwidth: Bandwidth refers to the range of frequencies over which a system can effectively operate or transmit signals. It plays a crucial role in determining the performance and capabilities of various electronic components and systems, impacting everything from filtering to signal integrity and communication efficiency.
Common Mode Rejection Ratio (CMRR): Common Mode Rejection Ratio (CMRR) is a measure of the ability of a differential amplifier to reject common-mode signals, which are noise signals present simultaneously and in-phase on both inputs. A high CMRR indicates that the amplifier can effectively eliminate unwanted noise, allowing it to amplify only the desired differential signal. This characteristic is crucial for ensuring accurate signal processing and minimizing interference in electronic systems.
Cut-off frequency: Cut-off frequency is the frequency at which a filter significantly attenuates the input signal, marking the boundary between the passband and the stopband. It plays a crucial role in determining how effectively a filter can remove unwanted frequencies while allowing desired signals to pass through. Understanding cut-off frequency helps assess a filter's performance and its ability to maintain signal integrity in various applications.
Frequency response analysis: Frequency response analysis is a technique used to assess how a system reacts to different frequencies of input signals, revealing its behavior over a range of frequencies. This analysis helps in understanding the filtering effectiveness of a system, allowing for the identification of resonances, attenuation, and phase shifts that may occur at specific frequencies. By evaluating the frequency response, engineers can design better filters and improve the overall performance of electronic systems.
High-pass filter: A high-pass filter is an electronic circuit that allows signals with a frequency higher than a certain cutoff frequency to pass through while attenuating signals with frequencies lower than the cutoff. This type of filter is crucial in applications where it's important to remove low-frequency noise and interference while preserving higher-frequency signals, making it essential in both passive and active designs as well as in assessing filtering effectiveness.
IEC 61000: IEC 61000 is an international standard that provides guidelines and requirements for Electromagnetic Compatibility (EMC) of electrical and electronic devices. This standard is essential for ensuring that devices operate correctly in their electromagnetic environment and do not cause unacceptable electromagnetic interference to other devices.
Impedance Matching: Impedance matching is the process of making the impedance of a load equal to the impedance of the source or transmission line to maximize power transfer and minimize signal reflection. Proper impedance matching is crucial in various applications, as it helps maintain signal integrity and minimizes losses in electrical systems.
Insertion Loss: Insertion loss refers to the reduction in signal strength that occurs when a device, such as a filter or connector, is inserted into a transmission path. This term is critical in understanding how components affect the integrity of signals as they pass through them, especially in the context of filtering and signal integrity. It highlights the importance of analyzing the performance of filters and transmission lines in order to minimize signal degradation during communication.
Low-pass filter: A low-pass filter is an electronic circuit that allows signals with a frequency lower than a certain cutoff frequency to pass through while attenuating signals with frequencies higher than the cutoff. This kind of filter is essential in various applications, such as audio processing, signal conditioning, and noise reduction, as it effectively smooths out high-frequency noise while preserving the desired low-frequency signals.
MIL-STD-461: MIL-STD-461 is a military standard that establishes the requirements for the control of electromagnetic interference (EMI) for equipment and systems used by the Department of Defense (DoD). This standard ensures that military systems operate reliably in the presence of EMI, while also minimizing the electromagnetic emissions from these systems to prevent interference with other electronic devices.
Network Analyzer: A network analyzer is an instrument used to measure the properties of electrical networks, particularly in terms of their impedance and frequency response. It is essential in evaluating how well devices can filter signals and shield against electromagnetic interference, allowing engineers to optimize designs for better performance and compliance.
Return Loss: Return loss is a measure of the effectiveness of a transmission line or device in preventing signal reflection back towards the source. It quantifies how much power is lost due to reflections when a signal encounters an impedance mismatch. Understanding return loss is essential in various filtering designs, as it directly affects the performance of both common and differential mode filters, the measurement of filtering effectiveness, and the design considerations in multilayer PCBs.
Signal-to-Noise Ratio (SNR): Signal-to-Noise Ratio (SNR) is a measure that compares the level of a desired signal to the level of background noise. A higher SNR indicates a clearer signal, which is crucial in various applications like communications and audio processing, as it affects the quality and reliability of data transmission. Understanding SNR helps in assessing filtering techniques and their effectiveness in removing unwanted noise from the signal.
Spectrum Analyzer: A spectrum analyzer is an electronic instrument that displays the amplitude of signals as they vary with frequency, allowing for the analysis of the frequency components of electrical signals. It plays a vital role in identifying and measuring electromagnetic interference (EMI) from various sources, including man-made devices, and evaluating the effectiveness of different filtering techniques.
Test setup: Test setup refers to the specific arrangement of equipment, components, and conditions used to evaluate the performance of devices against electromagnetic standards. This setup is crucial for ensuring that measurements taken during testing are accurate and reliable, allowing for meaningful comparisons with established compliance requirements. The effectiveness of filtering, adherence to compliance protocols, resilience to interference, and accuracy of pre-compliance assessments all hinge on the quality and appropriateness of the test setup.
Time-Domain Reflectometry: Time-Domain Reflectometry (TDR) is a technique used to determine the characteristics of electrical cables by sending a signal down the cable and analyzing the reflected signals to identify any discontinuities or faults. This method is essential for assessing the integrity of signal paths and can help in understanding issues related to signal reference planes, power line filters, and transmission line effects.
