11.5 Faraday cages
7 min read•august 21, 2024
are essential tools in EMI mitigation and EMC strategies. They provide effective shielding against electromagnetic fields by redirecting them around enclosed spaces, protecting sensitive equipment and maintaining signal integrity.
Understanding Faraday cage principles, design considerations, and limitations is crucial for implementing effective EMI/EMC solutions. From material selection to testing methods, mastering these concepts enables engineers to create optimal shielding for various applications across industries.
Principles of Faraday cages
- Faraday cages form a critical component in (EMI) mitigation and (EMC) strategies
- Provide effective shielding against electromagnetic fields, crucial for protecting sensitive electronic equipment and maintaining signal integrity
- Operate based on the principle of charge distribution on conductive surfaces, redirecting external electromagnetic fields around the enclosed space
Electromagnetic shielding basics
Top images from around the web for Electromagnetic shielding basics

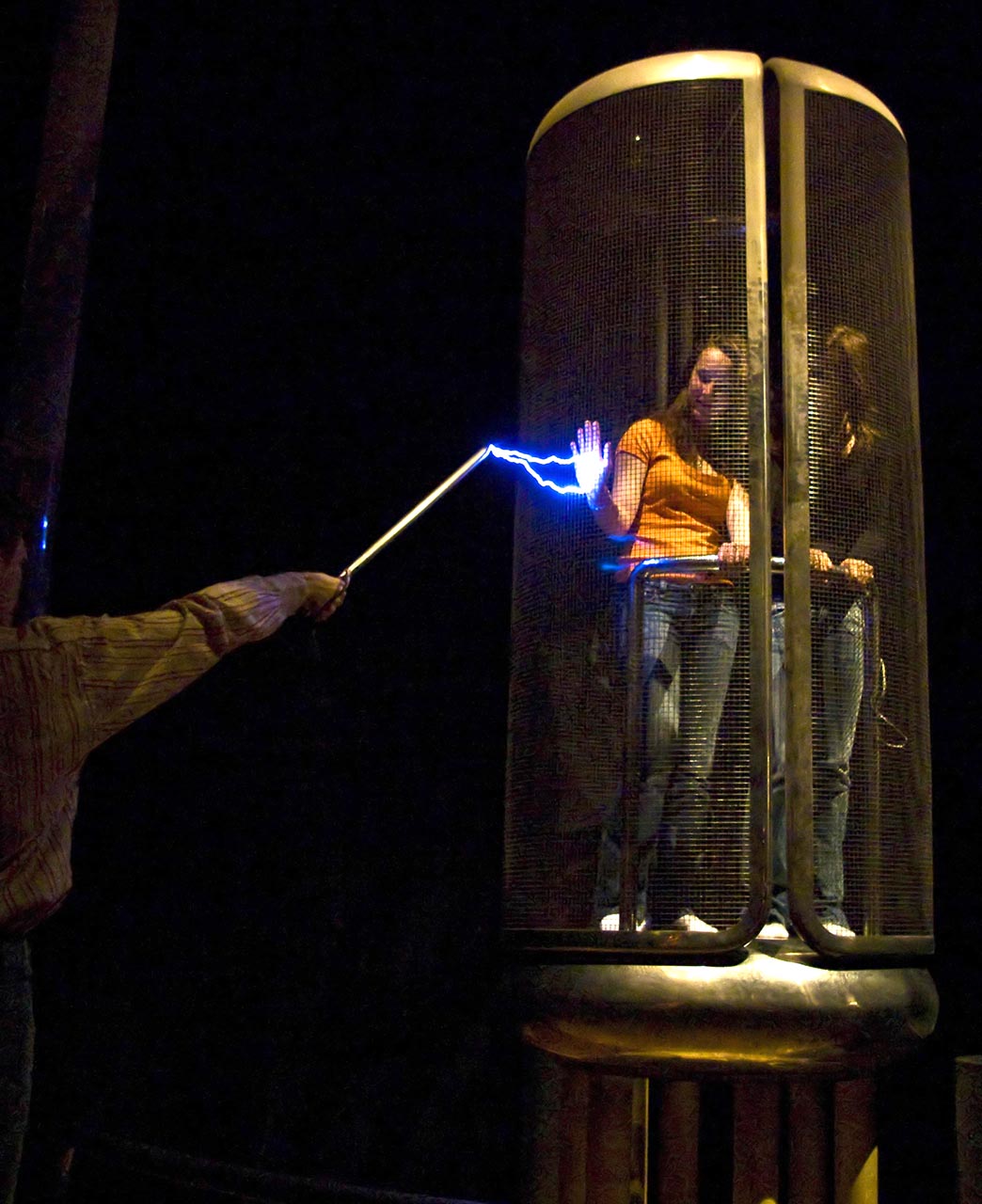

File:Cage de Faraday.jpg - Wikimedia Commons View original
Is this image relevant?
Radiation | Physics View original
Is this image relevant?
Review of electromagnetic interference shielding materials fabricated by iron ingredients ... View original
Is this image relevant?
File:Cage de Faraday.jpg - Wikimedia Commons View original
Is this image relevant?
Radiation | Physics View original
Is this image relevant?
1 of 3
Top images from around the web for Electromagnetic shielding basics
File:Cage de Faraday.jpg - Wikimedia Commons View original
Is this image relevant?
Radiation | Physics View original
Is this image relevant?
Review of electromagnetic interference shielding materials fabricated by iron ingredients ... View original
Is this image relevant?
File:Cage de Faraday.jpg - Wikimedia Commons View original
Is this image relevant?
Radiation | Physics View original
Is this image relevant?
1 of 3
- Utilizes to block electromagnetic fields
- Creates a barrier that redirects incoming electromagnetic waves around the enclosed space
- Effectiveness depends on material conductivity, thickness, and continuity of the shielding surface
- Attenuates both electric and magnetic field components of electromagnetic waves
Electrostatic vs electromagnetic fields
- Electrostatic fields result from stationary electric charges
- Electromagnetic fields consist of time-varying electric and magnetic fields
- Faraday cages effectively block electrostatic fields by redistributing charges on the outer surface
- of electromagnetic fields varies with frequency and depends on the cage's design
Continuous conducting surface concept
- Relies on the principle of charge distribution on conductive surfaces
- Ensures uniform across the entire cage structure
- Minimizes gaps or discontinuities that could compromise shielding performance
- Allows for the use of mesh or perforated materials while maintaining effective shielding
Structure and design
- Faraday cage design significantly impacts its shielding effectiveness and practical applications in EMI/EMC
- Proper material selection, construction method, and dimensional considerations optimize performance for specific frequency ranges and field strengths
- Design choices influence cost, weight, and ease of implementation in various EMI/EMC scenarios
Materials for Faraday cages
- Highly conductive metals (copper, aluminum, steel) offer superior shielding performance
- Composite materials incorporate conductive elements for lightweight applications
- Conductive fabrics and paints provide flexible shielding solutions
- Material thickness affects shielding effectiveness, especially at lower frequencies
Mesh vs solid construction
- Solid construction provides maximum shielding effectiveness across all frequencies
- Mesh designs allow for ventilation, light transmission, and reduced weight
- Mesh aperture size determines the upper frequency limit of effective shielding
- Trade-off between visibility/airflow and high-frequency shielding performance
Size and shape considerations
- Larger cages generally provide better low-frequency shielding
- Spherical shapes offer optimal performance due to uniform field distribution
- Cubic and rectangular designs balance practicality with effective shielding
- Internal volume affects resonant frequencies and standing wave patterns
Electromagnetic field attenuation
- Faraday cages attenuate electromagnetic fields through reflection and absorption mechanisms
- Shielding effectiveness varies with frequency, material properties, and cage design
- Understanding attenuation principles enables optimized designs for specific EMI/EMC applications
Skin depth effect
- Describes the penetration depth of electromagnetic fields into conductive materials
- Inversely proportional to the square root of frequency and material conductivity
- Determines the minimum thickness required for effective shielding at a given frequency
- Skin depth (δ) calculated using the formula:
- ω angular frequency
- μ magnetic permeability
- σ electrical conductivity
Frequency dependence
- Higher frequencies generally experience greater attenuation
- Low-frequency magnetic fields pose challenges for shielding
- Resonant frequencies can occur within the cage, potentially amplifying certain frequencies
- Shielding effectiveness typically improves with increasing frequency up to a certain point
Shielding effectiveness calculation
- Measured in decibels (dB), representing the ratio of incident to transmitted field strength
- Combines reflection loss, absorption loss, and re-reflection factors
- Calculated using the formula:
- E_i incident electric field strength
- E_t transmitted electric field strength
- Varies with frequency, material properties, and cage geometry
Applications in EMI/EMC
- Faraday cages play a crucial role in ensuring electromagnetic compatibility across various industries
- Enable reliable operation of sensitive equipment in electromagnetically noisy environments
- Facilitate accurate EMI testing and compliance verification for electronic devices
Electronic device protection
- Shields portable electronics from external interference (smartphones, laptops)
- Protects medical devices from EMI in hospital environments (pacemakers, MRI machines)
- Safeguards automotive electronics from both internal and external EMI sources
- Enhances security for wireless communication devices by preventing unauthorized access or eavesdropping
Sensitive equipment shielding
- Ensures accuracy of precision measurement instruments (atomic clocks, magnetometers)
- Protects scientific research equipment from ambient electromagnetic noise
- Shields critical infrastructure components (power grid control systems, data centers)
- Improves signal-to-noise ratio for sensitive radio astronomy receivers
EMI test chambers
- Provides controlled environments for EMC compliance testing
- Enables accurate measurement of device emissions and susceptibility
- Facilitates reproducible test conditions for regulatory certification (FCC, CE)
- Allows for of specific EMI sources during product development and troubleshooting
Limitations and challenges
- Faraday cages face several limitations that impact their effectiveness in certain scenarios
- Understanding these challenges enables appropriate design modifications and alternative solutions
- Addressing limitations often involves trade-offs between shielding performance, cost, and practicality
Aperture effects
- Openings in the cage structure can compromise shielding effectiveness
- Slot antennas formed by long, narrow apertures radiate at specific frequencies
- Critical frequencies determined by aperture dimensions and cage size
- Proper design of necessary openings (ventilation, cable entry) minimizes EMI leakage
Low-frequency performance
- Shielding effectiveness decreases for low-frequency magnetic fields
- Requires thicker materials or specialized designs for effective low-frequency shielding
- Magnetic field cancellation techniques may be necessary for very low frequencies
- Trade-off between low-frequency performance and overall cage size and weight
Grounding considerations
- Proper grounding essential for optimal Faraday cage performance
- Improper grounding can lead to resonances and reduced shielding effectiveness
- Multiple ground points may be necessary for large or complex cage structures
- Consideration of ground loops and potential differences in multi-point grounding systems
Testing and measurement
- Accurate testing and measurement of Faraday cage performance ensures effective EMI/EMC solutions
- Standardized methods enable comparison between different cage designs and materials
- Regular testing helps maintain shielding effectiveness over time and identify potential degradation
Shielding effectiveness evaluation
- Measures the attenuation of electromagnetic fields across a range of frequencies
- Compares field strength inside and outside the Faraday cage
- Identifies potential weak points or resonances in the cage structure
- Helps optimize cage design for specific EMI/EMC applications
Standard test methods
- standard for measuring shielding effectiveness of enclosures
- for high-performance military and aerospace applications
- for EMC testing of information technology equipment
- for planar materials used in
Field strength measurements
- Utilizes calibrated antennas and spectrum analyzers to measure electromagnetic field intensity
- Compares ambient field levels to those inside the Faraday cage
- Evaluates shielding performance across different frequency bands
- Identifies potential EMI hotspots or leakage points in the cage structure
Advanced Faraday cage concepts
- Cutting-edge techniques enhance traditional Faraday cage performance for demanding EMI/EMC applications
- Advanced concepts address specific limitations of methods
- Combining multiple shielding strategies provides comprehensive EMI protection across diverse scenarios
Active vs passive shielding
- Passive shielding relies solely on material properties and cage design
- uses powered systems to generate canceling electromagnetic fields
- Hybrid approaches combine passive and active techniques for enhanced performance
- Active shielding particularly effective for low-frequency magnetic fields
Nested Faraday cages
- Multiple layers of shielding provide increased attenuation
- Allows for optimization of each layer for specific frequency ranges
- Reduces the impact of apertures by staggering openings between layers
- Enables creation of ultra-low EMI environments for highly sensitive applications
Faraday cage vs Faraday shield
- Faraday cages enclose a volume to create a shielded space
- Faraday shields provide localized protection for specific components or areas
- Shields often integrated directly into device housings or circuit boards
- Cages offer more comprehensive protection but may be less practical for some applications
Practical implementation
- Successful implementation of Faraday cages requires careful consideration of installation, maintenance, and cost factors
- Proper execution ensures optimal EMI/EMC performance in real-world applications
- Regular assessment and upkeep maintain long-term effectiveness of shielding solutions
Installation best practices
- Ensure continuous electrical contact between all cage components
- Properly seal all seams, joints, and cable entry points
- Implement appropriate grounding and bonding techniques
- Consider modular designs for easier assembly and future modifications
Maintenance and inspection
- Regularly check for physical damage or corrosion that could compromise shielding
- Test shielding effectiveness periodically to identify performance degradation
- Clean contact surfaces to maintain proper electrical connections
- Update shielding solutions as EMI threats and regulatory requirements evolve
Cost vs performance trade-offs
- Balance material costs with required shielding effectiveness
- Consider manufacturing complexity and assembly time in overall expenses
- Evaluate long-term maintenance requirements and potential upgrade costs
- Assess the impact of shielding solutions on device functionality and user experience
Key Terms to Review (28)
Active shielding: Active shielding is a technique used to reduce electromagnetic interference by using sensors and controlled currents to create an opposing electromagnetic field. This method enhances the effectiveness of passive shielding techniques, allowing for better protection against unwanted electromagnetic radiation. By dynamically responding to varying electromagnetic environments, active shielding provides a more adaptable and efficient solution in various applications.
ASTM D4935: ASTM D4935 is a standardized test method used to measure the electromagnetic shielding effectiveness of materials in the frequency range of 30 MHz to 1 GHz. This testing standard provides a consistent approach for evaluating how well various shielding materials can block electromagnetic interference (EMI), which is crucial in ensuring compatibility and performance in electronic devices. The test results help in the selection and design of effective shielding solutions, especially relevant for applications involving Faraday cages and other shielding methods.
Attenuation: Attenuation refers to the reduction in strength or amplitude of a signal as it travels through a medium or system. This phenomenon is crucial in understanding how signals degrade over distance, which impacts wave propagation, transmission lines, and the effectiveness of various filtering and shielding methods.
Chamber testing: Chamber testing refers to the process of evaluating the electromagnetic compatibility (EMC) of devices and systems within a controlled environment, often using specialized enclosures such as anechoic or shielded chambers. These chambers help to minimize external interference and allow for precise measurement of emissions and susceptibility, ensuring that devices meet regulatory standards and perform reliably in real-world conditions.
CISPR Standards: CISPR Standards refer to the international regulations established by the International Special Committee on Radio Interference, which focus on controlling electromagnetic interference (EMI) in various electronic devices. These standards are crucial for ensuring that electrical and electronic equipment does not emit excessive electromagnetic interference that could disrupt other devices, thereby promoting compatibility and coexistence in diverse electronic environments.
Conductive materials: Conductive materials are substances that allow the flow of electric current due to their low resistance. They are essential in various applications, particularly in shielding electromagnetic interference and ensuring the proper functioning of electronic devices. The effectiveness of conductive materials can be influenced by factors such as their composition, surface quality, and physical configuration.
Continuous Conducting Surface Concept: The continuous conducting surface concept refers to the principle that a perfect conductor allows electric charges to move freely across its surface, effectively redistributing any external electromagnetic fields and shielding the interior from electric fields. This concept is crucial for understanding how certain structures can block or redirect electromagnetic interference, especially in the context of Faraday cages and similar applications.
Data security: Data security refers to the protective measures and protocols that ensure the integrity, confidentiality, and availability of data from unauthorized access or corruption. It encompasses various strategies and technologies designed to safeguard sensitive information, ensuring that it remains private and secure from cyber threats. This concept is crucial in the context of physical and electronic environments, where threats can arise from both internal and external sources.
Electromagnetic Compatibility: Electromagnetic compatibility (EMC) refers to the ability of electronic devices and systems to function properly in their electromagnetic environment without causing or experiencing unacceptable electromagnetic interference (EMI). Achieving EMC ensures that devices can operate effectively without disrupting one another while maintaining reliable communication and performance across various applications.
Electromagnetic Interference: Electromagnetic interference (EMI) refers to the disruption of electronic devices and signals caused by electromagnetic radiation from external sources. This interference can impact wave propagation, create noise in circuits, and affect the overall integrity and functionality of electronic systems, making it critical to address in design and implementation.
Electromagnetic shielding: Electromagnetic shielding refers to the use of materials or structures to block or reduce electromagnetic fields, thereby protecting sensitive electronic devices and systems from interference. This is crucial in preventing unwanted signals from affecting the performance of equipment, ensuring proper functionality and compliance with electromagnetic compatibility standards. Effective shielding can involve Faraday cages, conductive barriers, or specialized coatings that absorb or reflect electromagnetic radiation.
Electrostatic shielding: Electrostatic shielding is a method used to protect sensitive electronic equipment from external electric fields by using conductive materials. This technique works by redistributing the electric charge on the surface of the conductor, creating a region within the enclosure where electric fields are effectively canceled out. The principle is critical in designing Faraday cages, which completely block external static and non-static electric fields, providing a safe environment for devices that might otherwise be affected.
EN 50147-1: EN 50147-1 is a European standard that outlines the requirements for the design and testing of enclosures used to provide electromagnetic compatibility (EMC) shielding, specifically for equipment housed within Faraday cages. This standard ensures that enclosures effectively reduce electromagnetic interference (EMI) by specifying performance criteria, measurement methods, and essential guidelines for materials and construction. Compliance with EN 50147-1 helps manufacturers design equipment that can operate reliably in environments susceptible to EMI.
Faraday cages: A Faraday cage is an enclosure made of conductive material that blocks external electric fields and electromagnetic radiation from penetrating its interior. These structures work based on the principle that charges within the conductor rearrange themselves to cancel out any external static or dynamic electric fields, providing protection to the contents inside from interference.
Frequency dependence: Frequency dependence refers to the behavior of electrical systems or components that varies based on the frequency of the signals passing through them. This concept is crucial in understanding how grounding methods and shielding techniques, like Faraday cages, interact with electromagnetic interference, as different frequencies can affect impedance, attenuation, and overall effectiveness.
IEEE 299: IEEE 299 is a standard developed by the Institute of Electrical and Electronics Engineers (IEEE) that provides guidelines for measuring the shielding effectiveness of enclosures in electromagnetic compatibility (EMC) testing. This standard is crucial for understanding how different shielding materials and structures, including apertures and seams, impact the overall performance of electromagnetic shielding in various applications. It also offers methods for assessing the performance of Faraday cages in preventing electromagnetic interference, ensuring that the designed enclosures meet required specifications.
Isolation: Isolation refers to the process of preventing electromagnetic interference from affecting sensitive electronic devices or systems. It involves the use of barriers or techniques to ensure that external electromagnetic fields do not penetrate and disrupt the functioning of these devices. This concept is crucial in the design of protective structures, like Faraday cages, which effectively shield electronics from unwanted signals.
James Clerk Maxwell: James Clerk Maxwell was a Scottish physicist best known for formulating the classical theory of electromagnetic radiation, which unified electricity, magnetism, and light as manifestations of the same phenomenon. His most notable contributions include the formulation of Maxwell's equations, which describe how electric and magnetic fields interact and propagate. Maxwell's work laid the foundation for modern electromagnetic theory, influencing numerous applications in physics and engineering, including the design of Faraday cages for electromagnetic interference protection.
Mesh Construction: Mesh construction refers to a design technique that involves the use of a network of conductive materials, usually in the form of a grid or mesh, to create barriers that can shield against electromagnetic interference. This method is crucial in applications such as Faraday cages, where the mesh serves to block external electromagnetic fields and prevent them from penetrating the interior space, thereby protecting sensitive electronic devices.
Michael Faraday: Michael Faraday was a renowned English scientist known for his pioneering work in electromagnetism and electrochemistry during the 19th century. His discoveries laid the groundwork for many modern technologies, especially in understanding electromagnetic fields and their applications, including the concept of Faraday cages, which protect sensitive electronic devices from external electromagnetic interference.
Mil-std-285: MIL-STD-285 is a military standard that specifies the methods for measuring the shielding effectiveness of materials and enclosures used to protect electronic equipment from electromagnetic interference (EMI). This standard is crucial for evaluating how well shielding materials can block or attenuate electromagnetic fields, which is important for ensuring the reliability of sensitive electronic systems.
MIL-STD-461: MIL-STD-461 is a military standard that establishes the requirements for the control of electromagnetic interference (EMI) for equipment and systems used by the Department of Defense (DoD). This standard ensures that military systems operate reliably in the presence of EMI, while also minimizing the electromagnetic emissions from these systems to prevent interference with other electronic devices.
Nested faraday cages: Nested faraday cages are a series of interconnected conductive enclosures designed to protect sensitive electronic devices from electromagnetic interference (EMI) by using multiple layers of shielding. Each layer of the cage provides additional attenuation of electromagnetic waves, enhancing the overall protection offered to the devices inside. This design takes advantage of the principles of electromagnetic shielding and improves effectiveness against a variety of frequencies.
Open area test site: An open area test site (OATS) is a specialized facility designed for measuring radiated emissions from electronic devices in an unobstructed environment. These sites are crucial for accurately assessing electromagnetic compatibility and interference, as they minimize reflections and other disturbances that could affect the test results. OATS are commonly used to evaluate compliance with regulations and standards related to electromagnetic emissions.
Passive Shielding: Passive shielding is a method used to reduce electromagnetic interference (EMI) by employing materials that reflect or absorb electromagnetic waves without the need for external power sources. This technique is often employed in the design of enclosures or barriers, such as Faraday cages, which prevent external electromagnetic fields from penetrating into a designated area and protect sensitive electronic devices from unwanted interference.
Protective Enclosures: Protective enclosures are structures designed to shield sensitive electronic equipment from electromagnetic interference (EMI) and other environmental factors. These enclosures help maintain the performance and integrity of devices by creating a barrier that prevents external electromagnetic fields from affecting internal components. A well-designed protective enclosure can enhance the reliability of electronic systems in various applications, particularly in fields where precision and accuracy are crucial.
Shielding Effectiveness: Shielding effectiveness refers to the ability of a material or structure to attenuate electromagnetic interference (EMI) from external sources or prevent emissions from internal sources. It is a critical factor in designing systems that minimize unwanted EMI, ensuring the reliability and functionality of electronic devices in various environments.
Skin depth effect: The skin depth effect refers to the phenomenon where electromagnetic waves penetrate a conductor only to a limited depth, with most of the wave's energy being absorbed near the surface. This effect is critical in understanding how electromagnetic fields interact with conductive materials, especially in scenarios where shielding or containment is necessary, such as within Faraday cages. The skin depth is influenced by factors like frequency of the electromagnetic wave and the material properties of the conductor.
