9.2 Spanning Trees and Minimum Spanning Trees

3 min read•august 12, 2024

Spanning trees are crucial in graph theory, connecting all vertices with minimal edges. They're the backbone of efficient , using edge weights to represent costs or distances. This concept is key to understanding graph optimization.

Minimum spanning trees (MSTs) take it further, minimizing total . They're essential in network design and clustering algorithms. Kruskal's and Prim's algorithms, both greedy approaches, efficiently construct MSTs, making them indispensable tools in computer science and engineering.

Spanning Trees

Fundamental Concepts of Spanning Trees

Top images from around the web for Fundamental Concepts of Spanning Trees

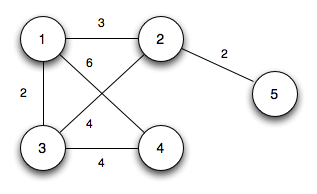

  • CS 360: Lecture 20: Minimum Spanning Trees - Prim's Algorithm View original

    Is this image relevant?

  • CS 360: Lecture 19: Minimum Spanning Trees - Kruskal's Algorithm View original

    Is this image relevant?

  • CS 360: Lecture 20: Minimum Spanning Trees - Prim's Algorithm View original

    Is this image relevant?

1 of 3

Top images from around the web for Fundamental Concepts of Spanning Trees

  • CS 360: Lecture 20: Minimum Spanning Trees - Prim's Algorithm View original

    Is this image relevant?

  • CS 360: Lecture 19: Minimum Spanning Trees - Kruskal's Algorithm View original

    Is this image relevant?

  • CS 360: Lecture 20: Minimum Spanning Trees - Prim's Algorithm View original

    Is this image relevant?

1 of 3
  • connects all vertices of a graph using the minimum number of edges
  • Contains exactly n−1n-1 edges for a graph with nn vertices
  • Forms an that includes every vertex of the original graph
  • Edge weight assigns a numerical value to each edge in the graph
  • Weighted graphs use edge weights to represent distances, costs, or other measurable attributes

Properties and Theorems of Spanning Trees

  • states that the lightest edge crossing any cut must be in the
  • Applies to weighted, undirected graphs and helps identify edges that must be included in the MST
  • asserts that the heaviest edge in any cycle of the graph cannot be in the minimum spanning tree
  • Useful for eliminating edges that should not be part of the MST
  • Both properties form the foundation for efficient MST algorithms (Kruskal's and Prim's)

Minimum Spanning Trees (MSTs)

Characteristics and Applications of MSTs

  • Minimum spanning tree (MST) minimizes the total weight of all edges in the spanning tree
  • Connects all vertices of a weighted, undirected graph with the lowest possible total edge weight
  • Finds applications in network design, clustering algorithms, and approximation algorithms for NP-hard problems
  • Can have multiple valid MSTs for a given graph if edge weights are not unique
  • Greedy algorithm constructs the MST by making locally optimal choices at each step
  • Builds the MST incrementally by selecting the best available option without backtracking

Greedy Approach in MST Construction

  • Starts with an empty set of edges and iteratively adds the lightest edge that doesn't create a cycle
  • Utilizes the cut property and cycle property to make optimal decisions at each step
  • Guarantees a globally optimal solution despite making local choices
  • Runs in polynomial time, making it efficient for large graphs
  • Forms the basis for both Kruskal's and Prim's algorithms, which differ in their implementation of the greedy approach

MST Algorithms

Kruskal's Algorithm

  • Sorts all edges of the graph in ascending order of weight
  • Iteratively adds the lightest edge that doesn't create a cycle to the MST
  • Uses a disjoint-set data structure to efficiently check for cycles
  • Time complexity of O(Elog⁡E)O(E \log E) or O(Elog⁡V)O(E \log V), where EE is the number of edges and VV is the number of vertices
  • Particularly efficient for sparse graphs with relatively few edges
  • Implementation steps:
    1. Sort all edges in non-decreasing order of weight
    2. Initialize each vertex as a separate set
    3. For each edge in the sorted list:
      • If the edge connects vertices from different sets, add it to the MST and merge the sets
      • If the edge would create a cycle, skip it
    4. Continue until n−1n-1 edges have been added to the MST

Prim's Algorithm

  • Grows the MST from a single starting vertex, adding the lightest edge to a vertex not yet in the tree
  • Maintains a priority queue of edges connecting the MST to the remaining vertices
  • Time complexity of O((V+E)log⁡V)O((V+E) \log V) using a binary heap, or O(E+Vlog⁡V)O(E + V \log V) with a Fibonacci heap
  • More efficient for dense graphs where EE is close to V2V^2
  • Implementation steps:
    1. Choose an arbitrary starting vertex
    2. Initialize a priority queue with edges adjacent to the starting vertex
    3. While the MST has fewer than n−1n-1 edges:
      • Select the minimum weight edge from the priority queue
      • If the edge connects to a vertex not in the MST, add it to the tree
      • Add all edges adjacent to the newly added vertex to the priority queue
    4. Repeat until the MST is complete

Key Terms to Review (17)

Acyclic: Acyclic refers to a property of a graph or a structure where there are no cycles present. In simpler terms, an acyclic graph is one that does not contain any closed loops, meaning you cannot start at a vertex, traverse edges, and return to the same vertex without retracing your steps. This characteristic is crucial for certain applications, particularly when analyzing trees and their various forms like spanning trees and minimum spanning trees, where the absence of cycles ensures unique paths between nodes.
C. Y. Lee: C. Y. Lee is a prominent figure in graph theory, particularly known for his contributions to the study of spanning trees and minimum spanning trees. His work has greatly influenced algorithms used to find the optimal connections in a weighted graph, ensuring that all vertices are connected with the least total edge weight. This concept is crucial for network design, optimization problems, and various applications in computer science and engineering.
Circuit Design: Circuit design refers to the process of creating a schematic representation of an electronic circuit, which includes the arrangement of components and their connections. This involves selecting the right components such as resistors, capacitors, and integrated circuits, and organizing them to achieve a specific function while considering performance criteria like power consumption and reliability. Efficient circuit design is crucial in applications such as telecommunications, computing, and electronics manufacturing.
Complete Graph: A complete graph is a type of graph in which every pair of distinct vertices is connected by a unique edge. This means that if there are 'n' vertices in the graph, there are exactly $ rac{n(n-1)}{2}$ edges. Complete graphs are significant because they exhibit maximum connectivity, which influences how traversals can be conducted and the existence of Eulerian and Hamiltonian paths, as well as the structure of spanning trees.
Connected Graph: A connected graph is a type of graph in which there is a path between every pair of vertices, meaning that all the vertices are reachable from one another. This property is crucial in understanding how different parts of a graph relate to each other, and it plays an essential role in various algorithms and concepts that analyze the structure and behavior of graphs.
Cost function: A cost function is a mathematical expression that quantifies the total cost associated with a particular decision or set of decisions in optimization problems. It is crucial for identifying the optimal solution, especially in the context of spanning trees and minimum spanning trees, where it helps evaluate different configurations based on their associated costs. This function allows for comparisons between various trees to determine the one with the least overall cost, ensuring efficiency and minimal resource usage.
Cut property: The cut property refers to a fundamental characteristic of minimum spanning trees that states if you take any cut of a graph, the minimum edge crossing that cut must belong to the minimum spanning tree. This concept is crucial when determining the most efficient way to connect all vertices in a weighted graph with the least total edge weight, ensuring that no cycles are formed and all nodes remain connected.
Cycle property: The cycle property states that in a weighted graph, if you have a cycle and you find the edge with the maximum weight in that cycle, then this edge cannot be part of any minimum spanning tree (MST) of that graph. This property is significant because it helps identify which edges can be safely excluded when constructing an MST. Understanding this property is essential for algorithms like Kruskal's and Prim's, which are used to find MSTs efficiently.
Edge weight: Edge weight refers to the numerical value assigned to an edge in a graph, indicating the cost, distance, or capacity associated with traversing that edge. These weights are essential in various graph algorithms, especially when determining optimal paths and structures, such as spanning trees and minimum spanning trees. In contexts where the goal is to minimize total edge weight, understanding how these weights interact is crucial for finding efficient solutions.
Joseph Kruskal: Joseph Kruskal is an American mathematician best known for developing the Kruskal's algorithm, which is a popular method for finding the minimum spanning tree of a connected, weighted graph. This algorithm is essential in optimizing network design and has practical applications in various fields such as computer science, telecommunications, and transportation. His work laid the groundwork for important advancements in graph theory and combinatorial optimization.
Kruskal's Algorithm: Kruskal's Algorithm is a greedy algorithm used to find the minimum spanning tree (MST) for a connected, undirected graph with weighted edges. By focusing on adding the smallest edges first while ensuring no cycles are formed, it efficiently constructs an MST that connects all vertices with the minimum possible total edge weight. This algorithm plays a critical role in graph algorithms, as well as understanding graph connectivity and traversals, by providing an effective method for optimizing network designs.
Minimum Spanning Tree: A minimum spanning tree (MST) is a subset of edges from a connected, undirected graph that connects all the vertices together without any cycles and with the minimal possible total edge weight. It serves as a crucial concept in graph theory and is often utilized in network design, ensuring that the least expensive connections are made between points while maintaining overall connectivity.
Network Design: Network design refers to the planning and structuring of a network, ensuring that it effectively supports the communication and data transfer needs of an organization. It involves determining the optimal layout of devices, connections, and protocols to achieve efficient performance while minimizing costs. Good network design is crucial in developing spanning trees and minimum spanning trees, which help in optimizing the connections within a network by reducing redundancy and ensuring minimal distances between points.
Prim's Algorithm: Prim's Algorithm is a greedy algorithm used to find the minimum spanning tree (MST) of a weighted, connected graph. The algorithm starts with a single vertex and grows the MST by repeatedly adding the smallest edge that connects a vertex in the tree to a vertex outside the tree, ensuring that all vertices are eventually included while minimizing the total edge weight. This method is efficient for dense graphs and plays a significant role in various applications, including network design and clustering.
Spanning tree: A spanning tree is a subgraph of a connected graph that includes all the vertices and is acyclic, meaning it has no cycles. This concept is crucial for understanding how networks can be connected efficiently, as a spanning tree provides a way to connect all nodes with the minimum number of edges while maintaining connectivity.
Subgraph: A subgraph is a portion of a graph formed by a subset of its vertices and edges, where the edges connect only the selected vertices. Subgraphs retain some properties of the original graph, such as connectivity and structure, allowing for analysis of smaller, manageable sections of larger graphs. Understanding subgraphs is essential in concepts like spanning trees and minimum spanning trees, where specific connections among vertices are crucial.
Weighted graph: A weighted graph is a type of graph in which each edge has an associated numerical value, called a weight. These weights often represent costs, distances, or other metrics that can help in decision-making processes. Weighted graphs are essential for various algorithms that seek to optimize paths or flows within networks, providing a framework for understanding relationships that aren't just binary but rather involve different levels of significance.
