9.3 Binary Trees and Binary Search Trees
4 min read•august 12, 2024
Binary trees are hierarchical data structures with nodes connected by edges. They're fundamental in computer science, offering efficient ways to organize and data. This section explores various types of binary trees, their properties, and common operations performed on them.
Binary search trees (BSTs) are specialized binary trees that maintain a specific order of elements. They excel at searching, inserting, and deleting data efficiently. This section dives into BST operations, algorithms, and their performance characteristics, highlighting their strengths and limitations.
Binary Trees
Structure and Terminology of Binary Trees
Top images from around the web for Structure and Terminology of Binary Trees
IDisposable Thoughts - Data structures, Binary trees View original
Is this image relevant?
Binary tree - Wikipedia View original
Is this image relevant?
Binary tree - Wikipedia View original
Is this image relevant?
IDisposable Thoughts - Data structures, Binary trees View original
Is this image relevant?
Binary tree - Wikipedia View original
Is this image relevant?
1 of 3
Top images from around the web for Structure and Terminology of Binary Trees
IDisposable Thoughts - Data structures, Binary trees View original
Is this image relevant?
Binary tree - Wikipedia View original
Is this image relevant?
Binary tree - Wikipedia View original
Is this image relevant?
IDisposable Thoughts - Data structures, Binary trees View original
Is this image relevant?
Binary tree - Wikipedia View original
Is this image relevant?
1 of 3

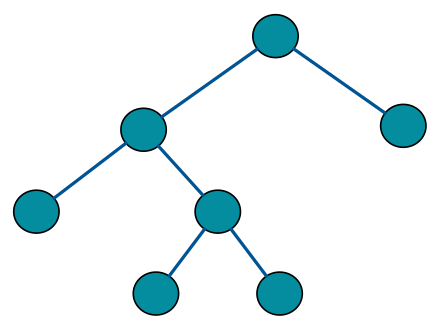

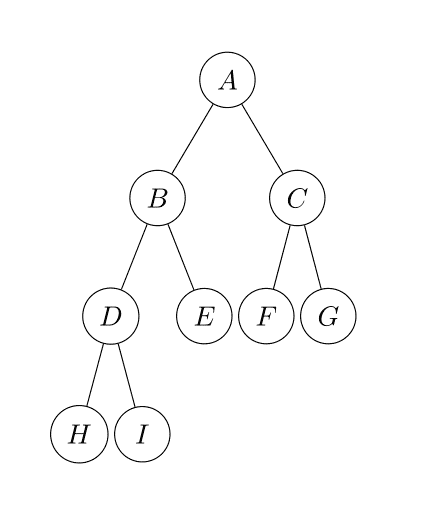

- Binary tree consists of nodes connected by edges, forming a hierarchical structure
- Each node in a binary tree contains data and can have up to two children
- Left child branches to the left of its parent node, representing smaller or equal values
- Right child branches to the right of its parent node, representing larger values
- Root node serves as the topmost node in the tree, having no parent
- Leaf nodes are nodes without any children, located at the bottom of the tree
- Internal nodes have at least one child and are not leaf nodes
Properties and Types of Binary Trees
- maintains approximately equal for all subtrees, optimizing search operations
- has every node with either zero or two children, maximizing node usage
- fills all levels except possibly the last, which is filled from left to right
- has all internal nodes with exactly two children and all leaf nodes at the same level
- resembles a linked list, with each node having only one child
Operations and Traversals in Binary Trees
- visits the root, then the left subtree, and finally the right subtree
- visits the left subtree, then the root, and finally the right subtree
- visits the left subtree, then the right subtree, and finally the root
- visits nodes level by level, from left to right
- Height of a binary tree measures the longest path from the root to a
- of a node represents its distance from the root node
Binary Search Trees (BSTs)
Fundamentals and Properties of BSTs
- (BST) organizes data for efficient searching, , and
- ensures all nodes in the left subtree have smaller values than the current node
- Right subtree of a BST contains nodes with larger values than the current node
- Inorder traversal of a BST produces a sorted list of elements
- BSTs support operations like search, insertion, and deletion with average time complexity of O(log n)
BST Operations and Algorithms
- Insertion in a BST compares the new value with nodes, moving left or right until finding the correct position
- Searching a BST starts at the root and moves left or right based on comparisons with node values
- Deletion in a BST involves three cases: deleting a leaf node, a node with one child, or a node with two children
- of a node in a BST is the smallest value in its right subtree
- of a node in a BST is the largest value in its left subtree
BST Performance and Limitations
- Best-case time complexity for BST operations occurs in balanced trees, achieving O(log n)
- Worst-case time complexity degrades to O(n) when the BST becomes unbalanced or skewed
- BST performance depends on the order of insertion and deletion of elements
- Skewed BSTs can form when inserting elements in sorted order, reducing efficiency
- Self-balancing BSTs address the issue of unbalanced trees by maintaining balance during operations
Self-Balancing BSTs
AVL Trees: Structure and Balancing
- maintains balance by ensuring the height difference between left and right subtrees is at most 1
- of a node in an AVL tree is the height of its right subtree minus the height of its left subtree
- AVL tree performs rotations to rebalance the tree after insertions or deletions
- Single corrects imbalance when the insertion occurs in the outer grandchild of an unbalanced node
- Double rotation corrects imbalance when the insertion occurs in the inner grandchild of an unbalanced node
Red-Black Trees: Properties and Operations
- uses node coloring (red or black) and specific rules to maintain balance
- Every node in a red-black tree is either red or black
- Root node and null leaves (NIL) are always black
- Red nodes cannot have red children (red-red violation)
- Every path from the root to a leaf contains the same number of black nodes ()
- Insertion in a red-black tree may require recoloring and rotations to maintain balance
- Deletion in a red-black tree involves more complex cases and may require multiple recoloring and rotations
Tree Rotations and Balancing Techniques
- Tree rotation alters the structure of a binary tree while preserving the binary search tree property
- Left rotation moves a node down and to the left, promoting its right child
- Right rotation moves a node down and to the right, promoting its left child
- Rotations help redistribute nodes to balance the tree and maintain optimal height
- AVL trees use rotations to correct imbalances immediately after insertions or deletions
- Red-black trees use rotations in combination with recoloring to maintain balance and tree properties
Key Terms to Review (26)
AVL Tree: An AVL tree is a self-balancing binary search tree where the difference in heights between the left and right subtrees of any node is at most one. This property ensures that operations such as insertion, deletion, and lookup can be performed efficiently, maintaining a time complexity of O(log n). AVL trees are a special case of binary trees and play a critical role in optimizing the performance of binary search trees.
Balance factor: The balance factor is a critical measure in binary trees, particularly in binary search trees (BST), that helps maintain their balanced structure. It is defined as the difference in height between the left and right subtrees of a node, calculated as 'height(left subtree) - height(right subtree)'. A balance factor of 0 indicates a perfectly balanced tree, while values of +1 or -1 suggest slight imbalances that can be corrected through rotations during insertion or deletion operations.
Balanced tree: A balanced tree is a type of binary tree in which the height of the left and right subtrees of any node differ by no more than one. This structure ensures that the tree remains approximately balanced, allowing for efficient operations such as insertion, deletion, and lookup. Maintaining balance minimizes the height of the tree, which helps optimize performance by reducing the number of comparisons needed to find an element.
Binary Search Tree: A binary search tree (BST) is a specialized type of binary tree where each node contains a key greater than all keys in its left subtree and less than all keys in its right subtree. This property allows for efficient searching, insertion, and deletion operations, making it an essential data structure for organizing and managing ordered data.
Black height property: The black height property is a crucial aspect of balanced binary trees, specifically red-black trees, where it defines the number of black nodes from any given node down to its leaf nodes. This property ensures that every path from a given node to its descendant leaves has the same number of black nodes, promoting balance and maintaining the logarithmic height of the tree. By enforcing this property, red-black trees provide efficient performance for search, insertion, and deletion operations.
Bst property: The bst property, or binary search tree property, refers to a specific structural characteristic of binary search trees that ensures for every node in the tree, all values in the left subtree are less than the node's value, and all values in the right subtree are greater. This organization allows for efficient searching, insertion, and deletion operations, making binary search trees a vital data structure in computer science.
Complete binary tree: A complete binary tree is a type of binary tree where every level, except possibly the last, is fully filled, and all nodes are as far left as possible. This structure ensures that the tree is balanced, promoting efficient operations like insertion and retrieval. The complete binary tree is significant because it maintains optimal depth, which directly affects the performance of algorithms that rely on tree structures.
Degenerate tree: A degenerate tree is a type of tree structure where each parent node has only one child, effectively making it behave like a linked list. In this configuration, the height of the tree becomes equal to the number of nodes, leading to inefficient operations such as insertion and searching. Degenerate trees can arise from poor balancing during insertions in binary trees or binary search trees, emphasizing the importance of maintaining balanced structures for optimal performance.
Deletion: Deletion refers to the process of removing a node from a data structure, specifically within binary trees and binary search trees. This operation is crucial for maintaining the properties of the tree, especially in binary search trees where the arrangement of nodes is based on specific ordering rules. Proper deletion involves restructuring the tree to ensure it remains balanced and efficient for future operations like searching and inserting.
Depth: Depth refers to the length of the path from the root of a tree to a particular node. It is an important measurement in tree data structures that helps in understanding the hierarchy and organization of nodes. The depth can affect various operations, including traversal, searching, and insertion, as it influences the efficiency of these processes based on how deep the node is within the structure.
Full binary tree: A full binary tree is a type of binary tree in which every node has either zero or two children. This structure creates a perfect balance, allowing for efficient operations such as traversal, insertion, and deletion. In a full binary tree, all leaf nodes are at the same level, making it an important concept in understanding binary trees and their applications.
Height: Height in the context of trees is defined as the number of edges on the longest path from the root node to a leaf node. This concept is crucial as it affects the efficiency of various operations performed on trees, such as searching and inserting elements. A tree's height can influence the overall performance and complexity of algorithms, as taller trees may lead to longer traversal times.
Inorder traversal: Inorder traversal is a method for visiting each node in a binary tree where the nodes are processed in a specific order: left child, current node, and then right child. This technique is especially important for binary search trees because it retrieves the nodes in non-decreasing order, allowing for easy access to sorted data. Understanding inorder traversal helps in grasping how data is organized and accessed within these tree structures.
Insertion: Insertion refers to the process of adding a new node into a binary tree or binary search tree while maintaining the specific properties of these data structures. In binary search trees, for instance, each new node is placed in a position where the left subtree contains only nodes with values less than the new node's value, and the right subtree contains only nodes with values greater. This process ensures that the structure remains efficient for operations like searching, deleting, and further inserting.
Internal node: An internal node is a node in a tree data structure that has at least one child, making it a non-leaf node. Internal nodes play a crucial role in defining the structure and relationships within trees, acting as connectors between child nodes and providing a pathway to traverse the tree. They are fundamental to various applications, including binary trees, binary search trees, and algorithms like Huffman coding for data compression.
Leaf node: A leaf node is a node in a tree structure that does not have any children, meaning it is at the end of a branch. In binary trees and binary search trees, leaf nodes represent the final points where data is stored, and they play a crucial role in traversals, search operations, and overall structure efficiency. In the context of data compression, particularly with Huffman coding, leaf nodes are vital as they represent the encoded symbols with their corresponding frequencies.
Level-order traversal: Level-order traversal is a method of visiting each node in a tree data structure level by level, starting from the root and moving downwards to each subsequent level. This traversal technique is particularly useful for understanding the hierarchical structure of trees, especially binary trees, and is essential in algorithms that require processing nodes in a breadth-first manner.
Perfect binary tree: A perfect binary tree is a type of binary tree in which every internal node has exactly two children, and all leaf nodes are at the same level. This structure ensures that the number of nodes increases exponentially as the tree grows, allowing for efficient searching and storage. In a perfect binary tree, the total number of nodes can be calculated using the formula $$n = 2^{h+1} - 1$$, where $$h$$ is the height of the tree.
Postorder traversal: Postorder traversal is a method of visiting each node in a binary tree where the left subtree is visited first, followed by the right subtree, and finally the root node. This approach is particularly useful for operations that require processing children nodes before the parent, such as deleting a tree or evaluating expressions in expression trees. Understanding postorder traversal is essential for various applications, including tree manipulation and algorithm development.
Predecessor: In the context of data structures like binary trees and binary search trees, a predecessor is a node that comes before a given node in an ordered sequence. This concept is crucial for understanding how nodes relate to each other, particularly when it comes to tree traversal and manipulation. The predecessor helps in operations such as deletion and finding successor nodes, influencing the overall structure and efficiency of tree-based algorithms.
Preorder traversal: Preorder traversal is a method of visiting all the nodes in a binary tree where the current node is processed before its child nodes. This traversal technique follows a specific order: first, the root node is visited, then the left subtree, and finally the right subtree. Preorder traversal is particularly useful for creating a copy of the tree or getting a prefix expression for expressions stored in binary trees.
Red-black tree: A red-black tree is a type of self-balancing binary search tree where each node contains an extra bit for denoting the color of the node, either red or black. This structure ensures that the tree remains balanced during insertions and deletions, maintaining a relatively low height for efficient searching, which is a crucial aspect of binary search trees.
Rotation: In the context of binary trees and binary search trees, rotation refers to the process of changing the structure of a tree by pivoting around a node to restore balance or improve efficiency for operations like insertion and deletion. This restructuring is crucial for maintaining the properties of balanced trees, ensuring that operations such as search, insert, and delete remain efficient by keeping the height of the tree minimized.
Search: Search refers to the process of locating a specific value or element within a data structure, particularly in binary trees and binary search trees. This process is crucial for efficiently retrieving information and maintaining the order of elements. In the context of binary search trees, the search operation takes advantage of the tree's properties to quickly navigate through nodes based on comparisons.
Self-balancing bst: A self-balancing binary search tree (BST) is a type of binary tree that automatically maintains its height to ensure efficient search, insertion, and deletion operations. By keeping the tree balanced, it guarantees that these operations remain efficient, typically operating in O(log n) time complexity. This is crucial because unbalanced trees can degrade to a linked list in the worst-case scenario, significantly slowing down performance.
Successor: A successor is a node in a binary tree or binary search tree that follows another node in a specified order. In the context of binary search trees, the successor of a node is the node that has the smallest key greater than the key of that node, which helps in maintaining the properties of the tree during operations like deletion and searching. Understanding successors is essential for efficiently traversing and managing data within these structures.
