8.4 Gene regulatory networks in development
4 min read•august 16, 2024
(GRNs) are the conductors of development, orchestrating when and where genes turn on and off. They're like intricate webs of genes and proteins that work together to shape an organism from a single cell to a complex adult.
GRNs control everything from to organ formation. By understanding these networks, we can unravel how a tiny embryo becomes a fully-formed creature and how evolution tweaks these systems to create new species.
Gene Regulatory Networks: Orchestrating Development
Fundamental Concepts and Functions
Top images from around the web for Fundamental Concepts and Functions
Frontiers | Generating Ensembles of Gene Regulatory Networks to Assess Robustness of Disease ... View original
Is this image relevant?

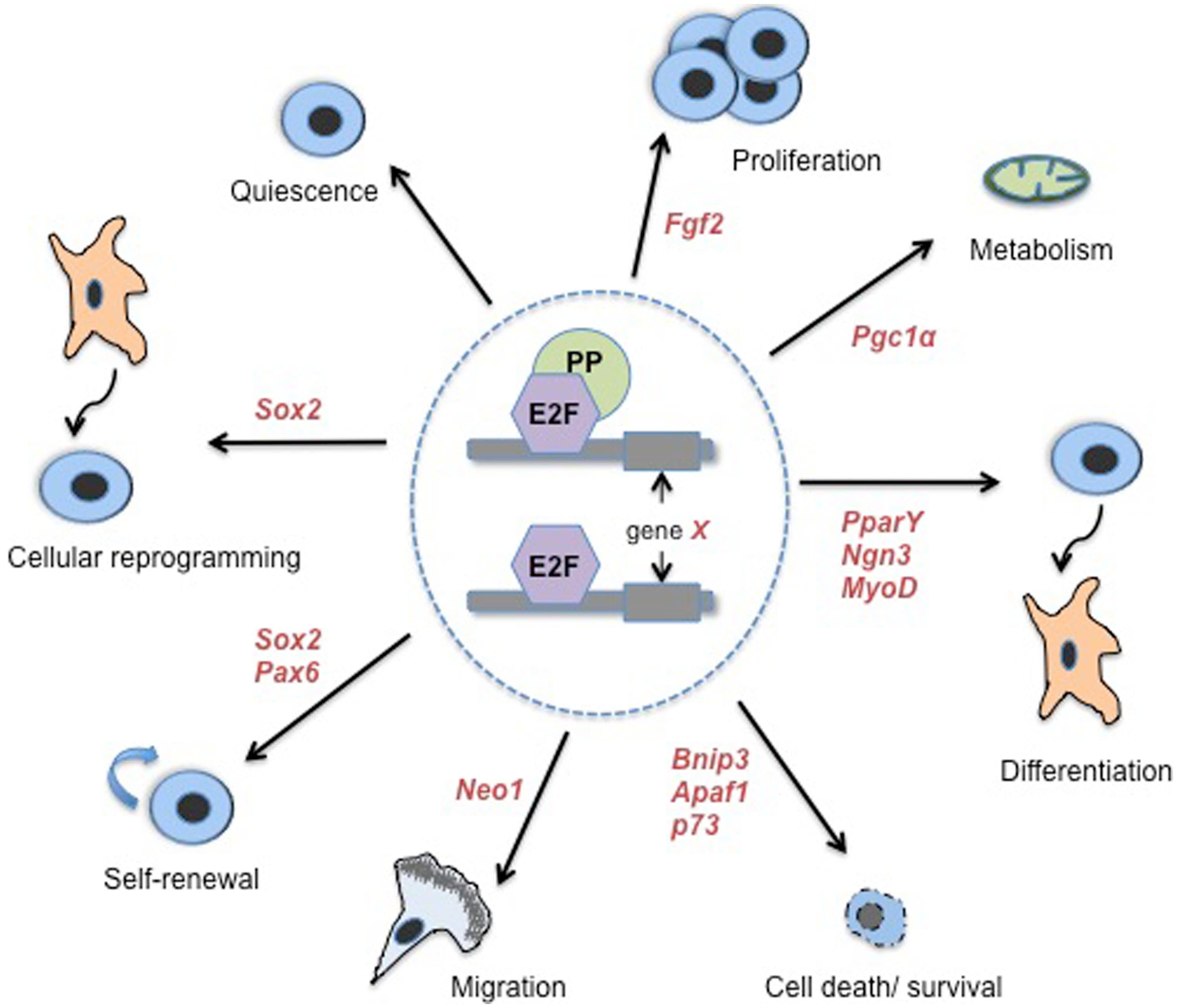

Frontiers | Transcriptional control of stem cell fate by E2Fs and pocket proteins View original
Is this image relevant?
Gene regulatory network - Wikipedia View original
Is this image relevant?
Frontiers | Generating Ensembles of Gene Regulatory Networks to Assess Robustness of Disease ... View original
Is this image relevant?
Frontiers | Transcriptional control of stem cell fate by E2Fs and pocket proteins View original
Is this image relevant?
1 of 3
Top images from around the web for Fundamental Concepts and Functions
Frontiers | Generating Ensembles of Gene Regulatory Networks to Assess Robustness of Disease ... View original
Is this image relevant?
Frontiers | Transcriptional control of stem cell fate by E2Fs and pocket proteins View original
Is this image relevant?
Gene regulatory network - Wikipedia View original
Is this image relevant?
Frontiers | Generating Ensembles of Gene Regulatory Networks to Assess Robustness of Disease ... View original
Is this image relevant?
Frontiers | Transcriptional control of stem cell fate by E2Fs and pocket proteins View original
Is this image relevant?
1 of 3
- Gene regulatory networks (GRNs) control gene expression patterns during development through complex systems of interacting genes and regulatory elements
- GRNs integrate multiple signaling inputs and transcriptional regulators coordinating spatial and temporal expression of developmental genes
- Hierarchical structure of GRNs enables precise control of gene expression cascades leading to progressive specification of cell fates and tissue patterning
- GRNs maintain cellular identity and mediate transitions between different developmental states
- Dynamics of GRNs drive morphogenetic processes (, , tissue differentiation)
Developmental Significance and Implications
- Perturbations in GRNs can result in developmental abnormalities and congenital disorders underscoring their importance in normal embryonic development
- GRNs play crucial roles in diverse developmental processes (axis formation, germ layer specification, organogenesis)
- Temporal regulation by GRNs ensures proper timing of developmental events (, )
- Spatial regulation by GRNs establishes tissue boundaries and organ primordia (somite formation, neural tube patterning)
Components and Properties of Gene Regulatory Networks
Core Components and Regulatory Mechanisms
- , ( and ), and target genes interact to regulate gene expression in GRNs
- enable self-regulation and maintenance of stable gene expression states
- amplify and stabilize gene expression often leading to bistable systems and cell fate commitment (NANOG in pluripotency maintenance)
- dampen fluctuations and maintain homeostasis in gene expression levels (p53-MDM2 loop in cell cycle regulation)
- recurring patterns in GRNs contribute to specific regulatory functions and network stability
- provide temporal control and noise filtering (bacterial flagellar assembly)
- maintain stable expression levels (MyoD in muscle development)
- and modulate accessibility and activity of GRN components (DNA methylation, histone modifications)
Network Properties and Organization
- GRNs exhibit robustness maintaining stable outputs despite perturbations or environmental variations through redundancy and distributed control mechanisms
- of GRNs allows reuse and recombination of regulatory subcircuits in different developmental contexts
- Hierarchical structure of GRNs enables integration of multiple regulatory inputs and generation of complex outputs
- Emergent properties of GRNs arise from the collective behavior of individual components (, oscillations)
Gene Regulatory Networks: Controlling Cell Fate and Pattern Formation
Cell Fate Specification and Differentiation
- GRNs integrate positional information and developmental signals specifying cell fates in spatially and temporally coordinated manner
- Combinatorial action of multiple transcription factors within GRNs creates unique regulatory states defining specific cell types and tissues
- GRNs control expression of selector genes and terminal differentiation genes establishing and maintaining cell-type-specific characteristics
- Sequential activation of GRNs drives progressive refinement of cell fates and emergence of complex tissue architectures during organogenesis
- GRNs exhibit bistability and allowing cells to make irreversible fate decisions in response to transient developmental signals ()
Pattern Formation and Morphogenesis
- interact with GRNs establishing concentration-dependent gene expression domains leading to formation of spatial patterns during development ()
- and mutual repression between GRNs of different cell fates help establish sharp boundaries between adjacent developmental territories (neural-epidermal boundary formation)
- GRNs control expression of genes involved in cell adhesion, migration, and shape changes driving tissue morphogenesis ()
- Temporal dynamics of GRNs regulate timing and duration of developmental events ()
Evolutionary Conservation and Divergence of Gene Regulatory Networks
Conservation of Core Regulatory Mechanisms
- Core components and regulatory logic of many developmental GRNs highly conserved across diverse animal phyla indicating ancient evolutionary origins
- Comparative studies of GRNs across species revealed deeply conserved "kernels" and rapidly evolving regulatory interactions
- Conservation of GRN architecture often underlies similarities in body plan organization across phyla ( in anterior-posterior patterning)
Mechanisms of GRN Evolution and Diversification
- Modular nature of GRNs allows independent evolution of regulatory subcircuits contributing to morphological diversity among species
- Changes in cis-regulatory elements rather than coding sequences often responsible for divergence of GRNs and evolution of novel developmental features
- Co-option of existing GRNs into new developmental contexts played significant role in evolution of body plans and organ systems (fin to limb transition)
- Rewiring of GRNs through gain or loss of regulatory connections can lead to significant changes in developmental outcomes and contribute to speciation
- Understanding evolution of GRNs provides insights into mechanisms of developmental plasticity and origins of morphological innovations in different lineages (butterfly wing patterns)
Key Terms to Review (28)
Autoregulatory circuits: Autoregulatory circuits are feedback mechanisms in gene regulatory networks where a gene product regulates its own expression. These circuits play a critical role in maintaining stability and homeostasis within cellular environments, allowing cells to respond dynamically to internal and external signals. By modulating their own activity, these circuits ensure that the levels of specific proteins or RNAs remain within optimal ranges for normal function and development.
Bistability: Bistability refers to a system's ability to exist in two distinct stable states under the same conditions. In the context of gene regulatory networks, bistability allows cells to switch between different gene expression profiles, which can lead to diverse developmental outcomes. This switch often results from feedback mechanisms in gene interactions, creating robust decision-making processes in cellular differentiation and development.
Cell fate: Cell fate refers to the final outcome or identity that a cell adopts as it differentiates during development, determining its specific functions and roles within an organism. This concept is crucial for understanding how cells become specialized and how their roles contribute to the overall organization and functionality of tissues and organs. The process of determining cell fate is influenced by various factors, including genetic information, signaling pathways, and interactions with neighboring cells.
Chromatin remodeling: Chromatin remodeling refers to the dynamic process that alters the structure of chromatin, allowing for the accessibility of DNA to transcription factors and other regulatory proteins. This process is crucial in determining how genes are expressed during development and plays a key role in cell fate determination by regulating which genes are turned on or off in specific cell types. Through chromatin remodeling, cells can respond to internal and external signals, facilitating the changes necessary for differentiation and development.
Cis-regulatory elements: Cis-regulatory elements are DNA sequences located near a gene that regulate the expression of that gene by providing binding sites for transcription factors and other regulatory proteins. These elements play a crucial role in the precise control of gene expression during development, influencing when, where, and how much a gene is expressed.
Cross-regulatory interactions: Cross-regulatory interactions refer to the complex relationships where different genes or regulatory elements influence each other's expression and activity. This interplay is crucial in gene regulatory networks, especially during development, as it helps coordinate the timing and levels of gene expression necessary for proper cellular differentiation and tissue formation.
Drosophila embryo segmentation: Drosophila embryo segmentation refers to the process during early embryonic development in fruit flies, where the embryo divides into distinct segments that will later give rise to the body plan of the adult fly. This segmentation is governed by intricate gene regulatory networks that orchestrate the spatial and temporal expression of key developmental genes, shaping the overall structure of the organism.
Enhancers: Enhancers are regulatory DNA sequences that increase the likelihood of transcription of specific genes. They play a crucial role in controlling gene expression during development by binding transcription factors and interacting with the promoter regions of genes, enabling precise spatial and temporal patterns of gene activity. Their functions are vital for processes like cell differentiation and patterning, influencing how organisms develop and adapt.
Epigenetic modifications: Epigenetic modifications refer to heritable changes in gene expression that do not involve alterations to the underlying DNA sequence. These changes can influence cell behavior, differentiation, and specialization, allowing for diverse cellular functions while maintaining the same genetic code.
Epithelial-mesenchymal transition: Epithelial-mesenchymal transition (EMT) is a biological process where epithelial cells lose their characteristics and gain mesenchymal properties, allowing them to become more mobile and invasive. This transition is crucial in various developmental processes such as embryogenesis, tissue repair, and cancer metastasis, and is regulated by intricate gene regulatory networks that modulate cellular behavior. Additionally, understanding EMT at the single-cell level can provide insights into how individual cells contribute to tissue dynamics during development.
Feed-forward loops: Feed-forward loops are regulatory circuits in gene regulatory networks where one gene's expression influences another gene's expression, allowing for a more precise and rapid response to stimuli. This mechanism plays a critical role in the development of organisms by integrating signals and enhancing the robustness of gene regulation during complex developmental processes.
Feedback loops: Feedback loops are processes that enhance or inhibit the activity of a system based on its output. In the context of biological systems, they play a critical role in regulating gene expression, cell behavior, and developmental processes by providing a mechanism for cells to communicate and adjust their functions in response to internal and external signals.
Gastrulation: Gastrulation is a fundamental phase in embryonic development where the single-layered blastula reorganizes into a multi-layered structure called the gastrula, forming the three primary germ layers: ectoderm, mesoderm, and endoderm. This process sets the stage for the development of various tissues and organs in the body and plays a crucial role in establishing the body axes and overall architecture of the organism.
Gene regulatory networks: Gene regulatory networks are complex systems of interactions between various gene products, including proteins and RNA molecules, that control the expression levels of genes within a cell. These networks play a crucial role in determining cell fate, guiding developmental processes, and ensuring the proper functioning of organisms throughout their life cycles.
Hox gene regulation: Hox gene regulation refers to the intricate control mechanisms that govern the expression of Hox genes, which are essential for determining the body plan and segment identity during embryonic development. These genes, which are a subset of homeotic genes, provide critical positional information that helps shape the organization of an organism's body structure along the anterior-posterior axis. Their regulation is influenced by various gene regulatory networks that integrate signals from transcription factors, enhancers, and other elements to ensure proper development.
Hysteresis: Hysteresis refers to the phenomenon where the output or response of a system depends not only on its current input but also on its history of past inputs. This concept is particularly important in developmental biology, especially regarding gene regulatory networks, as it illustrates how cells can exhibit different behaviors under similar conditions based on their previous states, thereby influencing developmental pathways and cellular responses.
Limb formation: Limb formation refers to the biological processes through which limbs develop during embryonic growth, involving the intricate coordination of cellular signaling, gene expression, and morphogenesis. This process is critical for establishing the structure and function of limbs in vertebrates, allowing them to develop into arms, legs, fins, or wings. The formation of limbs is heavily regulated by gene regulatory networks that control the timing and location of limb development.
Modular organization: Modular organization refers to a structural framework where components or modules can be combined, rearranged, or replaced independently, allowing for flexibility and adaptability in complex systems. This concept is particularly relevant in developmental biology, where gene regulatory networks can be viewed as modular structures that control various developmental processes, enabling organisms to efficiently respond to internal and external signals.
Morphogen gradients: Morphogen gradients are spatial distributions of signaling molecules that provide positional information to cells during development, guiding their fate and behavior. These gradients play a crucial role in organizing the structure and patterning of tissues by influencing gene expression based on the concentration of morphogens, ultimately affecting cell differentiation and tissue organization.
Negative feedback loops: Negative feedback loops are regulatory mechanisms that counteract changes in a system, helping to maintain homeostasis by reducing the output or activity when it strays too far from a set point. In developmental biology, these loops play a crucial role in gene regulatory networks, ensuring that gene expression levels are kept within specific limits to facilitate proper cellular differentiation and development.
Network motifs: Network motifs are small, recurring patterns of interconnections within a larger network that can have distinct functions and biological significance. In the context of gene regulatory networks, these motifs play a crucial role in the regulation of gene expression during development, acting as building blocks that contribute to the overall architecture and functionality of the network.
Neural crest specification: Neural crest specification is the process through which a group of cells, known as the neural crest, is formed during embryonic development and becomes determined to develop into various cell types. This unique population of cells originates from the border between the neural plate and the non-neural ectoderm and is crucial in contributing to a wide range of structures, including neurons, glial cells, and components of the peripheral nervous system. Understanding how these cells are specified involves examining gene regulatory networks that guide their fate and differentiation.
Neurogenesis: Neurogenesis is the process through which new neurons are formed in the brain, particularly during development but also in certain areas throughout adulthood. This phenomenon plays a critical role in brain development, memory formation, and response to injury, linking it to various biological processes like neural crest cell migration, the pluripotency of stem cells, and gene regulatory networks that govern development.
Organogenesis: Organogenesis is the process by which specific organs and tissues develop from the three germ layers formed during gastrulation. This intricate process involves precise cellular signaling, gene regulation, and cellular differentiation to ensure that each organ forms correctly and functions properly in the mature organism.
Positive Feedback Loops: Positive feedback loops are biological processes that amplify a response or increase the output of a system. In developmental biology, these loops can play a crucial role in gene regulatory networks, where the activation of a gene leads to the production of factors that further enhance that gene's activity, creating a self-reinforcing cycle. This mechanism is vital for processes like cell differentiation and tissue development, allowing for rapid and decisive changes in cellular states.
Silencers: Silencers are DNA sequences that can inhibit the transcription of genes, playing a crucial role in the regulation of gene expression. They are often located far from the genes they regulate and can work in conjunction with other regulatory elements to ensure that genes are turned off at specific times and in specific tissues. By binding transcriptional repressors, silencers help maintain the proper developmental patterns by preventing the inappropriate expression of genes.
Somite segmentation clock: The somite segmentation clock is a molecular mechanism that regulates the periodic formation of somites, which are segmental structures that develop along the embryonic axis in vertebrates. This clock operates through the oscillatory expression of specific genes and is closely linked to gene regulatory networks that dictate the timing and patterning of embryonic development.
Transcription factors: Transcription factors are proteins that bind to specific DNA sequences to regulate the transcription of genes, influencing the process of gene expression. They play critical roles in developmental processes by controlling when and where specific genes are turned on or off, which is essential for proper cell function and differentiation.
