4.6 Semantic segmentation

Semantic segmentation assigns a class label to every single pixel in an image, producing a dense map of what's where in a scene. It goes beyond image classification (which gives one label per image) by telling you not just that a cat is present, but exactly which pixels belong to the cat. This makes it foundational for tasks like autonomous driving, medical imaging, and robotics.

Definition and purpose

Semantic segmentation produces a segmentation mask the same size as the input image, where each pixel carries a class label (e.g., "road," "car," "sky"). This enables precise object localization and detailed scene understanding that simple classification can't provide.

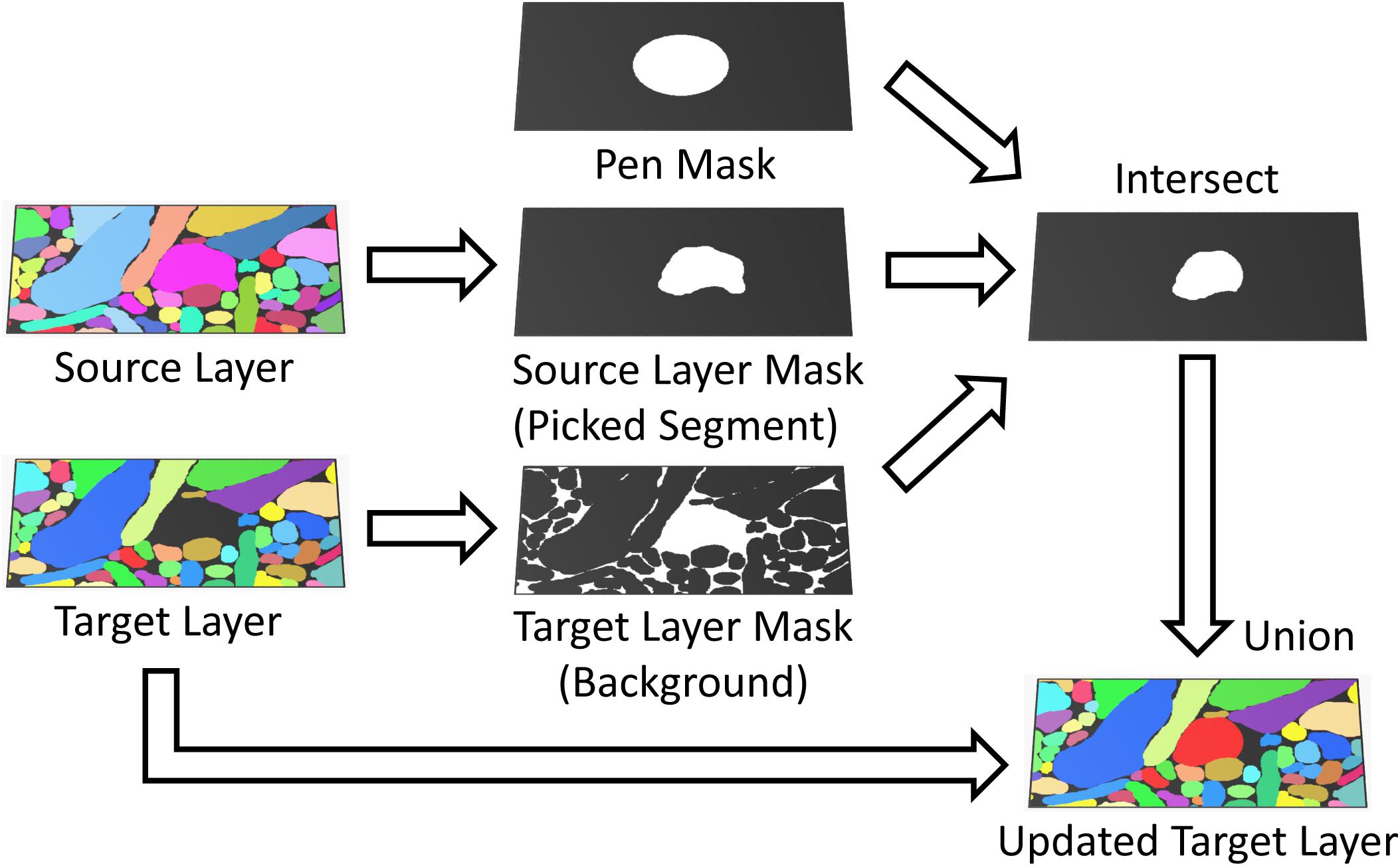

Semantic segmentation vs classification

Classification takes an image and outputs a single label (or probability vector) for the whole thing. Semantic segmentation outputs a label per pixel, preserving spatial information like object boundaries, shapes, and relative positions.

• Classification output: a vector of class probabilities (e.g., "cat: 0.92, dog: 0.05, ...")
• Segmentation output: a 2D map with the same height and width as the input, where each cell holds a class label
• Segmentation requires more complex architectures and significantly more computation
• Training data must be annotated at the pixel level, not just the image level

Pixel-level labeling

Every pixel gets assigned to a class based on what it represents semantically. A dense prediction network processes the entire image and outputs a full-resolution segmentation map.

This fine-grained output captures object shapes, sizes, and locations. The tradeoff is that creating training data is expensive: annotators must label every pixel, which can take 30+ minutes per image for complex scenes.

Applications in computer vision

• Autonomous driving: identifying road surfaces, lane markings, pedestrians, vehicles, and traffic signs so the car knows what's around it
• Medical imaging: delineating tumors, organs, or cell boundaries in CT, MRI, or histology images
• Satellite imagery: classifying land use (urban, agricultural, forest, water) for urban planning and environmental monitoring
• Augmented reality: separating foreground from background in real time so virtual objects can be placed convincingly
• Robotics: understanding the environment for navigation, grasping, and obstacle avoidance

Architectures for semantic segmentation

Most semantic segmentation models follow an encoder-decoder pattern. The encoder compresses the image into a compact feature representation, and the decoder expands it back to full resolution with per-pixel predictions. Skip connections between the two help preserve spatial detail that would otherwise be lost during downsampling.

Fully Convolutional Networks (FCN)

FCN was the pioneering architecture that showed you could adapt classification networks (like VGG or AlexNet) for dense, pixel-wise prediction. The key idea: replace the fully connected layers at the end of a classifier with convolutional layers, so the network can accept any input size and output a spatial map.

How it works:

1. Take a pre-trained classification network and convert its fully connected layers to $1 \times 1$ convolutions
2. Add transposed convolution (deconvolution) layers to upsample the coarse output back to the input resolution
3. Introduce skip connections that merge predictions from earlier, higher-resolution layers with later, more semantic layers

The variants FCN-32s, FCN-16s, and FCN-8s differ in how many skip connections they use. FCN-32s upsamples directly from the deepest layer (coarsest), while FCN-8s fuses predictions from three different scales, producing sharper boundaries.

U-Net architecture

U-Net was originally designed for biomedical image segmentation, where labeled data is scarce and fine detail matters. It has since become one of the most widely used segmentation architectures across domains.

The structure is symmetric:

• Encoder (contracting path): repeated blocks of convolutions followed by max pooling, progressively reducing spatial dimensions while increasing feature channels
• Decoder (expanding path): transposed convolutions upsample the feature maps, and at each level, the corresponding encoder features are concatenated via skip connections
• This concatenation gives the decoder access to both high-level semantic context and low-level spatial detail

U-Net works well even with small datasets because the skip connections provide strong gradient flow and the architecture doesn't waste spatial information.

DeepLab family of models

DeepLab is a series of models from Google that introduced several influential ideas to semantic segmentation.

The core innovation is atrous (dilated) convolutions, which expand the receptive field of a convolution without increasing the number of parameters or reducing resolution. A standard $3 \times 3$ convolution with dilation rate 2 effectively covers a $5 \times 5$ area while still using only 9 weights.

DeepLabv3+, the most widely used variant, combines:

• Atrous Spatial Pyramid Pooling (ASPP): applies atrous convolutions at multiple dilation rates in parallel, capturing context at different scales
• An encoder-decoder structure for recovering fine spatial detail
• Depthwise separable convolutions to keep computation manageable
• Backbone options like Xception or MobileNetV2 depending on the accuracy/speed tradeoff you need

Key components

Encoder-decoder structure

The encoder progressively reduces spatial dimensions (through pooling or strided convolutions) while building up richer feature representations. Think of it as compressing the image into a "what's here" summary. The decoder then reverses this process, upsampling features back to the original resolution to produce a per-pixel prediction.

• The encoder can be any standard classification backbone (ResNet, VGG, MobileNet, EfficientNet)
• The decoder combines high-level semantic features with low-level spatial details
• This structure lets you swap in different backbones depending on whether you prioritize accuracy or speed

Skip connections

Without skip connections, the decoder has to reconstruct fine spatial details from heavily compressed features, which leads to blurry, imprecise boundaries. Skip connections solve this by feeding encoder features directly to corresponding decoder layers.

• Concatenation-style (U-Net): encoder features are concatenated with decoder features along the channel dimension, giving the decoder full access to both
• Addition-style (ResNet/FCN): encoder and decoder features are added element-wise, which uses less memory but provides less information
• Both styles help with gradient flow during training, reducing vanishing gradient issues

Upsampling techniques

Getting from a low-resolution feature map back to full image resolution is a critical step. Several approaches exist, each with tradeoffs:

• Bilinear interpolation: simple, no learnable parameters, but can't adapt to the data
• Transposed convolutions: learnable upsampling filters that can be trained end-to-end, but may produce checkerboard artifacts if not carefully initialized
• Unpooling: uses the max pooling indices saved during encoding to place values back in their original positions, preserving spatial structure
• Pixel shuffle (sub-pixel convolution): rearranges channels from a low-resolution feature map into spatial dimensions of a higher-resolution output
• ASPP: not strictly upsampling, but captures multi-scale context through parallel atrous convolutions at different dilation rates, which feeds into the decoder

Loss functions

The loss function tells the model how wrong its pixel predictions are. Different loss functions handle different challenges, and combining them often gives the best results.

Cross-entropy loss

The standard choice for multi-class segmentation. It's applied independently to each pixel, measuring how far the predicted class probabilities are from the ground truth.

$L_{CE} = -\sum_{c=1}^{C} y_c \log(\hat{y}_c)$

where $y_c$ is the ground truth (1 for the correct class, 0 otherwise) and $\hat{y}_c$ is the predicted probability for class $c$.

Cross-entropy works well in balanced scenarios, but it can struggle when one class dominates the image. If 90% of pixels are "background," the model can achieve low loss by mostly predicting background and ignoring rare classes. Weighted cross-entropy addresses this by multiplying each class's loss by a weight inversely proportional to its frequency.

Dice loss

Dice loss is based on the Dice coefficient, which directly measures the overlap between the predicted segmentation and the ground truth.

$L_{Dice} = 1 - \frac{2\sum_{i}^{N} p_i g_i}{\sum_{i}^{N} p_i^2 + \sum_{i}^{N} g_i^2}$

where $p_i$ is the predicted value and $g_i$ is the ground truth for pixel $i$.

Dice loss naturally handles class imbalance because it measures overlap as a ratio rather than summing per-pixel errors. It's especially popular in medical imaging for binary segmentation tasks (e.g., tumor vs. non-tumor), where the foreground region may be very small relative to the background.

Focal loss for imbalanced data

Focal loss modifies cross-entropy by adding a modulating factor that down-weights easy, well-classified examples and focuses training on hard, misclassified ones.

$L_{FL} = -\alpha_t (1-p_t)^\gamma \log(p_t)$

• $p_t$: the model's predicted probability for the correct class
• $\gamma$ (focusing parameter): controls how much easy examples are down-weighted. When $\gamma = 0$, focal loss equals standard cross-entropy. Typical values are 1-3.
• $\alpha_t$ (class-balancing factor): an optional per-class weight

Focal loss is particularly useful when you have extreme class imbalance, like detecting small traffic signs in large driving scenes where 99%+ of pixels belong to other classes.

Evaluation metrics

Intersection over Union (IoU)

IoU (also called the Jaccard index) is the most common metric for evaluating segmentation quality. For a given class, it measures how much the predicted region overlaps with the ground truth:

$IoU = \frac{|A \cap B|}{|A \cup B|}$

where $A$ is the set of predicted pixels for that class and $B$ is the set of ground truth pixels.

IoU ranges from 0 (no overlap) to 1 (perfect match). It penalizes both false positives and false negatives, making it more informative than pixel accuracy alone.

Pixel accuracy

The simplest metric: what fraction of all pixels were classified correctly?

$\text{Pixel Accuracy} = \frac{\text{Number of correctly classified pixels}}{\text{Total number of pixels}}$

The problem with pixel accuracy is that it can be misleading under class imbalance. If 95% of an image is sky, a model that predicts "sky" everywhere achieves 95% pixel accuracy while completely failing at segmenting buildings, trees, or people. Always look at IoU alongside pixel accuracy.

Mean IoU

Mean IoU (mIoU) computes IoU for each class independently, then averages across all classes:

$mIoU = \frac{1}{n_{classes}} \sum_{i=1}^{n_{classes}} IoU_i$

This gives equal weight to every class regardless of how many pixels it occupies, making it robust to class imbalance. mIoU is the standard benchmark metric used in major segmentation datasets like PASCAL VOC, Cityscapes, and ADE20K.

Challenges in semantic segmentation

Class imbalance

In most real-world scenes, pixel counts across classes are highly uneven. In a driving scene, road and sky might cover 80%+ of the image, while pedestrians and traffic signs occupy tiny regions. A model trained naively will learn to favor majority classes.

Mitigation strategies:

• Weighted loss functions: assign higher loss weights to underrepresented classes
• Data augmentation: oversample or augment images containing rare classes
• Focal loss: automatically down-weight easy (majority class) examples during training
• Class-balanced sampling: construct training batches to ensure rare classes appear frequently

Boundary precision

Segmentation models tend to produce smooth, blob-like predictions with imprecise edges. This happens because repeated downsampling in the encoder destroys fine spatial detail, and the decoder can't fully recover it.

Factors that make boundaries hard:

• Pooling and strided convolutions reduce resolution, blurring boundaries
• Deeper layers have large receptive fields but low spatial precision
• Standard loss functions don't specifically penalize boundary errors

Approaches to improve boundaries:

• Skip connections to preserve high-resolution features from early encoder layers
• Dedicated boundary refinement modules or auxiliary edge detection branches
• Multi-scale feature fusion to combine fine and coarse information
• Post-processing with CRFs (conditional random fields) to sharpen edges

Computational complexity

Semantic segmentation is inherently expensive because you're making a prediction for every pixel. A $1024 \times 2048$ Cityscapes image has over 2 million pixels, each needing a class prediction.

Strategies to reduce cost:

• Efficient backbones: MobileNet, EfficientNet, or ShuffleNet as encoders
• Depthwise separable convolutions: factorize standard convolutions to reduce parameters and FLOPs
• Model pruning and quantization: remove redundant weights or reduce numerical precision
• Hardware-specific optimization: TensorRT (NVIDIA), OpenVINO (Intel), or CoreML (Apple) for deployment

Data preparation and augmentation

Image annotation techniques

Pixel-level annotation is the biggest bottleneck in semantic segmentation. Each image can take significant time to label manually.

Manual annotation tools typically offer:

• Polygon-based labeling: draw polygons around object boundaries, then fill the interior with the class label
• Brush/paint tools: directly paint segmentation masks, useful for irregular shapes
• Semi-automatic tools: algorithms like GrabCut or SAM (Segment Anything Model) propose initial masks that annotators refine

To reduce annotation cost, weaker forms of supervision can be used:

• Image-level labels: only specify which classes are present, then use techniques like CAM to estimate pixel labels
• Bounding boxes: cheaper than pixel masks, combined with algorithms to infer segmentation within the box
• Interactive segmentation: annotators provide a few clicks or scribbles, and the model propagates labels to the full object

Quality control (consistency checks, inter-annotator agreement) is essential since noisy labels directly hurt model performance.

Data augmentation strategies

Augmentation is critical for segmentation because pixel-level annotations are expensive, so datasets tend to be small. Any spatial transformation must be applied identically to both the image and its segmentation mask.

Geometric transformations:

• Random horizontal/vertical flipping
• Rotation within a specified range
• Random scaling and cropping (helps with multi-scale objects)

Color and intensity adjustments (applied to the image only, not the mask):

• Brightness, contrast, and saturation changes
• Color jittering and channel swapping
• Noise injection (Gaussian, salt-and-pepper)

Advanced techniques:

• Elastic deformations (especially useful in medical imaging where tissue deforms naturally)
• Cutout / random erasing (masks out rectangular patches to improve robustness)
• CutMix / Mixup (blends training samples for regularization)

Handling multi-scale objects

A single image might contain both a large building and a small traffic sign. The model needs to recognize both, but a fixed receptive field can't handle this range well.

Strategies:

• Image pyramid: process the same image at multiple resolutions, then fuse the predictions
• Feature Pyramid Networks (FPN): build a multi-scale feature hierarchy inside the network and combine predictions from each level
• ASPP: parallel atrous convolutions at different dilation rates capture context at multiple scales within a single layer
• Random scaling during augmentation: train the model on images resized to various scales so it learns scale invariance
• Deformable convolutions: let the convolution kernel adapt its sampling locations to the shape and scale of objects

Transfer learning for segmentation

Training a segmentation model from scratch requires massive amounts of labeled data. Transfer learning sidesteps this by starting with an encoder pre-trained on a large classification dataset (typically ImageNet with ~1.4 million images), then adapting it for segmentation.

Pre-trained backbones

The encoder portion of a segmentation model is usually a classification network with its final classification layers removed. Common choices:

• ResNet-50/101: strong accuracy, widely supported, good default choice
• MobileNetV2/V3: designed for mobile and edge devices, much faster but somewhat less accurate
• EfficientNet: scales width, depth, and resolution together for a good accuracy/efficiency balance
• Xception: uses depthwise separable convolutions throughout, popular as the DeepLab backbone

Pre-trained backbones give you better feature extraction from day one, faster convergence, and improved generalization, especially when your segmentation dataset is small.

Fine-tuning strategies

How you fine-tune matters a lot. A few proven approaches:

1. Freeze the encoder initially: train only the decoder (randomly initialized) for several epochs so it learns to work with the encoder's features
2. Gradually unfreeze: after the decoder stabilizes, unfreeze encoder layers starting from the deepest and working toward the shallowest
3. Use differential learning rates: apply a lower learning rate to pre-trained encoder layers (e.g., $10^{-5}$) and a higher rate to the new decoder layers (e.g., $10^{-3}$)
4. Handle batch normalization carefully: freeze batch norm layers in the pre-trained encoder (use inference mode) since small batch sizes during segmentation training can produce noisy statistics. Consider group normalization or layer normalization for new layers.

Domain adaptation techniques

When your target domain (e.g., medical images) looks very different from the source domain (e.g., ImageNet natural images), a domain gap can hurt performance even with fine-tuning.

Unsupervised domain adaptation (no labels in the target domain):

• Adversarial training to align feature distributions between source and target domains
• Self-training: use the model's own predictions on target data as pseudo-labels, then retrain
• Curriculum learning: start adapting on easy target samples, gradually include harder ones

Semi-supervised domain adaptation (a small amount of target labels available):

• Consistency regularization: enforce similar predictions for differently augmented versions of the same target image
• Mean teacher models: maintain an exponential moving average of the student model and use it to generate stable pseudo-labels

Domain-invariant feature learning:

• Gradient reversal layers encourage the encoder to produce features that a domain classifier can't distinguish
• Maximum Mean Discrepancy (MMD) loss minimizes the statistical distance between source and target feature distributions

Real-time semantic segmentation

Many applications need segmentation results in milliseconds, not seconds. Real-time models sacrifice some accuracy for speed, targeting 30+ FPS on target hardware.

Lightweight architectures

• ENet: one of the earliest real-time segmentation models. Uses an asymmetric encoder-decoder (small decoder) and aggressive early downsampling to reduce computation.
• ICNet (Image Cascade Network): processes the image at multiple resolutions through separate branches, then fuses the results. Low-resolution branches handle semantics; high-resolution branches handle detail.
• BiSeNet (Bilateral Segmentation Network): uses two parallel paths. The spatial path preserves resolution for fine detail, while the context path uses a lightweight backbone for semantic understanding.
• FastSCNN: uses a "learning to downsample" module that quickly reduces resolution, followed by a global feature extractor and feature fusion module.

Efficient inference techniques

Beyond architecture design, inference can be accelerated through:

Model compression:

• Structured pruning: remove entire channels or layers that contribute little to accuracy
• Knowledge distillation: train a small "student" model to mimic a large "teacher" model's outputs

Quantization:

• Post-training quantization: convert FP32 weights to INT8 after training (easy but may lose some accuracy)
• Quantization-aware training: simulate quantization during training so the model learns to be robust to reduced precision

Hardware-specific optimization:

• TensorRT (NVIDIA GPUs): fuses layers, auto-tunes kernels, supports FP16/INT8
• OpenVINO (Intel CPUs/VPUs): optimizes models for Intel hardware
• Core ML / NNAPI / TensorFlow Lite: mobile deployment frameworks for iOS, Android, and cross-platform

Mobile applications

Real-time segmentation on mobile devices enables:

• Driver assistance (ADAS): lane detection, pedestrian detection, and obstacle avoidance on embedded hardware
• AR on phones: separating people from backgrounds, placing virtual objects in real scenes
• Drone navigation: real-time obstacle detection and terrain mapping
• Portable medical devices: point-of-care diagnostics with on-device image analysis

The main constraints are limited compute, power budgets, and the need to support a wide range of hardware. Cross-platform frameworks like TensorFlow Lite help, but performance tuning for specific devices is often still necessary.

Advanced techniques

Attention mechanisms in segmentation

Standard convolutions have a limited receptive field, which makes it hard to capture long-range relationships (e.g., understanding that a pixel far from a car is still part of the road). Attention mechanisms address this.

• Self-attention / non-local blocks: compute relationships between all pairs of spatial positions in a feature map, enabling global context. Computationally expensive but powerful.
• Transformer-based models (e.g., SegFormer, SETR): adapt the Vision Transformer architecture for dense prediction, using self-attention as the primary feature extraction mechanism.
• Spatial attention (e.g., CBAM): learns to highlight important spatial regions while suppressing irrelevant ones.
• Channel attention (e.g., Squeeze-and-Excitation blocks): learns which feature channels are most informative for the current input.
• Dual attention networks: combine both spatial and channel attention to capture pixel-level relationships and feature interdependencies simultaneously.

Multi-task learning approaches

Training a single network to perform segmentation alongside related tasks can improve all of them through shared representations.

Common task combinations:

• Semantic segmentation + instance segmentation (toward panoptic segmentation)
• Segmentation + depth estimation (for 3D scene understanding)
• Segmentation + edge detection (for sharper boundaries)

Advantages: shared encoders learn richer features, multi-task training acts as regularization, and you get multiple outputs from one forward pass.

Challenges: balancing loss functions across tasks is tricky (one task can dominate training), and conflicting gradients between tasks can hurt performance. Techniques like gradient normalization or uncertainty-based loss weighting help manage this.

Weakly supervised segmentation

Full pixel-level annotation is expensive. Weakly supervised methods use cheaper labels to train segmentation models, accepting some accuracy loss in exchange for dramatically reduced annotation cost.

Image-level labels (cheapest):

• Use Class Activation Maps (CAM) to identify which regions of the image activate for each class
• Iteratively refine these coarse localizations into pseudo pixel-level masks

Bounding box supervision:

• Use box annotations to constrain where objects can be, then apply algorithms like GrabCut to estimate segmentation masks within boxes

Scribble-based annotations:

• Annotators draw a few strokes on each object; graphical models or neural networks propagate these sparse labels to full masks

The main challenges are incomplete object coverage, imprecise boundaries, and the risk of overfitting to noisy pseudo-labels. Careful regularization and iterative refinement are essential.

Future directions

3D semantic segmentation

Extending segmentation from 2D images to 3D data (point clouds, voxel grids, volumetric scans) is an active research area.

Applications include medical volumetric imaging (CT/MRI), autonomous driving with LiDAR, and robotic 3D scene understanding. The main challenges are handling sparse, irregular 3D data structures, the computational cost of 3D convolutions, and the scarcity of large annotated 3D datasets.

Key approaches:

• Point-based networks (PointNet, PointNet++): operate directly on raw point clouds
• Voxel-based methods: discretize 3D space into voxels and apply 3D convolutions
• Projection-based methods: project 3D data to 2D, apply 2D segmentation, then lift results back to 3D

Video semantic segmentation

Video adds a temporal dimension. Consecutive frames are highly correlated, which creates both opportunities (temporal consistency can improve accuracy) and challenges (motion blur, occlusions, computational cost of processing every frame).

Techniques:

• Optical flow-guided feature propagation: warp features from previous frames to the current frame, avoiding redundant computation
• Recurrent networks: use LSTMs or GRUs to model temporal dependencies
• Memory networks: store and retrieve features from earlier frames for long-term context

Applications span video surveillance, autonomous driving in dynamic environments, and AR for video content.

Panoptic segmentation

Panoptic segmentation unifies two tasks:

• Semantic segmentation for "stuff" classes (sky, road, grass) that don't have countable instances
• Instance segmentation for "thing" classes (individual cars, people, animals) that do

The result is a complete scene parse where every pixel is labeled with both a class and an instance ID (for things).

Approaches range from two-stage methods (separate semantic and instance branches merged in post-processing) to end-to-end transformer-based architectures like Mask2Former that handle both in a unified framework. Active research directions include integrating panoptic segmentation with 3D data, temporal video understanding, and reducing the supervision required.
