Normal distribution is crucial for analyzing lap times in racing. It helps calculate probabilities, interpret percentiles, and compare individual performances to the average. Understanding this curve is key to making sense of race data.
Z-scores and normal plots are powerful tools for assessing lap time distributions. They allow racers and analysts to identify exceptional performances, spot trends, and make data-driven decisions to improve race strategies and training programs.
Normal Distribution and Lap Times
Probability calculations with normal distribution
Top images from around the web for Probability calculations with normal distribution
Chapter 7: Normal distribution - Statistics View original
Is this image relevant?
The Standard Normal Distribution | Introduction to Statistics View original
Is this image relevant?
Standard score - wikidoc View original
Is this image relevant?
Chapter 7: Normal distribution - Statistics View original
Is this image relevant?
The Standard Normal Distribution | Introduction to Statistics View original
Is this image relevant?
1 of 3
Top images from around the web for Probability calculations with normal distribution
Chapter 7: Normal distribution - Statistics View original
Is this image relevant?
The Standard Normal Distribution | Introduction to Statistics View original
Is this image relevant?
Standard score - wikidoc View original
Is this image relevant?
Chapter 7: Normal distribution - Statistics View original
Is this image relevant?
The Standard Normal Distribution | Introduction to Statistics View original
Is this image relevant?
1 of 3

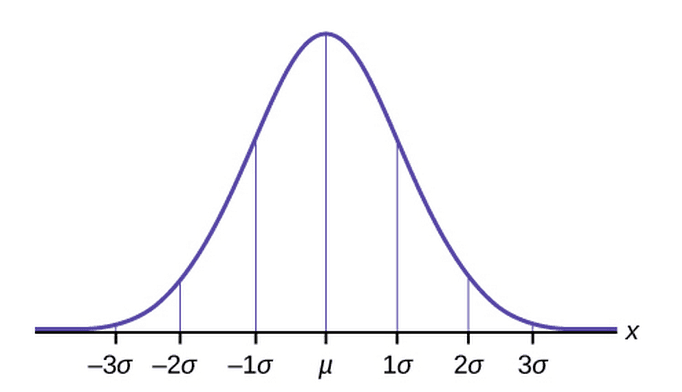

- Normal distribution is a and bell-shaped
- Defined by its () and ()
- Mean represents the center of the distribution (average lap time)
- Standard deviation measures the spread of the distribution (variability in lap times)
- Calculate probabilities for lap times using the normal distribution:
- the lap time by converting it to a
- : , where is the lap time, is the mean lap time, and is the standard deviation of lap times
- Use a table or calculator to find the probability associated with the
- Table or calculator provides the area under the curve to the left of the z-score (probability of a lap time being less than the given value)
- Interpret the probability as the likelihood of a lap time being less than, greater than, or between specific values
- Probability of a lap time being less than 1 minute (60 seconds)
- Probability of a lap time being between 55 and 60 seconds
- the lap time by converting it to a
- The states that for a normal distribution, approximately 68% of the data falls within one standard deviation of the mean, 95% within two standard deviations, and 99.7% within three standard deviations
Interpretation of percentiles and z-scores
- Percentiles indicate the percentage of lap times that fall below a specific value
- 75th lap time means 75% of the lap times are below that value (faster than 25% of the lap times)
- 90th lap time represents a lap time faster than 90% of the other lap times
- Z-scores measure how many standard deviations a lap time is from the mean
- Positive z-scores indicate lap times above the mean (slower than average)
- Negative z-scores indicate lap times below the mean (faster than average)
- Z-score of 0 represents a lap time equal to the mean (average lap time)
- Z-scores allow for comparison of individual lap times to the overall distribution
- Lap time with a z-score of 1.5 is 1.5 standard deviations above the mean (slower than average)
- Lap time with a z-score of -0.5 is 0.5 standard deviations below the mean (faster than average)
Analysis of normal probability plots
- () is a graphical method to assess if data follows a normal distribution
- Compares the observed of the data to the expected quantiles of a normal distribution
- If the data follows a normal distribution, the points on the plot will form a roughly straight line
- Construct a normal probability plot:
- Order the lap times from smallest to largest
- Calculate the percentile rank for each lap time using the formula: , where is the rank of the lap time and is the total number of lap times
- Plot the lap times on the x-axis and the corresponding percentiles on the y-axis
- Analyze the normal probability plot:
- If the points form a roughly straight line, the lap times likely follow a normal distribution
- Deviations from a straight line indicate non-normality
- Curved patterns suggest (asymmetry) in the distribution (lap times skewed towards faster or slower times)
- S-shaped patterns suggest the presence of or a (extremely fast or slow lap times)
Statistical Inference and Sampling
- The states that the of the mean approaches a normal distribution as the sample size increases, regardless of the underlying population distribution
- represents the distribution of a statistic (such as the mean lap time) calculated from repeated samples of the same size from a population
- provide a range of plausible values for a population parameter (e.g., true mean lap time) based on sample data
- uses sample data to make inferences about population parameters, such as comparing mean lap times between different groups of racers
Key Terms to Review (33)
Bell-Shaped: A bell-shaped curve, also known as a normal distribution, is a symmetrical, unimodal probability distribution that is shaped like a bell. It is characterized by a single peak at the mean, with the data points tapering off evenly on both sides, creating a symmetrical, bell-like appearance. This distribution is widely observed in various natural and statistical phenomena, making it a fundamental concept in probability and statistics.
Central Limit Theorem: The Central Limit Theorem states that when a sample of size 'n' is taken from any population with a finite mean and variance, the distribution of the sample means will tend to be normally distributed as 'n' becomes large, regardless of the original population's distribution. This theorem allows for the use of normal probability models in various statistical applications, making it fundamental for inference and hypothesis testing.
Central limit theorem for means: The Central Limit Theorem for Sample Means states that the distribution of sample means will approximate a normal distribution, regardless of the population's distribution, provided the sample size is sufficiently large. This approximation improves as the sample size increases.
Confidence intervals: Confidence intervals provide a range of values that likely contain the true population parameter. They quantify the uncertainty of an estimate.
Confidence Intervals: Confidence intervals are a statistical concept that provide a range of values within which a population parameter is likely to fall, based on a sample statistic. They are used to quantify the uncertainty associated with estimating an unknown parameter and allow researchers to make inferences about the true value of that parameter.
Continuous Probability Distribution: A continuous probability distribution is a type of probability distribution where the random variable can take on any value within a given range or interval, rather than being limited to discrete values. This type of distribution is used to model continuous phenomena, such as measurements or quantities that can vary smoothly and take on an infinite number of possible values.
Cumulative Distribution Function: The cumulative distribution function (CDF) is a function that describes the probability that a random variable takes on a value less than or equal to a specific value. It provides a complete picture of the distribution of probabilities for both discrete and continuous random variables, enabling comparisons and insights across different types of distributions.
Empirical Rule: The Empirical Rule, also known as the 68-95-99.7 rule, is a statistical principle that describes the distribution of data in a normal or bell-shaped curve. It provides a framework for understanding the relationship between the standard deviation and the percentage of data that falls within certain ranges around the mean.
Heavy-Tailed Distribution: A heavy-tailed distribution is a probability distribution where the tails of the distribution, or the extreme values, are more prominent compared to a normal distribution. This means that the probability of observing values far from the mean or median is higher than in a normal distribution.
Hypothesis Testing: Hypothesis testing is a statistical method used to determine whether a claim or hypothesis about a population parameter is likely to be true or false based on sample data. It involves formulating a null hypothesis and an alternative hypothesis, collecting and analyzing sample data, and making a decision to either reject or fail to reject the null hypothesis.
Mean: The mean, also known as the average, is a measure of central tendency that represents the arithmetic average of a set of values. It is calculated by summing up all the values in the dataset and dividing by the total number of values. The mean provides a central point that summarizes the overall distribution of the data.
Normal Probability Plot: A normal probability plot is a graphical tool used to assess whether a dataset follows a normal distribution. It provides a visual representation of how closely the data aligns with the expected normal distribution, allowing for the evaluation of normality assumptions.
Normal Q-Q plot: A normal Q-Q plot is a graphical tool used to assess if a dataset follows a normal distribution by plotting the quantiles of the data against the quantiles of a standard normal distribution. If the points in the plot fall approximately along a straight diagonal line, it indicates that the data likely follows a normal distribution. This plot is particularly useful when analyzing continuous data, such as lap times, to determine if statistical methods that assume normality are appropriate.
Outliers: Outliers are data points that significantly differ from the rest of the data in a dataset. They can skew the results and lead to misleading interpretations, affecting measures of central tendency, variability, and visual representations.
Percentile: A percentile is a measure used in statistics indicating the value below which a given percentage of observations fall. For example, the 50th percentile is the median.
Percentile: A percentile is a statistical measure that indicates the relative standing of a value within a distribution of values. It represents the percentage of values in the distribution that are less than or equal to the given value.
Probability: Probability is the measure of the likelihood of an event occurring. It is a fundamental concept in statistics that quantifies the uncertainty associated with random events or outcomes. Probability is central to understanding and analyzing data, making informed decisions, and drawing valid conclusions.
Probability Density Function: The probability density function (PDF) is a mathematical function that describes the relative likelihood of a continuous random variable taking on a particular value. It provides a way to quantify the probability of a variable falling within a specified range of values.
Quantiles: Quantiles are statistical measures that divide a dataset into equal-sized subgroups based on the distribution of the data. They are used to describe the characteristics of a dataset and identify important points within the distribution.
Sampling distribution: A sampling distribution is the probability distribution of a given statistic based on a random sample. It reflects how the statistic would vary if you repeatedly sampled from the same population.
Sampling Distribution: The sampling distribution is the probability distribution of a statistic, such as the sample mean or sample proportion, obtained from repeated sampling of a population. It describes the variability of the statistic and is a crucial concept in statistical inference, allowing for the assessment of the reliability and precision of sample-based estimates of population parameters.
Sigma (Σ): Sigma (Σ) is a mathematical symbol used to represent the summation or addition of a series of numbers or values. It is a fundamental concept in statistics and is used extensively in various statistical analyses and calculations.
Skewness: Skewness is a measure of the asymmetry or lack of symmetry in the distribution of a dataset. It describes the extent to which a probability distribution or a data set deviates from a normal, symmetric distribution.
Standard Deviation: Standard deviation is a statistic that measures the dispersion or spread of a set of values around the mean. It helps quantify how much individual data points differ from the average, indicating the extent to which values deviate from the central tendency in a dataset.
Standard normal distribution: The standard normal distribution is a normal distribution with a mean of 0 and a standard deviation of 1. It is used to standardize scores from different normal distributions for comparison.
Standard Normal Distribution: The standard normal distribution, also known as the Z-distribution, is a special case of the normal distribution where the mean is 0 and the standard deviation is 1. It is a fundamental concept in statistics that is used to model and analyze data that follows a normal distribution.
Standardize: Standardization is the process of adjusting or converting a set of data to a common scale or unit of measurement. It is a crucial step in statistical analysis, particularly when dealing with variables that have different units or ranges, to ensure meaningful comparisons and accurate interpretations.
Statistical Inference: Statistical inference is the process of using data analysis and probability theory to draw conclusions about a population from a sample. It allows researchers to make educated guesses or estimates about unknown parameters or characteristics of a larger group based on the information gathered from a smaller, representative subset.
Symmetric: Symmetric refers to a balanced and equal distribution of data, where the left and right sides of a graph mirror each other. In this context, a symmetric distribution indicates that the mean, median, and mode are all located at the center, creating a visually appealing shape that is often associated with normal distributions. When analyzing data, recognizing symmetry helps in understanding the overall behavior and characteristics of the dataset.
Z-score: A z-score represents the number of standard deviations a data point is from the mean. It is used to determine how unusual a particular observation is within a normal distribution.
Z-Score: A z-score is a standardized measure that expresses how many standard deviations a data point is from the mean of a distribution. It allows for the comparison of data points across different distributions by converting them to a common scale.
Z-Score Formula: The z-score formula is a standardized way to measure how many standard deviations a data point is from the mean of a normal distribution. It is a crucial concept in understanding and applying the normal distribution in statistical analysis.
μ: The symbol 'μ' represents the population mean in statistics, which is the average of all data points in a given population. Understanding μ is essential as it serves as a key measure of central tendency and is crucial in the analysis of data distributions, impacting further calculations related to spread, normality, and hypothesis testing.
