5.2 Camera Support Systems and Stabilization
3 min read•august 9, 2024
Camera support systems and stabilization are crucial for achieving professional-quality shots. From tripods to gimbals, these tools help filmmakers create smooth, stable footage. They work hand-in-hand with camera movement techniques to enhance visual storytelling.
Understanding different support systems allows cinematographers to choose the right tool for each shot. Whether it's a fluid head for smooth pans or a for flowing movement, mastering these tools opens up new creative possibilities in filmmaking.
Camera Supports
Tripod and Monopod Systems
Top images from around the web for Tripod and Monopod Systems
The GunDivas: Review: Desert Technology SRS-A1Precision Rifle View original
Is this image relevant?

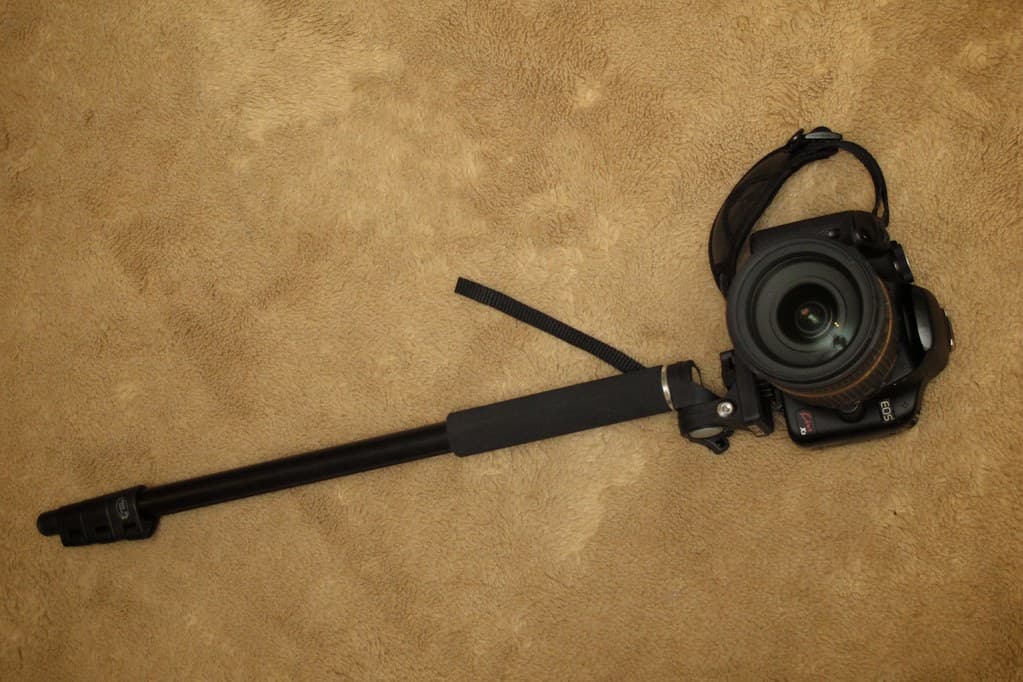

SLIK monopod. | SLIKの一脚を購入。 280gと軽量ながら、最大153cmまで伸びます。 身長178c… | Flickr View original
