2.2 Optical properties of biological tissues

3 min read•august 9, 2024

Light interacts with biological tissues in complex ways, affecting how it travels and gets absorbed. Understanding these interactions is crucial for developing medical imaging and therapeutic techniques that use light.

Tissues have unique optical properties like , , and . These properties determine how far light can penetrate, which wavelengths work best, and how we can use light to gather information about tissue composition and structure.

Optical Properties

Fundamental Optical Parameters

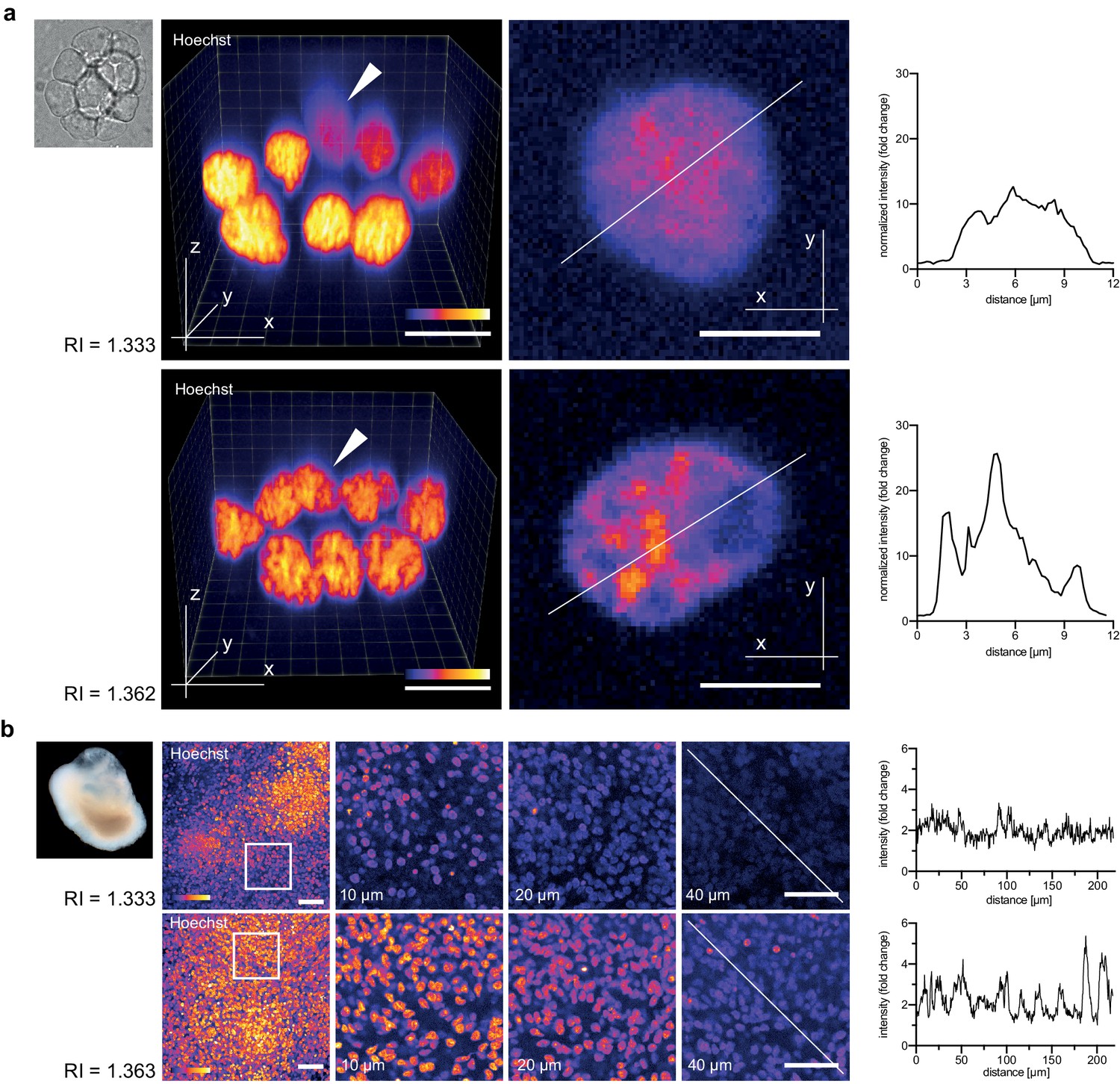

Top images from around the web for Fundamental Optical Parameters

1 of 1

Top images from around the web for Fundamental Optical Parameters

1 of 1
  • Refractive index measures how light speed changes in a medium compared to vacuum
    • Determines how light bends when entering a tissue
    • Varies for different biological tissues (water: 1.33, fat: 1.46)
    • Affects reflection and at tissue interfaces
  • Scattering coefficient quantifies how often photons change direction in a medium
    • Expressed as the inverse of the mean free path between scattering events
    • Higher values indicate more frequent scattering (: ~10 cm^-1)
    • Depends on tissue structure and wavelength of light
  • Absorption coefficient represents light attenuation due to energy transfer to the medium
    • Measured in inverse centimeters (cm^-1)
    • Varies with wavelength and tissue composition
    • Determines which wavelengths penetrate deepest into tissue

Advanced Optical Characteristics

  • Anisotropy factor describes the average cosine of scattering angles
    • Ranges from -1 (backscattering) to 1 (forward scattering)
    • Most biological tissues have values between 0.7 and 0.99
    • Influences the directionality of light propagation in tissue
  • Reduced scattering coefficient combines scattering and anisotropy effects
    • Calculated as μs′=μs(1−g)\mu_s' = \mu_s(1-g), where μs\mu_s is the scattering coefficient and g is the anisotropy factor
    • Provides a more accurate representation of light transport in highly scattering media
  • Effective attenuation coefficient describes overall light extinction in tissue
    • Accounts for both absorption and scattering
    • Calculated as μeff=3μa(μa+μs′)\mu_{eff} = \sqrt{3\mu_a(\mu_a + \mu_s')}, where μa\mu_a is the absorption coefficient

Light-Tissue Interactions

Tissue Optical Penetration

  • Penetration depth defines how far light can travel into tissue before significant attenuation
    • Inversely proportional to the effective attenuation coefficient
    • Calculated as δ=1/μeff\delta = 1/\mu_{eff}
    • Varies with wavelength and tissue type (near- penetrates deepest in most tissues)
  • Optical window refers to the wavelength range where light penetrates tissue most effectively
    • Typically between 650-950 nm for most biological tissues
    • Allows for deeper imaging and therapeutic applications
    • Limited by water absorption at longer wavelengths and hemoglobin absorption at shorter wavelengths

Tissue Optical Signatures

  • Tissue chromophores absorb light at specific wavelengths
    • Include hemoglobin, melanin, and water
    • Hemoglobin shows distinct absorption peaks (542 nm and 576 nm for oxygenated form)
    • Melanin absorption decreases monotonically with increasing wavelength
    • Water has strong absorption bands in the infrared region
  • Autofluorescence occurs when endogenous molecules emit light upon excitation
    • Produced by fluorophores like NADH, flavins, and collagen
    • Can be used for tissue characterization and disease diagnosis
    • Excitation and emission spectra vary for different fluorophores
  • Raman scattering provides information about molecular vibrations in tissue
    • Involves inelastic scattering of photons
    • Produces a unique spectral fingerprint for different molecules
    • Used for non-invasive tissue analysis and cancer detection

Advanced Light-Tissue Interaction Phenomena

  • Photoacoustic effect combines optical absorption and ultrasound detection
    • Light absorption causes thermoelastic expansion, generating acoustic waves
    • Allows for deep tissue imaging with high contrast and resolution
    • Used in applications like vascular imaging and detection
  • tomography utilizes interference of low-coherence light
    • Provides high-resolution cross-sectional images of tissue structure
    • Depth resolution on the order of micrometers
    • Widely used in ophthalmology for retinal imaging

Key Terms to Review (20)

Absorption: Absorption refers to the process by which matter takes up energy from electromagnetic radiation, resulting in a transformation of that energy into another form, such as heat. This concept is crucial in understanding how light interacts with biological tissues and the subsequent effects on imaging and therapeutic techniques in biophotonics.
Adaptive optics: Adaptive optics is a technology used to improve the performance of optical systems by compensating for distortions caused by the atmosphere or other factors. This technique adjusts the optical elements in real time, allowing for clearer images and enhanced resolution, which is particularly important in advanced imaging techniques and in studying biological tissues.
Contrast agents: Contrast agents are substances used in medical imaging to enhance the contrast of structures or fluids within the body, making them more visible on imaging studies. They help differentiate between normal and abnormal tissues by altering the optical or acoustic properties of the biological tissues, which is crucial for accurate diagnosis and evaluation in various imaging modalities.
Endoscopy: Endoscopy is a minimally invasive medical procedure that involves the use of an endoscope to visualize the interior of a body cavity or organ. This technique is crucial for diagnostics and treatment, allowing healthcare professionals to directly observe areas such as the gastrointestinal tract or respiratory system without major surgery. Endoscopy leverages fiber optics technology to provide clear images, making it an important tool in both diagnostics and therapeutic interventions, particularly in understanding the optical properties of biological tissues.
Extinction coefficient: The extinction coefficient is a measure of how strongly a substance absorbs light at a specific wavelength. It reflects the likelihood of photon absorption as light travels through a medium, influencing fluorescence efficiency and scattering behavior in biological contexts. Understanding this coefficient is essential for analyzing how light interacts with various biological materials and can affect imaging techniques and treatment modalities.
Fluorescence microscopy: Fluorescence microscopy is an imaging technique that uses the fluorescence property of molecules to visualize and study biological samples. By exciting fluorescent dyes or proteins with specific wavelengths of light, this method allows researchers to observe structures and processes at a cellular level, making it an essential tool in biological research and medical diagnostics.
Infrared light: Infrared light is a type of electromagnetic radiation with wavelengths longer than visible light, typically ranging from about 700 nanometers to 1 millimeter. It plays a crucial role in various applications, including thermal imaging and spectroscopy, which are vital in studying biological tissues due to their unique optical properties and interactions with different wavelengths of light.
Mie Theory: Mie Theory describes the scattering of electromagnetic waves, particularly light, by spherical particles. It provides a framework for understanding how light interacts with particles that are comparable in size to the wavelength of the light, making it crucial for studying the optical properties of biological tissues, which often contain such particles.
Muscle: Muscle is a type of soft tissue in the body that can contract and produce movement or maintain the position of parts of the body. It plays a crucial role in many physiological functions, including locomotion, posture, and heat production. In the context of optical properties of biological tissues, muscle tissue can affect light absorption, scattering, and transmission due to its unique structural composition and varying density compared to other tissues.
Optical coherence: Optical coherence refers to the correlation between the phases of light waves at different points in space and time. It plays a crucial role in understanding how light interacts with biological tissues, influencing imaging techniques and diagnostic methods used in biophotonics. The degree of coherence affects how well light can be focused and how images are formed, which is vital for applications like optical coherence tomography (OCT) in medical imaging.
Photoacoustic imaging: Photoacoustic imaging is an advanced imaging technique that combines optical and ultrasound technologies to visualize biological tissues by detecting sound waves generated from absorbed light. This method relies on the absorption of light by tissue, which leads to the generation of heat and subsequent expansion, producing ultrasound waves that can be captured to create detailed images. The technique bridges the gap between optical imaging's high resolution and ultrasound's deep tissue penetration, making it invaluable for medical diagnostics.
Rayleigh Scattering: Rayleigh scattering is the phenomenon where light or other electromagnetic radiation is scattered by particles much smaller than the wavelength of the light. This scattering process plays a crucial role in determining how light interacts with biological tissues, influencing their optical properties and clarity, especially when looking at how to manipulate and clear tissues for better imaging or treatment purposes.
Refraction: Refraction is the bending of light as it passes from one medium to another due to a change in its speed. This phenomenon occurs because light travels at different speeds in different materials, causing it to change direction when entering a new medium. Refraction plays a critical role in various optical phenomena and is fundamental to understanding how light interacts with biological tissues and other materials.
Refractive Index: The refractive index is a dimensionless number that describes how light propagates through a medium. It is defined as the ratio of the speed of light in a vacuum to the speed of light in the medium. This concept is critical in understanding how light interacts with different biological materials, influencing phenomena like absorption, scattering, and the overall optical behavior of tissues.
Scattering: Scattering is the process by which light or other electromagnetic waves deviate from a straight trajectory due to non-uniformities in the medium through which they pass. This phenomenon plays a crucial role in understanding how light interacts with biological tissues, impacting imaging techniques and therapeutic applications.
Skin: Skin is the outermost protective layer of the body, serving as a barrier between the internal organs and the external environment. It plays a crucial role in regulating temperature, providing sensory information, and protecting against pathogens. Understanding skin's optical properties is essential for various measurement techniques used in assessing tissue health and diagnosing medical conditions.
Spectroscopy: Spectroscopy is a technique used to measure and analyze the interaction between light and matter, helping to identify substances based on their light absorption, emission, or scattering characteristics. It plays a crucial role in understanding various biological and chemical processes, making it essential in areas like medical diagnostics, material science, and environmental monitoring.
Tissue homogeneity: Tissue homogeneity refers to the uniformity of optical properties within a specific type of biological tissue. This concept is crucial in understanding how light interacts with tissues, as uniformity can influence scattering, absorption, and overall optical behavior. Homogeneous tissues have consistent refractive indices and scattering coefficients, which can lead to predictable light propagation and interaction patterns.
Tumor: A tumor is an abnormal mass of tissue that forms when cells divide and grow uncontrollably, which can be benign (non-cancerous) or malignant (cancerous). Tumors can affect the optical properties of biological tissues by altering their scattering and absorption characteristics, which is crucial for imaging techniques used in medical diagnostics.
Visible spectrum: The visible spectrum is the portion of the electromagnetic spectrum that is visible to the human eye, ranging from approximately 380 nm to 750 nm in wavelength. This range includes all the colors that can be seen, from violet at the shorter wavelengths to red at the longer wavelengths. The visible spectrum plays a critical role in understanding how light interacts with biological tissues and the fundamental principles of light and electromagnetic radiation.
