Mathematical modeling of physiological systems is a powerful tool for understanding complex biological processes. By representing the body's functions as equations and algorithms, researchers can simulate and predict how different systems interact and respond to stimuli.
This topic covers various modeling techniques, from to , and their applications in pharmacology and . It also explores model components, analysis methods, and validation approaches essential for creating accurate physiological simulations.
Modeling Techniques
Compartmental and Differential Equation Models
Top images from around the web for Compartmental and Differential Equation Models
Transport of Oxygen in the Blood | Biology for Majors II View original
Is this image relevant?
Gas Exchange | Anatomy and Physiology II View original
Is this image relevant?

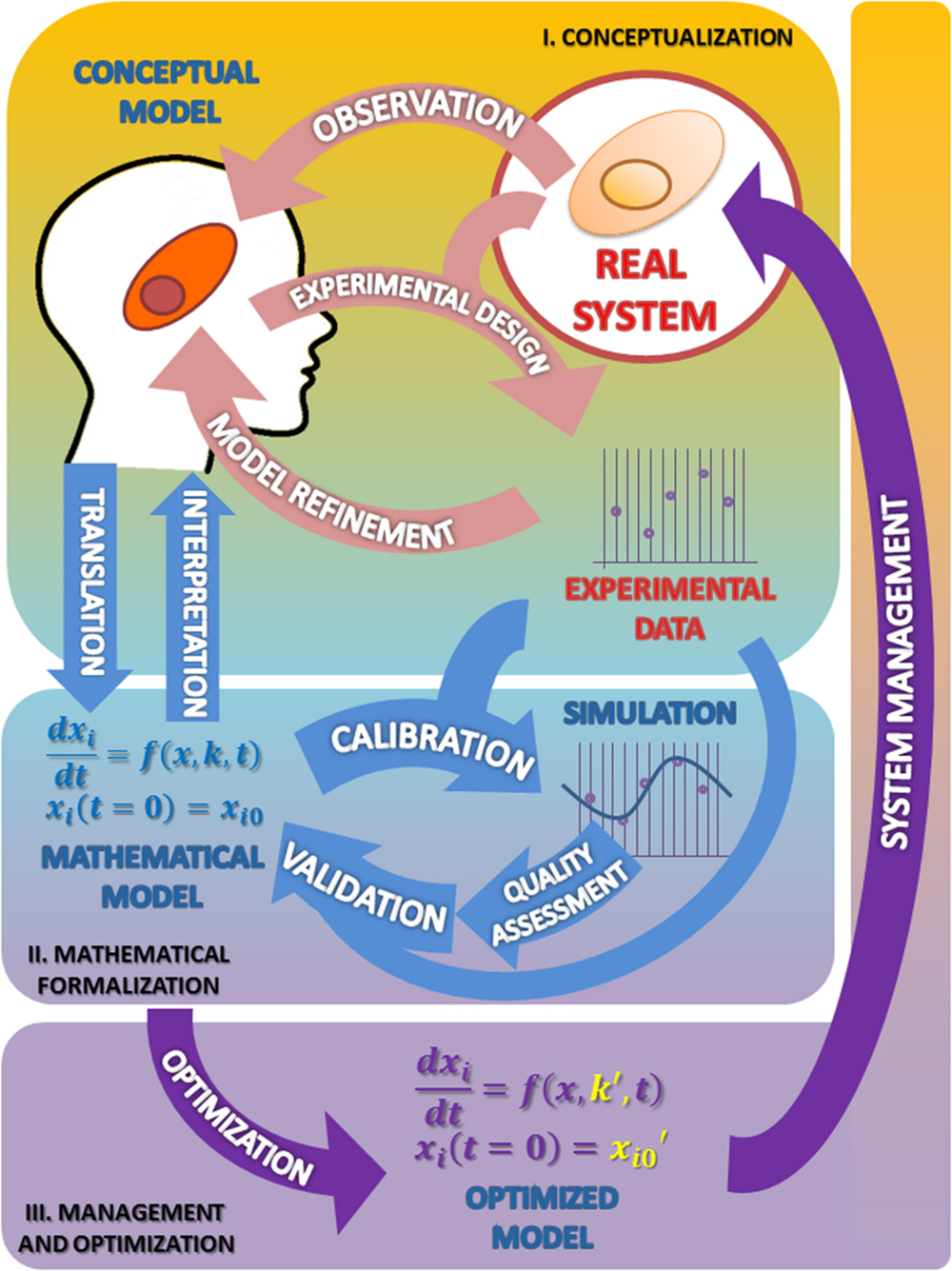

Frontiers | The (Mathematical) Modeling Process in Biosciences View original
Is this image relevant?
Transport of Oxygen in the Blood | Biology for Majors II View original
Is this image relevant?
Gas Exchange | Anatomy and Physiology II View original
Is this image relevant?
1 of 3
Top images from around the web for Compartmental and Differential Equation Models
Transport of Oxygen in the Blood | Biology for Majors II View original
Is this image relevant?
Gas Exchange | Anatomy and Physiology II View original
Is this image relevant?
Frontiers | The (Mathematical) Modeling Process in Biosciences View original
Is this image relevant?
Transport of Oxygen in the Blood | Biology for Majors II View original
Is this image relevant?
Gas Exchange | Anatomy and Physiology II View original
Is this image relevant?
1 of 3
- Compartmental models divide systems into interconnected compartments representing distinct physiological spaces
- Compartments exchange substances or energy based on defined transfer rates
- (ODEs) describe time-dependent changes in compartment quantities
- First-order ODEs commonly used for simple pharmacokinetic models
- Higher-order ODEs applied to more complex systems (cardiovascular, respiratory)
- (PDEs) incorporate spatial variations in addition to temporal changes
- Used for modeling processes with spatial gradients (diffusion, fluid dynamics)
- Examples include oxygen diffusion in tissues, blood flow in vessels
Numerical Methods for Solving Equations
- Analytical solutions often impossible for complex physiological models
- provide approximate solutions through iterative calculations
- offers simple first-order approximation for ODEs
- Calculates next state based on current state and rate of change
- Accuracy improves with smaller step sizes
- provide higher-order accuracy
- (RK4) widely used for balance of accuracy and efficiency
- applied to solve PDEs
- Discretize space and time domains into grids
- Approximate derivatives using differences between adjacent grid points
Physiological Applications
Pharmacological Modeling
- models drug absorption, distribution, metabolism, and excretion
- One-compartment models assume rapid drug distribution throughout body
- Multi-compartment models account for varying drug concentrations in different tissues
- describes drug effects on the body
- relate drug concentration to physiological effects
- characterizes maximum effect and drug sensitivity
- Physiologically-based pharmacokinetic (PBPK) models integrate anatomical and physiological data
- Represent organs as compartments with specific blood flows and metabolic capacities
- Predict drug concentrations in various tissues over time
Systems Biology and Homeostasis
- Systems biology examines complex interactions within biological systems
- model expression patterns and cellular responses
- predicts flux distributions and bottlenecks
- maintains internal stability despite external changes
- regulate key physiological variables (blood pressure, body temperature)
- capture sensor, controller, and effector components
- Examples include glucose-insulin regulation, calcium homeostasis
Model Components
Parameters and State Variables
- Model parameters represent constant or slowly changing system properties
- Physiological parameters (organ volumes, blood flow rates)
- Biochemical parameters (reaction rate constants, binding affinities)
- Estimation techniques include literature values, experimental measurements, optimization algorithms
- State variables describe time-varying quantities in the system
- Concentrations of substances in compartments
- Physiological variables (heart rate, blood pressure)
- Initial conditions crucial for solving differential equations
Feedback Control Systems
- Negative feedback reduces deviations from desired setpoints
- adjusts response based on error magnitude
- eliminates steady-state errors
- improves system stability
- Positive feedback amplifies deviations, potentially leading to instability
- Examples include blood clotting cascade, childbirth contractions
- characterize system responses in frequency domain
- Useful for analyzing stability and dynamic behavior
- visualize magnitude and phase responses
Model Analysis
Steady-State and Dynamic Analysis
- examines long-term behavior when rates of change approach zero
- Solve algebraic equations by setting derivatives to zero
- Identify equilibrium points and their stability
- characterizes system behavior over time
- shows short-term system reaction to perturbations
- Oscillatory behavior may emerge from delays or feedback loops
- visualizes trajectories of two-variable systems
Validation and Sensitivity Analysis
- compares predictions with experimental data
- assesses agreement with known physiological behaviors
- uses statistical measures (R-squared, root mean square error)
- Cross-validation tests model performance on independent datasets
- evaluates how parameter variations affect model outputs
- examines effects of small parameter changes
- explores parameter space more comprehensively
- Identify critical parameters for further experimental investigation or refinement
Key Terms to Review (36)
Bode Plots: Bode plots are graphical representations used in control systems and signal processing to analyze the frequency response of linear time-invariant systems. They consist of two separate plots: one showing the magnitude (in decibels) versus frequency and the other displaying the phase shift (in degrees) versus frequency, allowing for an intuitive understanding of system behavior across different frequencies.
Compartmental models: Compartmental models are mathematical representations used to describe the behavior of complex systems by dividing them into distinct compartments or compartments that interact with one another. Each compartment represents a specific portion of the system, such as a tissue or organ in biological systems, allowing for simplified analysis and prediction of the dynamics within and between these compartments.
Derivative control: Derivative control is a feedback control strategy that adjusts the control output based on the rate of change of the system's error over time. This approach anticipates future behavior by measuring how quickly the error is changing, allowing for quicker corrections and stabilization of physiological systems. By incorporating the derivative of the error, this method helps to reduce overshoot and oscillations in system responses.
Differential Equations: Differential equations are mathematical equations that relate a function with its derivatives, expressing how a quantity changes with respect to another variable. In the context of physiological systems, they are essential for modeling dynamic processes such as blood flow, drug concentration, and the spread of diseases, as they describe the relationships between changing quantities over time.
Dose-response curves: Dose-response curves are graphical representations that illustrate the relationship between the dose of a substance (like a drug) and the magnitude of the biological response it elicits. These curves are crucial for understanding how different doses affect physiological systems, highlighting thresholds, efficacy, and potential toxicity. By modeling this relationship mathematically, researchers can predict how changes in dosage will influence biological outcomes, providing essential insights into pharmacology and toxicology.
Dynamic response: Dynamic response refers to how a system reacts to changes over time, particularly in response to external stimuli or perturbations. In the context of physiological systems, it highlights the importance of understanding how biological processes adapt and respond dynamically to varying conditions. This concept is crucial for mathematical modeling, as it provides insights into system behavior and interactions among components, ultimately allowing for better predictions and control of physiological phenomena.
Emax model: The emax model is a mathematical representation used to describe the relationship between drug concentration and its effect in a physiological system, capturing the maximum possible effect (emax) that can be achieved. This model is essential for understanding dose-response relationships and helps predict how changes in drug dosage can influence physiological responses, making it a fundamental concept in pharmacokinetics and pharmacodynamics.
Euler's Method: Euler's Method is a numerical technique used to approximate solutions to ordinary differential equations (ODEs) by iteratively calculating the slope at discrete points. This method is especially useful in the context of modeling physiological systems, as it allows for the prediction of system behavior over time without requiring exact analytical solutions. By using small step sizes, Euler's Method provides a straightforward approach to simulating dynamic processes, making it applicable in various biomedical scenarios, such as drug delivery and population dynamics.
Feedback Control Systems: Feedback control systems are processes that use feedback to regulate and adjust their output to achieve desired performance or stability. These systems play a crucial role in maintaining homeostasis within biological systems, where they constantly monitor internal conditions and make adjustments as necessary. By utilizing sensors and actuators, feedback control systems ensure that physiological parameters, such as temperature, blood pressure, and hormone levels, remain within optimal ranges.
Finite difference methods: Finite difference methods are numerical techniques used to approximate solutions to differential equations by discretizing them into finite grids. This approach is crucial in mathematical modeling, especially in physiological systems, where continuous models must be approximated for practical computation. By using differences between function values at specific points, these methods facilitate the analysis of dynamic biological processes and simulations.
Fourth-order runge-kutta: The fourth-order Runge-Kutta method is a numerical technique used to solve ordinary differential equations (ODEs) with high accuracy. This method estimates the solution at each time step by calculating four intermediate slopes, combining them to provide a better approximation of the solution curve. It is particularly valuable in physiological simulations, where complex biological systems are often modeled with differential equations, allowing for accurate predictions of system behavior over time.
Gene regulatory networks: Gene regulatory networks are complex systems of interactions between genes, their products, and other molecules that regulate gene expression in a coordinated manner. These networks play a crucial role in determining cellular behavior and function by controlling when and how genes are turned on or off in response to various signals. Understanding these interactions is essential for modeling physiological systems and studying biological processes at multiple scales.
Global sensitivity analysis: Global sensitivity analysis is a mathematical method used to determine how variations in input parameters of a model can influence its output. This approach is crucial for understanding the robustness of a model and identifying which parameters are most significant in affecting the outcomes. By assessing the impact of multiple inputs simultaneously, it helps refine mathematical models of physiological systems and enhances their predictive accuracy.
Homeostasis: Homeostasis is the process by which biological systems maintain a stable internal environment despite changes in external conditions. This regulation is crucial for the survival of organisms, allowing them to function optimally in varying circumstances. Homeostasis involves various physiological mechanisms that adjust bodily functions, ensuring that key variables such as temperature, pH, and ion concentrations remain within specific limits.
Integral Control: Integral control is a method used in control systems to eliminate steady-state error by adjusting the control output based on the accumulated error over time. This type of control continuously integrates the error signal, meaning that the longer an error persists, the larger the corrective action becomes. This feature makes integral control particularly useful in physiological systems, where maintaining precise conditions is crucial for proper function.
Local sensitivity analysis: Local sensitivity analysis is a mathematical technique used to determine how small changes in the input parameters of a model affect its output. It focuses on the immediate or local behavior of the model near a specific point, helping to identify which parameters have the greatest influence on outcomes. This technique is particularly useful in mathematical modeling of physiological systems, as it allows researchers to understand the robustness and stability of their models under slight variations in biological parameters.
Mathematical Models: Mathematical models are representations of real-world systems using mathematical language and equations to describe their behavior and interactions. These models help in understanding, predicting, and optimizing physiological processes by translating complex biological functions into quantifiable forms, allowing for analysis and simulations.
Metabolic Pathway Analysis: Metabolic pathway analysis involves studying the series of chemical reactions that occur within a cell, leading to the conversion of substrates into products. This analysis is crucial for understanding how cells respond to various stimuli, how energy is produced and consumed, and how metabolic disorders can arise when these pathways are disrupted. Mathematical modeling plays a vital role in metabolic pathway analysis by providing quantitative frameworks to simulate and predict cellular behavior under different conditions.
Model validation: Model validation is the process of ensuring that a computational or mathematical model accurately represents the real-world system it is intended to simulate. This process involves comparing model outputs to experimental or observational data to confirm its predictive capabilities, which is crucial for establishing the model's reliability and applicability in research and clinical settings.
Negative Feedback Loops: Negative feedback loops are processes that counteract changes in a system to maintain stability or homeostasis. In physiological systems, these loops help regulate various functions by detecting deviations from a set point and triggering responses that restore balance, ensuring that the body's internal environment remains stable despite external changes.
Numerical methods: Numerical methods are mathematical techniques used to approximate solutions to complex problems that cannot be solved analytically. They are essential for simulating and analyzing physical systems, especially when dealing with non-linear equations or large datasets. By transforming continuous problems into discrete ones, numerical methods facilitate the exploration of biomechanics and physiological systems through computational simulations and mathematical modeling.
Ordinary differential equations: Ordinary differential equations (ODEs) are mathematical equations that relate a function with its derivatives, often used to describe the behavior of dynamic systems. These equations are crucial in modeling how physiological systems change over time, providing a framework for understanding the dynamics of biological processes. They play a key role in representing compartmental and distributed parameter models as well as enabling insights in systems biology and multi-scale modeling.
Partial Differential Equations: Partial differential equations (PDEs) are mathematical equations that involve multiple independent variables and their partial derivatives. These equations are fundamental in modeling various physical phenomena, particularly in systems where variables change across space and time, like physiological systems. PDEs play a crucial role in creating models that represent the dynamics of biological processes, enabling predictions and simulations of complex interactions within the body.
Pharmacodynamics: Pharmacodynamics is the branch of pharmacology that studies the effects of drugs on biological systems and the mechanisms through which these effects occur. It focuses on how a drug interacts with its target cells or receptors, influencing physiological processes, and encompasses concepts such as dose-response relationships and drug efficacy. Understanding pharmacodynamics is crucial for predicting how drugs will behave in the body, which is essential for mathematical modeling of physiological systems.
Pharmacokinetics: Pharmacokinetics is the branch of pharmacology that focuses on how drugs move through the body over time. It involves studying the processes of absorption, distribution, metabolism, and excretion (ADME) of pharmaceuticals, allowing for mathematical modeling of drug behavior and interactions within physiological systems.
Phase Plane Analysis: Phase plane analysis is a graphical method used to analyze the behavior of dynamic systems by plotting trajectories of state variables in a two-dimensional space. It helps to visualize the stability and behavior of systems over time, providing insights into how different states evolve and interact, especially in physiological systems that can be modeled mathematically.
Physiologically-Based Pharmacokinetic Models: Physiologically-based pharmacokinetic (PBPK) models are mathematical models that simulate the absorption, distribution, metabolism, and excretion of drugs within the body by considering physiological parameters such as organ sizes, blood flow rates, and tissue composition. These models provide a mechanistic understanding of how drugs behave in different physiological conditions and can predict drug concentrations in various tissues over time, making them valuable tools in drug development and regulatory decision-making.
Proportional Control: Proportional control is a control mechanism where the output response of a system is directly proportional to the error signal, which is the difference between the desired setpoint and the measured process variable. This approach is widely used in feedback systems to maintain stability and ensure that physiological parameters remain within a desired range by making adjustments based on the magnitude of the error. It is essential for modeling and simulating physiological systems, as it helps in understanding how different body functions respond to changes and maintain homeostasis.
Qualitative validation: Qualitative validation refers to the process of assessing a model's accuracy and reliability based on qualitative data and expert judgment rather than purely quantitative metrics. This approach is essential in ensuring that mathematical models of physiological systems effectively represent the real-world phenomena they are intended to simulate, taking into account the complexity and variability of biological processes.
Quantitative validation: Quantitative validation is the process of assessing the accuracy and reliability of mathematical models through numerical data comparison and statistical analysis. This ensures that the models can effectively simulate real-world physiological phenomena, thereby providing confidence in their predictions and applications. By validating these models quantitatively, researchers can better understand complex biological systems and improve device design and therapeutic strategies.
Runge-Kutta methods: Runge-Kutta methods are a family of iterative techniques used to numerically solve ordinary differential equations (ODEs). These methods provide a way to approximate the solution by evaluating the function at several points within each step, enhancing accuracy compared to simpler methods like Euler's. This is particularly important in mathematical modeling of physiological systems, where precise solutions are essential for understanding complex biological behaviors and dynamics.
Sensitivity analysis: Sensitivity analysis is a method used to determine how different values of an input can impact a model's output. This technique helps identify which variables have the most influence on the results, allowing for a better understanding of model behavior and uncertainty. It is essential for optimizing designs and improving decision-making processes across various scientific and engineering applications.
Steady-state analysis: Steady-state analysis refers to the examination of a system where all state variables remain constant over time, leading to a balanced condition. In this state, the inputs and outputs of a system are equal, which allows for simplified mathematical modeling and predictions of physiological responses without accounting for transient dynamics.
Systems Biology: Systems biology is an interdisciplinary field that focuses on the complex interactions within biological systems, using a holistic approach to understand how various components work together to influence function and behavior. This perspective enables researchers to create mathematical models that can simulate physiological processes, paving the way for more effective multi-scale modeling approaches. By integrating experimental data with computational tools, systems biology provides insights into dynamic biological networks and their roles in health and disease.
Transfer Functions: A transfer function is a mathematical representation that describes the input-output relationship of a linear time-invariant system in the frequency domain. It is often expressed as a ratio of the Laplace transforms of the output and input signals, illustrating how a system responds to various inputs, including physiological systems. This concept is fundamental in analyzing dynamic systems and predicting their behavior under different conditions.
Transient response: Transient response refers to the temporary behavior of a system as it reacts to a change in its input or initial conditions before settling into a steady-state behavior. This concept is crucial when modeling physiological systems and analyzing how they adjust to changes, such as drug administration or physiological stress. Understanding transient response helps in predicting how quickly and effectively a system can adapt, which is essential for both compartmental models and distributed parameter models.
