2.1 Musculoskeletal Biomechanics
4 min read•august 9, 2024
Musculoskeletal biomechanics dives into the mechanics of bones, muscles, and joints. It's all about how our body parts move and handle forces, from walking to lifting weights. This field is crucial for understanding injuries, designing better implants, and improving rehab techniques.
In this part of advanced biomechanics, we'll look at bone structure, muscle function, and joint movement. We'll also explore cool tech like EMG and that help us analyze the body in action. It's like getting X-ray vision into how our bodies really work!
Bone and Tissue Mechanics
Bone Tissue Structure and Properties
Top images from around the web for Bone Tissue Structure and Properties

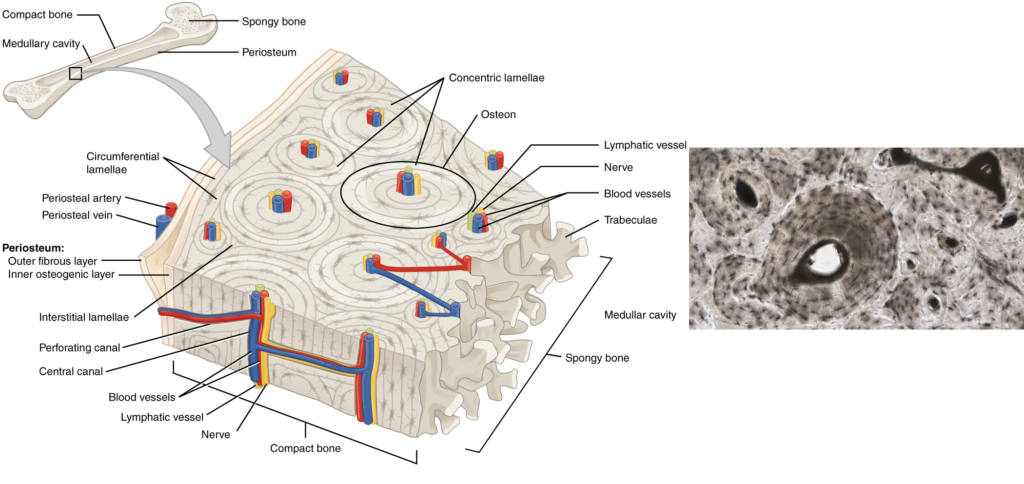

Compact Bone, Spongy Bone, and Other Bone Components | Human Anatomy and Physiology Lab (BSB 141) View original
Is this image relevant?
Bone Structure | Anatomy and Physiology I View original
Is this image relevant?
Bone Structure · Anatomy and Physiology View original
Is this image relevant?
Compact Bone, Spongy Bone, and Other Bone Components | Human Anatomy and Physiology Lab (BSB 141) View original
Is this image relevant?
Bone Structure | Anatomy and Physiology I View original
Is this image relevant?
1 of 3
Top images from around the web for Bone Tissue Structure and Properties
Compact Bone, Spongy Bone, and Other Bone Components | Human Anatomy and Physiology Lab (BSB 141) View original
Is this image relevant?
Bone Structure | Anatomy and Physiology I View original
Is this image relevant?
Bone Structure · Anatomy and Physiology View original
Is this image relevant?
Compact Bone, Spongy Bone, and Other Bone Components | Human Anatomy and Physiology Lab (BSB 141) View original
Is this image relevant?
Bone Structure | Anatomy and Physiology I View original
Is this image relevant?
1 of 3
- Bone tissue consists of organic and inorganic components forming a composite material
- Organic matrix comprises collagen fibers and ground substance providing flexibility
- Inorganic mineral phase contains hydroxyapatite crystals contributing to bone strength and stiffness
- Hierarchical structure of bone tissue includes osteons, lamellae, and collagen-mineral complexes
- Mechanical properties of bone vary depending on anatomical location and loading conditions
Mechanical Behavior of Bone and Tissue
- Stress-strain relationships characterize the mechanical response of bone under different loading conditions
- Elastic region represents reversible deformation where bone returns to its original shape
- Plastic region involves permanent deformation beyond the yield point
- Ultimate strength defines the maximum stress bone can withstand before failure
- describes time-dependent behavior of bone under constant load or deformation
- Creep involves gradual deformation under constant stress
- Stress relaxation occurs when stress decreases under constant strain
Orthopaedic Biomechanics and Tissue Engineering
- Orthopaedic biomechanics applies mechanical principles to musculoskeletal system function and treatment
- Analyzes forces and motions in bones, joints, and implants
- Tissue engineering combines cells, scaffolds, and growth factors to regenerate damaged tissues
- Aims to create functional replacements for damaged or diseased tissues
- Biomaterials in orthopaedics include metals (titanium alloys), ceramics (hydroxyapatite), and polymers (UHMWPE)
- Serve as implants, scaffolds, or drug delivery systems in orthopaedic applications
Muscle Physiology and Analysis
Muscle Structure and Function
- Muscle physiology encompasses the structure and function of skeletal muscles
- Sarcomeres form the basic contractile units of muscle fibers
- Sliding filament theory explains muscle contraction through interaction of actin and myosin filaments
- Motor units consist of a motor neuron and the muscle fibers it innervates
- Muscle fiber types (Type I, Type IIa, Type IIb) differ in contractile properties and metabolic characteristics
Muscle Activity Assessment Techniques
- Electromyography (EMG) measures electrical activity of muscles during contraction
- Surface EMG uses electrodes placed on the skin to detect muscle activation patterns
- Intramuscular EMG employs needle electrodes for more localized measurements
- EMG signal processing involves filtering, rectification, and normalization
- measures ground reaction forces during standing, walking, or other activities
- Provides information on center of pressure, balance, and gait parameters
Musculoskeletal Disorders and Biomechanical Implications
- Musculoskeletal disorders affect bones, muscles, tendons, ligaments, and joints
- Osteoarthritis involves degradation of articular cartilage and changes in subchondral bone
- Osteoporosis reduces bone density and increases fracture risk
- Tendinopathy results from overuse or degeneration of tendons
- Biomechanical factors contribute to the development and progression of musculoskeletal disorders
- Altered joint loading patterns and muscle imbalances can exacerbate symptoms
Joint Kinematics and Gait
Joint Kinematics and Motion Analysis
- Joint describes the motion of joints without considering forces
- Degrees of freedom represent the number of independent ways a joint can move
- Synovial joints classified as hinge, pivot, ball-and-socket, saddle, condyloid, or gliding
- Motion capture systems track markers placed on anatomical landmarks to measure joint angles
- Euler angles and rotation matrices describe three-dimensional joint rotations
- Range of motion limits determined by joint geometry, ligaments, and surrounding soft tissues
Gait Analysis Techniques and Parameters
- Gait analysis studies human locomotion patterns during walking or running
- Temporal-spatial parameters include stride length, cadence, and walking speed
- Kinematic analysis examines joint angles and segment positions throughout the gait cycle
- Kinetic analysis measures forces and moments acting on joints during gait
- trajectory follows a sinusoidal pattern in the vertical and medio-lateral directions
- Gait cycle divided into stance phase (60%) and swing phase (40%)
Biomechanical Modeling and Applications
- Biomechanical modeling simulates musculoskeletal system behavior under various conditions
- Inverse dynamics calculates joint forces and moments from motion and external force data
- Forward dynamics predicts motion based on applied forces and initial conditions
- Musculoskeletal models represent bones, joints, and muscles as interconnected mechanical systems
- Finite element analysis simulates stress and strain distributions in biological tissues
- Applications include injury prevention, rehabilitation planning, and implant design optimization
Key Terms to Review (18)
Acute trauma: Acute trauma refers to a sudden and severe injury or damage to the body's tissues, often resulting from an external force or impact. This type of trauma can affect various structures in the body, including bones, muscles, ligaments, and tendons, and is commonly associated with events such as falls, accidents, or sports injuries. Understanding acute trauma is essential for assessing and managing the immediate physiological effects on the musculoskeletal system.
Center of Mass: The center of mass is a point that represents the average position of an object's mass distribution. It serves as a crucial concept in understanding the balance and movement of bodies, particularly when analyzing forces and motions in a physical system. This point is essential for evaluating stability, posture, and overall biomechanics in both static and dynamic scenarios, impacting how the human body moves and interacts with external forces.
Elasticity: Elasticity is the property of a material that describes its ability to deform under stress and return to its original shape when the stress is removed. This characteristic is crucial for understanding how biological tissues respond to mechanical forces, especially in the musculoskeletal system where bones, muscles, and tendons need to maintain their integrity while allowing for movement and load-bearing activities.
Finite Element Model: A finite element model (FEM) is a computational technique used to approximate solutions to complex physical problems by breaking down a large system into smaller, simpler parts called finite elements. This method allows for the analysis of structures and materials under various conditions, making it particularly useful in fields like biomechanics where understanding stress, strain, and deformation is critical.
Force Plate Analysis: Force plate analysis is a biomechanical assessment method that measures the forces exerted by the body on a stationary platform during various activities such as walking, running, or jumping. This technique provides valuable data on force distribution, balance, and movement patterns, making it crucial for understanding musculoskeletal dynamics and evaluating physical performance.
Joule: A joule is the standard unit of energy in the International System of Units (SI), defined as the amount of energy transferred when a force of one newton acts over a distance of one meter. In the context of biomechanics, joules are crucial for understanding how energy is utilized in human movement and the mechanical work done by muscles and joints during physical activities.
Kinematics: Kinematics is the branch of mechanics that deals with the motion of objects without considering the forces that cause the motion. It focuses on concepts such as displacement, velocity, and acceleration, and is essential for understanding how biological systems move. By analyzing movement patterns, kinematics can provide insights into the efficiency and effectiveness of human locomotion and the mechanical functions of the musculoskeletal system.
Kinetics: Kinetics is the branch of mechanics that deals with the motion of objects and the forces that cause this motion. It encompasses the analysis of movement in relation to the forces applied, which is crucial for understanding how muscles and joints operate during various physical activities. In this way, kinetics plays a vital role in comprehending how forces influence human movement and the mechanical behavior of biological systems.
Ligament: A ligament is a tough, fibrous connective tissue that connects bones to other bones at joints, providing stability and support. Ligaments play a crucial role in the musculoskeletal system by helping to maintain proper alignment and function of the joints during movement, while also limiting excessive motion that could lead to injury.
Motion capture: Motion capture is a technology used to record and analyze the movements of living beings, particularly humans, by translating their physical motions into digital data. This technology plays a significant role in understanding biomechanics by enabling the detailed study of joint angles, limb movements, and overall body mechanics, which are crucial for applications in musculoskeletal biomechanics.
Multi-body dynamics: Multi-body dynamics refers to the study of the motion and interaction of interconnected rigid or flexible bodies that are subject to forces, torques, and constraints. This field is crucial for understanding how different parts of a mechanical system move in relation to one another, especially in the context of human movement and biomechanics where multiple segments interact during activities like walking or jumping.
Newton: A Newton is the SI unit of force, defined as the amount of force required to accelerate a one-kilogram mass by one meter per second squared. This unit is fundamental in understanding how forces interact with the musculoskeletal system, influencing how muscles generate movement and how bones respond to stress and strain during physical activity.
Newton's Laws of Motion: Newton's Laws of Motion are three fundamental principles that describe the relationship between the motion of an object and the forces acting on it. These laws provide a framework for understanding how forces affect the movement and stability of objects, including biological systems, which is essential for analyzing the mechanics of the musculoskeletal system. By applying these laws, one can better comprehend how muscles generate force, how joints react to loads, and how movement is achieved in living organisms.
Overuse Injury: An overuse injury refers to damage to muscles, tendons, ligaments, or joints caused by repetitive stress and strain, often occurring without a single traumatic event. These injuries typically develop gradually over time and are common in athletes or individuals who engage in repetitive physical activities, leading to inflammation, pain, and decreased function of the affected area.
Shear Force: Shear force is a type of internal force that acts parallel to the cross-section of a material, causing layers of the material to slide past one another. In the context of biomechanics, shear forces are significant as they influence the way bones and soft tissues respond to loads and movements, impacting their stability and overall function within the musculoskeletal system.
Tendon: A tendon is a fibrous connective tissue that connects muscles to bones, facilitating movement by transmitting the force generated by muscle contractions to the skeletal system. Tendons play a crucial role in the musculoskeletal system, acting as a bridge between muscles and bones, and enabling coordinated movements of the limbs and body.
Tensile Stress: Tensile stress is the measure of the internal force experienced by a material when it is subjected to tension or pulling forces. It quantifies how much load a material can withstand when being stretched, which is crucial for understanding how biological tissues, like tendons and ligaments, behave under different loads in the musculoskeletal system.
Viscoelasticity: Viscoelasticity is the property of materials that exhibit both viscous and elastic characteristics when undergoing deformation. This means that these materials can both store and dissipate energy, allowing them to respond differently depending on the rate of loading or stress applied. This behavior is crucial in understanding how biological tissues and engineered materials behave under various mechanical forces, influencing their functionality and durability.
