7.1 Microarray technology
8 min read•august 21, 2024
Microarray technology revolutionized gene expression analysis in bioinformatics. It enables simultaneous measurement of thousands of genes, providing insights into complex biological processes and disease mechanisms at the molecular level.
This powerful tool integrates molecular biology, chemistry, and data science principles. From experimental design to data analysis, microarrays offer a comprehensive approach to studying genomic patterns across various biological contexts.
Microarray fundamentals
- Microarrays revolutionize gene expression analysis in bioinformatics by enabling simultaneous measurement of thousands of genes
- Serve as a powerful tool for studying complex biological processes and disease mechanisms at the molecular level
- Integrate principles from molecular biology, chemistry, and data science to provide comprehensive genomic insights
Types of microarrays
Top images from around the web for Types of microarrays
Frontiers | Protein Microarrays: A New Tool for the Study of Autoantibodies in Immunodeficiency ... View original
Is this image relevant?

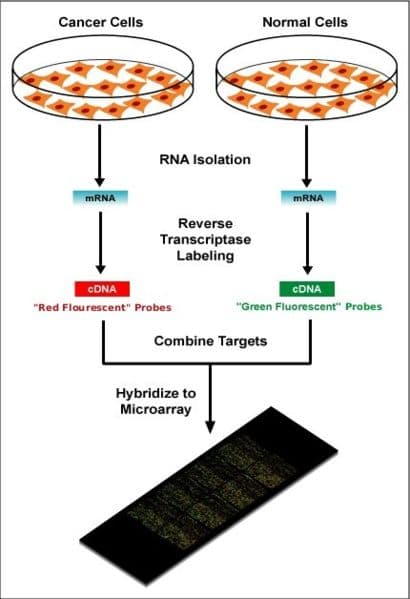

DNA microarray - wikidoc View original
Is this image relevant?
Avens Publishing Group - Microarray Based Genotyping: A Review View original
Is this image relevant?
Frontiers | Protein Microarrays: A New Tool for the Study of Autoantibodies in Immunodeficiency ... View original
Is this image relevant?
DNA microarray - wikidoc View original
Is this image relevant?
1 of 3
Top images from around the web for Types of microarrays
Frontiers | Protein Microarrays: A New Tool for the Study of Autoantibodies in Immunodeficiency ... View original
Is this image relevant?
DNA microarray - wikidoc View original
Is this image relevant?
Avens Publishing Group - Microarray Based Genotyping: A Review View original
Is this image relevant?
Frontiers | Protein Microarrays: A New Tool for the Study of Autoantibodies in Immunodeficiency ... View original
Is this image relevant?
DNA microarray - wikidoc View original
Is this image relevant?
1 of 3
- DNA microarrays measure gene expression levels across entire genomes
- Protein microarrays detect protein-protein interactions and post-translational modifications
- SNP microarrays identify genetic variations in populations
- Tissue microarrays analyze multiple tissue samples simultaneously
Components of microarray systems
- Solid substrate (glass slides, silicon chips) provides surface for probe attachment
- Probes consist of DNA sequences or proteins specific to target molecules
- Detection system includes fluorescent labels and high-resolution scanners
- Data analysis software processes raw image data into meaningful biological information
Applications in genomics
- reveals transcriptional changes in different conditions
- detects copy number variations in cancer research
- Chromatin immunoprecipitation (ChIP) on chip identifies protein-DNA interactions
- Methylation arrays analyze epigenetic modifications across the genome
DNA microarray technology
- DNA microarrays form the foundation of high-throughput gene expression analysis in bioinformatics
- Enable researchers to study global gene expression patterns in various biological contexts
- Combine molecular biology techniques with advanced data analysis methods to generate comprehensive genomic profiles
Probe design and selection
- Oligonucleotide probes designed to be complementary to target gene sequences
- Probe length typically ranges from 25 to 70 nucleotides for optimal
- Bioinformatics algorithms predict probe specificity and potential cross-hybridization
- Consideration of GC content and melting temperature ensures uniform hybridization conditions
Array fabrication methods
- Photolithography creates high-density oligonucleotide arrays ( GeneChips)
- Inkjet printing deposits pre-synthesized oligonucleotides onto glass slides
- Contact printing uses robotic spotting of or oligonucleotide probes
- In situ synthesis builds oligonucleotide probes directly on the array surface
Sample preparation techniques
- RNA extraction from biological samples (tissues, cell cultures)
- Reverse transcription converts to cDNA
- Amplification methods increase sample quantity for low-abundance transcripts
- Fragmentation of cDNA or RNA improves hybridization efficiency
Experimental design
- Proper experimental design ensures reliable and reproducible microarray results in bioinformatics studies
- Incorporates statistical principles to minimize bias and maximize the power of data analysis
- Considers biological variability and technical limitations of microarray technology
Control vs experimental samples
- Control samples represent baseline conditions or untreated states
- Experimental samples reflect conditions of interest (disease, drug treatment, time points)
- Paired designs compare samples from the same subject under different conditions
- Time-course experiments capture dynamic changes in gene expression
Replication and randomization
- Biological replicates account for natural variation between individuals
- Technical replicates assess reproducibility of experimental procedures
- Randomization of sample processing order minimizes batch effects
- Power analysis determines the optimal number of replicates needed
Dye-swap experiments
- Address systematic bias introduced by different fluorescent dyes
- Samples labeled with Cy3 and Cy5 dyes in separate experiments
- Dye assignments reversed in replicate experiments
- Improves accuracy of
Hybridization process
- Hybridization forms the core of microarray technology in bioinformatics applications
- Relies on the principle of complementary base pairing between nucleic acid sequences
- Optimized conditions ensure specific and efficient binding of target molecules to probes
Labeling of nucleic acids
- Direct incorporates fluorescent nucleotides during reverse transcription
- Indirect labeling attaches fluorescent molecules to modified nucleotides
- Two-color systems use different dyes for control and experimental samples
- Single-color arrays employ one dye for all samples, facilitating multi-sample comparisons
Hybridization conditions
- Temperature control maintains stringency and specificity of hybridization
- Buffer composition affects hybridization kinetics and stability
- Humidity regulation prevents evaporation and maintains consistent conditions
- Mixing or rotation ensures uniform distribution of labeled targets across the array
Washing and scanning procedures
- Post-hybridization washes remove unbound or non-specifically bound targets
- Stringency washes use decreasing salt concentrations to improve signal-to-noise ratio
- High-resolution scanners capture fluorescence intensities for each probe
- Multiple scans at different laser powers accommodate wide dynamic range of signals
Image analysis
- Image analysis transforms raw microarray scans into quantitative data in bioinformatics workflows
- Employs sophisticated algorithms to extract meaningful information from fluorescence patterns
- Crucial step in generating high-quality data for downstream statistical analysis
Spot detection algorithms
- Grid alignment methods locate and define individual probe spots
- Segmentation algorithms distinguish foreground signal from background
- Adaptive circle segmentation adjusts spot size and shape for each feature
- Histogram-based methods identify spot boundaries using intensity distributions
Background correction methods
- Local background subtraction uses surrounding area to estimate background intensity
- Global background correction applies a single background value to the entire array
- Morphological opening removes large-scale spatial variation in background
- Robust multi-array average (RMA) employs a global model for background correction
Signal quantification techniques
- Mean or median intensity calculation within defined spot boundaries
- Integrated intensity sums all pixel values within a spot
- Ratio-based methods compare two-color intensities for differential expression
- Pixel-level analysis considers intensity distribution within individual spots
Data preprocessing
- Data preprocessing in bioinformatics prepares raw microarray data for meaningful analysis
- Addresses technical variations and biases inherent in microarray experiments
- Crucial for generating reliable and comparable gene expression measurements across samples
Normalization strategies
- Within-array adjusts for spatial and intensity-dependent biases
- Between-array normalization ensures comparability across multiple arrays
- Quantile normalization equalizes intensity distributions across arrays
- Lowess normalization corrects intensity-dependent bias in two-color arrays
Quality control measures
- MA plots visualize intensity-dependent bias in two-color experiments
- Box plots compare intensity distributions across multiple arrays
- RNA degradation plots assess sample quality and consistency
- Correlation analysis identifies outlier arrays or technical problems
Filtering of low-quality spots
- Intensity thresholds remove spots with signals close to background levels
- Flag-based filtering excludes spots marked as unreliable during image analysis
- Variance filters eliminate probes with low variability across samples
- Present/Absent calls in Affymetrix arrays identify reliably detected transcripts
Statistical analysis
- Statistical analysis extracts biological insights from preprocessed microarray data in bioinformatics research
- Employs various mathematical and computational techniques to identify significant patterns
- Addresses challenges of high-dimensionality and multiple testing inherent in microarray experiments
Differential expression analysis
- T-tests compare mean expression levels between two groups
- ANOVA identifies differences across multiple experimental conditions
- Linear models accommodate complex experimental designs and covariates
- Empirical Bayes methods improve power for small sample sizes
Multiple testing corrections
- Bonferroni correction controls family-wise error rate but can be overly conservative
- False Discovery Rate (FDR) methods balance type I and type II errors
- Permutation-based approaches estimate null distribution empirically
- Q-value provides measure of significance in terms of false discovery rate
Clustering algorithms
- Hierarchical clustering groups genes or samples based on similarity measures
- K-means clustering partitions data into predefined number of clusters
- Self-organizing maps create two-dimensional representation of high-dimensional data
- Principal Component Analysis (PCA) reduces dimensionality and visualizes major sources of variation
Biological interpretation
- Biological interpretation translates statistical results into meaningful insights in bioinformatics
- Leverages existing biological knowledge to contextualize microarray findings
- Integrates multiple data types to build comprehensive understanding of biological systems
Gene ontology enrichment
- Identifies overrepresented functional categories in gene lists
- Considers hierarchical structure of Gene Ontology terms
- Hypergeometric test assesses statistical significance of enrichment
- Accounts for biases in genome annotation and array design
Pathway analysis tools
- Maps differentially expressed genes onto known biological pathways
- KEGG and Reactome databases provide curated pathway information
- Gene Set Enrichment Analysis (GSEA) considers the entire ranked gene list
- Network analysis tools (Cytoscape, STRING) visualize gene interactions
Integration with other data types
- Combines microarray data with protein-protein interaction networks
- Integrates gene expression with DNA methylation or ChIP-seq data
- Correlates transcriptomic changes with metabolomic or proteomic profiles
- Meta-analysis synthesizes results from multiple independent microarray studies
Limitations and challenges
- Understanding limitations enhances proper interpretation of microarray results in bioinformatics
- Awareness of challenges guides experimental design and data analysis strategies
- Ongoing technological developments address some limitations of microarray technology
Cross-hybridization issues
- Non-specific binding of targets to similar but non-identical probe sequences
- Affects accuracy of expression measurements, especially for gene families
- algorithms minimize potential for cross-hybridization
- Sequence similarity thresholds help identify problematic probes
Probe specificity vs sensitivity
- Trade-off between detecting low-abundance transcripts and maintaining specificity
- Longer probes increase sensitivity but may reduce specificity
- Shorter probes improve specificity but may have lower
- Optimal probe length depends on experimental goals and platform technology
Dynamic range limitations
- Finite range of detectable signal intensities in microarray experiments
- Saturation at high expression levels leads to underestimation of fold changes
- Low-intensity signals may be indistinguishable from
- Alternative technologies (RNA-seq) offer wider dynamic range for gene expression analysis
Emerging technologies
- Emerging technologies in bioinformatics expand capabilities and address limitations of traditional microarrays
- Integrate advances in molecular biology, nanotechnology, and data analysis
- Provide complementary approaches for comprehensive genomic studies
High-density arrays
- Increased number of probes per array enables higher resolution genomic analysis
- Exon arrays allow detection of alternative splicing events
- Tiling arrays provide unbiased coverage of entire genomes
- Nanostring technology offers direct digital counting of RNA molecules
Microarrays vs sequencing
- RNA-seq provides single-base resolution and detects novel transcripts
- Microarrays maintain advantages in cost and established analysis pipelines
- Sequencing technologies continue to improve in throughput and accuracy
- Hybrid approaches combine strengths of both microarrays and sequencing
Custom array design
- Tailored probe sets for specific research questions or organisms
- Allows inclusion of newly discovered genes or splice variants
- Enables focused studies on particular pathways or gene families
- Bioinformatics tools facilitate design of custom arrays based on genomic sequences
Data management
- Effective data management ensures reproducibility and accessibility of microarray results in bioinformatics
- Facilitates data sharing and meta-analysis across multiple studies
- Adheres to community standards for data reporting and storage
MIAME standards
- Minimum Information About a Microarray Experiment ensures comprehensive reporting
- Includes experimental design, array design, and data processing details
- Facilitates reproduction and validation of microarray results
- Widely adopted by journals and funding agencies for microarray data submission
Public microarray databases
- Gene Expression Omnibus (GEO) hosts wide range of functional genomics data
- ArrayExpress provides platform for microarray data submission and retrieval
- Stanford Microarray Database focuses on two-color array experiments
- Cancer Genome Atlas (TCGA) offers multi-omics data including microarray results
Data submission protocols
- Standardized formats (SOFT, MAGE-TAB) for organizing microarray data and metadata
- Web-based submission tools guide researchers through data upload process
- Quality control checks ensure completeness and consistency of submitted data
- Embargo periods allow researchers to maintain data privacy before publication
Key Terms to Review (18)
Affymetrix: Affymetrix is a biotechnology company known for developing microarray technology, which allows researchers to analyze gene expression and genotyping on a large scale. Their platforms enable the simultaneous measurement of thousands of genes, making it easier to understand complex biological processes and disease mechanisms.
Array layout: Array layout refers to the specific arrangement of probes on a microarray, which is a key component in microarray technology. This layout determines how samples are spatially organized on the array and plays a crucial role in the overall efficiency and accuracy of gene expression analysis. A well-designed array layout can enhance signal detection and minimize background noise, ultimately leading to more reliable experimental results.
Background noise: Background noise refers to unwanted or irrelevant signals that interfere with the detection and analysis of specific data in experiments, especially in high-throughput technologies like microarrays. In the context of microarray technology, background noise can obscure the true expression levels of genes being studied, making it challenging to interpret the results accurately. Understanding and minimizing background noise is crucial for obtaining reliable and reproducible data from microarray experiments.
CDNA: cDNA, or complementary DNA, is a form of synthetic DNA that is created from a messenger RNA (mRNA) template through a process called reverse transcription. This technology allows researchers to study gene expression and analyze the functions of specific genes by providing a stable form of the mRNA, which is often less stable and more prone to degradation.
CDNA Microarray: A cDNA microarray is a high-throughput technology used to measure the expression levels of multiple genes simultaneously. This technique involves the hybridization of complementary DNA (cDNA) derived from mRNA onto a glass slide or chip that contains thousands of DNA probes corresponding to different genes. cDNA microarrays allow researchers to compare gene expression profiles across different samples, facilitating insights into gene regulation, disease mechanisms, and cellular responses.
Comparative Genomic Hybridization: Comparative genomic hybridization (CGH) is a molecular cytogenetic method used to analyze copy number variations in the genome by comparing the DNA of a test sample to a reference sample. It allows researchers to identify chromosomal gains and losses, providing insights into genetic abnormalities and their associations with diseases, particularly cancer. CGH is closely linked to microarray technology, which facilitates the simultaneous analysis of thousands of genomic regions.
Differential expression analysis: Differential expression analysis is a statistical method used to identify genes that show significant differences in expression levels between different conditions or groups, such as healthy versus diseased tissues. This technique helps researchers understand the biological changes associated with various physiological conditions, diseases, or treatments, allowing for insights into gene regulation and cellular function. It plays a crucial role in many fields, including cancer research and developmental biology, by highlighting potential biomarkers or therapeutic targets.
Gene expression profiling: Gene expression profiling is a technique used to measure the activity of thousands of genes at once, allowing researchers to understand how genes are turned on or off in different conditions, such as diseases or developmental stages. This method provides insights into cellular responses, disease mechanisms, and potential therapeutic targets, forming a critical part of modern biological research and personalized medicine.
Genespring: GeneSpring is a powerful bioinformatics software platform used for the analysis and interpretation of gene expression data, particularly from microarray experiments. It provides tools for data preprocessing, statistical analysis, visualization, and biological interpretation, making it essential for researchers studying gene expression patterns and their implications in various biological contexts.
Hybridization: Hybridization refers to the process where two complementary nucleic acid strands, such as DNA or RNA, bind together to form a stable double-stranded structure. This phenomenon is crucial in various molecular biology techniques, allowing scientists to analyze gene expression, detect specific sequences, and study genetic variations.
Labeling: Labeling refers to the process of attaching specific tags or identifiers to molecules, such as DNA or RNA, in order to visualize and analyze them during experiments. This technique is crucial for tracking gene expression levels and understanding cellular processes, particularly in the context of microarray technology where it enables researchers to simultaneously measure the expression of thousands of genes.
MRNA: mRNA, or messenger RNA, is a single-stranded RNA molecule that conveys genetic information from DNA to the ribosome, where proteins are synthesized. It plays a crucial role in the central dogma of molecular biology by acting as a template for translation, allowing cells to produce proteins based on the genetic code stored in DNA. The process of creating mRNA from DNA is known as transcription, and the subsequent decoding of mRNA into proteins occurs during translation.
Normalization: Normalization is a process used to adjust values in datasets to allow for fair comparison and analysis. This technique is crucial for ensuring that data is on a common scale without distorting differences in the ranges of values. In the context of data analysis, especially when working with high-dimensional data like gene expression from microarrays or when applying classification algorithms, normalization helps mitigate biases that could affect results.
Oligonucleotide microarray: An oligonucleotide microarray is a powerful tool used in molecular biology to detect and quantify the expression levels of thousands of genes simultaneously. It consists of a solid surface onto which short DNA sequences, known as oligonucleotides, are attached in a grid-like pattern, allowing for high-throughput analysis of genetic material from various samples. This technology has revolutionized genomics and transcriptomics by enabling comprehensive profiling of gene expression and facilitating the study of complex biological systems.
Probe design: Probe design refers to the process of creating specific sequences of nucleic acids that are complementary to target sequences in a sample, enabling the detection and quantification of these targets in techniques such as microarray technology. Effective probe design is critical for ensuring specificity, sensitivity, and overall accuracy in experiments, particularly when analyzing gene expression or genetic variations.
Qpcr: qPCR, or quantitative Polymerase Chain Reaction, is a laboratory technique used to amplify and simultaneously quantify a targeted DNA molecule. It enables the measurement of DNA levels in real-time during the amplification process, providing insights into gene expression, genetic variations, and pathogen detection, making it a critical tool in molecular biology and diagnostics.
Signal intensity: Signal intensity refers to the strength of the fluorescent signal emitted from a microarray spot during the scanning process, which correlates to the amount of hybridized nucleic acid present. It is a critical metric for quantifying gene expression levels, as higher signal intensities indicate a greater abundance of the target nucleic acids bound to the probes on the microarray.
Validation Studies: Validation studies are research efforts aimed at determining the accuracy and reliability of a particular method or technology in producing meaningful and reproducible results. These studies are crucial in confirming that techniques, like microarray technology, provide valid data that can be trusted for further analysis or application, especially in fields such as genomics and bioinformatics.
