5.3 Protein structure levels
8 min read•august 21, 2024
Proteins are the workhorses of life, performing countless functions in our bodies. Their intricate structures, from primary sequences to complex 3D shapes, determine how they operate.
Understanding protein structure is crucial for bioinformatics. It allows scientists to predict protein functions, design drugs, and engineer new proteins for medical and industrial applications. This knowledge forms the foundation for many breakthroughs in biology and medicine.
Primary structure of proteins
- Protein forms the foundation for all higher-order protein structures in bioinformatics
- Understanding primary structure enables researchers to predict protein function and design targeted therapies
- Analyzing primary structure sequences aids in evolutionary studies and protein engineering
Amino acid sequence
Top images from around the web for Amino acid sequence
The Genetic Code | OpenStax Biology 2e View original
Is this image relevant?

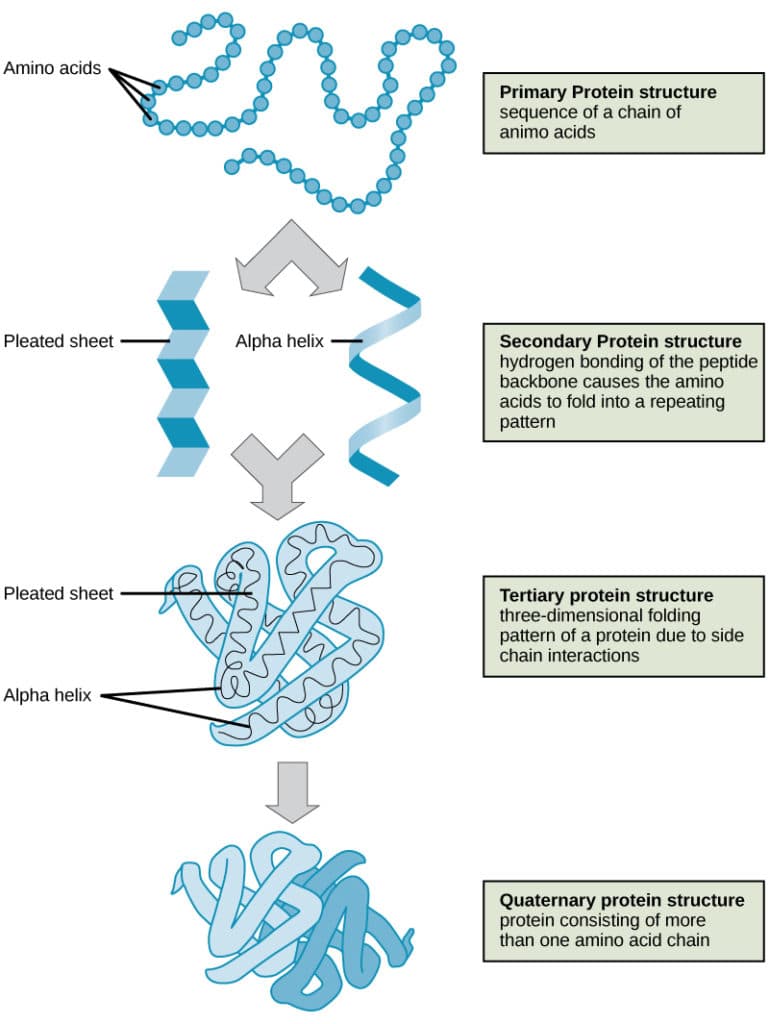

Proteins | Biology for Majors I View original
Is this image relevant?
Proteins · Microbiology View original
Is this image relevant?
The Genetic Code | OpenStax Biology 2e View original
Is this image relevant?
Proteins | Biology for Majors I View original
Is this image relevant?
1 of 3
Top images from around the web for Amino acid sequence
The Genetic Code | OpenStax Biology 2e View original
Is this image relevant?
Proteins | Biology for Majors I View original
Is this image relevant?
Proteins · Microbiology View original
Is this image relevant?
The Genetic Code | OpenStax Biology 2e View original
Is this image relevant?
Proteins | Biology for Majors I View original
Is this image relevant?
1 of 3
- Consists of a linear chain of amino acids linked by
- Determined by the genetic code translated from mRNA
- Includes 20 standard amino acids with diverse chemical properties
- Influences protein folding and function through amino acid interactions
Peptide bonds
- Covalent bonds formed between the carboxyl group of one amino acid and the amino group of another
- Create the protein backbone through condensation reactions
- Exhibit partial double bond character, restricting rotation
- Planar structure contributes to overall protein stability
N-terminus vs C-terminus
- contains a free amino group at the start of the protein chain
- features a free carboxyl group at the end of the protein sequence
- Directionality affects protein synthesis and degradation processes
- Modifications at termini can influence protein stability and function (acetylation, )
Secondary structure elements
- represents local within the protein chain
- Plays a crucial role in bioinformatics for predicting protein function and interactions
- Understanding secondary structure aids in designing protein-based drugs and biomaterials
Alpha helices
- Right-handed spiral conformations stabilized by hydrogen bonds
- Typically span 3.6 amino acids per turn
- Common in transmembrane proteins and DNA-binding domains
- Characterized by repeating phi and psi angles in the Ramachandran plot
Beta sheets
- Consist of extended polypeptide strands connected by hydrogen bonds
- Can form parallel or antiparallel arrangements
- Often found in protein cores and involved in
- Exhibit a distinctive pleated appearance when viewed from the side
Random coils
- Regions lacking defined secondary structure
- Provide flexibility and facilitate protein dynamics
- Often contain functionally important sites (binding regions, post-translational modification sites)
- Can transition between ordered and disordered states
Hydrogen bonding patterns
- Stabilize secondary structure elements through electrostatic interactions
- Form between backbone carbonyl and amino groups in alpha helices and beta sheets
- Contribute to overall protein stability and folding specificity
- Can be disrupted by environmental factors (pH, temperature)
Tertiary structure of proteins
- describes the overall three-dimensional shape of a protein
- Critical for understanding protein function and designing targeted interventions in bioinformatics
- Analyzing tertiary structure aids in predicting protein-ligand interactions and drug design
Folding patterns
- Determined by the interplay of various intramolecular forces
- Influenced by the primary sequence and environmental conditions
- Can include combinations of alpha helices, beta sheets, and loops
- Often organized into distinct domains with specific functions
Hydrophobic interactions
- Drive the formation of a protein's hydrophobic core
- Minimize exposure of non-polar amino acids to the aqueous environment
- Contribute significantly to protein stability and folding
- Can be exploited in protein engineering and drug design
Disulfide bridges
- Covalent bonds formed between cysteine residues
- Stabilize protein structure and maintain proper folding
- Common in extracellular and secreted proteins
- Can be engineered to enhance protein stability or modify function
Salt bridges
- Electrostatic interactions between oppositely charged amino acid side chains
- Contribute to protein stability and specificity of protein-protein interactions
- Can be pH-dependent and influence protein function
- Often found on protein surfaces or at subunit interfaces
Quaternary structure
- describes the arrangement of multiple
- Essential for understanding complex protein functions and regulatory mechanisms in bioinformatics
- Analyzing quaternary structure aids in designing protein-based therapeutics and studying cellular processes
Protein subunits
- Individual polypeptide chains that associate to form larger complexes
- Can be identical (homooligomers) or different (heterooligomers)
- Often exhibit symmetry in their arrangement
- May have distinct functional roles within the complex
Protein complexes
- Assemblies of multiple protein subunits working together
- Perform diverse cellular functions (enzymes, receptors, structural proteins)
- Can be stable or transient depending on cellular conditions
- Often involve allosteric regulation and cooperative binding
Oligomerization
- Process of subunit assembly to form functional
- Can be induced by ligand binding or environmental changes
- Affects protein function, stability, and regulation
- Studied using techniques like analytical ultracentrifugation and light scattering
Structural motifs
- are recurring patterns in protein architecture
- Important for predicting protein function and identifying conserved features in bioinformatics
- Understanding structural motifs aids in protein engineering and designing novel protein structures
Beta-barrel
- Cylindrical structure formed by antiparallel beta strands
- Common in membrane proteins and porins
- Facilitates transport of molecules across membranes
- Can be engineered for biotechnology applications (biosensors, nanopores)
Zinc finger
- Small that coordinate zinc ions
- Involved in DNA and RNA binding, protein-protein interactions
- Found in many transcription factors and regulatory proteins
- Can be engineered for targeted gene editing and regulation
Coiled-coil
- Consists of two or more alpha helices wound around each other
- Provides structural stability and mediates protein-protein interactions
- Found in diverse proteins (cytoskeletal proteins, transcription factors)
- Can be designed for creating novel protein assemblies and biomaterials
Protein domains
- Protein domains are distinct functional and structural units within proteins
- Critical for understanding protein evolution and function in bioinformatics
- Analyzing protein domains aids in predicting protein interactions and designing modular proteins
Functional units
- Independently folding regions with specific biochemical functions
- Can be conserved across different proteins and species
- Often associated with particular binding or catalytic activities
- Can be shuffled or duplicated during protein evolution
Domain classification systems
- Organize protein domains based on structure, function, or evolutionary relationships
- Include databases like SCOP (Structural Classification of Proteins) and Pfam (Protein Families)
- Aid in predicting protein function and identifying conserved features
- Facilitate comparative genomics and protein annotation
Multi-domain proteins
- Contain two or more distinct domains within a single polypeptide chain
- Allow for diverse and complex protein functions
- Often result from gene fusion events during evolution
- Can exhibit domain-domain interactions and allosteric regulation
Structural determination methods
- Structural determination methods reveal the three-dimensional architecture of proteins
- Essential for understanding protein function and designing targeted interventions in bioinformatics
- Analyzing protein structures aids in drug discovery and protein engineering efforts
X-ray crystallography
- Provides high-resolution structures of crystallized proteins
- Utilizes X-ray diffraction patterns to determine atomic positions
- Requires protein crystallization, which can be challenging for some proteins
- Yields static structures that may not capture protein dynamics
NMR spectroscopy
- Allows for structure determination of proteins in solution
- Provides information on protein dynamics and flexibility
- Limited by protein size and concentration requirements
- Can be used to study protein-ligand interactions and conformational changes
Cryo-electron microscopy
- Enables visualization of large protein complexes and membrane proteins
- Preserves proteins in a near-native state through rapid freezing
- Allows for studying multiple conformational states
- Has undergone recent advances, achieving near-atomic resolution
Protein structure prediction
- Protein structure prediction aims to determine 3D structure from
- Critical for understanding protein function when experimental structures are unavailable
- Combines bioinformatics, physics-based modeling, and
Homology modeling
- Predicts protein structure based on known structures of related proteins
- Relies on the principle that similar sequences adopt similar structures
- Accuracy depends on the degree of sequence similarity and template quality
- Widely used for predicting structures of proteins with homologous templates
Ab initio methods
- Predict protein structure from sequence alone, without relying on known structures
- Based on physical principles and energy minimization
- Computationally intensive and limited to smaller proteins
- Can provide insights into novel protein folds and design
Machine learning approaches
- Utilize large datasets of known protein structures to train predictive models
- Include methods like AlphaFold, which has achieved remarkable accuracy
- Can integrate multiple sources of information (sequence, evolutionary data, physicochemical properties)
- Rapidly advancing field with potential to revolutionize structural biology and drug discovery
Structure-function relationships
- Structure-function relationships link protein architecture to biological activity
- Essential for understanding protein mechanisms and designing targeted interventions in bioinformatics
- Analyzing structure-function relationships aids in drug discovery and protein engineering
Active sites
- Specific regions within proteins where catalytic or binding activities occur
- Often located in clefts or pockets on the protein surface
- Composed of key residues that facilitate chemical reactions or ligand binding
- Can be targets for drug design and enzyme engineering
Allosteric sites
- Regions distinct from active sites that modulate protein function
- Binding of molecules to can alter protein conformation and activity
- Important for regulation of protein function and signal transduction
- Can be exploited for developing allosteric drugs with improved specificity
Protein-protein interactions
- Involve specific interfaces between two or more proteins
- Mediate diverse cellular processes (signaling, complex formation, regulation)
- Often characterized by complementary surfaces and specific residue interactions
- Can be targets for therapeutic intervention and protein engineering
Protein misfolding
- Protein misfolding occurs when proteins adopt incorrect three-dimensional structures
- Critical area of study in bioinformatics for understanding disease mechanisms and developing therapies
- Analyzing protein misfolding aids in designing strategies to prevent or reverse pathological protein aggregation
Causes of misfolding
- Genetic mutations altering the primary sequence
- Environmental stress (heat shock, oxidative stress)
- Errors in protein synthesis or post-translational modifications
- Disruption of cellular protein quality control mechanisms
Consequences in disease
- Formation of toxic protein aggregates (amyloid fibrils, inclusion bodies)
- Loss of protein function or gain of toxic function
- Associated with neurodegenerative disorders (Alzheimer's, Parkinson's)
- Can lead to cellular stress and activation of unfolded protein response
Chaperone proteins
- Assist in proper protein folding and prevent aggregation
- Include heat shock proteins (HSPs) and chaperonins
- Can refold misfolded proteins or target them for degradation
- Potential therapeutic targets for protein misfolding diseases
Structural bioinformatics tools
- Structural bioinformatics tools analyze and predict protein structures and functions
- Essential for integrating structural data with other biological information in bioinformatics
- Understanding these tools aids in drug discovery, protein engineering, and functional genomics
Protein structure databases
- Store and organize experimentally determined protein structures
- Include resources like the Protein Data Bank (PDB) and SWISS-MODEL Repository
- Provide standardized formats for structural data (PDB files)
- Enable large-scale analysis of protein structures and evolution
Visualization software
- Allow for interactive exploration and analysis of protein structures
- Include programs like PyMOL, Chimera, and VMD
- Support various rendering modes and structural analysis features
- Aid in communicating structural information and generating publication-quality images
Structure analysis algorithms
- Perform computational analysis of protein structures and sequences
- Include tools for structure alignment, pocket detection, and electrostatic calculations
- Aid in identifying functional sites, predicting protein-protein interactions, and analyzing protein dynamics
- Integrate structural information with other biological data for comprehensive analysis
Key Terms to Review (41)
Ab initio methods: Ab initio methods refer to computational techniques used to predict protein structures based solely on the physical principles of quantum mechanics and statistical mechanics, without relying on empirical data from previously known structures. These methods aim to calculate the energy and conformation of proteins directly from their amino acid sequences, thus enabling the modeling of protein folding and interactions in a theoretical framework. They are essential for understanding protein function and how specific structures influence biological processes.
Active site: The active site is the specific region of an enzyme where substrate molecules bind and undergo a chemical reaction. This region is crucial for the enzyme's catalytic function, allowing it to convert substrates into products by lowering the activation energy required for the reaction to occur. The shape and chemical environment of the active site are tailored to facilitate specific interactions with substrates, reflecting the relationship between protein structure and function.
Allosteric sites: Allosteric sites are specific regions on a protein, distinct from the active site, where molecules can bind to induce a conformational change that affects the protein's activity. These sites play a crucial role in regulating protein function and are key in understanding how proteins interact with ligands and other molecules to perform their biological roles.
Alpha helix: An alpha helix is a common structural motif in proteins, characterized by a right-handed coil where the amino acid residues are arranged in a helical pattern stabilized by hydrogen bonds. This structure plays a critical role in determining a protein's overall shape and function, and it's essential to understand its formation, stability, and interactions with other structural elements.
Amino acid sequence: An amino acid sequence is the specific order of amino acids in a polypeptide chain, which ultimately determines the protein's structure and function. This sequence is dictated by the genetic code and is critical for the proper folding and activity of proteins, influencing their interactions and biological roles within organisms.
Beta sheet: A beta sheet is a common structural motif in proteins, characterized by the arrangement of beta strands that are connected by hydrogen bonds, forming a sheet-like structure. These sheets can be parallel or antiparallel based on the orientation of the strands and play a crucial role in stabilizing protein structures by providing strength and flexibility. The presence of beta sheets is essential for understanding protein folding, structure prediction, and alignment techniques.
Beta-barrel: A beta-barrel is a protein structure characterized by a cylindrical arrangement of beta sheets that are rolled up into a barrel-like shape. This unique configuration allows for the formation of a central pore, making beta-barrels important in membrane proteins, where they facilitate the transport of molecules across cell membranes.
C-terminus: The c-terminus, or carboxyl terminus, refers to the end of a protein or polypeptide chain that contains a free carboxyl group (-COOH). This end plays a crucial role in determining the protein's structure and function, as it interacts with various molecules and can influence folding and stability. The c-terminus is important for post-translational modifications, which can affect protein activity and interactions.
Chaperone Proteins: Chaperone proteins are specialized molecules that assist in the proper folding and assembly of proteins, ensuring they achieve their functional three-dimensional structure. They play a critical role in maintaining cellular health by preventing misfolded proteins that can lead to diseases. Chaperones facilitate the correct folding process by binding to nascent polypeptides, stabilizing unfolded states, and sometimes guiding the refolding of denatured proteins.
Coiled-coil: A coiled-coil is a structural motif in proteins characterized by two or more alpha-helices that twist around each other to form a stable, elongated structure. This arrangement is often involved in protein-protein interactions and plays a crucial role in the formation of multi-subunit complexes, allowing for diverse biological functions within the cell.
Cryo-electron microscopy: Cryo-electron microscopy is a powerful imaging technique that allows scientists to visualize the structures of biomolecules at near-atomic resolution by rapidly freezing samples and examining them with an electron microscope. This method provides valuable insights into protein structures, enabling researchers to observe proteins in their native state without the need for crystallization, which is often a significant barrier in structural biology.
Denaturation: Denaturation is the process where proteins lose their native structure due to the disruption of weak chemical bonds and interactions, which can be caused by factors such as heat, pH changes, or chemical agents. This alteration in structure often results in a loss of function, as the specific shape of a protein is crucial for its biological activity. Understanding denaturation is essential for grasping how protein structure relates to its function and how various environmental conditions can impact this delicate balance.
Disulfide Bridges: Disulfide bridges are covalent bonds formed between the sulfur atoms of two cysteine amino acids in a protein, playing a crucial role in stabilizing protein structure. These bonds help maintain the integrity of a protein's three-dimensional shape, which is essential for its biological function. The formation of disulfide bridges can occur in both intracellular and extracellular environments, influencing protein stability under various conditions.
Domain classification systems: Domain classification systems are frameworks used to categorize and organize proteins based on their structural and functional characteristics. This classification is crucial for understanding the relationships among proteins, predicting their functions, and identifying evolutionary connections. The systems utilize various levels of protein structure, including primary, secondary, tertiary, and quaternary structures, to establish these classifications.
Folding patterns: Folding patterns refer to the specific three-dimensional arrangements of polypeptide chains in proteins, which are essential for their function and stability. These patterns arise from the interactions between amino acids and are influenced by various forces, including hydrogen bonding, hydrophobic interactions, and van der Waals forces. Proper folding is crucial because misfolded proteins can lead to diseases such as Alzheimer's or cystic fibrosis.
Functional Units: Functional units refer to distinct regions or domains within proteins that carry out specific tasks or contribute to the overall function of the protein. These units can be individual substructures, like active sites or binding domains, that facilitate particular biochemical activities, often working in concert with other functional units to enable the protein's role in cellular processes. Understanding functional units is crucial for grasping how proteins interact with other molecules and how their structures relate to their functions.
Glycosylation: Glycosylation is a biochemical process where carbohydrate molecules, known as glycans, are covalently attached to proteins or lipids. This modification plays a crucial role in the proper folding and stability of proteins, impacting their functionality, localization, and interactions within biological systems.
Homology Modeling: Homology modeling is a computational technique used to predict the three-dimensional structure of a protein based on its similarity to one or more known protein structures. This method is particularly useful when the target protein's structure has not yet been experimentally determined, allowing researchers to infer its structure from related proteins, thereby connecting sequence information to functional predictions and drug design.
Hydrogen bonding patterns: Hydrogen bonding patterns refer to the specific arrangements and interactions of hydrogen bonds between molecules or within a single molecule. These patterns are crucial for determining the three-dimensional structure and stability of proteins, impacting how they fold and function in biological processes.
Hydrophobic interactions: Hydrophobic interactions refer to the tendency of nonpolar molecules to aggregate in aqueous solutions to minimize their exposure to water. This phenomenon is crucial in the folding and stability of proteins, as well as their interactions with other molecules, impacting overall biological function.
Machine learning approaches: Machine learning approaches refer to computational techniques that enable computers to learn from and make predictions or decisions based on data, without being explicitly programmed. These methods are essential for analyzing complex biological data, particularly in understanding how protein structures relate to their functions, the hierarchical levels of protein organization, and the roles of non-coding RNAs in cellular processes.
Multi-domain proteins: Multi-domain proteins are proteins that consist of two or more distinct structural or functional regions, known as domains, which are connected by flexible linkers. These domains often allow the protein to perform various functions and participate in different biological processes, reflecting the complexity of protein structure and function across different levels. The arrangement and interactions of these domains can greatly influence the protein's stability, activity, and regulatory mechanisms.
N-terminus: The n-terminus refers to the end of a protein or peptide chain that has a free amino group (-NH2). This is the starting point for protein synthesis, where amino acids are added during translation. The n-terminus is crucial for the proper functioning of proteins as it can affect the overall structure and interactions of the molecule.
NMR Spectroscopy: NMR spectroscopy, or nuclear magnetic resonance spectroscopy, is a powerful analytical technique used to determine the structure and dynamics of molecules, particularly proteins and nucleic acids. It exploits the magnetic properties of certain atomic nuclei, providing detailed information about the molecular environment and interactions at an atomic level, making it essential for understanding protein structure and function, analyzing interactions with ligands, and aiding in drug design.
Oligomerization: Oligomerization is the process by which individual protein subunits come together to form a larger, more complex structure known as an oligomer. This process is crucial in the formation of functional proteins, as many proteins require oligomerization to achieve their active form. The interaction and arrangement of these subunits can significantly influence a protein's stability, functionality, and interactions with other biomolecules.
Peptide bonds: Peptide bonds are the covalent linkages that connect amino acids in a protein chain, forming the backbone of proteins. These bonds are formed through a dehydration reaction, where the carboxyl group of one amino acid reacts with the amino group of another, releasing a molecule of water. The formation and stability of peptide bonds are crucial for determining the structure and function of proteins, influencing their biological roles and interactions.
Phosphorylation: Phosphorylation is the biochemical process of adding a phosphate group to a molecule, typically a protein, which can significantly alter the molecule's function and activity. This modification plays a crucial role in regulating various cellular processes, including signal transduction, enzyme activity, and protein interactions. Phosphorylation can lead to conformational changes in proteins, impacting their structure and function at different levels.
Primary Structure: Primary structure refers to the specific sequence of amino acids in a protein, which is determined by the genetic code. This linear arrangement is crucial as it dictates how the protein will fold into its higher-level structures and ultimately influence its function. The order of these amino acids can significantly affect the protein's stability, activity, and interactions with other molecules.
Protein complexes: Protein complexes are assemblies of two or more protein molecules that interact with one another to perform specific biological functions. These complexes can range from simple dimers to large multi-subunit structures and play critical roles in cellular processes such as signal transduction, enzyme activity, and structural support. Understanding protein complexes is essential for studying how proteins interact and function together in living organisms.
Protein domains: Protein domains are distinct structural and functional units within a protein that can evolve, fold, and function independently of the rest of the protein chain. These domains often correspond to specific functions or interactions, allowing proteins to perform a variety of roles in biological processes. Understanding protein domains is crucial for both genome annotation and deciphering the levels of protein structure since they provide insight into the organization and functionality of proteins.
Protein subunits: Protein subunits are the individual polypeptide chains that come together to form a complete protein structure. These subunits can exist independently or may assemble with other subunits to create larger, more complex protein structures, contributing to the functionality of proteins in biological systems. Understanding protein subunits is crucial because they play a significant role in determining the overall three-dimensional shape and function of a protein.
Protein-protein interactions: Protein-protein interactions refer to the various ways in which proteins bind and communicate with one another to perform biological functions. These interactions are critical for numerous cellular processes, including signal transduction, immune responses, and the regulation of metabolic pathways. Understanding how proteins interact provides insights into cellular mechanisms and can help identify potential targets for drug development.
Quaternary Structure: Quaternary structure refers to the complex arrangement of multiple polypeptide chains or subunits that come together to form a functional protein. This level of protein structure is crucial because it determines how proteins interact and function in biological processes, impacting their overall stability and activity. Understanding quaternary structure is vital for studying protein interactions, their functions, and for predicting how changes in this structure can lead to various diseases.
Random coils: Random coils are a type of protein secondary structure that lack a defined shape or organization, resulting from flexible segments of polypeptide chains. These structures can play significant roles in protein function, influencing molecular interactions and the overall dynamics of protein folding. They are important for understanding how proteins behave in various environments and their interactions with other biomolecules.
Salt Bridges: Salt bridges are non-covalent interactions that occur between oppositely charged side chains of amino acids in a protein. These interactions play a crucial role in stabilizing the tertiary and quaternary structures of proteins, affecting their overall shape and function. By providing additional points of attraction between different parts of a protein, salt bridges help maintain structural integrity and influence protein folding.
Secondary structure: Secondary structure refers to the local folding patterns of a protein that are stabilized by hydrogen bonds between the backbone atoms. Common types of secondary structures include alpha helices and beta sheets, which play crucial roles in determining the overall shape and function of proteins, impacting their interactions and biological activities.
Structural Motifs: Structural motifs are recurring patterns or arrangements of amino acids within proteins that contribute to their overall shape and function. These motifs play a critical role in stabilizing protein structures and can often be associated with specific functions, such as binding sites or catalytic activity. Understanding structural motifs helps in analyzing how proteins fold and how they interact with other molecules.
Structure-function relationship: The structure-function relationship refers to the concept that the specific structure of a biological molecule determines its function within a living organism. This principle is crucial in understanding how proteins, nucleic acids, and other biomolecules operate, with their unique three-dimensional shapes directly influencing their roles in biological processes.
Tertiary structure: Tertiary structure refers to the overall three-dimensional shape of a protein that is formed by the folding of its secondary structures, such as alpha helices and beta sheets, into a compact, functional form. This structure is crucial because it determines how the protein interacts with other molecules and performs its biological functions, linking it to aspects like protein function prediction and structure databases.
X-ray crystallography: X-ray crystallography is a powerful analytical technique used to determine the atomic and molecular structure of a crystal by diffracting X-ray beams through it. This method allows scientists to visualize the arrangement of atoms in proteins and other biological macromolecules, making it essential for understanding their structure and function.
Zinc finger: A zinc finger is a small protein structural motif characterized by the coordination of one or more zinc ions to stabilize the fold. This unique structure allows zinc fingers to play crucial roles in protein-DNA interactions, often functioning as transcription factors that bind to specific DNA sequences to regulate gene expression.
