12.3 Rainbows and halos
10 min read•august 21, 2024
Rainbows and halos are captivating optical phenomena that occur when light interacts with and in the atmosphere. These effects reveal fascinating insights into the behavior of light, atmospheric conditions, and the properties of airborne particles.
By studying rainbows and halos, we can uncover valuable information about atmospheric composition, particle size distributions, and upper-air conditions. These phenomena serve as natural tools for investigating atmospheric optics and provide a gateway to understanding complex light-matter interactions in Earth's atmosphere.
Formation of rainbows
- Rainbows form through complex interactions between sunlight and water droplets in the atmosphere
- Understanding rainbow formation provides insights into light behavior, atmospheric optics, and meteorological conditions
- Atmospheric Physics explores these phenomena to deepen our comprehension of Earth's atmosphere and its optical properties
Refraction and reflection
Top images from around the web for Refraction and reflection
Dispersion: The Rainbow and Prisms | Physics View original
Is this image relevant?
Dispersion: The Rainbow and Prisms · Physics View original
Is this image relevant?
Reflection, Refraction, and Dispersion | Boundless Physics View original
Is this image relevant?
Dispersion: The Rainbow and Prisms | Physics View original
Is this image relevant?
Dispersion: The Rainbow and Prisms · Physics View original
Is this image relevant?
1 of 3
Top images from around the web for Refraction and reflection
Dispersion: The Rainbow and Prisms | Physics View original
Is this image relevant?
Dispersion: The Rainbow and Prisms · Physics View original
Is this image relevant?
Reflection, Refraction, and Dispersion | Boundless Physics View original
Is this image relevant?
Dispersion: The Rainbow and Prisms | Physics View original
Is this image relevant?
Dispersion: The Rainbow and Prisms · Physics View original
Is this image relevant?
1 of 3

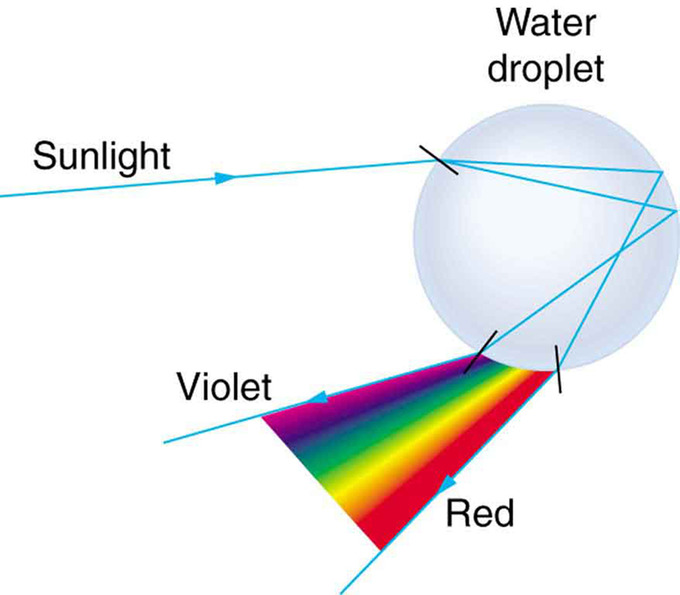

- Light rays enter water droplets and undergo bending toward the normal
- Internal occurs at the back of the droplet redirecting light
- Rays exit the droplet refracting away from the normal
- Multiple refractions and reflections create the rainbow's circular shape
Dispersion of light
- White sunlight separates into its component colors due to wavelength-dependent refraction
- Shorter wavelengths (blue, violet) bend more than longer wavelengths (red, orange)
- produces the characteristic rainbow spectrum (ROYGBIV)
- Angle of deviation varies for each color creating the spread of hues
Primary vs secondary rainbows
- forms from one internal reflection within water droplets
- results from two internal reflections
- Color order reverses in secondary rainbows (violet on top, red on bottom)
- Alexander's dark band appears between primary and secondary rainbows due to ray geometry
Viewing angle requirements
- Rainbows always appear opposite the sun relative to the observer
- Primary rainbow forms at approximately 42° from the antisolar point
- Secondary rainbow appears at about 51° from the antisolar point
- Observer must be positioned with sun behind them to see a rainbow
Rainbow characteristics
- Rainbow features result from complex interactions between light, water droplets, and atmospheric conditions
- Studying these characteristics enhances our understanding of atmospheric optics and light behavior
- Atmospheric Physics utilizes rainbow properties to investigate atmospheric composition and dynamics
Color sequence
- Traditional rainbow displays colors in ROYGBIV order (red, orange, yellow, green, blue, indigo, violet)
- Color purity and distinctness vary based on droplet size and atmospheric conditions
- can appear below the primary bow adding extra color bands
- Color intensity changes with viewing angle and sun position
Angular size
- Primary rainbow spans approximately 42° from the antisolar point
- Secondary rainbow covers about 51° from the antisolar point
- Angular size remains constant regardless of observer distance from the rainbow
- Higher sun elevations produce smaller, lower arcs while lower sun positions create larger, higher arcs
Intensity variations
- Brightness varies across the rainbow due to different scattering angles
- Primary rainbow appears brighter than the secondary rainbow
- Intensity peaks near the red end of the spectrum
- Factors affecting intensity include droplet size, sun angle, and atmospheric conditions
Polarization effects
- Light in rainbows becomes partially polarized during refraction and reflection
- Polarization direction varies across the rainbow arc
- Strongest polarization occurs perpendicular to the rainbow arc
- Polarization effects can be observed using polarizing filters or specialized equipment
Types of rainbows
- Various rainbow types occur under different atmospheric and lighting conditions
- Studying these variations provides insights into atmospheric composition and optical phenomena
- Atmospheric Physics explores these rainbow types to better understand light-matter interactions in the atmosphere
Supernumerary bows
- Appear as faint, pastel-colored bands below the primary rainbow
- Result from interference between light waves within water droplets
- More prominent with smaller, uniformly-sized water droplets
- Spacing between supernumerary bows depends on droplet size
Fogbows
- Form in fog or mist with very small water droplets
- Appear as a white or faintly colored bow due to diffraction effects
- Often seen in mountainous or coastal areas with frequent fog
- Smaller angular size compared to typical rainbows
Moonbows
- Produced by moonlight rather than sunlight
- Appear fainter and less colorful than solar rainbows due to lower light intensity
- Best observed during full moon periods with clear, dark skies
- Human eyes may perceive as white or gray due to low light conditions
Double rainbows
- Consist of a primary and secondary rainbow appearing simultaneously
- Secondary bow forms above the primary with reversed color order
- Alexander's dark band separates the two bows
- Brightness ratio between primary and secondary bows approximately 1:1/40
Halo phenomena
- Halos form through interactions between light and ice crystals in the atmosphere
- These optical effects provide valuable information about upper atmospheric conditions
- Atmospheric Physics studies halo phenomena to investigate cirrus cloud properties and ice crystal formation
Ice crystal optics
- act as prisms refracting and reflecting light
- Crystal orientation and shape determine the type of halo produced
- Minimum deviation angle of 22° creates the common circular halo
- Complex crystal geometries lead to various halo types and optical effects
22-degree halo
- Most common halo type observed around the sun or moon
- Forms a complete circle with an angular radius of approximately 22°
- Inner edge appears reddish while the outer edge appears bluish
- Brightness varies around the halo due to scattering angle differences
Sundogs and parhelia
- Bright spots of light appearing on either side of the sun
- Form when light refracts through horizontally-oriented plate crystals
- Often display prismatic colors with red closest to the sun
- can occur with or without a visible
Circumzenithal arcs
- Appear as upside-down rainbows high in the sky
- Form when light enters the top face of horizontal plate crystals and exits through a side face
- Most vivid when the sun is low on the horizon (elevation < 32°)
- Often mistaken for unusual rainbow phenomena
Atmospheric conditions
- Specific atmospheric conditions influence the formation and appearance of optical phenomena
- Understanding these conditions helps predict and analyze atmospheric optical effects
- Atmospheric Physics examines the relationship between atmospheric properties and observed optical phenomena
Water droplet size
- Affects rainbow brightness color purity and the presence of supernumerary bows
- Smaller droplets (< 0.5 mm) produce broader less vivid rainbows
- Larger droplets (> 1 mm) create narrower more intense rainbows
- Optimal droplet size for vivid rainbows ranges from 0.5 to 1 mm in diameter
Ice crystal shape
- Determines the type and characteristics of halo phenomena
- Hexagonal plates produce sundogs and parhelia
- Hexagonal columns create vertical pillars and tangent arcs
- Complex crystal shapes (bullet rosettes) lead to rare halo types
Sun elevation angle
- Influences rainbow height and arc length
- Lower sun angles produce higher fuller rainbow arcs
- Higher sun angles result in lower flatter rainbow arcs
- Critical angle of 42° determines maximum rainbow visibility
Aerosol effects
- Impact and absorption in the atmosphere
- High aerosol concentrations can reduce rainbow visibility and color intensity
- Certain aerosols may enhance sky brightness affecting contrast
- Aerosol size distribution influences the appearance of and
Observation techniques
- Various methods enable detailed study and analysis of atmospheric optical phenomena
- These techniques provide valuable data for atmospheric research and modeling
- Atmospheric Physics utilizes advanced observation methods to investigate complex optical effects
Photography methods
- High dynamic range (HDR) imaging captures full intensity range of rainbows
- Polarizing filters enhance contrast and reveal polarization effects
- Wide-angle lenses allow capture of full rainbow arcs
- Time-lapse photography records temporal changes in optical phenomena
Spectral analysis
- Spectrometers measure precise wavelength distribution in rainbows and halos
- Hyperspectral imaging provides detailed spatial and spectral information
- reveals atmospheric composition and particle size distribution
- Raman identifies molecular species in atmospheric particles
Polarimetry measurements
- Polarimeters quantify degree and orientation of light polarization
- Imaging polarimetry maps polarization across entire optical phenomena
- Polarization data provides information on particle shape and orientation
- Helps distinguish between water droplets and ice crystals in mixed-phase clouds
Time-lapse observations
- Record temporal evolution of rainbows halos and related phenomena
- Reveal changes in intensity color and structure over time
- Aid in understanding atmospheric dynamics and particle motion
- Useful for studying short-lived or rapidly changing optical effects
Mathematical modeling
- Mathematical models simulate and predict atmospheric optical phenomena
- These models enhance our understanding of light-matter interactions in the atmosphere
- Atmospheric Physics employs advanced modeling techniques to investigate complex optical effects
Ray tracing algorithms
- Simulate light paths through water droplets and ice crystals
- Account for multiple internal reflections and refractions
- Predict rainbow and halo geometries based on particle properties
- Enable visualization of complex optical paths within atmospheric particles
Mie scattering theory
- Describes light scattering by spherical particles (water droplets)
- Accounts for particle size wavelength and refractive index
- Predicts scattering intensity and angular distribution
- Explains rainbow intensity variations and supernumerary bow formation
Airy function applications
- Models interference patterns in rainbows
- Describes intensity distribution across rainbow arcs
- Predicts spacing and intensity of supernumerary bows
- Accounts for wavelength-dependent diffraction effects
Computational simulations
- Combine multiple physical models for comprehensive predictions
- Incorporate atmospheric conditions particle distributions and light properties
- Enable study of complex phenomena (moonbows )
- Facilitate comparison between theoretical predictions and observations
Historical and cultural significance
- Rainbows and halos have played important roles in human history and culture
- Understanding their significance provides context for scientific study
- Atmospheric Physics explores the evolution of knowledge about these phenomena
Ancient explanations
- Greek philosophers (Aristotle) attempted to explain rainbow formation
- Native American tribes viewed rainbows as bridges to the spirit world
- Norse mythology depicted rainbows as Bifrost the bridge to Asgard
- Chinese folklore associated rainbows with the union of yin and yang
Artistic representations
- Rainbows frequently appear in paintings (Turner Constable)
- Medieval art often depicted halos around holy figures
- Modern artists use rainbow imagery to symbolize hope and diversity
- Photography captures and preserves ephemeral atmospheric optical phenomena
Scientific discoveries
- Descartes (1637) explained rainbow formation using geometric optics
- Newton (1666) demonstrated dispersion of white light into spectrum
- Young (1803) explained supernumerary bows using wave theory of light
- Airy (1838) developed mathematical description of rainbow intensity
Cultural symbolism
- Rainbows symbolize hope peace and new beginnings in many cultures
- LGBTQ+ community adopted rainbow flag as symbol of pride and diversity
- Some cultures associate rainbows with good fortune or divine messages
- Halos around the sun or moon often interpreted as omens or spiritual signs
Related optical phenomena
- Various atmospheric optical effects share similarities with rainbows and halos
- Studying these phenomena provides a broader understanding of atmospheric optics
- Atmospheric Physics investigates the connections between different optical effects
Glories
- Appear as circular rainbow-like rings around observer's shadow
- Form through backward scattering of light by water droplets
- Often seen from aircraft flying above clouds
- Angular size typically ranges from 5° to 20°
Coronas
- Colorful rings surrounding the sun or moon
- Result from diffraction of light by small water droplets or ice crystals
- Color sequence inverted compared to rainbows (blue on the outside)
- Size of corona inversely related to particle size
Iridescent clouds
- Display vivid pastel colors often in patchy patterns
- Form when sunlight diffracts around small uniform cloud droplets
- Colors can change rapidly as cloud shape evolves
- Most common in altocumulus lenticularis and cirrocumulus clouds
Green flash
- Brief green spot visible above the sun's upper limb at sunset or sunrise
- Caused by atmospheric refraction and dispersion of sunlight
- Requires clear skies and unobstructed view of horizon
- Duration typically less than 2 seconds
Applications and research
- Atmospheric optical phenomena provide valuable tools for scientific research
- Studying these effects contributes to various fields beyond atmospheric science
- Atmospheric Physics applies knowledge of optical phenomena to diverse research areas
Weather prediction indicators
- Rainbow and halo observations can indicate local atmospheric conditions
- Presence of halos may signal approaching warm fronts and precipitation
- Changes in rainbow characteristics can indicate shifts in air mass properties
- Optical phenomena observations complement traditional meteorological data
Remote sensing techniques
- Polarization properties of rainbows used to study aerosol characteristics
- Halo phenomena provide information about cirrus cloud microphysics
- Spectral analysis of optical phenomena reveals atmospheric composition
- Lidar systems utilize similar principles to study atmospheric structure
Climate change studies
- Long-term changes in optical phenomena frequency may indicate climate trends
- Shifts in ice crystal habits could signal changes in upper atmosphere conditions
- on rainbow properties may reflect air quality changes
- Optical phenomena observations contribute to global radiation budget studies
Exoplanet atmosphere analysis
- Rainbow-like effects (primary rainbow glories) predicted for some exoplanets
- Polarization signatures of rainbows could indicate liquid water on exoplanets
- Halo phenomena may reveal presence of ice crystals in exoplanet atmospheres
- Modeling Earth-based phenomena aids interpretation of exoplanet observations
Key Terms to Review (39)
22-degree halo: A 22-degree halo is a circular optical phenomenon that appears around the sun or moon, typically forming at an angular radius of approximately 22 degrees. It is caused by the refraction, reflection, and dispersion of light through ice crystals suspended in the atmosphere, often found in cirrus or cirrostratus clouds. This halo can create beautiful displays that enhance our perception of atmospheric conditions.
Aerosol effects: Aerosol effects refer to the impact that tiny particles suspended in the atmosphere, known as aerosols, have on climate, weather, and atmospheric processes. These particles can influence cloud formation, precipitation, and the scattering and absorption of sunlight, ultimately affecting the Earth's energy balance and climate systems.
Airy Function Applications: Airy function applications refer to the use of Airy functions, which are solutions to the differential equation known as Airy's equation. These functions are significant in atmospheric physics, particularly in understanding the behavior of light when it interacts with water droplets, leading to phenomena like rainbows and halos. They help describe how light waves bend and spread, enabling us to understand various optical effects in the atmosphere.
Angle of incidence: The angle of incidence is the angle formed between an incoming ray of light and the line perpendicular to the surface it strikes. This concept is crucial for understanding how light behaves when interacting with different mediums, which directly influences phenomena such as rainbows and halos. The angle of incidence can affect how light refracts or reflects, thereby playing a significant role in the formation and characteristics of these optical phenomena.
Angle of refraction: The angle of refraction is the angle formed between the refracted ray of light and the normal line at the interface between two different media. This angle plays a crucial role in understanding how light bends when it passes through various materials, like water or glass, which is essential for phenomena such as rainbows and halos. When light enters a new medium, its speed changes, resulting in this bending effect that creates stunning optical displays in the atmosphere.
Augustin-Jean Fresnel: Augustin-Jean Fresnel was a French engineer and physicist known for his pioneering work in the field of optics, particularly his development of the Fresnel lens. His contributions significantly advanced the understanding of light behavior, which is essential in explaining phenomena such as rainbows and halos, where light interacts with water droplets and ice crystals in the atmosphere.
Circumzenithal arcs: Circumzenithal arcs are bright, rainbow-like optical phenomena that appear in the sky, primarily created by the refraction and reflection of sunlight through ice crystals in cirrus clouds. These arcs are characterized by their unique appearance, resembling an upside-down rainbow, and they typically form when the sun is low in the sky, often around 22 degrees above the horizon. The presence of these arcs highlights the complex interactions between light and atmospheric particles, further contributing to our understanding of atmospheric optics.
Computational simulations: Computational simulations are numerical methods used to model and analyze complex systems by solving mathematical equations and algorithms on computers. They enable researchers to visualize, predict, and understand phenomena that are difficult or impossible to replicate in real life. In the context of optical phenomena like rainbows and halos, these simulations help in understanding light interactions with water droplets or ice crystals in the atmosphere.
Coronas: Coronas are optical phenomena that appear as colored rings around the sun or moon, formed by the diffraction of light through tiny water droplets or ice crystals in the atmosphere. These vibrant halos can be seen under specific atmospheric conditions and are often mistaken for halos, although they have distinct characteristics. Coronas can vary in appearance and are usually more delicate than halos, adding a stunning visual effect to the sky.
Dispersion: Dispersion is the process by which light is separated into its constituent colors when it passes through a medium, such as water or glass. This phenomenon occurs due to the varying refractive indices for different wavelengths of light, causing each color to bend at a different angle. Dispersion is essential in the formation of rainbows and halos, as it allows for the visualization of the spectrum in atmospheric conditions.
Double rainbows: Double rainbows are optical phenomena that occur when sunlight is refracted, reflected, and dispersed through water droplets in the atmosphere, resulting in two concentric arcs of color. The outer arc is usually fainter than the inner one and displays colors in reverse order due to the difference in the number of reflections that light undergoes within the water droplets.
Fogbows: Fogbows are a type of optical phenomenon that resembles a rainbow, occurring when light refracts through tiny water droplets suspended in fog. Unlike traditional rainbows, which form when light passes through larger raindrops, fogbows create a more diffuse and often paler arc due to the smaller size of the droplets. This unique formation is primarily seen in conditions of dense fog and can sometimes be accompanied by halos.
Glories: Glories are optical phenomena that appear as concentric, circular bands of color surrounding the shadow of an observer, typically seen on clouds or mist. These colorful rings are created by the diffraction of light and are closely related to rainbows and halos, offering a fascinating insight into how light interacts with water droplets in the atmosphere.
Green flash: A green flash is a rare optical phenomenon that occurs just before sunrise or just after sunset, where a brief burst of green light is visible above the horizon. This striking effect happens due to the refraction of sunlight in the Earth's atmosphere, causing the colors of light to separate and create a fleeting moment where green appears prominently. The phenomenon can often be observed from locations with clear views of the horizon, such as coastal areas.
Hexagonal ice crystals: Hexagonal ice crystals are a common form of ice that exhibits a hexagonal symmetry in their molecular structure. These crystals are formed when water vapor freezes, resulting in unique shapes that can vary from simple plates to complex dendritic forms, often influencing weather phenomena like snowflakes and the optical effects seen in halos and rainbows.
Ice crystals: Ice crystals are solid forms of water that form when water vapor in the atmosphere freezes. They are fundamental components of clouds, influencing both their physical characteristics and the processes that lead to precipitation. The formation and structure of these crystals play a crucial role in charge separation within clouds, as well as in the optical phenomena seen in rainbows and halos.
Iridescent clouds: Iridescent clouds are atmospheric phenomena characterized by the presence of vibrant, rainbow-like colors that appear in clouds due to diffraction and interference of sunlight. These colors typically manifest in thin clouds, often around the edges of cumulus or cirrus clouds, and can create stunning visual displays similar to halos and rainbows, highlighting the interaction between light and water droplets or ice crystals.
Light scattering: Light scattering is the process by which light is redirected in different directions as it interacts with particles or molecules in the atmosphere. This phenomenon plays a crucial role in the formation of optical phenomena like rainbows and halos, where the scattering of sunlight by water droplets or ice crystals results in the vibrant displays of colors and shapes we observe in the sky.
Mie Scattering Theory: Mie Scattering Theory explains how light is scattered by particles that are similar in size to the wavelength of the light. This scattering process is particularly important for understanding optical phenomena such as rainbows and halos, as it describes how larger particles, like water droplets or ice crystals in the atmosphere, can refract and scatter sunlight to produce these colorful effects.
Moonbows: Moonbows are a type of rainbow that occurs at night, created by the reflection, refraction, and dispersion of moonlight through water droplets in the atmosphere. Unlike daytime rainbows that are formed from sunlight, moonbows typically appear fainter and more colorless due to the lower intensity of moonlight. They are most often seen when the moon is nearly full and positioned low in the sky, with rain or moisture present in the air to refract the light.
Optical illusion: An optical illusion is a visually perceived image that differs from the physical reality, often created by the interplay of light, color, and perspective. These illusions can lead to a misunderstanding of what one is seeing, prompting our brains to interpret visual stimuli in ways that can sometimes deceive us. They play a significant role in understanding various atmospheric phenomena where light behaves unpredictably.
Parhelion: A parhelion, commonly known as a sundog, is a bright spot that appears on either side of the sun, typically occurring when sunlight refracts through ice crystals in the atmosphere. This phenomenon creates halos and can provide insights into atmospheric conditions. Parhelions are often seen in cold climates where cirrus or cirrostratus clouds, which contain ice crystals, are present.
Photography methods: Photography methods refer to the various techniques used to capture images of atmospheric phenomena, including rainbows and halos, through the manipulation of light and camera settings. These methods allow scientists and enthusiasts to document and analyze these optical effects, helping to improve understanding of their formation and characteristics. Effective photography techniques are essential for capturing the subtle details of atmospheric optics in different environments and lighting conditions.
Photometry: Photometry is the science of measuring visible light in terms of its perceived brightness to the human eye. It plays a crucial role in understanding various atmospheric phenomena, as it relates to how light interacts with water droplets and ice crystals, which are fundamental in the formation of optical effects like rainbows and halos.
Polarimetry measurements: Polarimetry measurements refer to the technique used to measure the polarization of light waves, which can provide valuable information about the scattering and interaction of light with atmospheric particles. This method is particularly important in understanding phenomena such as rainbows and halos, as it helps reveal how light interacts with water droplets or ice crystals in the atmosphere. By analyzing the polarization state of scattered light, scientists can gather insights into the size, shape, and concentration of particles that contribute to these optical phenomena.
Primary rainbow: A primary rainbow is a meteorological phenomenon that occurs when sunlight is refracted, reflected, and dispersed through water droplets in the atmosphere, resulting in a multicolored arc in the sky. It forms when light enters a raindrop, bends as it passes through, reflects off the inner surface, and exits, creating a spectrum of colors typically arranged in red, orange, yellow, green, blue, indigo, and violet. This process is essential to understanding how rainbows form and their visual characteristics.
Ray tracing algorithms: Ray tracing algorithms are computational techniques used to simulate the way light interacts with objects in a virtual environment by tracing the path of rays of light as they travel through space. These algorithms calculate reflections, refractions, and shadows, allowing for realistic rendering of phenomena such as rainbows and halos by analyzing how light bends and scatters in different media.
Reflection: Reflection is the change in direction of a wave, such as light or sound, when it bounces off a surface. This phenomenon is fundamental to how we perceive our environment, allowing us to see objects by reflecting light into our eyes and playing a key role in sound propagation through various media. Understanding reflection provides insights into the behavior of waves in different contexts, from the visible spectrum of light to atmospheric acoustics.
Refraction: Refraction is the bending of light as it passes from one medium to another with different densities, resulting in a change in speed and direction. This phenomenon is crucial for understanding how light interacts with various materials, impacting how we perceive solar radiation, atmospheric phenomena, and even sound. Refraction helps explain the creation of rainbows, halos, and visual illusions like mirages, while also playing a role in the propagation of sound waves through the atmosphere.
René Descartes: René Descartes was a French philosopher and mathematician from the 17th century, often referred to as the father of modern philosophy. He is well-known for his contributions to understanding optics, including the phenomena of light refraction that are essential in explaining natural occurrences like rainbows and halos, as well as mirages.
Secondary rainbow: A secondary rainbow is a fainter, outer arc of light that appears outside the primary rainbow, formed by the refraction, reflection, and dispersion of sunlight through water droplets in the atmosphere. This phenomenon occurs when light is refracted twice within a droplet before exiting, resulting in a reversal of colors compared to the primary rainbow. The secondary rainbow is typically seen when sunlight shines on water droplets after a rain shower, often in conjunction with the brighter primary rainbow.
Snell's Law: Snell's Law describes how light bends when it passes through different media, showing the relationship between the angle of incidence and the angle of refraction. This principle is crucial for understanding how light interacts with various substances, impacting phenomena like rainbows, mirages, and even sound waves in the atmosphere. By using the refractive indices of the involved materials, Snell's Law provides a mathematical framework to predict how light will travel through different environments.
Spectral analysis: Spectral analysis is a method used to study the distribution of wavelengths or frequencies in light and other forms of electromagnetic radiation. This technique helps scientists understand the composition and properties of substances by analyzing the spectrum of light they emit, absorb, or scatter. In the context of phenomena such as rainbows and halos, spectral analysis reveals how different wavelengths interact with atmospheric particles, leading to the formation of these colorful displays.
Spectroscopy: Spectroscopy is the study of the interaction between matter and electromagnetic radiation, allowing scientists to analyze the composition, structure, and properties of substances. This technique is crucial in identifying various molecules and elements in the atmosphere, as different substances absorb and emit light at specific wavelengths. By examining these wavelengths, one can uncover important details about air quality, atmospheric phenomena, and even the formation of optical effects like rainbows and halos.
Sundogs: Sundogs are bright spots that appear on either side of the sun when it is low on the horizon, caused by the refraction of sunlight through ice crystals in the atmosphere. They are part of a larger category of optical phenomena associated with halos, which are also created by the interaction of light with ice crystals. Sundogs typically appear as two distinct bright spots that can occur simultaneously with halos, creating a visually striking effect in the sky.
Supernumerary bows: Supernumerary bows are additional, closely spaced rainbow arcs that appear on the inner edge of a primary rainbow. These bows are caused by the interference of light waves that have been refracted and reflected within raindrops, resulting in a series of faint, colorful arcs that complement the main rainbow. They showcase the wave nature of light and provide insight into optical phenomena associated with atmospheric conditions.
Time-lapse observations: Time-lapse observations are a technique used to capture a sequence of images or data over an extended period, which are then played back at a faster rate to reveal changes that are not easily seen in real-time. This method is particularly valuable in studying atmospheric phenomena, as it allows for the visualization of processes such as the formation and movement of rainbows and halos. By compressing time, researchers can analyze patterns and behaviors that would otherwise be missed.
Total internal reflection: Total internal reflection is the phenomenon that occurs when a light wave traveling through a medium hits the boundary of a less dense medium at an angle greater than the critical angle, causing the light to reflect entirely back into the original medium. This effect relies on the principles of refraction and reflection, where light bends as it moves between different materials and can lead to interesting optical phenomena like rainbows and halos.
Water droplets: Water droplets are small spherical forms of liquid water that occur in the atmosphere, particularly in clouds, fog, and as precipitation. These droplets play a crucial role in various atmospheric phenomena, including charge separation within clouds and the formation of optical effects like rainbows and halos when light interacts with them.
