Scale modeling is a powerful tool in architectural acoustics, allowing architects and acousticians to predict and optimize acoustic performance before construction. By creating physical models at reduced scales, professionals can experiment with design options, materials, and configurations to achieve desired acoustic outcomes.
Scale models offer advantages over , providing a physical understanding of sound propagation and capturing complex wave phenomena. They complement digital simulations, offering validation data and insights for refining computer models. Scale modeling is particularly useful for designing concert halls, classrooms, and industrial noise control solutions.
Scale modeling overview
Scale modeling is a powerful tool in architectural acoustics used to predict and optimize the acoustic performance of spaces before they are built
Involves creating physical models of spaces at reduced scales and measuring their acoustic properties to gain insights into how sound will behave in the full-scale space
Enables architects and acousticians to experiment with different design options, materials, and configurations to achieve desired acoustic outcomes
Purposes of scale modeling
Top images from around the web for Purposes of scale modeling
Audit of Auditoriums in an Academic Setting, Ghana View original
Is this image relevant?
Detecting changes in dynamic and complex acoustic environments | eLife View original
Is this image relevant?
Audit of Auditoriums in an Academic Setting, Ghana View original
Is this image relevant?
Detecting changes in dynamic and complex acoustic environments | eLife View original
Is this image relevant?
1 of 2
Top images from around the web for Purposes of scale modeling
Audit of Auditoriums in an Academic Setting, Ghana View original
Is this image relevant?
Detecting changes in dynamic and complex acoustic environments | eLife View original
Is this image relevant?
Audit of Auditoriums in an Academic Setting, Ghana View original
Is this image relevant?
Detecting changes in dynamic and complex acoustic environments | eLife View original
Is this image relevant?
1 of 2
Predict and optimize room acoustics parameters such as reverberation time, early decay time, clarity, and sound pressure levels

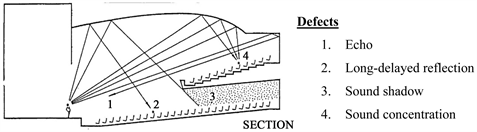

Identify potential acoustic defects like echoes, flutter echoes, or sound focusing and develop mitigation strategies
Evaluate the effectiveness of different surface materials and treatments in controlling sound reflections and absorptions
Communicate acoustic design intent to clients and stakeholders through tangible, interactive models
Advantages vs computer modeling
Provides a physical, intuitive understanding of sound propagation and interaction with room geometry and materials
Captures complex wave phenomena such as , scattering, and interference that may be difficult to simulate accurately in computer models
Allows for rapid prototyping and testing of design variations without the need for extensive computational resources
Complements computer modeling by providing validation data and insights for refining digital models
Types of scale models
Scale models can be classified based on their size relative to the full-scale space they represent
Choice of model scale depends on factors such as available space, materials, measurement equipment, and desired frequency range
Full scale models
Constructed at a 1:1 scale, representing the actual size of the space being studied
Useful for detailed investigations of critical listening environments such as recording studios, control rooms, or small performance spaces
Allow for direct measurement of acoustic parameters without the need for scaling corrections
Require significant space and resources to construct and may be limited to smaller rooms or portions of larger spaces
Reduced scale models
Built at scales smaller than 1:1, typically ranging from 1:5 to 1:50, depending on the size of the full-scale space and the desired frequency range
Enable the study of larger spaces such as concert halls, auditoriums, or outdoor environments within manageable model dimensions
Require the application of scaling laws to relate model measurements to full-scale acoustic parameters
Allow for more efficient testing of design variations and the use of scaled materials and sound sources
Scale modeling materials
Materials used in scale models must be carefully selected to reproduce the acoustic properties of full-scale materials accurately
Model materials should have similar sound absorption, , and diffusion characteristics as their full-scale counterparts when scaled appropriately
Rigid materials
Represent hard, reflective surfaces such as concrete, glass, or wood
Common rigid materials include acrylic, polystyrene, MDF, and plywood
Chosen based on their density, stiffness, and surface smoothness to ensure accurate modeling of sound reflections
Porous materials
Mimic the behavior of porous absorbers like curtains, carpets, or acoustic panels
Materials such as felt, foam, or fabric can be used in scaled thicknesses to provide the desired absorption characteristics
Porosity and flow resistivity of the materials should be considered when selecting appropriate model equivalents
Absorptive materials
Simulate the performance of specialized acoustic treatments like perforated panels, resonators, or diffusers
Can be created using perforated sheets, slotted panels, or 3D-printed structures with scaled dimensions and cavity depths
Micro-perforated materials or metal meshes may be used to achieve high absorption at high frequencies in scale models
Scaling laws and principles
Scaling laws relate the acoustic properties of the scale model to those of the full-scale space
Based on the principles of dimensional analysis and similarity, ensuring that key acoustic parameters are preserved between scales
Frequency scaling
Frequencies in the model are scaled inversely with the model scale factor
For example, in a , a 1000 Hz sound in the full-scale space would be represented by a 10,000 Hz sound in the model
Frequency scaling allows for the study of a wide range of frequencies within the practical limitations of model size and measurement equipment
Absorption scaling
Sound absorption coefficients of materials must be scaled to maintain the same absorption characteristics in the model as in the full-scale space
Absorption scaling is achieved by adjusting the thickness, porosity, or flow resistivity of model materials based on the frequency scaling factor
Proper absorption scaling ensures that the model accurately captures the effects of room surfaces on sound decay and reverberation
Air attenuation scaling
Air absorption of sound increases with frequency and humidity, and its effects must be accounted for in scale modeling
In smaller scale models (e.g., 1:10 or less), air absorption effects can often be neglected due to the short propagation distances involved
For larger scale models or higher frequency ranges, air absorption can be simulated using electronic compensation or by adjusting the humidity of the model environment
Model construction techniques
Careful construction of scale models is essential for accurate acoustic measurements and reliable results
Models should be built with attention to detail, dimensional accuracy, and surface finish to minimize unwanted reflections or scattering
Cutting and shaping
Model components are typically cut from sheets of rigid materials using laser cutters, CNC routers, or manual tools
Complex geometries may require 3D printing or molding techniques to achieve the desired shapes and details
Cutting processes should minimize surface irregularities and burrs that could affect sound reflections
Joining and assembly
Model parts are assembled using adhesives, fasteners, or interlocking joints to ensure a tight, seamless fit
Joins should be designed to minimize gaps or protrusions that could cause unwanted diffraction or scattering effects
Proper alignment and squareness of the assembled model are critical for accurate representation of the full-scale space
Surface treatments
Model surfaces may require additional treatments to achieve the desired acoustic properties
Painting, sanding, or polishing can be used to adjust the surface roughness and reflectivity of rigid materials
Porous or absorptive materials can be applied as scaled panels, sheets, or sprayed coatings to simulate the behavior of full-scale acoustic treatments
should be applied consistently and with controlled thicknesses to maintain the accuracy of the model
Measurement techniques
Acoustic measurements in scale models require specialized equipment and techniques adapted to the scaled environment
Measurement procedures should be designed to capture the relevant acoustic parameters while minimizing the influence of model boundaries and external noise
Microphone placement
Miniature or scaled microphones are used to measure sound pressure levels and impulse responses within the model
Microphone positions are chosen to sample the acoustic field at representative locations, such as audience areas, stage positions, or critical listening spots
Care must be taken to avoid placing microphones too close to surfaces or in regions of high sound pressure gradients that could affect the measurements
Sound source selection
Scaled sound sources, such as miniature speakers or spark gaps, are used to excite the model acoustically
Sound sources should have a flat over the scaled frequency range of interest and a wide directivity pattern to simulate omnidirectional sources
The location and orientation of the sound source in the model should correspond to the expected positions of sources in the full-scale space (e.g., stage, podium, or orchestra)
Data acquisition and analysis
Acoustic measurements are typically performed using a combination of scaled measurement microphones, preamplifiers, and data acquisition systems
Impulse response measurements are used to derive key acoustic parameters such as reverberation time, early decay time, clarity, and distribution
Time-windowing and frequency-domain analysis techniques are applied to the measured data to extract the desired acoustic metrics
Measurement results are then scaled back to full-scale values using the appropriate scaling laws for frequency, time, and level
Limitations of scale modeling
While scale modeling is a valuable tool in architectural acoustics, it has certain limitations that must be considered when interpreting results and making design decisions
Minimum dimensions
Scale models have a practical lower limit on the size of features that can be accurately represented
Very small details, such as surface textures or intricate geometries, may be difficult to reproduce at reduced scales
The minimum dimensions of the model should be chosen based on the desired frequency range and the capabilities of the available fabrication techniques
Maximum frequencies
The maximum frequency that can be reliably studied in a scale model is limited by the model scale factor and the dimensions of the measurement equipment
At very high frequencies, the wavelengths become comparable to the size of the model details, leading to potential inaccuracies in the measured data
The maximum usable frequency in a scale model is typically determined by the cutoff frequency of the measurement microphones and the dimensions of the sound source
Diffraction effects
Sound diffraction around objects and edges can be more pronounced in scale models due to the relatively larger size of the wavelengths compared to the model dimensions
Diffraction effects can influence the measured sound field and may require careful interpretation or correction when relating model results to full-scale performance
The use of sound-absorbing boundaries or anechoic terminations around the model can help minimize the impact of diffraction on the measurements
Applications of scale modeling
Scale modeling has a wide range of applications in architectural acoustics, from the design of performance spaces to the optimization of noise control solutions
Concert hall acoustics
Scale models are extensively used in the design and optimization of concert halls, opera houses, and other performance venues
Models allow for the evaluation of different room shapes, seating layouts, and surface treatments to achieve the desired acoustic conditions for musical performances
Parameters such as reverberation time, early reflections, and sound clarity can be studied and optimized using scale model measurements
Classroom acoustics
Scale modeling can be applied to the design of classrooms, lecture halls, and other educational spaces to ensure good speech intelligibility and minimize noise distractions
Models can be used to evaluate the effectiveness of different room geometries, seating arrangements, and acoustic treatments in providing a suitable learning environment
Metrics such as speech transmission index (STI) and background noise levels can be assessed using scale model measurements
Industrial noise control
Scale models can be employed in the development of noise control solutions for industrial facilities, power plants, or transportation systems
Models of machinery enclosures, barriers, or sound-absorbing treatments can be tested to optimize their acoustic performance before full-scale implementation
The effectiveness of different noise mitigation strategies can be compared and refined based on scale model results, leading to more efficient and cost-effective solutions
Interpreting scale model results
The interpretation of scale model measurements requires a clear understanding of the scaling laws, measurement techniques, and potential limitations involved
Extrapolation to full scale
Acoustic parameters measured in the scale model must be extrapolated to their full-scale equivalents using the appropriate scaling factors for frequency, time, and level
The extrapolation process should account for any frequency-dependent effects, such as air absorption or material properties, that may influence the full-scale performance
Confidence intervals or uncertainty estimates should be provided along with the extrapolated results to indicate the reliability of the predictions
Comparison with computer models
Scale model results can be compared with computer simulations of the same space to assess the accuracy and limitations of both methods
Discrepancies between scale model measurements and computer predictions can help identify areas where the models need refinement or where additional measurements are required
A combination of scale modeling and computer simulation can provide a more comprehensive understanding of the acoustic behavior of a space and increase the confidence in the design decisions
Validation with field measurements
Whenever possible, scale model predictions should be validated against field measurements in the actual built space
Validation studies help assess the accuracy of the scale modeling process and identify any factors that may have been overlooked or misrepresented in the model
Successful validation of scale model results increases the credibility of the method and enhances the trust in its application for future projects
