Reversible Reactions

Welcome to the introduction to ! is an incredibly important topic both for the AP exam and for chemistry in general. takes what you know about reactions from unit 4 and unit 5 and expands it into the realm of . That is reactions that can go both forward (reactants turning into products) and backward (products turning into reactants) at the same time. This unit will focus on describing how reactions can do this and to what extent they do.

https://firebasestorage.googleapis.com/v0/b/fiveable-92889.appspot.com/o/images%2F-Hk8AmFLJoMn6.gif?alt=media&token=0531beb0-cd3a-4047-b31e-ae97cd762f28

Image From GIPHY

Many observable processes in nature are reversible, such as:

  • The evaporation and condensation of water; H₂O(l) ⇌ H₂O(g)

  • The dissolution and precipitation of a salt; NH₄Cl(s) ⇌ NH₄⁺(aq) + Cl⁻(aq)

  • Acid-base reactions; H₂CO₃ + HCO₃⁻ ⇌ H₂O + CO₂

  • Redox reactions; Zn + Cu²⁺ ⇌ Zn²⁺ + Cu

All of these reactions can go back and forth, forming both products and reactants.

Arrows in Chemistry

The concept of introduces a new arrow that you can use: the (⇌). This symbol is used in a chemical equation of a reversible reaction and also indicates a system in , which we will discuss soon.

When you are completing the free-response questions on the AP Chemistry exam, make sure you are using the right arrow:

  • The single arrow shows a reaction proceeding in one direction (→)

  • The shows a reversible reaction at (⇌)

What Is Equilibrium?

Let’s begin by asking the question, “what even is ?” In most textbooks, is defined as the point in a reaction where the rate of the is equal to the rate of the . Let’s break this down a bit.

Suppose we have a reaction in which A, a reactant, is turned into B, a product. As concentrations of A decrease, the rate of reaction A → B will decrease. However, there will be a secondary reaction occurring simultaneously, that being the reaction B → A as concentrations of B build up. In many instances, this second reaction is incredibly slow and does not happen much. However, in many other instances, this second reaction is actually the driving reaction. We’ll talk a bit more about how to measure how “far forward” a reaction goes by using constants.

Going back to arrows, we can represent the two reactions by using a on the reaction A → B to describe that this reaction is reversible: A ⇌ B. This notation tells us that this reaction will settle at an . Now that we’ve covered that, we’re ready to dive more into how the rates of these two reactions relate.

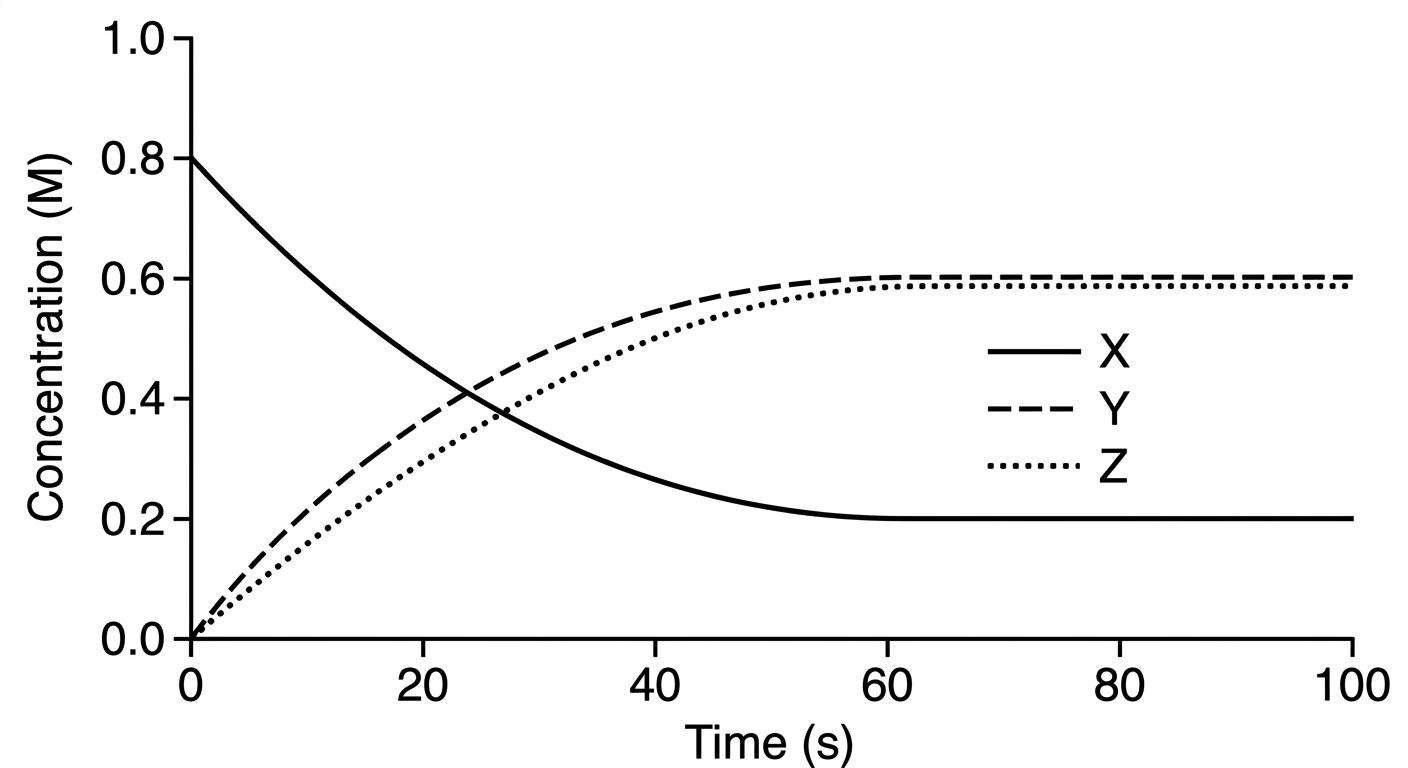

Representing Equilibrium Graphically

As we mentioned before, is the point at which the and reverse reactions continue at the same rate. At this point, the production of products equals the production of reactants and so concentrations of the two remain the same. The below graphic shows us what happens at :

https://firebasestorage.googleapis.com/v0/b/fiveable-92889.appspot.com/o/images%2F-ZGbyuG5422TM.png?alt=media&token=1cbf735b-7bac-43c7-9d78-fd283b93bf87

Image From LibreTexts

In this example, we have the reaction H₂+I₂ ⇌ 2HI. We have two reactions each occurring at different rates, one being the and the other being the . However, note the point at which the two become the same. That area is called the . At this point, the rate at which products are created equals the rate at which reactants are created and therefore the concentrations present in your reaction are equal. It’s important to note that doesn’t mean the concentrations themselves are the same, but rather just the rates of each reaction.

A Closed System

can only occur in a closed system, which is a system that does not exchange matter or energy with its surroundings. This is because in a , the concentrations of reactants and products are fixed and cannot change. The only way for the concentrations to change is through the forward and reverse reactions. As the forward and reverse reactions proceed, the concentrations of the reactants and products change until they reach a state where the rate of the is equal to the rate of the .

https://firebasestorage.googleapis.com/v0/b/fiveable-92889.appspot.com/o/images%2F-kces4v7ZLtil.png?alt=media&token=98e911f5-a841-4a9f-a15c-1e1a49989b45

Image Courtesy of Shalom Education

In an , matter and/or energy can be exchanged with the surroundings, which can affect the concentrations of the reactants and products, making it impossible for the system to reach .

Measuring Equilibrium: Kc

Now that we understand what means in terms of reaction rate, let’s discuss how we actually measure how “far forward” a reaction goes. When doing calculations with , we use the constant, K for a reaction. K describes the ratio between the rate of the and the rate of the , as well as the ratio between the concentrations of products and reactants. If we have the reversible reaction A ⇌ B, we can describe how far forward this reaction goes before by writing out the for the forward and reverse reactions:

A → B ⇒ R = k₁[A]

B → A ⇒ R = k₂[B]

At , k₁[A] = k₂[B]. We can describe the ratio k₁/k₂ as a representation of how far forward the product-creating reaction goes vs. how far forward the reactant-creating reaction goes. We can also represent this value as [B]/[A] where [B] and [A] are the concentrations of B and A at . This value is known as Kc or sometimes simply K. The formula for K is as follows:

https://firebasestorage.googleapis.com/v0/b/fiveable-92889.appspot.com/o/images%2F-m5q032AEupAr.png?alt=media&token=39dd8bfb-a433-4818-9c70-fa8effcf393e

Image From ScienceAid

K is a unitless value that changes based on temperature (since k1 and k2 change based on temperature). However, the initial reactant and product concentrations do NOT change K. No matter where you start a reaction (assuming constant temperature), you will find that K remains constant. This will also be true for KP which we’ll discuss next.

Measuring Equilibrium: Kp

There is another way of measuring , specifically when discussing gasses. Like we use concentrations, we can also use partial pressures to describe how many products were formed and how many reactants remain at . This value is known as Kp. Kp is the same calculation as Kc just with instead of concentrations.

In this study guide, we're focusing on what Kc and Kp conceptually represent, but later in this unit, we'll be doing some calculations with them! For now, make sure you’re comfortable understanding what they mean in a non-mathematical way as well like we’ve described here.

There is also a relationship between Kp and Kc that is described by the formula Kp= Kc(RT)^(Δn) where Δn denotes the difference in stoichiometric coefficients of the products and the stoichiometric coefficients of the reactants. This won’t be too common on the exam (in fact it probably won’t show up), but it’s nice to know!

Common Misconception: Equilibrium Stopped Reaction

Let’s close this guide out with a common misconception that students have about that hinders their understanding of as a balancing of rates. Many students believe that at the reaction stops completely. This could not be further from the truth! In fact, never “end”. is a dynamic process in which reactants are still turned into products and vice versa, not the point at which a reaction stops. What this means is that the reactants and products are constantly interconverting. The system is constantly active, but there is no observable change because concentrations remain constant.

Key Terms to Review (12)

Closed System

: A closed system allows only energy transfer but not matter between the system and its surroundings.

Double Arrow

: In chemistry notation, a double arrow indicates that a chemical reaction can proceed in both directions - it forms products from reactants but also reforms those reactants from the products.

Dynamic Process

: A dynamic process involves continuous change or progress happening over time within chemical reactions until equilibrium is reached.

Equilibrium

: Equilibrium refers to the state in which both reactants and products are present in concentrations which have no further tendency to change over time. It's when forward and reverse reactions occur at equal rates so there's no net change observed.

Equilibrium Constant (K)

: The equilibrium constant (K) is a measure of the ratio of concentrations at equilibrium for products over reactants, each raised to their stoichiometric coefficients in the balanced equation.

Equilibrium State

: An equilibrium state is reached when the rate of the forward reaction equals the rate of the reverse reaction, resulting in no net change in concentration of reactants or products over time.

Forward Reaction

: A forward reaction is the process in which reactants are converted into products.

Open System

: An open system is one in which both energy and matter can be exchanged with the surroundings.

Partial Pressures

: In a mixture of gases, each gas has a partial pressure which is the hypothetical pressure that gas would have if it alone occupied the entire volume.

Rate Laws

: Rate laws are mathematical expressions that describe how the rate of a chemical reaction depends on the concentration of each reactant.

Reverse Reaction

: A reverse reaction is the process where products break down back into their original reactants.

Reversible Reactions

: A reversible reaction is a chemical reaction where the reactants form products, which simultaneously revert back into the original reactants.

7.1 Introduction to Equilibrium

6 min readjanuary 21, 2023

Dylan Black

Dylan Black

Dalia Savy

Dalia Savy

Dylan Black

Dylan Black

Dalia Savy

Dalia Savy

Reversible Reactions

Welcome to the introduction to ! is an incredibly important topic both for the AP exam and for chemistry in general. takes what you know about reactions from unit 4 and unit 5 and expands it into the realm of . That is reactions that can go both forward (reactants turning into products) and backward (products turning into reactants) at the same time. This unit will focus on describing how reactions can do this and to what extent they do.

https://firebasestorage.googleapis.com/v0/b/fiveable-92889.appspot.com/o/images%2F-Hk8AmFLJoMn6.gif?alt=media&token=0531beb0-cd3a-4047-b31e-ae97cd762f28

Image From GIPHY

Many observable processes in nature are reversible, such as:

  • The evaporation and condensation of water; H₂O(l) ⇌ H₂O(g)

  • The dissolution and precipitation of a salt; NH₄Cl(s) ⇌ NH₄⁺(aq) + Cl⁻(aq)

  • Acid-base reactions; H₂CO₃ + HCO₃⁻ ⇌ H₂O + CO₂

  • Redox reactions; Zn + Cu²⁺ ⇌ Zn²⁺ + Cu

All of these reactions can go back and forth, forming both products and reactants.

Arrows in Chemistry

The concept of introduces a new arrow that you can use: the (⇌). This symbol is used in a chemical equation of a reversible reaction and also indicates a system in , which we will discuss soon.

When you are completing the free-response questions on the AP Chemistry exam, make sure you are using the right arrow:

  • The single arrow shows a reaction proceeding in one direction (→)

  • The shows a reversible reaction at (⇌)

What Is Equilibrium?

Let’s begin by asking the question, “what even is ?” In most textbooks, is defined as the point in a reaction where the rate of the is equal to the rate of the . Let’s break this down a bit.

Suppose we have a reaction in which A, a reactant, is turned into B, a product. As concentrations of A decrease, the rate of reaction A → B will decrease. However, there will be a secondary reaction occurring simultaneously, that being the reaction B → A as concentrations of B build up. In many instances, this second reaction is incredibly slow and does not happen much. However, in many other instances, this second reaction is actually the driving reaction. We’ll talk a bit more about how to measure how “far forward” a reaction goes by using constants.

Going back to arrows, we can represent the two reactions by using a on the reaction A → B to describe that this reaction is reversible: A ⇌ B. This notation tells us that this reaction will settle at an . Now that we’ve covered that, we’re ready to dive more into how the rates of these two reactions relate.

Representing Equilibrium Graphically

As we mentioned before, is the point at which the and reverse reactions continue at the same rate. At this point, the production of products equals the production of reactants and so concentrations of the two remain the same. The below graphic shows us what happens at :

https://firebasestorage.googleapis.com/v0/b/fiveable-92889.appspot.com/o/images%2F-ZGbyuG5422TM.png?alt=media&token=1cbf735b-7bac-43c7-9d78-fd283b93bf87

Image From LibreTexts

In this example, we have the reaction H₂+I₂ ⇌ 2HI. We have two reactions each occurring at different rates, one being the and the other being the . However, note the point at which the two become the same. That area is called the . At this point, the rate at which products are created equals the rate at which reactants are created and therefore the concentrations present in your reaction are equal. It’s important to note that doesn’t mean the concentrations themselves are the same, but rather just the rates of each reaction.

A Closed System

can only occur in a closed system, which is a system that does not exchange matter or energy with its surroundings. This is because in a , the concentrations of reactants and products are fixed and cannot change. The only way for the concentrations to change is through the forward and reverse reactions. As the forward and reverse reactions proceed, the concentrations of the reactants and products change until they reach a state where the rate of the is equal to the rate of the .

https://firebasestorage.googleapis.com/v0/b/fiveable-92889.appspot.com/o/images%2F-kces4v7ZLtil.png?alt=media&token=98e911f5-a841-4a9f-a15c-1e1a49989b45

Image Courtesy of Shalom Education

In an , matter and/or energy can be exchanged with the surroundings, which can affect the concentrations of the reactants and products, making it impossible for the system to reach .

Measuring Equilibrium: Kc

Now that we understand what means in terms of reaction rate, let’s discuss how we actually measure how “far forward” a reaction goes. When doing calculations with , we use the constant, K for a reaction. K describes the ratio between the rate of the and the rate of the , as well as the ratio between the concentrations of products and reactants. If we have the reversible reaction A ⇌ B, we can describe how far forward this reaction goes before by writing out the for the forward and reverse reactions:

A → B ⇒ R = k₁[A]

B → A ⇒ R = k₂[B]

At , k₁[A] = k₂[B]. We can describe the ratio k₁/k₂ as a representation of how far forward the product-creating reaction goes vs. how far forward the reactant-creating reaction goes. We can also represent this value as [B]/[A] where [B] and [A] are the concentrations of B and A at . This value is known as Kc or sometimes simply K. The formula for K is as follows:

https://firebasestorage.googleapis.com/v0/b/fiveable-92889.appspot.com/o/images%2F-m5q032AEupAr.png?alt=media&token=39dd8bfb-a433-4818-9c70-fa8effcf393e

Image From ScienceAid

K is a unitless value that changes based on temperature (since k1 and k2 change based on temperature). However, the initial reactant and product concentrations do NOT change K. No matter where you start a reaction (assuming constant temperature), you will find that K remains constant. This will also be true for KP which we’ll discuss next.

Measuring Equilibrium: Kp

There is another way of measuring , specifically when discussing gasses. Like we use concentrations, we can also use partial pressures to describe how many products were formed and how many reactants remain at . This value is known as Kp. Kp is the same calculation as Kc just with instead of concentrations.

In this study guide, we're focusing on what Kc and Kp conceptually represent, but later in this unit, we'll be doing some calculations with them! For now, make sure you’re comfortable understanding what they mean in a non-mathematical way as well like we’ve described here.

There is also a relationship between Kp and Kc that is described by the formula Kp= Kc(RT)^(Δn) where Δn denotes the difference in stoichiometric coefficients of the products and the stoichiometric coefficients of the reactants. This won’t be too common on the exam (in fact it probably won’t show up), but it’s nice to know!

Common Misconception: Equilibrium Stopped Reaction

Let’s close this guide out with a common misconception that students have about that hinders their understanding of as a balancing of rates. Many students believe that at the reaction stops completely. This could not be further from the truth! In fact, never “end”. is a dynamic process in which reactants are still turned into products and vice versa, not the point at which a reaction stops. What this means is that the reactants and products are constantly interconverting. The system is constantly active, but there is no observable change because concentrations remain constant.

Key Terms to Review (12)

Closed System

: A closed system allows only energy transfer but not matter between the system and its surroundings.

Double Arrow

: In chemistry notation, a double arrow indicates that a chemical reaction can proceed in both directions - it forms products from reactants but also reforms those reactants from the products.

Dynamic Process

: A dynamic process involves continuous change or progress happening over time within chemical reactions until equilibrium is reached.

Equilibrium

: Equilibrium refers to the state in which both reactants and products are present in concentrations which have no further tendency to change over time. It's when forward and reverse reactions occur at equal rates so there's no net change observed.

Equilibrium Constant (K)

: The equilibrium constant (K) is a measure of the ratio of concentrations at equilibrium for products over reactants, each raised to their stoichiometric coefficients in the balanced equation.

Equilibrium State

: An equilibrium state is reached when the rate of the forward reaction equals the rate of the reverse reaction, resulting in no net change in concentration of reactants or products over time.

Forward Reaction

: A forward reaction is the process in which reactants are converted into products.

Open System

: An open system is one in which both energy and matter can be exchanged with the surroundings.

Partial Pressures

: In a mixture of gases, each gas has a partial pressure which is the hypothetical pressure that gas would have if it alone occupied the entire volume.

Rate Laws

: Rate laws are mathematical expressions that describe how the rate of a chemical reaction depends on the concentration of each reactant.

Reverse Reaction

: A reverse reaction is the process where products break down back into their original reactants.

Reversible Reactions

: A reversible reaction is a chemical reaction where the reactants form products, which simultaneously revert back into the original reactants.
