4.2 Pulmonary Ventilation and Lung Volumes
4 min read•august 1, 2024
Breathing is the foundation of life, and is how we do it. This process moves air in and out of our lungs, allowing oxygen to enter our bloodstream and carbon dioxide to exit. It's a vital dance that keeps us alive.
Lung volumes tell us how much air we can breathe in and out. These measurements help doctors understand how well our lungs are working and can reveal problems like or COPD. Knowing our lung capacity is key to respiratory health.
Pulmonary Ventilation and Gas Exchange
Pulmonary Ventilation Process and Importance

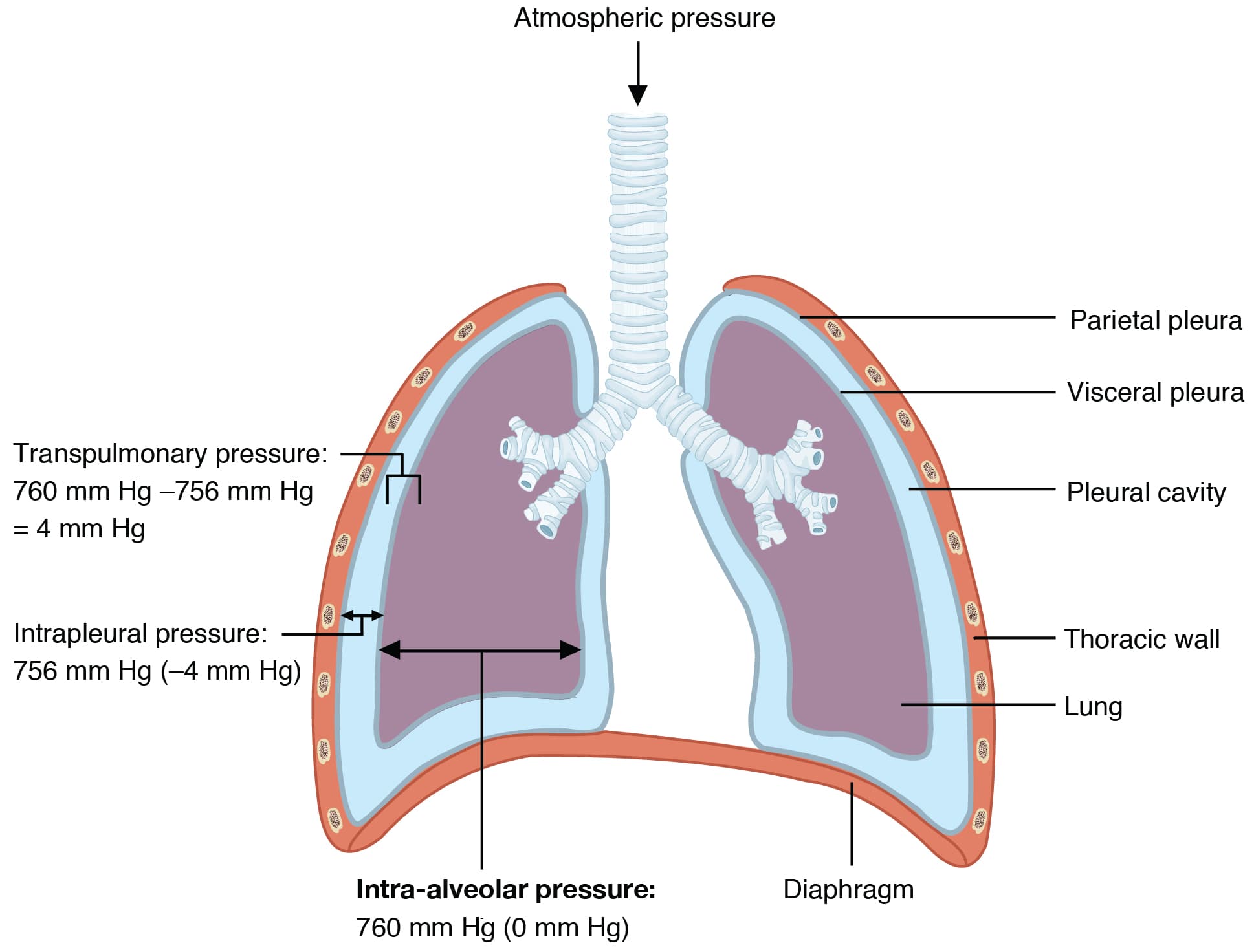

Top images from around the web for Pulmonary Ventilation Process and Importance
Gas Exchange | Anatomy and Physiology II View original
Is this image relevant?
The Process of Breathing · Anatomy and Physiology View original
Is this image relevant?
The Process of Breathing · Anatomy and Physiology View original
Is this image relevant?
Gas Exchange | Anatomy and Physiology II View original
Is this image relevant?
The Process of Breathing · Anatomy and Physiology View original
Is this image relevant?
1 of 3
Top images from around the web for Pulmonary Ventilation Process and Importance
Gas Exchange | Anatomy and Physiology II View original
Is this image relevant?
The Process of Breathing · Anatomy and Physiology View original
Is this image relevant?
The Process of Breathing · Anatomy and Physiology View original
Is this image relevant?
Gas Exchange | Anatomy and Physiology II View original
Is this image relevant?
The Process of Breathing · Anatomy and Physiology View original
Is this image relevant?
1 of 3
- Pulmonary ventilation moves air in and out of the lungs, enabling gas exchange between the lungs and the atmosphere
- Essential for the exchange of oxygen and carbon dioxide between the lungs and the blood, necessary for cellular respiration and maintaining homeostasis (oxygen delivery to tissues and removal of carbon dioxide)
- Rate and depth of pulmonary ventilation can be adjusted to meet the body's changing metabolic demands (increased ventilation during exercise)
- Ensures adequate oxygenation of the blood and removal of carbon dioxide, preventing hypoxia and respiratory acidosis
Gas Exchange in the Lungs
- Occurs in the alveoli, the tiny air sacs at the end of the respiratory bronchioles
- Oxygen diffuses from the alveoli into the blood, while carbon dioxide diffuses from the blood into the alveoli
- Gas exchange relies on the concentration gradients of oxygen and carbon dioxide between the alveoli and the blood (oxygen moves from high to low concentration, carbon dioxide moves from low to high concentration)
- Efficiency of gas exchange depends on the surface area of the alveoli, the thickness of the alveolar-capillary membrane, and the ventilation-perfusion ratio (matching of air and blood flow)
Inspiration and Expiration Process
Mechanics of Inspiration (Inhalation)
- Inspiration is an active process that draws air into the lungs
- and external intercostal muscles contract, increasing the volume of the thoracic cavity and decreasing the pressure inside the lungs (creates negative pressure relative to atmospheric pressure)
- Decreased intrapulmonary pressure causes air to flow into the lungs, following the pressure gradient (air flows from high to low pressure)
- Accessory muscles, such as the sternocleidomastoid and scalene muscles, can assist in inspiration during increased respiratory demand (heavy exercise or respiratory distress)
Mechanics of Expiration (Exhalation)
- Expiration is a passive process that allows air to leave the lungs
- Diaphragm and external intercostal muscles relax, decreasing the volume of the thoracic cavity and increasing the pressure inside the lungs (creates positive pressure relative to atmospheric pressure)
- Increased intrapulmonary pressure causes air to flow out of the lungs, following the pressure gradient (air flows from high to low pressure)
- Elasticity of the lungs and thoracic wall also contributes to the passive process of expiration, as they recoil to their resting positions (elastic recoil)
Lung Volumes and Capacities
Static Lung Volumes
- (TV): volume of air inhaled or exhaled during a single, normal breath (approximately 500 mL in adults)
- (IRV): maximum volume of air that can be inhaled beyond the normal tidal volume (approximately 3000 mL)
- (ERV): maximum volume of air that can be exhaled beyond the normal tidal volume (approximately 1100 mL)
- (RV): volume of air that remains in the lungs after a maximal expiration (approximately 1200 mL), preventing alveolar collapse
Lung Capacities (Combinations of Lung Volumes)
- (IC): maximum volume of air that can be inhaled after a normal expiration, equal to the sum of TV and IRV (approximately 3500 mL)
- (FRC): volume of air remaining in the lungs after a normal expiration, equal to the sum of ERV and RV (approximately 2300 mL)
- (VC): maximum volume of air that can be exhaled after a maximal , equal to the sum of TV, IRV, and ERV (approximately 4600 mL)
- (TLC): total volume of air in the lungs after a maximal inhalation, equal to the sum of all lung volumes (TV, IRV, ERV, and RV) (approximately 5800 mL)
Spirometry Results and Significance
Spirometry Parameters and Interpretation
- measures lung volumes, capacities, and airflow rates during inspiration and expiration
- : volume of air forcibly exhaled after a maximal inhalation, assessing overall lung function (reduced in restrictive lung disorders)
- : volume of air forcibly exhaled in the first second of a maximal expiration, assessing the severity of airway obstruction (reduced in obstructive lung disorders)
- : proportion of the vital capacity exhaled in the first second of a maximal expiration, differentiating between obstructive and restrictive lung disorders (reduced in obstructive disorders, normal or increased in restrictive disorders)
- : maximum rate of airflow during a forced expiration, monitoring the severity and control of asthma (reduced during asthma exacerbations)
Clinical Significance of Spirometry
- Diagnoses and monitors various respiratory disorders (asthma, COPD, restrictive lung diseases)
- Assesses the severity of airway obstruction and guides treatment decisions (bronchodilator therapy in asthma and COPD)
- Monitors the progression of lung diseases and the effectiveness of treatments (improvement in FEV1 after bronchodilator therapy)
- Screens for occupational lung diseases (reduced FVC in asbestosis) and assesses preoperative lung function (risk stratification for surgery)
Key Terms to Review (27)
Asthma: Asthma is a chronic inflammatory disease of the airways that causes difficulty in breathing due to the constriction and swelling of bronchial passages. This condition affects airflow and can lead to wheezing, coughing, and shortness of breath. Understanding asthma involves looking at how it impacts the structure of the respiratory tract, how it influences pulmonary ventilation and lung volumes, how breathing mechanics are altered during an asthma attack, and how the control of respiration is affected by this disease.
Bronchi: Bronchi are the large air passages that branch off from the trachea and lead into the lungs. They serve as a crucial component of the respiratory system, allowing air to flow in and out of the lungs while also playing a role in filtering and humidifying the air. The bronchi further divide into smaller branches called bronchioles, which continue to distribute air throughout the lung tissues.
Chemoreceptors: Chemoreceptors are specialized sensory receptors that detect changes in chemical composition in the environment, particularly in the blood. They play a critical role in monitoring levels of oxygen, carbon dioxide, and pH, influencing respiratory rate and depth to maintain homeostasis. Their function is closely linked to various physiological processes, including gas exchange, pulmonary ventilation, and the overall control of respiration.
Chronic obstructive pulmonary disease (COPD): Chronic obstructive pulmonary disease (COPD) is a progressive lung disease characterized by increasing breathlessness due to airflow limitation that is not fully reversible. It encompasses conditions like emphysema and chronic bronchitis, which significantly affect pulmonary ventilation and gas exchange in the lungs, leading to inadequate oxygenation and retention of carbon dioxide in the body.
Compliance: Compliance refers to the ability of the lungs and chest wall to stretch and expand in response to pressure changes during breathing. It is a crucial factor in determining how easily air can flow in and out of the lungs, impacting overall pulmonary function and respiratory efficiency. Higher compliance indicates easier expansion, while lower compliance suggests stiffer lungs, which can affect gas exchange and respiratory mechanics.
Diaphragm: The diaphragm is a dome-shaped muscle located at the base of the thoracic cavity, playing a crucial role in respiration by separating the thoracic and abdominal cavities. Its contraction and relaxation facilitate inhalation and exhalation, making it essential for effective breathing and ventilation. This muscle's movement affects lung volumes and pressures, thus directly impacting the mechanics of breathing.
Diffusion: Diffusion is the process by which molecules move from an area of higher concentration to an area of lower concentration, driven by the principle of entropy. This fundamental mechanism plays a crucial role in various physiological processes, including the exchange of gases in the lungs, nutrient absorption in capillaries, and the transport of substances across cell membranes, ensuring that essential molecules reach their destinations efficiently.
Exhalation: Exhalation is the process of expelling air from the lungs, which is crucial for removing carbon dioxide from the body and maintaining the proper balance of gases in the blood. This process is essential for effective pulmonary ventilation and involves various anatomical structures, lung volumes, and mechanics that work together to ensure efficient breathing. Understanding exhalation also highlights the control mechanisms that regulate this process to meet the body's metabolic demands.
Expiratory Reserve Volume: Expiratory reserve volume (ERV) is the maximum amount of air that can be forcibly exhaled after a normal tidal expiration. This measurement is crucial for understanding lung function and ventilation efficiency, as it indicates the capacity of the lungs to expel additional air beyond normal breathing. Knowing ERV helps assess respiratory health and can indicate various pulmonary conditions.
FEV1/FVC Ratio: The FEV1/FVC ratio is a crucial pulmonary function test metric that compares the volume of air exhaled in one second (FEV1) to the total volume of air exhaled during a forced breath (FVC). This ratio helps in assessing lung function and diagnosing respiratory conditions. A lower ratio typically indicates obstructive lung diseases, while a normal or high ratio suggests restrictive patterns, allowing healthcare professionals to distinguish between different types of pulmonary disorders.
Forced Expiratory Volume in One Second (FEV1): Forced Expiratory Volume in One Second (FEV1) is a measurement of the volume of air that can be forcibly exhaled in the first second of a forced breath. It is a crucial parameter used to assess lung function, particularly in diagnosing and monitoring conditions such as asthma and chronic obstructive pulmonary disease (COPD). FEV1 values are often compared to predicted normal values based on age, height, and sex, making it an essential tool for evaluating pulmonary health.
Forced Vital Capacity (FVC): Forced Vital Capacity (FVC) is the total amount of air that can be forcibly exhaled after taking the deepest breath possible. This measurement is crucial for assessing lung function and respiratory health, as it helps to determine how effectively the lungs can expel air. It is an essential component of pulmonary ventilation studies, helping to distinguish between obstructive and restrictive lung diseases.
Functional Residual Capacity: Functional residual capacity (FRC) is the volume of air remaining in the lungs after a normal, passive exhalation. This capacity is crucial for maintaining gas exchange and ensuring that oxygen levels remain stable between breaths. FRC plays a key role in pulmonary function by allowing the lungs to maintain adequate oxygen and carbon dioxide levels, preventing lung collapse and supporting overall respiratory health.
Inhalation: Inhalation is the process of taking air into the lungs, essential for gas exchange in the body. During inhalation, the diaphragm and intercostal muscles contract, expanding the thoracic cavity and creating a negative pressure that allows air to flow into the lungs, facilitating oxygen intake and carbon dioxide removal.
Inspiratory Capacity: Inspiratory capacity is the maximum volume of air that can be inhaled after a normal expiration, representing an important aspect of pulmonary function. This measurement reflects the combined volume of the tidal volume and the inspiratory reserve volume, providing insights into lung health and respiratory efficiency. Understanding inspiratory capacity helps assess conditions that affect breathing and overall lung performance.
Inspiratory Reserve Volume: Inspiratory reserve volume (IRV) is the maximum amount of air that can be inhaled beyond the normal tidal volume during a deep breath. This volume reflects the additional capacity of the lungs and plays a crucial role in enhancing pulmonary ventilation and optimizing gas exchange during physical activity or respiratory distress. Understanding IRV helps in assessing lung function and the overall health of the respiratory system.
Medullary centers: Medullary centers are specialized groups of neurons located in the medulla oblongata, which play a crucial role in regulating various involuntary functions, including respiratory control. These centers are essential for coordinating breathing patterns by responding to chemical and mechanical signals in the body, ensuring that ventilation meets the metabolic demands during activities such as exercise or rest.
Partial Pressure: Partial pressure is the pressure exerted by a single gas in a mixture of gases, representing the concentration of that gas within the total pressure of the mixture. This concept is crucial in understanding how gases are exchanged in the lungs, how they transport in the bloodstream, and how they contribute to the regulation of respiration.
Peak Expiratory Flow Rate (PEFR): Peak Expiratory Flow Rate (PEFR) is the maximum speed at which air can be forcibly exhaled from the lungs after taking a deep breath. This measurement is important in assessing lung function, particularly for individuals with respiratory conditions, as it reflects how well the airways are functioning and helps in monitoring changes over time.
Peak Flow Meter: A peak flow meter is a handheld device used to measure the maximum speed of expiration, or how quickly air can be exhaled from the lungs. This measurement is crucial for monitoring lung function, especially in individuals with asthma or other respiratory conditions, providing valuable data to assess respiratory health and inform treatment decisions.
Pulmonary ventilation: Pulmonary ventilation refers to the process of moving air in and out of the lungs, allowing for gas exchange with the bloodstream. This essential function is driven by the mechanics of breathing, which include inhalation and exhalation, and is influenced by factors like lung volumes, airway resistance, and the pressures within the thoracic cavity.
Residual Volume: Residual volume is the amount of air that remains in the lungs after a person has exhaled completely. This volume is crucial for maintaining gas exchange and preventing lung collapse, as it ensures that oxygen can still be absorbed even after forceful breathing out. Understanding residual volume helps in assessing lung health and function, as it plays a significant role in determining total lung capacity and overall respiratory efficiency.
Resistance: Resistance refers to the opposition to the flow of air or blood within the respiratory and circulatory systems. In pulmonary ventilation, it describes how factors such as airway diameter and lung compliance can impede airflow during breathing. In hemodynamics, it pertains to how blood vessel diameter and viscosity affect blood flow and pressure, playing a crucial role in cardiovascular function.
Spirometry: Spirometry is a pulmonary function test that measures the volume of air inhaled and exhaled by the lungs, providing essential information about lung capacity and airflow. This test is crucial for assessing respiratory health, helping to diagnose conditions like asthma, chronic obstructive pulmonary disease (COPD), and other lung disorders. It plays a vital role in evaluating how well the lungs are functioning during breathing.
Tidal Volume: Tidal volume is the amount of air that is inhaled or exhaled during a normal breath. This fundamental measurement plays a crucial role in understanding lung function and respiratory mechanics, as it helps to assess how effectively the lungs are ventilating and can indicate various health conditions.
Total Lung Capacity: Total lung capacity (TLC) is the maximum volume of air that the lungs can hold when fully inflated. This value is essential for understanding respiratory function and is affected by factors such as lung anatomy, chest wall mechanics, and various health conditions. TLC is a critical measure when assessing lung health, as it reflects the combined volume of the tidal volume, inspiratory reserve volume, expiratory reserve volume, and residual volume.
Vital Capacity: Vital capacity is the maximum amount of air that can be exhaled after taking the deepest possible breath. It reflects the total volume of air that the lungs can hold and is crucial for assessing lung function, as well as respiratory health.
