Digital filter design is a crucial aspect of signal processing, allowing precise manipulation of frequency components in digital signals. This topic covers various filter types, including FIR and IIR, and explores their characteristics, design techniques, and applications in different domains.
The chapter delves into filter specifications, realization structures, and quantization effects. It also covers advanced concepts like and , providing a comprehensive understanding of digital filter design and implementation in real-world scenarios.
Types of digital filters
Digital filters are essential components in Advanced Signal Processing, enabling the selective modification of frequency components within a digital signal
They are characterized by their , which determines how the filter affects different frequency ranges of the input signal

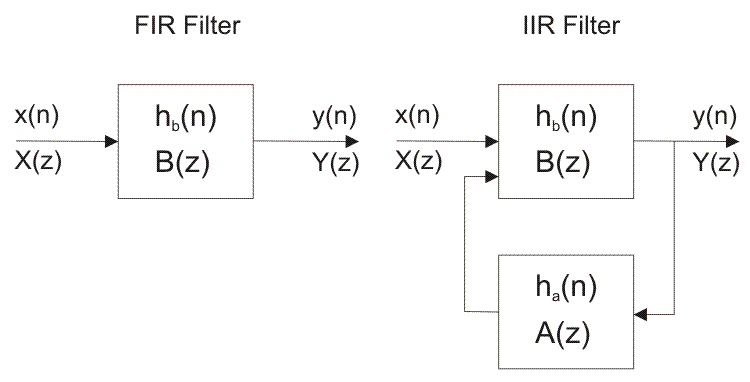

FIR vs IIR filters
Top images from around the web for FIR vs IIR filters
impz() matlab function usage in digital filters | ee-diary View original
Is this image relevant?
3.1 Introduction | Digital Filter Design View original
Is this image relevant?
2.2 Finite impulse response (FIR) filter design methods | Digital Filter Design View original
Is this image relevant?
impz() matlab function usage in digital filters | ee-diary View original
Is this image relevant?
3.1 Introduction | Digital Filter Design View original
Is this image relevant?
1 of 3
Top images from around the web for FIR vs IIR filters
impz() matlab function usage in digital filters | ee-diary View original
Is this image relevant?
3.1 Introduction | Digital Filter Design View original
Is this image relevant?
2.2 Finite impulse response (FIR) filter design methods | Digital Filter Design View original
Is this image relevant?
impz() matlab function usage in digital filters | ee-diary View original
Is this image relevant?
3.1 Introduction | Digital Filter Design View original
Is this image relevant?
1 of 3
Finite (FIR) filters have a finite duration impulse response and are inherently stable
They are non-recursive and depend only on the current and past input samples
FIR filters can achieve linear phase response, making them suitable for applications requiring constant delay across frequencies ()
Infinite Impulse Response (IIR) filters have an infinite duration impulse response and may be unstable if not designed properly
They are recursive and depend on both input and output samples
IIR filters are more efficient in terms of computational complexity and can achieve sharper frequency responses with fewer coefficients compared to FIR filters
Lowpass, highpass, bandpass, and bandstop filters
Lowpass filters attenuate high-frequency components above a specified while allowing low frequencies to pass (smoothing, denoising)
Highpass filters attenuate low-frequency components below a specified cutoff frequency while allowing high frequencies to pass (edge detection, removing DC offset)
Bandpass filters allow a specific range of frequencies to pass while attenuating frequencies outside the passband (isolating a specific frequency band, communication channels)
Bandstop filters, also known as notch filters, attenuate a specific range of frequencies while allowing frequencies outside the stopband to pass (removing interference, power line noise)
Allpass and comb filters
Allpass filters have a flat magnitude response across all frequencies but introduce a phase shift that varies with frequency
They are used for phase equalization, delay lines, and creating reverb effects
Comb filters have a periodic frequency response resembling a comb, with equally spaced peaks and valleys
They are created by adding a delayed version of the input signal to itself
Comb filters are used for pitch shifting, flanging, and creating resonant effects (phaser, feedback delay)
Linear phase filters
maintain a constant group delay across frequencies, resulting in no phase distortion
They are crucial in applications where preserving the waveform shape is important (audio, biomedical signals)
Linear phase is achieved by designing FIR filters with symmetrical or antisymmetrical impulse responses
The trade-off for linear phase is a longer filter length compared to non-linear phase filters with similar frequency response characteristics
Filter specifications and requirements
Defining the desired filter characteristics is a critical step in the design process, as it determines the filter's performance and suitability for a given application
Filter specifications are typically expressed in terms of frequency response parameters, which describe how the filter should affect different frequency ranges
Passband and stopband
The passband is the range of frequencies that the filter should allow to pass through with minimal attenuation
specifies the maximum allowable deviation from unity within the passband
The stopband is the range of frequencies that the filter should significantly attenuate
Stopband attenuation specifies the minimum attenuation required in the stopband, usually expressed in decibels (dB)
Transition band
The transition band is the frequency range between the passband and stopband, where the filter response transitions from passband to stopband characteristics
A narrow transition band results in a sharper filter response but requires a higher and increased computational complexity
Ripple and attenuation
Passband ripple and stopband attenuation are key specifications that determine the filter's performance in the respective frequency ranges
Ripple is the maximum allowable deviation from the desired response within the passband, typically expressed in dB
Attenuation is the minimum required reduction in signal strength within the stopband, also expressed in dB
Phase response
Phase response describes how the filter alters the phase of the input signal as a function of frequency
Linear phase filters maintain a constant group delay across frequencies, preserving the waveform shape
Non-linear phase filters may introduce phase distortion, which can be acceptable in certain applications (magnitude response is more important than phase)
The desired phase response depends on the specific application and its sensitivity to phase distortion
FIR filter design techniques
Finite Impulse Response (FIR) filters are widely used in digital signal processing due to their , linear phase properties, and flexibility in design
Several techniques exist for designing FIR filters, each with its own advantages and trade-offs
Window method
The window method involves multiplying an ideal impulse response by a window function to obtain a realizable
The ideal impulse response is obtained by taking the inverse Fourier transform of the desired frequency response
Common window functions include rectangular, Hamming, Hanning, Blackman, and Kaiser windows
The choice of window function affects the filter's transition band width, ripple, and stopband attenuation
The window method is simple and efficient but offers limited control over the frequency response characteristics
Frequency sampling method
The designs an FIR filter by specifying the desired frequency response at a set of discrete frequencies
The impulse response is then obtained by taking the inverse discrete Fourier transform (IDFT) of the sampled frequency response
This method allows for precise control over the frequency response at the sampled points but may result in ripple between the samples
The frequency sampling method is useful for designing filters with arbitrary frequency responses or when the desired response is known at specific frequencies
Optimal filter design
techniques aim to minimize an error criterion between the desired and actual frequency responses
The , also known as the equiripple method, is a popular optimal design technique for FIR filters
It uses the Remez exchange algorithm to iteratively adjust the filter coefficients to minimize the maximum error in the frequency domain
The resulting filter has an equiripple frequency response, with equal ripple in the passband and stopband
Optimal design methods provide better control over the frequency response but are more computationally intensive than the window method
Linear phase FIR filters
Linear phase FIR filters are designed to maintain a constant group delay across frequencies, preserving the waveform shape
They are achieved by enforcing symmetry or antisymmetry in the filter coefficients
Type I: Odd number of coefficients, symmetric impulse response
Type II: Even number of coefficients, symmetric impulse response
Type III: Odd number of coefficients, antisymmetric impulse response
Type IV: Even number of coefficients, antisymmetric impulse response
The choice of linear phase type depends on the desired frequency response and the allowable delay
Linear phase FIR filters are crucial in applications sensitive to phase distortion (audio, biomedical signals)
IIR filter design techniques
Infinite Impulse Response (IIR) filters are recursive filters that can achieve sharp frequency responses with fewer coefficients compared to FIR filters
design often involves transforming analog filter prototypes into their digital counterparts
Analog filter prototypes
Analog filter prototypes, such as Butterworth, Chebyshev, and elliptic filters, serve as the starting point for IIR filter design
These prototypes have well-defined frequency response characteristics and can be described using transfer functions in the Laplace domain
The analog prototype is transformed into a digital filter using techniques like the or impulse invariance method
Bilinear transformation
The bilinear transformation maps the continuous-time Laplace domain to the discrete-time z-domain, allowing the design of digital filters from analog prototypes
It preserves the stability of the analog prototype and provides a good approximation of the frequency response
The bilinear transformation introduces a nonlinear warping of the frequency axis, which can be compensated for by prewarping the critical frequencies
Impulse invariance method
The impulse invariance method designs a digital filter by sampling the impulse response of an analog filter prototype
It preserves the time-domain characteristics of the analog filter but may result in aliasing due to the sampling process
The impulse invariance method is suitable for designing digital filters with a low sampling rate relative to the analog filter's cutoff frequency
Butterworth, Chebyshev, and elliptic filters
Butterworth filters have a maximally flat magnitude response in the passband and a smooth rolloff in the stopband
They have no ripple in the passband or stopband but a relatively wide transition band
Chebyshev filters (Type I and Type II) have a faster rolloff than Butterworth filters but introduce ripple in the passband or stopband
Type I Chebyshev filters have equiripple in the passband and a monotonic response in the stopband
Type II Chebyshev filters have a monotonic response in the passband and equiripple in the stopband
Elliptic filters, also known as Cauer filters, have the steepest rolloff among these filter types but introduce ripple in both the passband and stopband
They achieve the sharpest transition band for a given filter order but have a more complex design process
Filter realization structures
Filter realization structures refer to the way in which a digital filter is implemented in hardware or software
The choice of structure affects the filter's computational complexity, numerical stability, and sensitivity to quantization effects
Direct form I and II
Direct form I structure implements the filter's difference equation directly, with separate delay lines for the input and output samples
It is straightforward to implement but may be sensitive to quantization effects and numerical instability for high-order filters
Direct form II structure combines the input and output delay lines into a single delay line, reducing the number of delay elements
It is more efficient in terms of memory usage but still sensitive to numerical issues
Cascade and parallel forms
Cascade form realizes a high-order filter as a series connection of lower-order filter sections (usually second-order sections)
It improves numerical stability and reduces sensitivity to quantization effects compared to direct forms
Cascade form allows for modular implementation and optimization of individual sections
Parallel form realizes a high-order filter as a parallel connection of lower-order filter sections
It provides an alternative structure for implementing high-order filters with improved numerical properties
Parallel form allows for independent processing of filter sections and potential for parallel computation
Lattice structures
Lattice structures implement a filter using a series of lattice stages, each characterized by a reflection coefficient
They have good numerical properties and are less sensitive to quantization effects than direct forms
Lattice structures are particularly useful for implementing all-pass filters and linear prediction filters
Transposed forms
Transposed forms are obtained by reversing the signal flow graph of a filter structure
Transposing a filter structure preserves the transfer function but may change the numerical properties and implementation complexity
Transposed direct form II is commonly used as it has better numerical stability than direct form II and reduces the number of delay elements compared to transposed direct form I
Quantization effects in digital filters
Quantization effects arise when implementing digital filters with finite-precision arithmetic, such as fixed-point or floating-point representations
These effects can degrade the filter's performance and lead to undesirable artifacts in the output signal
Coefficient quantization
Coefficient quantization occurs when the filter coefficients are represented with a finite number of bits
Quantizing the coefficients introduces errors in the filter's frequency response, leading to deviations from the desired response
The impact of coefficient quantization depends on the filter structure, coefficient sensitivity, and the number of bits used
Round-off noise
Round-off noise is generated when arithmetic operations in the filter implementation introduce rounding errors due to finite-precision representations
These errors accumulate over time and can cause noise and distortion in the output signal
The level of round-off noise depends on the filter structure, the number of bits used, and the signal characteristics
Limit cycles and overflow oscillations
Limit cycles are self-sustaining oscillations that can occur in recursive filters due to quantization effects and feedback
They appear as periodic patterns in the output signal, even when the input is zero or constant
Overflow oscillations occur when the filter's internal variables exceed the representable range, leading to large-scale periodic oscillations
Both limit cycles and overflow oscillations can be mitigated by using appropriate scaling, saturation arithmetic, or noise shaping techniques
Scaling and word length considerations
Scaling the filter coefficients and internal variables is crucial to prevent overflow and minimize quantization effects
Input scaling ensures that the input signal remains within the representable range
Internal scaling prevents overflow in the filter's internal calculations
Output scaling maps the filter's output back to the desired range
Word length, or the number of bits used to represent signals and coefficients, affects the filter's accuracy and performance
Longer word lengths reduce quantization noise and improve accuracy but increase computational complexity and memory requirements
Shorter word lengths are more efficient but may degrade the filter's performance and lead to more pronounced quantization effects
Multirate digital filters
Multirate digital filters involve processing signals at different sampling rates within a system
They are used in applications such as , subband coding, and efficient implementation of complex filtering operations
Decimation and interpolation
is the process of reducing the sampling rate of a signal by an integer factor M
It involves low-pass filtering the signal to prevent aliasing and then discarding M-1 out of every M samples
Decimation is used to reduce the computational complexity and data rate of a signal
is the process of increasing the sampling rate of a signal by an integer factor L
It involves inserting L-1 zero-valued samples between each pair of original samples and then low-pass filtering to remove the image spectra
Interpolation is used to increase the resolution or match the sampling rate of a signal to another system
Polyphase decomposition
is a technique for efficiently implementing decimation and interpolation filters
It decomposes a filter into a set of subfilters, each operating at a lower sampling rate
For decimation, the input signal is split into M phases, filtered by the subfilters, and then downsampled
For interpolation, the input signal is upsampled, split into L phases, and then filtered by the subfilters
Polyphase decomposition reduces the computational complexity of multirate filtering by exploiting the redundancy in the filtering operations
Multistage designs
Multistage designs implement sample rate conversion as a cascade of simpler decimation and interpolation stages
They are used when the conversion factor is large or can be factored into smaller integer factors
Multistage designs reduce the overall computational complexity and allow for more efficient filter implementations compared to single-stage designs
Applications in sample rate conversion
Sample rate conversion is the process of changing the sampling rate of a digital signal while preserving its frequency content
It is used in various applications, such as:
Audio and video resampling to match different system requirements
Synchronizing signals from multiple sources with different sampling rates
Efficient implementation of complex filtering operations using multirate techniques
Multirate digital filters, including decimation, interpolation, and polyphase decomposition, are essential building blocks for sample rate conversion systems
Adaptive digital filters
Adaptive digital filters are filters that can automatically adjust their coefficients based on the characteristics of the input signal or the desired output
They are used in applications where the signal properties or the system requirements change over time
Adaptive filtering concepts
Adaptive filtering involves estimating the optimal filter coefficients based on an error signal, which is the difference between the filter output and the desired signal
The adaptation algorithm updates the filter coefficients iteratively to minimize the error signal according to a specific criterion, such as the mean square error (MSE)
The choice of adaptation algorithm depends on factors such as convergence speed, computational complexity, and robustness to signal conditions
LMS and RLS algorithms
The Least Mean Square (LMS) algorithm is a popular adaptive filtering algorithm due to its simplicity and low computational complexity
It updates the filter coefficients based on the instantaneous gradient of the error signal
The step size parameter controls the convergence speed and stability of the LMS algorithm
The Recursive Least Squares (RLS) algorithm is a more complex adaptive filtering algorithm that provides faster convergence than LMS at the cost of higher computational complexity
It updates the filter coefficients based on the weighted least squares estimate of the error signal
The forgetting factor parameter controls the influence of past samples on the current estimate
Applications in system identification and noise cancellation
System identification is the process of estimating the parameters or the model of an unknown system based on its input-output relationship
Adaptive filters can be used to estimate the impulse response or transfer function of the unknown system
Applications include echo cancellation, channel equalization, and plant modeling
Noise cancellation is the process of removing unwanted noise from a signal by estimating and subtracting the noise component
Adaptive filters can be used to estimate the noise signal based on a reference input, such as a secondary microphone or a sensor
Applications include active noise control, speech enhancement, and interference cancellation
Convergence and stability issues
Convergence refers to the ability of an adaptive filter to reach the optimal solution or a close approximation within a reasonable number of iterations
The convergence speed depends on factors such as the adaptation algorithm, the step size or forgetting factor, and the signal characteristics
Slow convergence can result in poor tracking performance and increased residual error
Stability refers to the ability of an adaptive filter to remain bounded and not diverge over time
Inst
Key Terms to Review (30)
Adaptive Filters: Adaptive filters are digital filters that automatically adjust their parameters based on the input signal characteristics. They are designed to optimize their performance by minimizing the difference between the desired output and the actual output, which allows them to adapt to changing conditions and environments. This dynamic adjustment makes adaptive filters particularly useful in applications such as noise cancellation, echo suppression, and system identification.
Audio processing: Audio processing refers to the manipulation and analysis of audio signals to enhance, modify, or extract useful information from them. This involves techniques that convert audio into different formats or structures, making it possible to analyze sound properties, filter noise, or transform sound in ways that are beneficial for various applications like music production and communications.
Bilinear Transformation: The bilinear transformation is a mathematical mapping that converts continuous-time system characteristics into discrete-time equivalents, enabling the design of digital filters from analog prototypes. This technique preserves the stability and frequency response of a system, making it essential for creating effective digital filter designs. By mapping the s-plane to the z-plane, the bilinear transformation ensures that critical frequency characteristics are maintained, allowing engineers to utilize analog filter designs in a digital context.
Butterworth filter: A Butterworth filter is a type of signal processing filter that is designed to have a maximally flat frequency response in the passband, meaning it doesn't have ripples. This characteristic makes it ideal for applications requiring minimal distortion of the signal. The design of Butterworth filters can be adapted to both analog and digital implementations, and they are frequently used in infinite impulse response (IIR) filters, where their smooth frequency response contributes to effective signal processing.
Causality: Causality refers to the relationship between input and output in a system where the output depends solely on past and present inputs, and not on future inputs. This concept is crucial in understanding how signals are processed over time, ensuring that the system's response to an input occurs only after that input is applied, thereby preserving the temporal order. Recognizing causality is fundamental in analyzing the behavior of systems, especially in signal processing and system design.
Chebyshev Filter: A Chebyshev filter is a type of electronic filter that has a steeper roll-off and more ripple in the passband than a Butterworth filter, making it useful for applications where precise control over frequency response is required. It is characterized by its ability to achieve a specified level of ripple in the passband while minimizing the amplitude distortion, which makes it particularly appealing for digital filter design and infinite impulse response (IIR) filters.
Cutoff Frequency: Cutoff frequency is the frequency at which the output signal power of a filter falls to half of its maximum value, marking the boundary between the passband and stopband of the filter. This concept is crucial for understanding how filters operate, as it helps define which frequencies are allowed to pass through while others are attenuated or blocked. It plays a significant role in filter design and performance, especially in distinguishing between different types of filters such as low-pass, high-pass, band-pass, and band-stop.
Decimation: Decimation is the process of reducing the sampling rate of a signal by an integer factor, effectively discarding some samples to lower the data rate while maintaining important information. This technique is essential in digital signal processing to manage data efficiently and can be closely associated with various signal processing methods like filtering, interpolation, and the use of multirate systems.
Elliptic Filter: An elliptic filter is a type of analog or digital filter that offers a very sharp cutoff between passband and stopband, characterized by its ripple in both the passband and stopband. This filter is efficient in achieving a specified level of attenuation while maintaining a defined maximum ripple in the passband, making it suitable for applications requiring precise frequency selection. It combines the features of low-pass, high-pass, band-pass, or band-stop filters with a design that minimizes the overall filter order compared to other types.
Filter Order: Filter order refers to the number of reactive components (like capacitors and inductors) or the highest power of the frequency variable in the filter's transfer function, which defines the complexity and performance of a filter. A higher filter order generally allows for sharper cutoff characteristics and better selectivity, but it can also introduce more phase distortion and increased computational load.
FIR Filter: A Finite Impulse Response (FIR) filter is a type of digital filter characterized by its finite duration impulse response, meaning it settles to zero in a finite amount of time. FIR filters are widely used in signal processing due to their inherent stability and the ability to design them with precise frequency response characteristics, making them suitable for various applications, including digital filter design, discrete-time systems analysis, spectral estimation, and signal processing tasks such as decimation and interpolation.
Frequency Response: Frequency response refers to the measure of a system's output spectrum in response to an input signal of varying frequencies. It illustrates how the amplitude and phase of a system's output are affected by different frequencies, providing crucial insight into the behavior of systems, especially in the context of digital filtering and signal processing. Understanding frequency response helps in analyzing stability, filter design, and system performance in various applications.
Frequency Sampling Method: The frequency sampling method is a technique used in digital filter design that involves specifying the desired frequency response at certain discrete frequencies and then deriving the filter coefficients from these samples. This method is particularly useful for designing filters with specific characteristics, allowing for flexibility in shaping the frequency response to meet particular requirements. By directly manipulating the frequency response, designers can create filters that effectively manage signals in various applications.
Gain: Gain refers to the amplification factor or increase in power or amplitude of a signal as it passes through a system or process. This concept is crucial as it not only impacts how signals are manipulated and transmitted but also influences stability, frequency response, and overall system performance. Understanding gain helps in assessing how effectively a system enhances desired signals while attenuating unwanted noise.
IIR filter: An Infinite Impulse Response (IIR) filter is a type of digital filter that uses feedback, meaning its output depends on both current and previous inputs and outputs. This characteristic allows IIR filters to achieve a desired frequency response with fewer coefficients compared to Finite Impulse Response (FIR) filters, making them efficient for real-time signal processing applications. IIR filters are commonly designed using techniques that involve poles and zeros in the z-domain, and they play a significant role in shaping discrete-time signals, estimating spectral characteristics, and implementing decimation and interpolation processes.
Image Filtering: Image filtering is a process used in digital image processing to enhance or extract important features from an image by applying a mathematical operation to each pixel. This technique can be used to remove noise, sharpen images, or detect edges, and it relies heavily on the design of digital filters that determine how pixels interact with their neighbors. Understanding image filtering is essential for various applications across different fields, including video processing and audio analysis, where the quality of visual and auditory signals is crucial.
Impulse Response: Impulse response refers to the output signal of a system when an impulse function is applied as input. It is a crucial concept that helps characterize how systems react to different inputs over time, providing insight into the behavior of systems in various applications, especially in signal processing and filter design.
Interpolation: Interpolation is the process of estimating values between two known data points, commonly used to create a continuous signal from discrete samples. This technique is crucial in various applications, including digital filter design, where it helps smooth out signals and enhance frequency response. Additionally, interpolation plays a significant role in decimation and interpolation processes, which manipulate the sampling rate of signals, and is essential in the construction of multirate filter banks, allowing for efficient signal processing. Understanding interpolation also ties into polyphase decomposition, where it optimizes the implementation of filters by reducing computational complexity.
Linear Phase Filters: Linear phase filters are a specific type of digital filter that maintains a constant phase response across all frequencies, ensuring that all frequency components of a signal are delayed by the same amount of time. This characteristic is crucial in applications where the preservation of waveform shape is important, as it prevents distortion that can occur when different frequency components are delayed by different amounts.
MATLAB: MATLAB is a high-performance programming language and environment specifically designed for numerical computing, data analysis, and algorithm development. Its versatility allows users to create algorithms for various applications, ranging from digital signal processing to image processing and biomedical signal analysis, making it an essential tool in engineering and scientific research.
Multirate filtering: Multirate filtering refers to the process of using different sampling rates for signals within a system, allowing for efficient signal processing and improved performance in applications such as data compression and telecommunications. This technique enables the conversion between different sampling rates through operations like decimation (reducing the sampling rate) and interpolation (increasing the sampling rate), leading to a more flexible and effective handling of digital signals.
Optimal Filter Design: Optimal filter design refers to the process of creating filters that minimize a specific error criterion, effectively separating desired signals from unwanted noise or interference. This involves formulating a mathematical model to find filter coefficients that achieve the best performance according to predefined metrics, such as minimizing the mean square error or maximizing signal-to-noise ratio. By tailoring the filter characteristics to meet specific requirements, optimal filter design enhances the effectiveness of digital signal processing applications.
Parks-McClellan Algorithm: The Parks-McClellan algorithm is an efficient computational method used for designing optimal linear-phase finite impulse response (FIR) filters. It minimizes the maximum error between the desired frequency response and the actual frequency response of the filter by employing the Remez exchange algorithm, making it particularly useful in digital filter design.
Passband ripple: Passband ripple refers to the variation in amplitude response within the passband of a filter, typically measured in decibels (dB). This characteristic is crucial in filter design as it indicates how much the gain fluctuates over the frequency range designated for signal transmission, impacting the overall performance of digital filters.
Polyphase Decomposition: Polyphase decomposition is a technique used in digital signal processing that breaks down a signal processing operation into multiple phases, allowing for more efficient computation, especially in the context of filtering and sample rate conversion. This method reorganizes the data and filter coefficients to exploit the structure of the filter and reduce computational complexity, making it particularly useful in digital filter design, decimation, and interpolation processes.
Sample Rate Conversion: Sample rate conversion is the process of changing the sampling rate of a signal, allowing it to be processed or transmitted at different rates than originally captured. This process is essential in digital signal processing, as it ensures compatibility between different systems and improves the efficiency of data transmission. Sample rate conversion often involves techniques like decimation, which reduces the sample rate, and interpolation, which increases it, both of which require effective digital filter design to prevent aliasing and maintain signal integrity.
Scipy: SciPy is an open-source Python library that is used for scientific and technical computing. It builds on the capabilities of NumPy and provides a collection of algorithms and functions that are particularly useful for optimization, integration, interpolation, eigenvalue problems, and signal processing, making it an essential tool in digital filter design and analysis.
Stability: Stability refers to the property of a system where its output remains bounded in response to bounded input over time. In signal processing, this concept is crucial for ensuring that systems behave predictably and do not produce unbounded responses, which can lead to practical issues such as distortion or oscillation in filters and other signal processing applications.
Windowing: Windowing is a technique used in signal processing to reduce spectral leakage when performing a Fourier transform on a finite-length signal. By applying a window function, the signal is effectively multiplied by a smooth tapering function, which limits the signal's duration and minimizes abrupt changes at the edges. This method helps to improve the frequency representation of signals, particularly in applications involving the discrete-time Fourier transform and digital filter design.
Z-transform: The z-transform is a mathematical tool used to analyze discrete-time signals and systems by converting them from the time domain into the frequency domain. It represents a sequence of numbers as a complex function, allowing for easier manipulation and analysis of signals, particularly in the context of stability, filtering, and system response. The z-transform is closely related to other transforms like the discrete-time Fourier transform and Laplace transform, providing insights into signal characteristics and behavior.
