4.3 Conjugate Gradient Method

4 min read•august 16, 2024

The is a powerful iterative technique for solving large, sparse linear systems. It's particularly effective for symmetric positive definite matrices, combining efficiency with guaranteed convergence. This method minimizes a along , making it faster than many other iterative methods.

In practice, the Conjugate Gradient Method shines when dealing with massive datasets or complex systems. It's widely used in fields like , image processing, and . The method's ability to handle large-scale problems efficiently makes it a go-to choice for many real-world applications.

Conjugate Gradient Method Principles

Fundamentals and Derivation

Top images from around the web for Fundamentals and Derivation

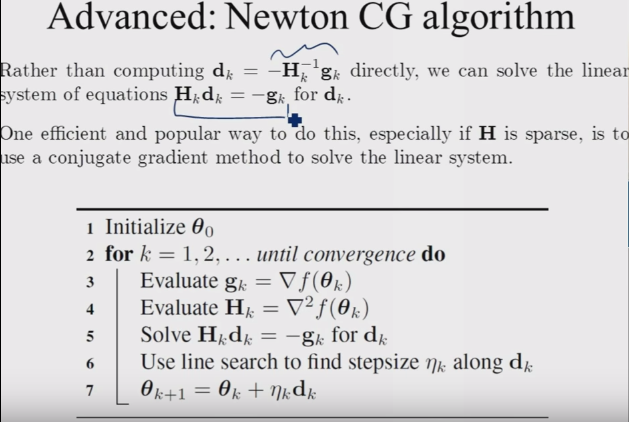

  • calculus - Newton conjugate gradient algorithm - Mathematics Stack Exchange View original

    Is this image relevant?

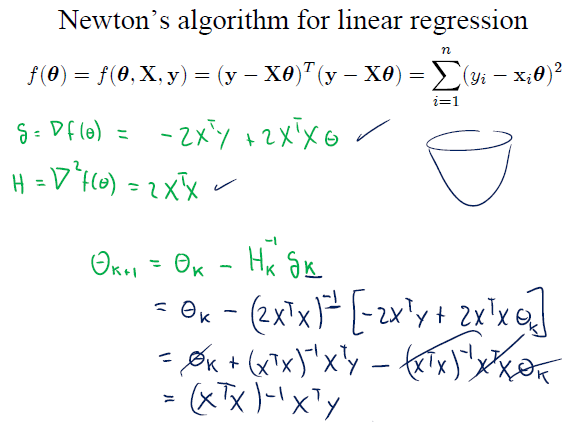

  • calculus - Newton conjugate gradient algorithm - Mathematics Stack Exchange View original

    Is this image relevant?

  • calculus - Newton conjugate gradient algorithm - Mathematics Stack Exchange View original

    Is this image relevant?

1 of 3

Top images from around the web for Fundamentals and Derivation

  • calculus - Newton conjugate gradient algorithm - Mathematics Stack Exchange View original

    Is this image relevant?

  • calculus - Newton conjugate gradient algorithm - Mathematics Stack Exchange View original

    Is this image relevant?

  • calculus - Newton conjugate gradient algorithm - Mathematics Stack Exchange View original

    Is this image relevant?

1 of 3
  • Conjugate gradient method solves symmetric positive definite linear systems Ax = b, where A is an n × n
  • Minimizes quadratic form f(x)=(1/2)xTAx−bTxf(x) = (1/2)x^T Ax - b^T x along conjugate directions
  • Conjugate directions satisfy piTApj=0p_i^T A p_j = 0 for i ≠ j, where A is the coefficient matrix
  • Generates sequence of approximate solutions x_k converging to exact solution x*
  • rk=b−Axkr_k = b - Ax_k represents error in current approximation
  • Uses to construct conjugate directions iteratively
  • Derived from for tridiagonalization of symmetric matrices
    • Establishes connection between iterative methods and matrix factorizations
  • Conjugate directions ensure orthogonality with respect to
    • Leads to efficient search in high-dimensional spaces
  • Minimization along conjugate directions guarantees convergence in finite steps
    • Theoretically reaches exact solution in at most n iterations for n × n system

Quadratic Form and Conjugate Directions

  • Quadratic form f(x)=(1/2)xTAx−bTxf(x) = (1/2)x^T Ax - b^T x represents energy of the system
    • Minimizing this form equivalent to solving Ax = b
  • Conjugate directions form A-orthogonal basis for solution space
    • Allows decomposition of error into independent components
  • A-orthogonality condition piTApj=0p_i^T A p_j = 0 ensures efficient updates
    • Prevents interference between search directions
  • Conjugate directions can be generated using modified Gram-Schmidt process
    • Ensures numerical stability in finite precision arithmetic
  • Relationship between conjugate directions and eigenvectors of A
    • Faster convergence for directions aligned with dominant eigenvectors

Implementing Conjugate Gradient

Algorithm Steps and Implementation

  • Conjugate gradient algorithm consists of initialization, iteration, and termination steps
  • Initialization sets:
    • x_0 (initial guess)
    • r0=b−Ax0r_0 = b - Ax_0 (initial residual)
    • p_0 = r_0 (initial search direction)
  • Each iteration computes:
    • αk=(rkTrk)/(pkTApk)α_k = (r_k^T r_k) / (p_k^T A p_k) (step size along search direction)
    • xk+1=xk+αkpkx_{k+1} = x_k + α_k p_k (solution update)
    • rk+1=rk−αkApkr_{k+1} = r_k - α_k A p_k (residual update)
    • βk=(rk+1Trk+1)/(rkTrk)β_k = (r_{k+1}^T r_{k+1}) / (r_k^T r_k) (conjugate direction update coefficient)
    • pk+1=rk+1+βkpkp_{k+1} = r_{k+1} + β_k p_k (new search direction)
  • Efficient implementation requires careful management of:
    • Matrix-vector products (exploit sparsity)
    • Vector operations (use optimized BLAS routines)
  • Termination criteria based on:
    • Maximum number of iterations
    • Residual norm below specified tolerance
    • Relative residual below threshold

Preconditioning and Optimization Techniques

  • improves for ill-conditioned systems
    • Transforms original system to equivalent system with better conditioning
  • Common preconditioning techniques:
    • (diagonal scaling)
  • modifies algorithm:
    • Introduces preconditioner M ≈ A^(-1)
    • Updates residual and search direction calculations
  • Optimization techniques for large-scale systems:
    • Matrix-free implementations (avoid explicit storage of A)
    • Sparse matrix-vector product optimizations
    • Cache-efficient data structures and algorithms

Convergence of Conjugate Gradient

Theoretical Convergence Properties

  • Conjugate gradient converges in at most n iterations for n × n system in exact arithmetic
  • Convergence rate related to condition number κ(A) of coefficient matrix A
    • Faster convergence for well-conditioned systems (smaller κ(A))
  • Error bound in k-th iteration:
    • ∣∣xk−x∗∣∣A≤2((√κ(A)−1)/(√κ(A)+1))k∣∣x0−x∗∣∣A||x_k - x*||_A ≤ 2((√κ(A) - 1)/(√κ(A) + 1))^k ||x_0 - x*||_A
    • ||·||_A denotes A-norm
  • Superlinear convergence observed in practice
    • Often converges faster than theoretical bound suggests
  • Distribution of eigenvalues affects convergence behavior
    • Clustered eigenvalues generally lead to faster convergence
  • Rounding errors in finite precision arithmetic impact convergence
    • Can cause loss of orthogonality between search directions
    • May slow convergence or cause stagnation in some cases

Monitoring and Analyzing Convergence

  • Monitor residual norm ||r_k|| or relative residual ||r_k|| / ||b|| for convergence progress
  • Convergence behavior can be visualized using:
    • Residual norm vs. iteration count plots
    • A-norm of error vs. iteration count (if exact solution known)
  • Analyze convergence rate using:
    • Asymptotic convergence factor
  • Techniques for improving convergence:
    • Restarting strategies
  • Impact of starting vector on convergence speed
    • Choose x_0 to reduce components in directions of small eigenvalues

Conjugate Gradient for Large Systems

Scalability and Efficiency for Large-Scale Problems

  • Conjugate gradient particularly effective for large, sparse systems
    • Direct methods become impractical due to memory and computational constraints
  • Efficient implementation for large-scale systems requires:
    • Exploiting sparsity in matrix-vector products
    • Avoiding explicit storage of coefficient matrix A
  • Preconditioning crucial for solving large-scale systems
    • Incomplete Cholesky factorization
    • Algebraic multigrid methods
  • Adaptations for multiple right-hand sides:
    • Block variants ()
    • Solution recycling techniques
  • Parallel implementations reduce computation time on distributed memory systems
    • Domain decomposition methods
    • Communication-avoiding algorithms

Extensions and Applications

  • Extended to non-symmetric systems using variants:
    • (Bi-Conjugate Gradient)
    • (Conjugate Gradient Squared)
    • (Generalized Minimal Residual)
  • Regularization techniques for ill-posed or rank-deficient systems:
    • Tikhonov regularization
    • Truncated SVD within CG iterations
  • Applications in various fields:
    • Structural analysis (finite element method)
    • (computed tomography)
    • Machine learning (least squares problems)
  • Conjugate gradient as optimization method:
    • Minimizing quadratic functions
    • Non-linear conjugate gradient for general optimization
