7.1 Memory Hierarchy Organization
5 min read•july 30, 2024
is the backbone of modern computer systems, balancing speed and cost. It leverages locality of reference, storing frequently accessed data in faster, smaller memory levels closer to the processor. This clever design maximizes performance while keeping costs manageable.
From lightning-fast to massive hard drives, each level in the hierarchy plays a crucial role. Understanding these trade-offs is key to optimizing system performance, power consumption, and cost-effectiveness. It's all about finding the sweet spot between speed, capacity, and affordability.
Memory Hierarchy Principles
Rationale and Design
Top images from around the web for Rationale and Design

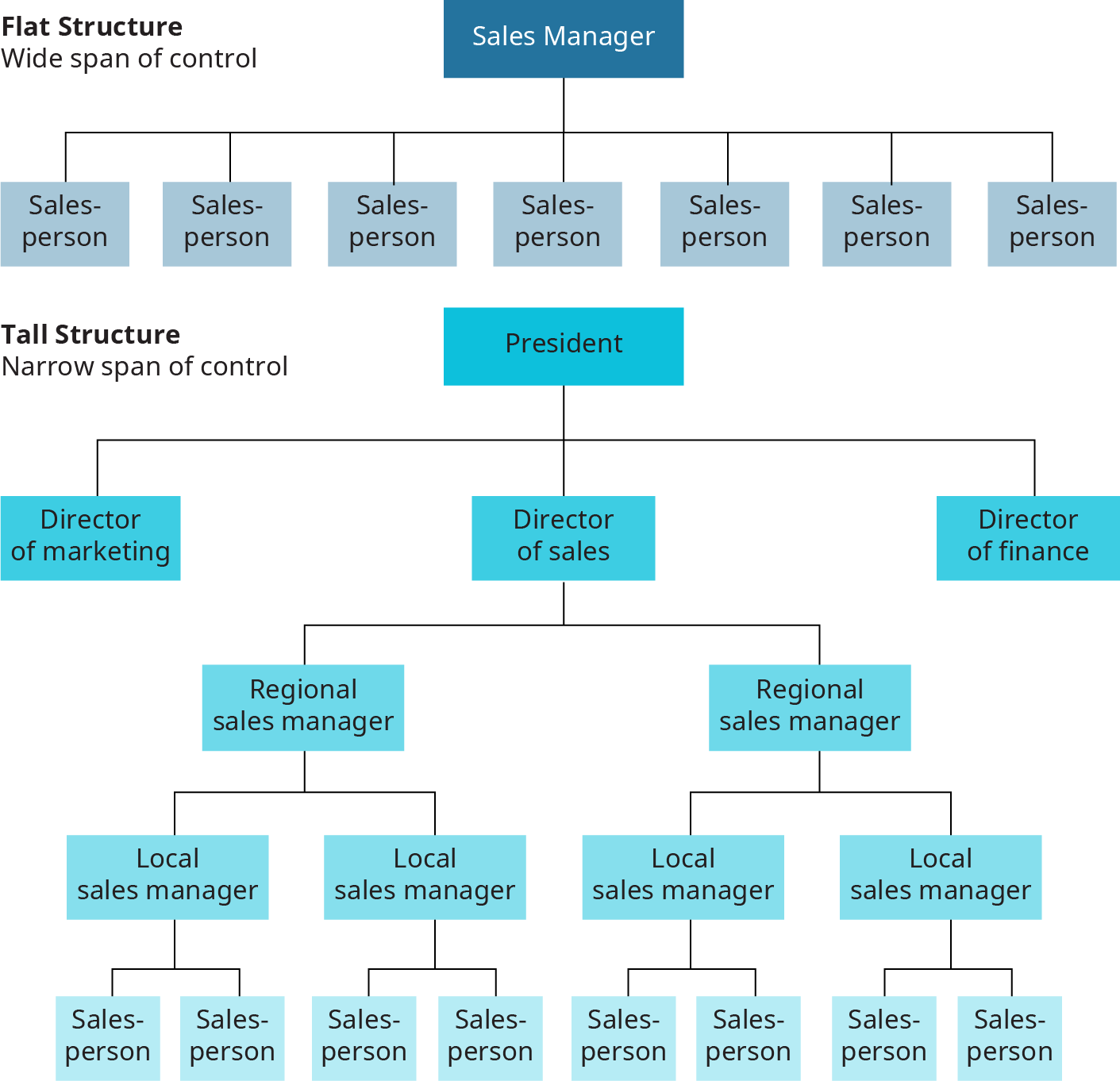

Organizational Design Considerations | OpenStax Intro to Business View original
Is this image relevant?
Memory hierarchy - Wikipedia View original
Is this image relevant?
HPC-Dictionary - HPC Wiki View original
Is this image relevant?
Organizational Design Considerations | OpenStax Intro to Business View original
Is this image relevant?
Memory hierarchy - Wikipedia View original
Is this image relevant?
1 of 3
Top images from around the web for Rationale and Design
Organizational Design Considerations | OpenStax Intro to Business View original
Is this image relevant?
Memory hierarchy - Wikipedia View original
Is this image relevant?
HPC-Dictionary - HPC Wiki View original
Is this image relevant?
Organizational Design Considerations | OpenStax Intro to Business View original
Is this image relevant?
Memory hierarchy - Wikipedia View original
Is this image relevant?
1 of 3
- The memory hierarchy balances the trade-off between cost, capacity, and access time in computer systems providing an optimal combination of performance and affordability
- The memory hierarchy exploits the locality of reference to store frequently accessed data in faster, smaller, and more expensive memory levels closer to the processor, while less frequently accessed data is stored in slower, larger, and cheaper memory levels further away (registers, , , )
- The effectiveness of the memory hierarchy relies on the ability to automatically move data between levels based on usage patterns, minimizing the average access time experienced by the processor
Locality of Reference
- The principle of locality, which includes both (recently accessed data is likely to be accessed again) and (data near recently accessed data is likely to be accessed), is a key justification for the memory hierarchy
- Temporal locality examples:
- Loop counters and indexes
- Frequently called functions
- Global variables
- Spatial locality examples:
- Arrays and structs
- Instructions in a program
- Contiguous memory blocks
Trade-offs in Memory Hierarchy
Cost, Capacity, and Access Time
- Each level of the memory hierarchy has distinct characteristics in terms of cost per bit, capacity, and access time, presenting trade-offs that must be carefully considered in system design
- Registers, at the top of the hierarchy, have the fastest access times (typically one CPU cycle) but are very limited in capacity and are the most expensive per bit
- Cache memory (L1, L2, L3) provides faster access times than main memory (a few CPU cycles) and is more expensive per bit, but has lower capacity compared to main memory
- Main memory (RAM) offers larger capacity than cache memory but has slower access times (tens to hundreds of CPU cycles) and is less expensive per bit
- Secondary storage (hard disk, SSD) has the largest capacity but the slowest access times (milliseconds) and is the least expensive per bit
Technology Choices and Configurations
- The trade-off between cache size, speed, and cost is crucial in determining the optimal cache configuration for a given system
- The choice of RAM technology (SRAM, DRAM) and capacity affects system performance and cost
- The choice between hard disk and SSD involves trade-offs in terms of cost, capacity, and access time, as well as considerations such as durability and power consumption
Memory Hierarchy Impact on System
Performance
- The design of the memory hierarchy significantly affects overall system performance, as the speed of memory access often determines the speed at which the processor can execute instructions and manipulate data
- A well-designed memory hierarchy minimizes the average memory access time by keeping frequently accessed data in faster memory levels, reducing the number of accesses to slower levels and improving overall system performance
- , which represents the percentage of memory accesses that can be satisfied by the cache without accessing main memory, is a key metric in evaluating the effectiveness of cache memory design (higher hit rates indicate better performance)
- , the percentage of memory accesses that cannot be satisfied by the cache and require accessing main memory, should be minimized to reduce the performance penalty associated with accessing slower memory levels
Power Consumption
- Memory hierarchy design also affects power consumption, as accessing faster memory levels typically requires more energy than accessing slower levels
- Techniques such as cache power gating and can be used to optimize power consumption in the memory hierarchy
- Power-saving strategies examples:
- Putting unused cache lines into low-power mode
- Adjusting memory controller frequency based on workload
- Employing power-efficient memory technologies (LPDDR, HBM)
Memory Technologies in the Hierarchy
Static and Dynamic RAM
- is typically used for cache memory due to its fast access times and ability to retain data without constant refreshing, but is more expensive and has lower density compared to DRAM
- is commonly used for main memory, offering larger capacity and lower cost per bit than SRAM, but has slower access times and requires periodic refreshing to maintain data
- synchronizes its operations with the system clock, providing faster access times and higher compared to asynchronous DRAM
- transfers data on both the rising and falling edges of the clock signal, effectively doubling the data rate and increasing bandwidth
Non-Volatile Memory
- is a type of used in and other storage devices, offering faster access times and lower power consumption compared to but is more expensive per bit
- Hard disk drives (HDDs) are traditional secondary storage devices that use magnetic disks to store data, offering large capacity and low cost per bit but have slower access times and higher power consumption compared to SSDs
Emerging Technologies
- Emerging memory technologies, such as , , and , are being explored as potential alternatives or complements to existing memory technologies
- These emerging technologies offer unique trade-offs in terms of cost, capacity, access time, and non-volatility
- Examples of potential applications:
- PCM as a replacement for DRAM in main memory
- RRAM for high-density, low-power embedded memory
- MRAM for fast, non-volatile cache memory
Key Terms to Review (39)
Bandwidth: Bandwidth refers to the maximum rate at which data can be transferred over a network or a communication channel within a specific period of time. In computer architecture, it is crucial as it influences the performance of memory systems, communication between processors, and overall system efficiency.
Block size: Block size refers to the unit of data that is transferred between the main memory and the cache in a computer's memory hierarchy. It plays a crucial role in determining the performance of cache memory, as a well-chosen block size can enhance the efficiency of data retrieval and reduce the number of cache misses. The choice of block size affects cache hit rates, memory bandwidth utilization, and overall system performance.
Cache coherence: Cache coherence refers to the consistency of data stored in local caches of a shared memory multiprocessor system. It ensures that any changes made to a cached value are reflected across all caches that store that value, which is crucial for maintaining accurate and up-to-date information in systems where multiple processors access shared memory.
Cache hit rate: Cache hit rate is the percentage of all memory accesses that are successfully retrieved from the cache, rather than requiring access to slower main memory. A higher cache hit rate indicates more efficient cache usage, which contributes to improved system performance by reducing the time needed to fetch data. It is a crucial performance metric that impacts how effectively data is accessed and stored in the memory hierarchy, and it plays a significant role in optimizing prefetching mechanisms to anticipate and load data before it is requested.
Cache memory: Cache memory is a small, high-speed storage area located close to the CPU that temporarily holds frequently accessed data and instructions. It significantly speeds up data retrieval processes by reducing the time needed to access the main memory, improving overall system performance. Cache memory plays a crucial role in advanced computer architectures, allowing pipelined processors to operate more efficiently by minimizing delays due to memory access times.
Cache miss rate: Cache miss rate is the fraction of all memory accesses that result in a cache miss, meaning the requested data is not found in the cache and must be fetched from a lower level of the memory hierarchy. This metric is crucial because it directly affects system performance, as higher miss rates lead to longer access times and reduced efficiency in data retrieval. Understanding cache miss rate helps in optimizing memory hierarchy design and improving overall computational speed.
Caching strategies: Caching strategies refer to the techniques and methods used to efficiently store and retrieve frequently accessed data in a computer's memory hierarchy. These strategies help reduce latency and improve performance by keeping the most relevant data close to the processor, allowing for faster access compared to fetching it from slower memory levels. Understanding these strategies is crucial for optimizing system performance and resource management.
Double data rate (ddr) sdram: Double Data Rate (DDR) SDRAM is a type of synchronous dynamic random-access memory that allows for twice the data transfer rate compared to conventional SDRAM by transferring data on both the rising and falling edges of the clock signal. This characteristic significantly boosts memory bandwidth, making DDR SDRAM a critical component in modern memory hierarchy organization. DDR technology has evolved through various generations, each offering improvements in speed and efficiency, contributing to overall system performance.
Dynamic random access memory (DRAM): Dynamic random access memory (DRAM) is a type of volatile memory that stores each bit of data in a separate capacitor within an integrated circuit. It is widely used in computer systems as the main memory because of its ability to provide fast read and write operations, albeit requiring periodic refreshing to maintain the stored data. DRAM's structure allows for a high density of memory cells, making it a cost-effective solution for meeting the demands of modern computing.
Dynamic Voltage and Frequency Scaling (DVFS): Dynamic Voltage and Frequency Scaling (DVFS) is a power management technique used in computing systems to adjust the voltage and frequency of a processor dynamically based on its workload. By lowering the voltage and frequency during periods of low activity, DVFS helps reduce power consumption and heat generation, enhancing the overall energy efficiency of the system while maintaining performance when needed.
Hard disk drives (HDDs): Hard disk drives (HDDs) are data storage devices that use magnetic disks to read and write digital information. They are commonly used in computers and servers for long-term storage, thanks to their ability to hold large amounts of data at a relatively low cost. HDDs are a critical component of the memory hierarchy, as they provide a balance between capacity, speed, and cost-effectiveness compared to other storage technologies like solid-state drives (SSDs).
Harvard Architecture: Harvard architecture is a computer architecture design that separates the memory storage and pathways for program instructions and data, allowing for simultaneous access. This design enhances performance by enabling the CPU to read instructions and data at the same time, reducing bottlenecks and improving overall efficiency. Its distinct separation is crucial in the context of evolution in computer designs, memory hierarchy organization, and the development of multi-level cache hierarchies.
Hit ratio: Hit ratio is a performance metric that measures the effectiveness of a cache memory system, defined as the ratio of cache hits to the total number of memory access attempts. A high hit ratio indicates that the cache is successfully serving requests without needing to access slower levels of memory, leading to improved performance. This concept is crucial in understanding memory hierarchy, optimizing virtual memory systems, and determining efficient cache replacement and write policies.
L1 Cache: L1 cache is the smallest and fastest type of memory cache located directly on the processor chip, designed to provide high-speed access to frequently used data and instructions. This cache significantly reduces the time it takes for the CPU to access data, playing a critical role in improving overall system performance and efficiency by minimizing latency and maximizing throughput.
L2 Cache: The L2 cache is a type of memory cache that sits between the CPU and the main memory, designed to store frequently accessed data and instructions to speed up processing. It acts as a bridge that enhances data retrieval times, reducing latency and improving overall system performance. By holding a larger amount of data than the L1 cache while being faster than accessing RAM, it plays a crucial role in the memory hierarchy, multi-level caches, and efficient cache coherence mechanisms.
L3 Cache: L3 cache is the third level of cache memory in a computer architecture, positioned between the CPU and the main memory. It acts as a shared resource for multiple CPU cores, designed to store frequently accessed data to improve overall system performance and reduce latency. L3 cache plays a critical role in memory hierarchy organization by bridging the speed gap between the faster CPU and slower RAM, thereby enhancing data access efficiency and system throughput.
Latency: Latency refers to the delay between the initiation of an action and the moment its effect is observed. In computer architecture, latency plays a critical role in performance, affecting how quickly a system can respond to inputs and process instructions, particularly in high-performance and superscalar systems.
Magnetoresistive ram (mram): Magnetoresistive RAM (MRAM) is a type of non-volatile memory that uses magnetic states to store data, offering the speed of SRAM combined with the non-volatility of flash memory. This technology utilizes magnetic tunnel junctions to read and write data, which makes it faster and more energy-efficient than traditional memory types. MRAM can play a critical role in the memory hierarchy by providing a potential solution for faster and more efficient data storage across computing systems.
Main memory: Main memory, often referred to as RAM (Random Access Memory), is the primary storage area where a computer holds data and programs that are actively in use. It serves as a critical component in the memory hierarchy, acting as a bridge between the slower storage devices and the faster processing units, thereby facilitating quick access to data and improving overall system performance.
Memory hierarchy: Memory hierarchy is a structured arrangement of different types of memory, designed to optimize performance and cost-effectiveness in computing systems. This system organizes memory types based on speed, size, and cost, allowing faster access to frequently used data while providing larger storage capacity for less frequently accessed information. The organization of memory hierarchy influences system efficiency and performance, especially as applications and computing needs evolve.
Memory interleaving: Memory interleaving is a technique used in computer architecture to optimize the performance of memory systems by spreading memory addresses across multiple memory banks. This method allows for simultaneous access to different banks, reducing latency and increasing throughput, which is essential for efficient data processing. By distributing the workload evenly, memory interleaving helps to improve the overall efficiency of the memory hierarchy and enhances the speed at which data can be accessed and processed.
Nand flash memory: NAND flash memory is a type of non-volatile storage technology that retains data even when the power is turned off. It is widely used in various devices such as USB drives, SSDs, and memory cards due to its ability to store large amounts of data in a compact form while providing fast read and write speeds.
Non-volatile memory: Non-volatile memory is a type of computer memory that retains stored information even when not powered. This characteristic is essential for preserving data integrity in various computing environments, making it a vital component of the overall memory hierarchy. Non-volatile memory contrasts with volatile memory, which loses its data when power is turned off, providing a reliable solution for long-term data storage and retrieval.
Paging: Paging is a memory management scheme that eliminates the need for contiguous allocation of physical memory, allowing the computer to retrieve data from secondary storage in fixed-size blocks called pages. This technique enhances the efficiency of memory usage and facilitates the implementation of virtual memory, where the total addressable memory space exceeds the actual physical memory available. By breaking down the memory into smaller units, paging enables systems to run larger applications and multitask more effectively.
Phase-change memory (PCM): Phase-change memory (PCM) is a type of non-volatile memory that stores data by changing the phase of a material between crystalline and amorphous states. This technology allows for faster access times and greater endurance compared to traditional flash memory, making it a promising candidate for future memory hierarchies in computing systems.
Prefetching: Prefetching is a technique used in computer architecture to anticipate the data or instructions that will be needed in the future and fetch them into a faster storage location before they are actually requested by the CPU. This proactive strategy aims to minimize wait times and improve overall system performance by effectively reducing the latency associated with memory access.
Registers: Registers are small, high-speed storage locations within a processor used to hold temporary data and instructions for quick access during execution. They play a crucial role in enhancing the performance of processors by providing fast storage for frequently used values and control information, ultimately improving resource management and processing speed in various architectural designs.
Resistive RAM (RRAM): Resistive RAM (RRAM) is a type of non-volatile memory that stores data by changing the resistance across a dielectric solid-state material. It utilizes the concept of resistance switching to represent binary information, offering advantages such as high speed, low power consumption, and excellent scalability. This technology presents potential for improving memory hierarchy organization by bridging the gap between traditional volatile memories and slower, larger storage solutions.
Secondary storage: Secondary storage refers to non-volatile storage that retains data even when the computer is powered off. Unlike primary storage, which is fast and temporary, secondary storage is used for long-term data retention and includes devices like hard drives, SSDs, and optical discs. This type of storage plays a crucial role in a computer's overall architecture by providing a larger capacity for data that isn't actively being processed.
Segmentation: Segmentation is a memory management technique that divides the memory into different segments based on the logical organization of a program, allowing each segment to grow independently. This approach provides better allocation of memory and helps in managing varying data structures more efficiently. By enabling processes to access different segments separately, segmentation improves both data isolation and protection, which are critical in complex applications.
Snooping: Snooping is a technique used in cache coherence protocols to ensure that multiple caches have a consistent view of memory. This method involves monitoring the bus traffic to observe read and write operations, allowing caches to update themselves based on the actions of other processors. By doing so, snooping helps maintain data integrity across multiple caches in a multiprocessor system, minimizing the risks of stale or inconsistent data.
Solid-state drives (SSDs): Solid-state drives (SSDs) are storage devices that use flash memory to store data, providing faster access times and improved reliability compared to traditional hard disk drives (HDDs). SSDs have no moving parts, which allows for quicker data retrieval, lower latency, and enhanced durability, making them a critical component in modern computer systems and architectures.
Spatial locality: Spatial locality refers to the principle that if a particular memory location is accessed, it is likely that nearby memory locations will also be accessed in the near future. This concept is crucial for optimizing memory systems, allowing for efficient data retrieval and storage in hierarchical memory architectures and cache systems.
Static random access memory (SRAM): Static Random Access Memory (SRAM) is a type of volatile memory that retains data bits in its memory as long as power is being supplied. Unlike dynamic RAM (DRAM), which needs to be refreshed periodically, SRAM uses bistable latching circuitry to store each bit, allowing for faster access times. Its speed and simplicity make it an essential component in cache memory and other high-performance applications.
Synchronous DRAM (SDRAM): Synchronous DRAM (SDRAM) is a type of dynamic random-access memory that synchronizes its operations with the system bus clock, allowing for faster data access and transfer rates compared to earlier asynchronous DRAM. This synchronization enables SDRAM to process multiple requests simultaneously, improving the efficiency of memory operations and making it suitable for high-performance computing tasks.
Temporal locality: Temporal locality refers to the principle that if a particular memory location is accessed, it is likely to be accessed again in the near future. This concept is crucial in optimizing memory systems, as it suggests that programs tend to reuse data and instructions within a short time frame. By leveraging temporal locality, systems can employ caching strategies that significantly improve performance by keeping frequently accessed data closer to the processor.
Virtual memory: Virtual memory is a memory management technique that allows a computer to compensate for physical memory shortages by temporarily transferring data from random access memory (RAM) to disk storage. This technique enables a system to run larger applications or multiple programs simultaneously than what would be possible with just the physical RAM alone, effectively creating an illusion of a larger memory space.
Volatile memory: Volatile memory is a type of computer storage that requires power to maintain the stored information. When the power is turned off, all data in volatile memory is lost. This characteristic makes volatile memory essential for temporary data storage during active processes, linking it closely to system performance and efficiency.
Von Neumann Architecture: Von Neumann architecture is a computer design model that uses a single memory space to store both data and instructions. This architecture simplifies the design and implementation of computers, allowing for a unified approach to data processing and storage. It forms the foundational concept for most modern computing systems, influencing how memory is organized and accessed, as well as shaping the development of cache hierarchies.
