6.1 Out-of-Order Execution Principles
5 min read•july 30, 2024
Out-of-order execution is a game-changer in computer architecture. It lets processors execute instructions based on readiness, not just program order. This clever trick boosts performance by exploiting and minimizing pipeline stalls.
This technique comes with some cool components like and instruction scheduling. It's not all smooth sailing though – challenges like dependency tracking and memory consistency need to be tackled. But when done right, out-of-order execution can seriously amp up processor performance.
Motivation for Out-of-Order Execution
Exploiting Instruction-Level Parallelism
Top images from around the web for Exploiting Instruction-Level Parallelism
Petri Net based modeling and analysis for improved resource utilization in cloud computing [PeerJ] View original
Is this image relevant?

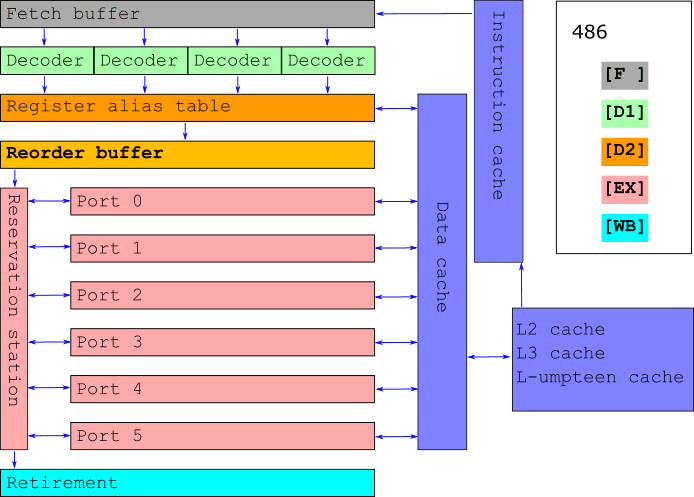

The Life of a CPU Instruction View original
Is this image relevant?
Computer architecture for software developers - HPC Wiki View original
Is this image relevant?
Petri Net based modeling and analysis for improved resource utilization in cloud computing [PeerJ] View original
Is this image relevant?
The Life of a CPU Instruction View original
Is this image relevant?
1 of 3
Top images from around the web for Exploiting Instruction-Level Parallelism
Petri Net based modeling and analysis for improved resource utilization in cloud computing [PeerJ] View original
Is this image relevant?
The Life of a CPU Instruction View original
Is this image relevant?
Computer architecture for software developers - HPC Wiki View original
Is this image relevant?
Petri Net based modeling and analysis for improved resource utilization in cloud computing [PeerJ] View original
Is this image relevant?
The Life of a CPU Instruction View original
Is this image relevant?
1 of 3
- Out-of-order execution improves performance by executing instructions in a non-sequential order, based on their dependencies and resource availability
- Exploits instruction-level parallelism (ILP) to minimize the impact of long- operations (memory accesses, complex computations)
- Allows the processor to continue executing independent instructions while waiting for the completion of long-latency operations
- Reduces pipeline stalls
- Improves overall
- Dynamically schedules instructions based on their readiness and resource availability
- Effectively utilizes the processor's functional units
- Maximizes the number of instructions executed per cycle
Adapting to Runtime Dependencies
- Enables the processor to tolerate variable latencies of different instructions
- Adapts to runtime dependencies for more efficient execution and higher performance
- Examples of runtime dependencies:
- Data dependencies between instructions
- Control dependencies introduced by branch instructions
- Out-of-order execution can reorder instructions to minimize the impact of dependencies
- Executes independent instructions ahead of stalled or waiting instructions
- Helps in hiding latencies and keeping the pipeline busy
Components of Out-of-Order Execution
Instruction Fetch and Decode
- Instructions are fetched from memory and decoded to determine their type, operands, and dependencies
- Decoded instructions are placed in an instruction queue or buffer
- Decoding stage identifies the instruction's operation and required resources
Register Renaming
- Eliminates false dependencies caused by the limited number of architectural registers
- Physical registers are dynamically allocated to hold the results of instructions
- Allows multiple instructions to write to the same architectural register without conflicts
- Renaming process:
- Maps architectural registers to a larger set of physical registers
- Assigns a new physical register to each destination operand
- Keeps track of the mapping between architectural and physical registers
Instruction Scheduling and Execution
- Instruction scheduler analyzes dependencies among instructions in the queue
- Determines which instructions are ready to execute based on:
- Availability of their operands
- Availability of execution resources
- Dynamically dispatches ready instructions to the appropriate functional units (ALUs, FPUs, load/store units)
- Out-of-order execution allows multiple instructions to be executed simultaneously
- Requires sufficient resources and no dependencies
- Examples of functional units:
- Arithmetic Logic Units (ALUs) for integer operations
- Floating-Point Units (FPUs) for floating-point operations
- Load/Store Units for memory operations
Reorder Buffer and Commit Stage
- (ROB) maintains the original program order of instructions
- Stores the results of executed instructions until they can be safely committed to the architectural state
- Ensures the processor's state remains consistent with the original program order
- Commit stage:
- Occurs when an instruction reaches the head of the ROB and all previous instructions have been completed
- Updates the architectural state by writing the instruction's result to the appropriate register or memory location
- Makes the changes visible to the rest of the system
- ROB handles branch mispredictions and exceptions
- Allows and precise exception handling
Challenges of Out-of-Order Execution
Dependency Tracking and Resource Allocation
- Accurate tracking of dependencies among instructions is crucial for correct execution
- Involves analyzing register dependencies, memory dependencies, and control dependencies
- Efficient dependency tracking mechanisms are required to maximize parallelism while maintaining correctness
- Resource allocation and management are critical challenges
- Functional units, register files, memory ports need to be efficiently allocated and managed
- Balancing resource utilization and avoiding resource conflicts are essential for optimal performance
Memory Consistency and Branch Prediction
- Maintaining memory consistency is challenging in out-of-order execution
- Multiple cores or threads accessing shared memory can lead to data races or inconsistencies
- Techniques to ensure correct ordering of memory operations:
- Memory disambiguation
- Load-store queues
- Memory barriers
- Accurate branch prediction is crucial for speculative execution
- Mispredicted branches require efficient recovery mechanisms
- Discarding speculative work and restoring the correct processor state
Complexity and Debugging
- Implementing out-of-order execution adds significant complexity to the processor's control logic and datapath
- Higher and larger chip area compared to simpler in-order designs
- Balancing performance gains with power and area constraints is a key challenge
- Debugging and verification of out-of-order processor designs are more challenging
- Dynamic nature of instruction scheduling and speculative execution complicate program behavior analysis
- Identification of bugs or performance bottlenecks becomes more difficult
Performance Impact of Out-of-Order Execution
Improved Performance and Latency Tolerance
- Significantly improves processor performance by exploiting instruction-level parallelism
- Reduces pipeline stalls by executing instructions based on their readiness rather than strict program order
- Achieves higher instructions per cycle (IPC) and faster execution times compared to in-order processors
- Tolerates long-latency operations by continuing to execute independent instructions
- Overlaps execution of multiple instructions to hide memory latencies
- Improves overall performance
Resource Utilization and Power Efficiency
- Aims to maximize the utilization of processor resources (functional units, memory bandwidth)
- Dynamically schedules instructions based on resource availability
- Keeps multiple functional units busy and avoids idle cycles
- Higher resource requirements due to increased complexity
- Larger register files and more complex control logic
- Power and energy overheads compared to simpler in-order designs
- Performance gains can still result in better energy efficiency for certain workloads
Workload Dependence and Architectural Trade-offs
- Impact on performance and resource utilization depends on workload characteristics
- Workloads with high levels of instruction-level parallelism and complex dependencies benefit more
- Workloads with limited parallelism or simple dependencies may not see significant improvements
- Interacts with other architectural features (cache hierarchies, branch prediction, instruction set extensions)
- Effectiveness influenced by design choices made in other areas
- Example: Well-designed cache hierarchy can reduce memory latencies and enhance the benefits of out-of-order execution
- Trade-offs between performance, power, and complexity need to be carefully considered in processor design
Key Terms to Review (18)
Bypassing: Bypassing refers to a technique used in computer architecture to circumvent data hazards in pipelined processors, enabling more efficient execution of instructions without waiting for prior instructions to complete. This method allows for data to be used directly from a preceding stage of the pipeline instead of relying on the typical write-back stage, which minimizes stalls and increases throughput. Bypassing is closely linked to forwarding mechanisms and plays a crucial role in optimizing out-of-order execution strategies.
Cache coherence: Cache coherence refers to the consistency of data stored in local caches of a shared memory multiprocessor system. It ensures that any changes made to a cached value are reflected across all caches that store that value, which is crucial for maintaining accurate and up-to-date information in systems where multiple processors access shared memory.
Control Dependency: Control dependency refers to the relationship between instructions in a program where the execution of one instruction depends on the outcome of a prior control flow decision, such as an if statement or a loop. This concept is critical when managing the execution of instructions, particularly in scenarios involving dynamic scheduling, instruction issue mechanisms, and out-of-order execution, as it impacts how parallelism and efficiency can be achieved in processing.
Data dependency: Data dependency refers to a situation in computing where the outcome of one instruction relies on the data produced by a previous instruction. This relationship can create challenges in executing instructions in parallel and can lead to delays or stalls in the instruction pipeline if not managed correctly. Understanding data dependencies is crucial for optimizing performance through various techniques that mitigate their impact, especially in modern processors that strive for high levels of instruction-level parallelism.
Dynamic Scheduling: Dynamic scheduling is a technique used in computer architecture that allows instructions to be executed out of order while still maintaining the program's logical correctness. This approach helps to optimize resource utilization and improve performance by allowing the processor to make decisions at runtime based on the availability of resources and the status of executing instructions, rather than strictly adhering to the original instruction sequence.
Execution Units: Execution units are specialized components within a CPU that perform the actual operations of instructions during program execution. They handle various tasks such as arithmetic calculations, logic operations, and data manipulations, playing a crucial role in maximizing processing efficiency. In the context of out-of-order execution, these units enable the CPU to execute instructions as resources are available rather than strictly following the original program order, which improves performance and resource utilization.
Instruction-Level Parallelism: Instruction-Level Parallelism (ILP) refers to the ability of a processor to execute multiple instructions simultaneously by leveraging the inherent parallelism in instruction execution. This concept is vital for enhancing performance, as it enables processors to make better use of their resources and reduces the time taken to execute programs by overlapping instruction execution, thus increasing throughput.
Latency: Latency refers to the delay between the initiation of an action and the moment its effect is observed. In computer architecture, latency plays a critical role in performance, affecting how quickly a system can respond to inputs and process instructions, particularly in high-performance and superscalar systems.
Memory latency: Memory latency is the delay between a request for data and the delivery of that data from the memory subsystem to the processor. This delay can significantly impact system performance, especially in environments that require high-speed data access. Understanding memory latency helps to optimize resource allocation, execution timing, and overall efficiency within computer architecture.
Power consumption: Power consumption refers to the amount of electrical energy used by a computer system or its components during operation. It is a crucial factor in determining the overall efficiency and performance of a computing system, impacting not only the system's thermal management but also its battery life in portable devices. Understanding power consumption is essential for optimizing both hardware design and software execution, especially in high-performance and energy-sensitive environments.
Register Renaming: Register renaming is a technique used in computer architecture to eliminate false dependencies between instructions by dynamically mapping logical registers to physical registers. This process enhances instruction-level parallelism by allowing multiple instructions to be executed simultaneously without interfering with each other due to register conflicts. By decoupling the logical use of registers from their physical implementations, this technique plays a crucial role in optimizing performance in various advanced architectures.
Reorder Buffer: A reorder buffer is a hardware mechanism that helps maintain the correct order of instruction execution in out-of-order execution architectures. It allows instructions to be executed as resources become available, while still ensuring that results are committed in the original program order, which is essential for maintaining data consistency and program correctness. This mechanism is crucial for dynamic scheduling, advanced pipeline optimizations, and speculative execution, as it allows processors to take advantage of instruction-level parallelism without sacrificing the integrity of program execution.
Scoreboard: A scoreboard is a hardware component used in advanced computer architectures to track the status of instructions during out-of-order execution. It helps manage dependencies and resource allocation, allowing processors to execute instructions as their operands become available rather than strictly adhering to the program order. This mechanism supports greater instruction-level parallelism, enhancing overall performance and efficiency in processing.
Speculative Execution: Speculative execution is a performance optimization technique used in modern processors that allows the execution of instructions before it is confirmed that they are needed. This approach increases instruction-level parallelism and can significantly improve processor throughput by predicting the paths of control flow and executing instructions ahead of time.
Stalling: Stalling refers to a situation in a pipeline where the progress of instruction execution is temporarily halted due to various hazards, preventing the processor from moving forward efficiently. This can occur because of data dependencies, resource conflicts, or control hazards, and it negatively impacts the overall performance of the system by increasing latency and reducing throughput.
Thermal management: Thermal management refers to the techniques and practices used to control the temperature of electronic components and systems to prevent overheating and ensure optimal performance. Effective thermal management is essential for maintaining reliability and longevity in processors, as high temperatures can lead to performance degradation and damage. It involves a combination of hardware design, cooling solutions, and software algorithms to optimize heat dissipation across various architectures.
Throughput: Throughput is a measure of how many units of information a system can process in a given amount of time. In computing, it often refers to the number of instructions that a processor can execute within a specific period, making it a critical metric for evaluating performance, especially in the context of parallel execution and resource management.
Tomasulo's Algorithm: Tomasulo's Algorithm is a dynamic scheduling algorithm that allows for out-of-order execution of instructions to improve the utilization of CPU resources and enhance performance. This algorithm uses register renaming and reservation stations to track instructions and their dependencies, enabling greater parallelism while minimizing the risks of data hazards. Its key features connect deeply with instruction issue and dispatch mechanisms, as well as principles of out-of-order execution and instruction scheduling.
