3.2 Control Hazards and Branch Prediction
6 min read•july 30, 2024
Control hazards can seriously slow down your processor's pipeline. They happen when the next instruction depends on a previous branch or jump. To tackle this, processors use clever tricks like branch prediction and to keep things moving smoothly.
Branch prediction tries to guess which way a branch will go before it's resolved. uses simple rules, while learns from past behavior. Speculative execution takes it further by running instructions based on predictions. If wrong, the processor backtracks, but when right, it saves precious time.
Control hazards and pipeline performance

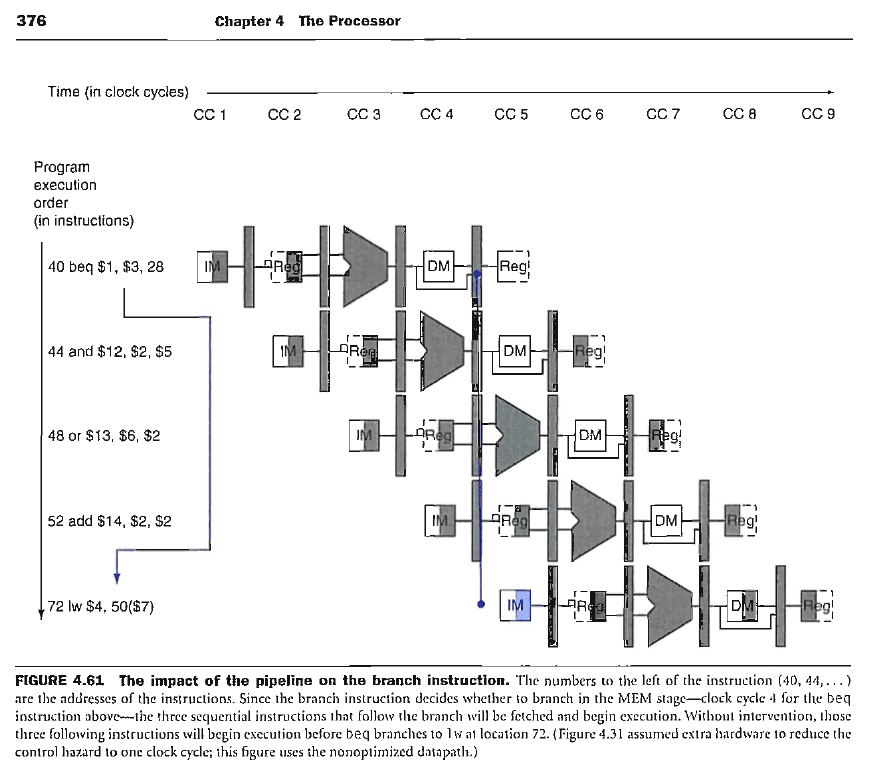

Impact of control hazards on pipeline performance
Top images from around the web for Impact of control hazards on pipeline performance
.svg.png&w=1080&q=75)
Computer architecture - Wikipedia View original
Is this image relevant?
microprocessor - Understanding branch prediction - Electrical Engineering Stack Exchange View original
Is this image relevant?
MIPS pipeline stalls with and without forwarding - Stack Overflow View original
Is this image relevant?
Computer architecture - Wikipedia View original
Is this image relevant?
microprocessor - Understanding branch prediction - Electrical Engineering Stack Exchange View original
Is this image relevant?
1 of 3
Top images from around the web for Impact of control hazards on pipeline performance
Computer architecture - Wikipedia View original
Is this image relevant?
microprocessor - Understanding branch prediction - Electrical Engineering Stack Exchange View original
Is this image relevant?
MIPS pipeline stalls with and without forwarding - Stack Overflow View original
Is this image relevant?
Computer architecture - Wikipedia View original
Is this image relevant?
microprocessor - Understanding branch prediction - Electrical Engineering Stack Exchange View original
Is this image relevant?
1 of 3
- Control hazards occur when the next instruction to be executed depends on the outcome of a previous instruction (conditional branch or jump)
- Control hazards can cause pipeline , reducing the overall performance of the processor
- The pipeline must wait for the branch condition to be resolved before fetching and executing subsequent instructions, resulting in wasted cycles
- The impact of control hazards on pipeline performance depends on several factors
- Frequency of branches in the code
- Accuracy of branch prediction mechanisms
- Pipeline depth (deeper pipelines are more susceptible to control hazards)
- Techniques like branch prediction and speculation are employed to mitigate the performance impact of control hazards
- These techniques aim to predict the outcome of branches and continue execution speculatively to minimize pipeline stalls
Factors affecting control hazard impact
- Branch density: The number of branch instructions per unit of code
- Higher branch density leads to more frequent control hazards and potentially more pipeline stalls
- Branch predictability: The degree to which branch outcomes can be accurately predicted
- Highly predictable branches (loops with fixed iterations) have less impact on performance
- Unpredictable branches (data-dependent conditions) are more challenging to handle efficiently
- Pipeline depth: The number of stages in the processor pipeline
- Deeper pipelines have more stages between branch instruction fetch and branch resolution
- Control hazards in deeper pipelines result in more wasted cycles and greater performance impact
- Instruction set architecture (ISA) design: The specific instructions and their encoding
- ISAs with delayed branch slots (MIPS) or predicated execution (ARM) can help mitigate control hazards
- Branch hint bits in instructions can provide additional information for branch prediction
Handling control hazards
Branch prediction mechanisms
- Branch prediction is a technique used to predict the outcome of a branch instruction before its condition is resolved
- Allows the pipeline to continue executing instructions speculatively
- Static branch prediction techniques rely on compile-time analysis or fixed heuristics
- Always predict backward branches as taken and forward branches as not taken
- Limited accuracy due to lack of runtime information
- Dynamic branch prediction techniques use runtime information and history to make predictions
- Adapt to the actual behavior of the program during execution
- Examples: Branch target buffers (BTBs), branch history tables (BHTs), two-level adaptive predictors
- Branch target buffers (BTBs) store the target addresses of recently executed branches
- Provide quick prediction of the next instruction to fetch based on branch history
- Branch history tables (BHTs) store the history of branch outcomes
- Use this information to make predictions based on patterns of taken and not-taken branches
Speculative execution and recovery
- Speculation involves executing instructions along the predicted path before the branch outcome is known
- Allows the pipeline to continue making progress even in the presence of control hazards
- If the branch prediction is correct, the speculative execution results are committed, improving performance
- If the prediction is incorrect, the speculative results are discarded, and the pipeline is flushed
- Recovery mechanisms, such as and state restoration, are necessary to handle mispredicted branches
- Speculative execution requires mechanisms to track and manage the status of speculatively executed instructions
- Reorder buffers and commit logic are used to maintain correct program order and handle dependencies
- Advanced techniques, such as branch prediction confidence estimation, can help reduce the cost of mispredictions
- Confidence estimation assesses the likelihood of a prediction being correct and can guide speculation decisions
Branch prediction techniques
Static branch prediction
- Static branch prediction techniques rely on compile-time analysis or fixed heuristics to predict branch outcomes
- Always predict backward branches (loops) as taken and forward branches as not taken
- Compiler hints or branch direction hints in instructions can provide additional information
- Advantages of static branch prediction
- Simple to implement and requires minimal hardware overhead
- Can be effective for certain types of branches (loops with fixed iterations)
- Disadvantages of static branch prediction
- Limited accuracy due to lack of runtime information
- Cannot adapt to the actual behavior of the program during execution
- Ineffective for complex or data-dependent branch patterns
Dynamic branch prediction
- Dynamic branch prediction techniques use runtime information and history to make predictions
- Adapt to the actual behavior of the program during execution
- Branch target buffers (BTBs) store the target addresses of recently executed branches
- Provide quick prediction of the next instruction to fetch based on branch history
- Implemented as a cache-like structure with tags and target addresses
- Branch history tables (BHTs) store the history of branch outcomes
- Use this information to make predictions based on patterns of taken and not-taken branches
- Implemented as a table indexed by a portion of the branch address or a hash of the branch history
- Two-level adaptive predictors (Pentium Pro branch predictor) achieve high accuracy
- Use both global and local branch history to make predictions
- Combine multiple tables and indexing schemes to capture different branch patterns
- Neural branch prediction techniques leverage machine learning algorithms
- Train neural networks to predict branch outcomes based on program behavior
- Can achieve high accuracy but require significant hardware resources and training overhead
Branch prediction for efficiency
Integrating branch prediction into the pipeline
- Branch prediction logic should be integrated into the pipeline stages to minimize the impact of control hazards
- : Predict the next instruction to fetch based on branch prediction
- : Detect branch instructions and initiate branch prediction mechanisms
- Speculative execution requires mechanisms to track and manage the status of speculatively executed instructions
- Reorder buffers: Maintain the correct program order and handle dependencies
- Commit logic: Ensure that only correctly predicted instructions update the architectural state
- Recovery mechanisms are necessary to handle mispredicted branches and discard speculative results
- Pipeline flushing: Discard all instructions following a mispredicted branch
- State restoration: Restore the processor state to the point before the mispredicted branch
Trade-offs and considerations
- Prediction accuracy vs. hardware complexity
- More sophisticated branch prediction techniques (two-level adaptive predictors) provide higher accuracy but require more hardware resources
- The trade-off between prediction accuracy and hardware cost should be considered
- Branch prediction structure sizes (BTB, BHT) impact prediction accuracy and hardware cost
- Larger structures can capture more branch history and improve accuracy but increase area and power consumption
- Workload characteristics affect the effectiveness of branch prediction
- Branch density: Higher branch density leads to more frequent control hazards
- Branch predictability: Some branches (loops) are more predictable than others (data-dependent conditions)
- ISA design considerations
- Delayed branch slots (MIPS) or predicated execution (ARM) can help mitigate control hazards
- Branch hint bits in instructions can provide additional information for branch prediction
- Hybrid predictors combine multiple prediction techniques (static and dynamic) to leverage their strengths
- Can adapt to different types of branches and provide robust performance across various workloads
Key Terms to Review (16)
Bimodal predictor: A bimodal predictor is a branch prediction technique that uses a simple table to track the outcome of branches based on their most recent history. It operates by maintaining two counters for each entry, which helps in predicting whether a branch will be taken or not. This approach is particularly effective in reducing control hazards by providing predictions for branches, allowing the processor to speculatively execute instructions without waiting for branch resolution.
Branch Delay Slot: A branch delay slot is a concept in computer architecture that refers to the instruction following a branch instruction in a pipeline. Because of how instruction pipelines work, this next instruction is executed regardless of whether the branch is taken or not, leading to a potential delay or wasted execution time if the branch is taken. Understanding branch delay slots is crucial for optimizing performance and efficiency in control flow and branch prediction mechanisms.
Branch Hazard: A branch hazard occurs in computer architecture when the flow of instruction execution is disrupted due to conditional branch instructions. These hazards can lead to delays because the processor must determine whether to take a branch or continue executing sequentially, which can stall the pipeline. To mitigate this issue, techniques like branch prediction are used, allowing the processor to guess the outcome of a branch before it is resolved, thereby improving efficiency.
Decode stage: The decode stage is a critical phase in the instruction execution process of a CPU pipeline where the fetched instruction is interpreted and the necessary operands are identified. This stage connects the high-level programming language instructions to the specific hardware operations, allowing the CPU to understand what actions need to be performed. In this phase, control signals are generated, and the pipeline's flow can be affected by control hazards, which occur when the next instruction depends on the outcome of a previous branch instruction.
Dynamic prediction: Dynamic prediction is a technique used in computer architecture to enhance performance by anticipating the outcome of branch instructions during program execution. This approach utilizes historical information and runtime data to improve the flow of instruction execution, reducing delays caused by control hazards. By making informed guesses about whether a branch will be taken or not, dynamic prediction helps to keep the pipeline filled with useful instructions, thus increasing overall processing efficiency.
Fetch stage: The fetch stage is the initial step in a processor's instruction cycle where the next instruction is retrieved from memory for execution. This process involves fetching the instruction address from the program counter and retrieving the corresponding instruction from memory, which is crucial for maintaining the flow of a program and ensuring that the correct instructions are processed in order. The efficiency of the fetch stage is key to overall processor performance, as it directly affects how quickly instructions can be executed, especially in pipelined architectures.
Jump Hazard: A jump hazard occurs in computer architecture when the control flow of a program is altered due to branching instructions, which can disrupt the smooth execution of subsequent instructions. This phenomenon is particularly relevant when a processor must decide whether to continue executing sequential instructions or to jump to a different part of the program based on a branch condition, leading to potential delays and inefficiencies in instruction processing.
M. m. k. s. k. m. m. smith: The m. m. k. s. k. m. m. smith is a methodology used to improve the efficiency of branch prediction in modern computer architectures. It helps in minimizing control hazards by optimizing the decision-making process for predicting branch outcomes, thus enhancing instruction throughput and overall performance.
Misprediction Penalty: Misprediction penalty refers to the performance cost incurred when a processor incorrectly predicts the outcome of a branch instruction, leading to wasted cycles and loss of instruction execution. When a branch is mispredicted, the pipeline must be flushed, and the processor has to wait for the correct path to be fetched, which can severely impact overall performance. This penalty is a critical consideration in designing efficient branch prediction mechanisms to minimize control hazards.
Pipeline flushing: Pipeline flushing is a technique used in pipelined processors to clear out the instruction pipeline of any instructions that are no longer valid, often due to control hazards or exceptions. This process ensures that incorrect instructions do not execute when the flow of execution needs to change, maintaining the integrity of program execution. By removing these invalid instructions, pipeline flushing helps improve the overall efficiency and reliability of instruction processing in modern processors.
Speculative Execution: Speculative execution is a performance optimization technique used in modern processors that allows the execution of instructions before it is confirmed that they are needed. This approach increases instruction-level parallelism and can significantly improve processor throughput by predicting the paths of control flow and executing instructions ahead of time.
Stalls: Stalls refer to delays in the instruction pipeline of a processor that occur when the next instruction cannot be executed in time, often due to control hazards such as branch instructions. These stalls disrupt the flow of instruction execution, leading to inefficiencies and reduced performance as the processor has to wait for the correct instruction or data to become available. Understanding stalls is essential for improving branch prediction techniques and overall CPU architecture design.
Static Prediction: Static prediction is a method used in computer architecture to predict the outcome of control flow instructions, particularly branches, at compile time rather than at runtime. This technique relies on predefined rules or heuristics to guess whether a branch will be taken or not, allowing the processor to prepare instructions in advance and mitigate delays caused by control hazards. By using static prediction, systems can improve instruction throughput and reduce the performance penalties associated with mispredictions.
Throughput: Throughput is a measure of how many units of information a system can process in a given amount of time. In computing, it often refers to the number of instructions that a processor can execute within a specific period, making it a critical metric for evaluating performance, especially in the context of parallel execution and resource management.
Tournament predictor: A tournament predictor is a sophisticated branch prediction mechanism that uses multiple prediction algorithms or predictors and selects the most accurate one based on past performance. This method is designed to improve the accuracy of branch predictions by utilizing a combination of static and dynamic techniques, adapting to various program behaviors. By analyzing the outcomes of previous predictions, it can effectively minimize control hazards in instruction execution.
Two-level adaptive predictor: A two-level adaptive predictor is a sophisticated branch prediction mechanism that uses two levels of history to improve the accuracy of predicting branch outcomes in a processor. By employing both global and local history of branches, this predictor can adaptively adjust its predictions based on recent execution patterns, making it more effective at reducing control hazards caused by mispredictions.
