13.4 Redundancy and Fault-Tolerant Architectures
7 min read•july 30, 2024
and are crucial for keeping computer systems running smoothly when things go wrong. They use extra hardware, information, time, and software to catch and fix errors before they cause big problems.
These techniques are like backup plans for computers. They help systems detect issues, isolate them, and recover quickly. By using smart design principles, engineers can make systems that keep working even when parts fail, ensuring reliability in critical applications.
Redundancy Types in Fault Tolerance
Hardware Redundancy Techniques
Top images from around the web for Hardware Redundancy Techniques
Triple Modular Redundancy verification via heuristic netlist analysis [PeerJ] View original
Is this image relevant?

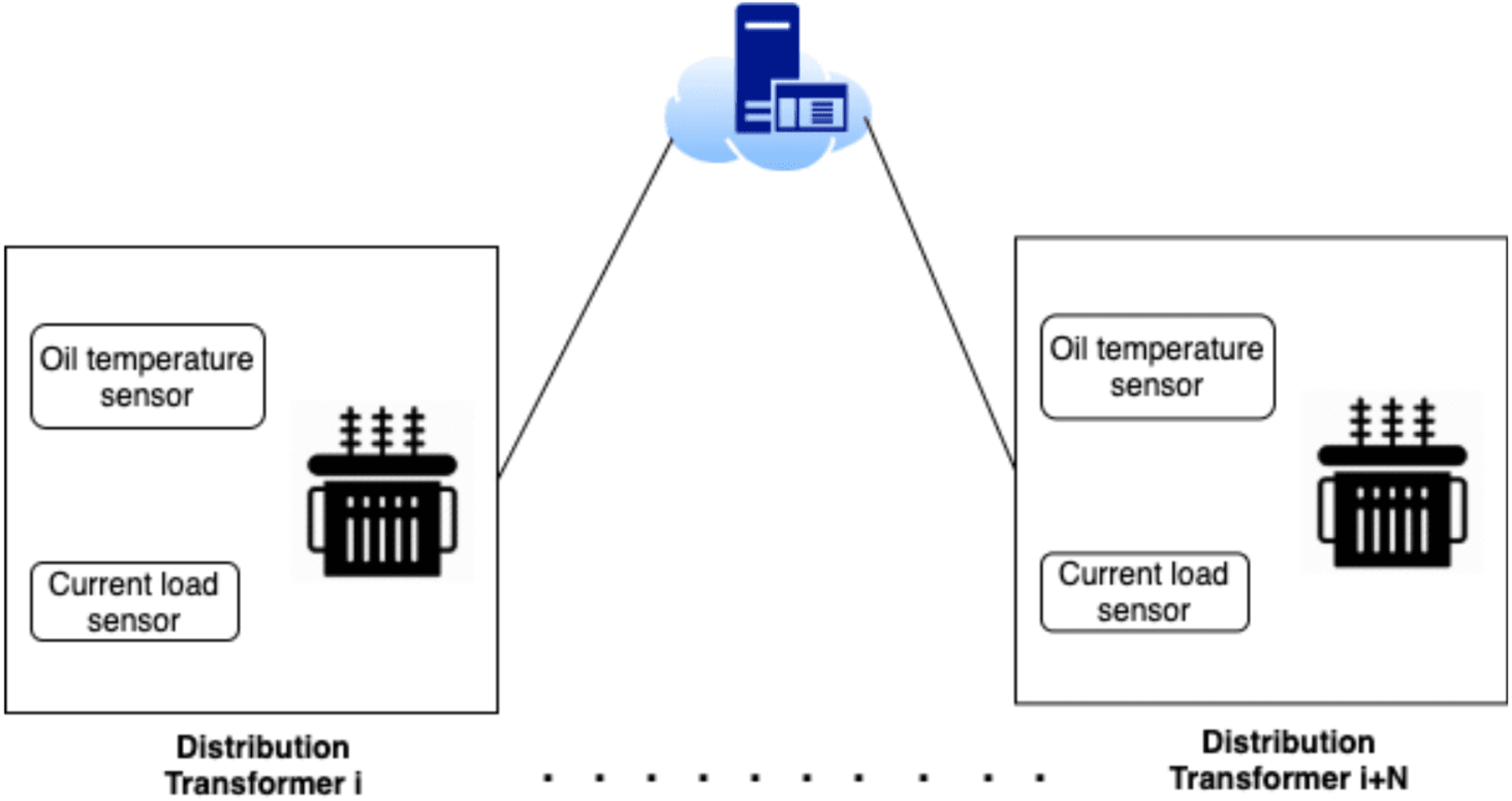

Toward fault tolerant modelling for SCADA based electricity distribution networks, machine ... View original
Is this image relevant?
Triple Modular Redundancy verification via heuristic netlist analysis [PeerJ] View original
Is this image relevant?
Toward fault tolerant modelling for SCADA based electricity distribution networks, machine ... View original
Is this image relevant?
1 of 2
Top images from around the web for Hardware Redundancy Techniques
Triple Modular Redundancy verification via heuristic netlist analysis [PeerJ] View original
Is this image relevant?
Toward fault tolerant modelling for SCADA based electricity distribution networks, machine ... View original
Is this image relevant?
Triple Modular Redundancy verification via heuristic netlist analysis [PeerJ] View original
Is this image relevant?
Toward fault tolerant modelling for SCADA based electricity distribution networks, machine ... View original
Is this image relevant?
1 of 2
- Hardware redundancy involves replicating critical components or subsystems to ensure continued operation in case of failures
- Common include , , and
- DMR uses two identical components and compares their outputs to detect faults
- TMR employs three identical components and uses to determine the correct output
- NMR extends the concept to N components, providing higher levels of fault tolerance
Information and Time Redundancy Techniques
- adds extra bits or data to the original information to detect and correct errors
- Examples include parity bits, , and
- Parity bits detect single-bit errors by adding an extra bit to ensure an even or odd number of 1s
- ECC can detect and correct multiple-bit errors by adding redundant bits based on mathematical algorithms
- repeats computations or operations multiple times to detect and mitigate transient faults
- Techniques include re-execution, , and
- Re-execution repeats the computation and compares the results to detect transient faults
- Checkpointing periodically saves the system state to enable recovery from faults
- Rollback recovery restores the system to a previous checkpoint when a fault is detected
Software Redundancy Approaches
- Software redundancy employs multiple instances of software components or diverse implementations to detect and recover from software faults
- Approaches include , , and
- N-version programming uses independently developed software versions and compares their outputs
- Recovery blocks execute alternate software versions when an acceptance test fails
- Self-checking software incorporates error detection and recovery mechanisms within the software itself
- Software redundancy techniques aim to mitigate the impact of software bugs, design flaws, and other software-related faults
Fault-Tolerant Architecture Principles
Fault Detection and Isolation Mechanisms
- Fault-tolerant architectures aim to maintain system functionality and prevent failures in the presence of faults
- identify the occurrence of faults in the system
- Techniques include , , and
- Error detection codes (e.g., parity, ECC) detect data corruption during storage or transmission
- Watchdog timers monitor the system's behavior and trigger an alarm if expected actions do not occur within a specified time
- prevent the propagation of faults to other parts of the system
- Approaches include , , and
- Circuit-level isolation uses physical barriers or electrical isolation to contain faults within a specific circuit
- Module-level isolation employs well-defined interfaces and error containment boundaries to prevent fault propagation between modules
Fault Recovery and Masking Techniques
- restore the system to a correct state after a fault occurs
- Techniques include checkpointing, rollback recovery, and
- Checkpointing periodically saves the system state to enable recovery from faults
- Rollback recovery restores the system to a previous checkpoint when a fault is detected
- Forward error correction uses redundant information to correct errors without requiring retransmission or rollback
- hide the effects of faults from the system's outputs, ensuring uninterrupted operation
- Examples include majority voting, , and
- Majority voting compares the outputs of redundant components and selects the majority result
- Redundant data storage maintains multiple copies of data to ensure and integrity
- Error-correcting memory automatically corrects bit errors in memory using ECC techniques
Redundancy Effectiveness for Reliability
Reliability Metrics and Evaluation Tools
- , such as , , and availability, are used to assess the effectiveness of redundancy techniques in improving system reliability
- MTBF represents the average time between failures in a system
- MTTR indicates the average time required to repair a failed component or system
- Availability is the proportion of time a system is operational and available for use
- Reliability block diagrams (RBDs) and are analytical tools used to evaluate the reliability of fault-tolerant systems with different redundancy configurations
- RBDs represent the system as a series of blocks, each representing a component or subsystem, and analyze the overall system reliability based on the reliability of individual blocks
- Markov models use state transitions to represent the system's behavior and calculate reliability metrics based on the probabilities of moving between states
Factors Affecting Redundancy Effectiveness
- The effectiveness of hardware redundancy techniques depends on factors such as the level of redundancy (e.g., DMR, TMR), the reliability of individual components, and the voting or comparison mechanisms employed
- Higher levels of redundancy (e.g., TMR vs. DMR) provide better fault tolerance but increase cost and complexity
- The reliability of individual components directly impacts the overall system reliability
- Voting or comparison mechanisms must be reliable and correctly identify and handle faults
- Information redundancy techniques' effectiveness is determined by the error detection and correction capabilities of the chosen codes (e.g., Hamming codes, Reed-Solomon codes) and the overhead introduced by the additional bits
- More powerful error-correcting codes can handle a greater number of errors but may introduce more overhead
- The trade-off between error correction capability and overhead must be considered based on the system's requirements
- Time redundancy techniques' effectiveness depends on the number of repetitions, the detection and recovery mechanisms employed, and the trade-off between fault coverage and performance overhead
- More repetitions increase fault coverage but may impact system performance
- Detection and recovery mechanisms must be reliable and efficiently handle faults
- Software redundancy techniques' effectiveness is influenced by the diversity of implementations, the error detection and recovery mechanisms, and the coordination among software versions
- Greater diversity among software versions reduces the likelihood of common mode failures
- Robust error detection and recovery mechanisms are essential for effective software redundancy
- Coordination mechanisms must ensure consistent and correct behavior across software versions
Designing Fault-Tolerant Systems
Identifying Critical Components and Selecting Redundancy Techniques
- Identifying the critical components and subsystems that require fault tolerance based on the system's reliability requirements and failure modes and effects analysis (FMEA)
- FMEA systematically analyzes potential failure modes, their effects, and their criticality to prioritize fault tolerance efforts
- Reliability requirements, such as target MTBF or availability, guide the selection of critical components for redundancy
- Selecting appropriate hardware redundancy techniques (e.g., DMR, TMR) for critical components, considering factors such as reliability, cost, and power consumption
- The chosen redundancy technique should provide the required level of fault tolerance while balancing cost and power constraints
- Reliability analysis and trade-off studies help determine the most suitable redundancy technique for each critical component
- Incorporating information redundancy techniques (e.g., ECC, CRC) for data storage, transmission, and processing to detect and correct errors
- ECC is commonly used in memory systems to protect against bit errors
- CRC is often employed in data transmission to detect and sometimes correct errors in the received data
- Applying time redundancy techniques (e.g., re-execution, checkpointing) for critical computations or operations to detect and recover from transient faults
- Re-execution can be used for critical computations where the results can be quickly verified
- Checkpointing is useful for long-running or complex operations to minimize the amount of lost work in case of a fault
Implementing Fault Detection, Recovery, and Masking Mechanisms
- Employing software redundancy techniques (e.g., N-version programming, recovery blocks) for critical software components to improve fault tolerance
- N-version programming is suitable for software components with well-defined inputs and outputs
- Recovery blocks are useful for software components with clear acceptance criteria for the results
- Designing fault detection and isolation mechanisms (e.g., watchdog timers, BIST) to identify and contain faults within specific components or subsystems
- Watchdog timers can detect software or hardware faults that cause the system to become unresponsive
- BIST mechanisms enable self-testing of components to identify faults during system startup or periodic checks
- Implementing fault recovery mechanisms (e.g., checkpointing, rollback recovery) to restore the system to a correct state after a fault occurs
- Checkpointing saves the system state at regular intervals to enable recovery from faults
- Rollback recovery uses the saved checkpoints to restore the system to a known good state
- Incorporating fault masking techniques (e.g., majority voting, error-correcting memory) to maintain uninterrupted system operation in the presence of faults
- Majority voting can be used in systems with redundant components to determine the correct output
- Error-correcting memory automatically corrects bit errors, preventing them from affecting the system's operation
Key Terms to Review (34)
Availability: Availability refers to the degree to which a system is operational and accessible when required. It is a crucial aspect of system reliability, reflecting the ability of hardware and software to function correctly under specified conditions for a designated period of time. High availability means that systems are designed to minimize downtime and continue operating smoothly even in the face of failures or disruptions.
Built-In Self-Tests (BIST): Built-In Self-Tests (BIST) are automated testing mechanisms integrated into hardware systems to facilitate self-diagnosis and fault detection. BIST allows systems to verify their own functionality without needing external test equipment, which is especially useful in redundancy and fault-tolerant architectures where reliability is critical. This self-testing capability enhances system resilience by identifying failures early and enabling corrective actions to maintain continuous operation.
Checkpointing: Checkpointing is a fault tolerance technique used in computer systems that involves saving the state of a system at certain points, known as checkpoints, so that it can be restored in the event of a failure. This process helps improve reliability by allowing a system to recover from errors without losing all progress, making it essential for maintaining continuous operation and minimizing downtime.
Circuit-level isolation: Circuit-level isolation refers to the design technique used to protect electronic circuits from faults or failures by creating a physical or functional separation between them. This isolation is crucial for maintaining system reliability and ensuring that any faults in one circuit do not propagate to others, thereby enhancing the overall fault tolerance of the architecture. By incorporating redundancy and strategic isolation, systems can continue to operate even when individual components fail.
Cyclic Redundancy Checks (CRC): Cyclic Redundancy Checks (CRC) are a method used to detect errors in data transmission or storage by applying a polynomial algorithm to generate a short, fixed-size checksum from a larger data block. This checksum is then sent or stored alongside the original data. When the data is later accessed, the same CRC algorithm is applied again to check for discrepancies, ensuring that any errors introduced during transmission or storage can be detected.
Dual Modular Redundancy (DMR): Dual Modular Redundancy (DMR) is a fault-tolerant design approach that uses two identical modules to perform the same computations, ensuring that if one module fails, the other can take over. This method enhances system reliability by allowing for continuous operation even in the presence of faults, and it’s particularly relevant in safety-critical applications where failure can lead to significant consequences.
Error detection codes: Error detection codes are methods used in computer systems to identify and correct errors in data transmission or storage. These codes add redundancy to the original data, allowing systems to detect discrepancies and ensure data integrity, which is vital in fault-tolerant architectures that aim to maintain reliable operations even in the presence of faults.
Error-correcting codes (ECC): Error-correcting codes (ECC) are algorithms used to detect and correct errors in data transmission or storage. These codes add redundancy to the original data, allowing the system to identify discrepancies and recover lost or corrupted information, thus ensuring reliable communication and data integrity. ECC is essential for maintaining fault tolerance in computing systems, especially in environments where data loss can have significant consequences.
Error-correcting memory: Error-correcting memory is a type of computer memory that can detect and correct data corruption, ensuring the integrity of stored information. This technology is crucial in systems where data accuracy is vital, such as servers and critical applications, as it helps to prevent errors that could lead to system failures or incorrect outputs.
Fault Detection Mechanisms: Fault detection mechanisms are systems and methods designed to identify errors or failures within computer architectures and applications. These mechanisms play a critical role in maintaining reliability and availability by detecting faults before they lead to system failures. They work alongside redundancy and fault-tolerant architectures to ensure that systems can continue operating correctly, even in the presence of faults.
Fault isolation techniques: Fault isolation techniques are methods used in computer architecture to identify, contain, and mitigate the effects of faults or errors in a system. These techniques are crucial in enhancing system reliability by preventing faults from propagating and affecting other components, thereby contributing to redundancy and fault-tolerant architectures. They help ensure that failures in one part of the system do not compromise the overall functionality.
Fault masking techniques: Fault masking techniques are strategies used in computer architecture to prevent or minimize the impact of hardware faults or errors on system performance and reliability. By incorporating redundancy, error detection, and recovery mechanisms, these techniques enhance the overall fault tolerance of computing systems, ensuring continued operation even in the presence of failures. They play a critical role in maintaining system integrity and availability, especially in environments where reliability is paramount.
Fault recovery mechanisms: Fault recovery mechanisms are processes and strategies designed to detect, correct, and recover from hardware or software failures in computer systems. They play a critical role in ensuring system reliability and availability by implementing redundancy, error detection, and correction techniques that minimize downtime and maintain operational integrity during adverse conditions.
Fault-tolerant architectures: Fault-tolerant architectures are system designs that ensure continued operation even when one or more components fail. These architectures achieve reliability through redundancy, allowing for backup systems or components to take over seamlessly in the event of a failure. This resilience is critical in environments where downtime can lead to significant financial loss or operational challenges.
Forward Error Correction: Forward error correction (FEC) is a technique used in data transmission that enables the receiver to detect and correct errors without needing to request additional data from the sender. This method adds redundant data to the original message, allowing the receiver to reconstruct the original information even if some bits are corrupted during transmission. It's essential for maintaining data integrity in systems that require high reliability and fault tolerance.
Hardware redundancy techniques: Hardware redundancy techniques involve the incorporation of additional hardware components to enhance the reliability and fault tolerance of computing systems. These techniques ensure that if one component fails, others can take over, thus maintaining system functionality. This is crucial in environments where continuous operation is essential, such as in critical infrastructure and high-performance computing systems.
Information redundancy: Information redundancy refers to the inclusion of extra copies or additional elements within data to ensure reliability and fault tolerance. This concept is crucial in computer architecture as it helps maintain system performance and prevents data loss when hardware failures or errors occur. Redundancy can be achieved through various techniques, such as duplication, error correction codes, and mirroring, all aimed at enhancing data integrity and system resilience.
Majority voting: Majority voting is a consensus mechanism used in fault-tolerant systems where the outcome is determined by the choice of the majority of participants. This method ensures that even if some components fail or produce incorrect outputs, the system can still arrive at a correct decision by relying on the majority's opinion. This approach is crucial in redundancy strategies to enhance reliability and maintain functionality despite faults.
Markov Models: Markov models are mathematical frameworks used to model systems that transition between states based on probabilistic rules, where the future state depends only on the current state and not on the sequence of events that preceded it. This property, known as the Markov property, allows these models to predict future behavior based on present conditions, making them useful for tasks such as prefetching in computing systems and enhancing fault tolerance in architectures.
Mean Time Between Failures (MTBF): Mean Time Between Failures (MTBF) is a reliability metric that measures the average time between the occurrences of failures in a system. This term is crucial for understanding how often failures can be expected and serves as a key indicator of system reliability, connecting deeply with error detection and correction techniques, as well as redundancy and fault-tolerant architectures.
Mean Time to Repair (MTTR): Mean Time to Repair (MTTR) is a key metric used to measure the average time taken to repair a system or component after a failure occurs. This metric is crucial for understanding system reliability and performance, as it helps organizations assess how quickly they can restore services and minimize downtime. MTTR is interconnected with other reliability metrics and plays a significant role in designing redundancy and fault-tolerant architectures, ultimately influencing the overall resilience of systems.
Module-level isolation: Module-level isolation refers to a design approach in computer architecture where different modules or components of a system operate independently to prevent faults in one module from affecting others. This technique is essential for enhancing reliability and maintainability, especially in systems that require redundancy and fault tolerance. By isolating modules, the overall system can continue functioning even when some parts fail, which is crucial for high-availability environments.
N-modular redundancy (nmr): n-modular redundancy (nmr) is a fault-tolerant architecture technique that involves duplicating a system 'n' times to ensure reliability and correctness in computation. By using multiple copies of a system, nmr can detect and correct errors, as the outputs from the different modules are compared, allowing the correct output to be determined even if some of the modules fail or produce incorrect results.
N-version programming: N-version programming is a fault-tolerance technique where multiple functionally equivalent programs, or versions, are independently developed to solve the same problem. This approach enhances system reliability by allowing different versions to execute simultaneously, with the assumption that errors in one version will not occur in others, thereby increasing the chances of correct output despite potential faults.
Recovery blocks: Recovery blocks are a fault-tolerant design technique that allows a system to continue operation despite the occurrence of faults or errors. This approach involves using multiple redundant versions of a computation or function, where if one version fails, another can take over, ensuring the system remains reliable and functional. This method is particularly useful in critical systems where uninterrupted service is paramount.
Redundancy: Redundancy refers to the inclusion of extra components or systems that are not strictly necessary for functionality, but serve to enhance reliability and fault tolerance in computing systems. By having multiple instances or backups of critical elements, systems can maintain performance and service continuity even in the event of failures or errors. This concept is crucial for ensuring that systems can recover from faults, which connects closely to metrics for reliability, methods of error detection and correction, and designs that prioritize fault tolerance.
Redundant data storage: Redundant data storage refers to the practice of storing multiple copies of the same data across different locations or systems to ensure data availability and reliability. This method protects against data loss or corruption, which is crucial in maintaining fault tolerance and enhancing overall system resilience. By implementing redundancy, systems can recover from failures more efficiently, ensuring continuous operation and minimizing downtime.
Reliability metrics: Reliability metrics are quantitative measures used to assess the dependability and fault tolerance of computer systems and architectures. These metrics help evaluate how well a system can perform under failure conditions, ensuring continuous operation and minimizing downtime. Key elements often associated with reliability metrics include availability, mean time between failures (MTBF), and fault tolerance, which collectively indicate how robust a system is against failures.
Rollback recovery: Rollback recovery is a fault tolerance technique that allows a system to revert to a previously saved state in the event of a failure, ensuring data integrity and continuity of operations. This approach often relies on checkpoints, which are consistent snapshots of the system's state, and recovery mechanisms that restore the system to the last stable checkpoint after a crash or error. It is closely associated with redundancy and fault-tolerant architectures as it enhances reliability by enabling the system to recover gracefully from unexpected failures.
Self-checking software: Self-checking software refers to programs designed to automatically detect and correct errors within their own code or during execution. This type of software enhances reliability, especially in systems where uptime is critical, by implementing redundancy and fault tolerance strategies that allow it to identify faults without external intervention. By integrating self-checking mechanisms, such software ensures that the system can maintain operational integrity even in the presence of errors, which is vital in fault-tolerant architectures.
System-level partitioning: System-level partitioning refers to the strategic division of a computer system's resources and functionalities into distinct segments or partitions to enhance performance, reliability, and fault tolerance. This approach allows for improved management of hardware resources and can lead to greater efficiency in processing tasks, as well as facilitating redundancy and fault tolerance, which are crucial in maintaining operational continuity during failures.
Time redundancy: Time redundancy is a fault-tolerance technique that involves performing the same task multiple times over a specific period to ensure accuracy and reliability in computations or processes. By redoing operations, systems can detect and correct errors that may have occurred during the initial execution, improving overall system resilience. This strategy is particularly vital in critical applications where failure can have severe consequences.
Triple modular redundancy (TMR): Triple modular redundancy (TMR) is a fault-tolerant design technique that employs three identical components to perform the same task simultaneously, ensuring that the correct output can be determined even if one or two components fail. This approach enhances system reliability and availability by allowing the system to continue functioning correctly despite hardware faults. TMR is particularly effective in safety-critical applications where failure can have serious consequences.
Watchdog timers: A watchdog timer is a specialized hardware or software timer that monitors the operation of a system, ensuring that it functions correctly by resetting or taking corrective action if it detects that the system has become unresponsive. This mechanism is critical in redundancy and fault-tolerant architectures, as it helps maintain system reliability and operational continuity in the presence of faults.
