Checkpoint and recovery mechanisms are crucial for maintaining system reliability in the face of failures. These techniques periodically save system states, allowing quick recovery from crashes or errors. By minimizing data loss and downtime, they play a key role in fault tolerance.
Understanding is essential for building robust computer systems. It involves balancing performance overhead with recovery speed and completeness. Effective checkpoint strategies consider system requirements, storage options, and integration with other fault tolerance measures to ensure optimal reliability.
Checkpointing for Fault Tolerance
Concept and Purpose
Top images from around the web for Concept and Purpose

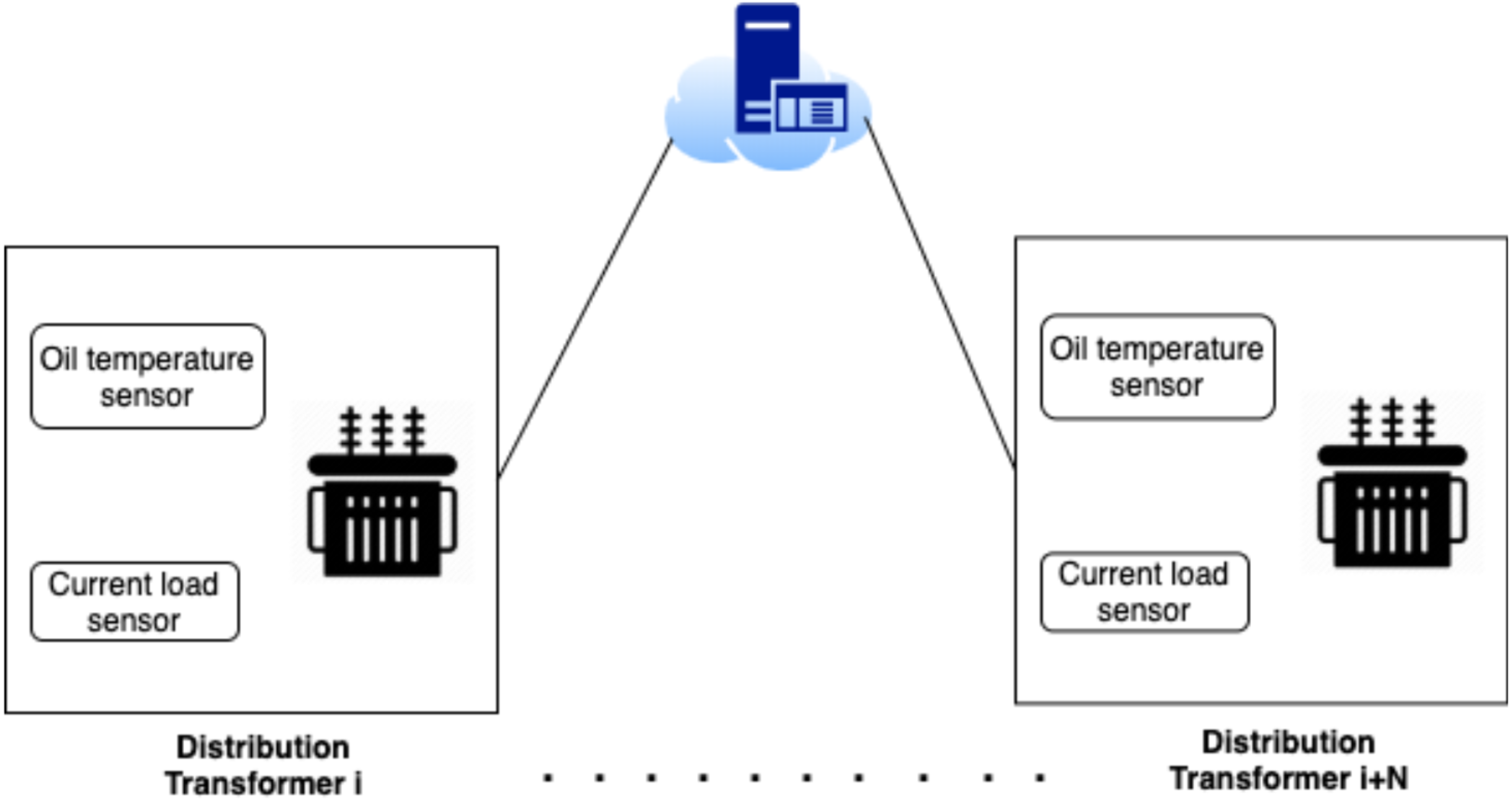

Toward fault tolerant modelling for SCADA based electricity distribution networks, machine ... View original
Is this image relevant?
An Automated Approach for Software Fault Detection and Recovery View original
Is this image relevant?
Toward fault tolerant modelling for SCADA based electricity distribution networks, machine ... View original
Is this image relevant?
An Automated Approach for Software Fault Detection and Recovery View original
Is this image relevant?
1 of 2
Top images from around the web for Concept and Purpose
Toward fault tolerant modelling for SCADA based electricity distribution networks, machine ... View original
Is this image relevant?
An Automated Approach for Software Fault Detection and Recovery View original
Is this image relevant?
Toward fault tolerant modelling for SCADA based electricity distribution networks, machine ... View original
Is this image relevant?
An Automated Approach for Software Fault Detection and Recovery View original
Is this image relevant?
1 of 2
- Checkpointing is a fault-tolerance technique that involves periodically saving the state of a running system or application to
- The saved state, called a checkpoint, includes essential information such as memory contents, register values, and open file descriptors (program counter, stack pointer)
- Checkpoints serve as recovery points, allowing the system to roll back to a previously saved state in case of failures, crashes, or errors (hardware faults, software bugs)
- Checkpointing enables the system to resume execution from the last saved checkpoint, minimizing the amount of lost work and reducing the need for complete restarts
- The frequency and granularity of checkpoints can be adjusted based on factors such as system criticality, expected failure rates, and performance overhead (hourly, daily, after critical operations)
Levels and Granularity
- Checkpointing can be performed at different levels, such as application-level, user-level, or system-level, depending on the specific requirements and available mechanisms
- Application-level checkpointing: Implemented within the application itself, allowing fine-grained control over what state is saved and when
- User-level checkpointing: Performed by a separate user-level library or runtime system, transparently capturing the state of the application
- System-level checkpointing: Handled by the operating system or virtualization layer, providing a generic checkpointing mechanism for all running processes
- The granularity of checkpoints determines the level of detail captured in each checkpoint
- Fine-grained checkpoints capture more detailed state information but incur higher overhead
- Coarse-grained checkpoints capture less detailed state but have lower overhead
Implementing Checkpoint Mechanisms
Capturing System State
- Implementing checkpointing involves capturing the state of the system or application at specific points during execution and saving it to persistent storage
- The checkpoint data should be saved in a format that allows easy restoration of the system state, such as a memory dump or a structured checkpoint file (JSON, XML, binary format)
- Checkpoint creation can be triggered based on various criteria, such as time intervals, specific program locations, or external events (every 30 minutes, after completing a critical section)
- The checkpoint mechanism should ensure and handle issues like open files, network connections, and shared resources (flushing buffers, closing connections, acquiring locks)
Recovery and Restoration
- Recovery mechanisms involve detecting failures, locating the most recent valid checkpoint, and restoring the system state from that checkpoint
- The recovery process should handle the restoration of memory contents, register values, and other relevant system state components
- Techniques like can be used to capture and replay non-deterministic events, ensuring consistent system state after recovery
- Logging non-deterministic events such as system calls, interrupts, and input/output operations
- Replaying the logged events during recovery to recreate the system state
- The implementation should consider factors like checkpoint size, storage requirements, and the time needed for checkpoint creation and recovery
Performance of Checkpoint Strategies
Overhead and Trade-offs
- Checkpoint and recovery mechanisms introduce performance overhead due to the time and resources required for capturing and saving system state
- The frequency of checkpoints affects the performance impact, as more frequent checkpoints result in higher overhead but provide finer-grained recovery points
- The size of checkpoints influences the storage requirements and the time needed for checkpoint creation and restoration
- Larger checkpoints consume more storage space and take longer to create and restore
- Smaller checkpoints have lower storage requirements but may not capture all necessary state information
Optimization Techniques
- Incremental checkpointing techniques can be used to reduce the size of checkpoints by saving only the changes since the last checkpoint
- Asynchronous checkpointing allows the system to continue execution while checkpoints are being created, minimizing the performance impact
- The choice of storage media for checkpoints (local disk, network storage) affects the checkpoint creation and
- Local disk storage provides faster access but may be limited in capacity
- Network storage offers scalability and fault tolerance but introduces network latency
- The recovery time depends on factors like the size of the checkpoint, the restoration process, and the availability of resources
Balancing Performance and Fault Tolerance
- Trade-offs between checkpoint frequency, checkpoint size, and recovery time should be analyzed to find an optimal balance for specific system requirements
- Increasing checkpoint frequency improves fault tolerance but incurs higher performance overhead
- Reducing checkpoint size minimizes storage requirements but may impact recovery granularity and completeness
- Minimizing recovery time is crucial for quick system restoration but may require additional resources and optimizations
Designing Efficient Checkpoint Schemes
System Characteristics and Requirements
- Designing checkpoint and recovery schemes involves considering the specific characteristics and requirements of the target system
- The checkpoint granularity should be determined based on factors like the desired recovery point objectives (RPO) and recovery time objectives (RTO)
- RPO defines the acceptable amount of data loss in case of a failure
- RTO specifies the maximum tolerable downtime for system recovery
- The checkpoint frequency should be optimized to strike a balance between fault tolerance and performance overhead
Storage and Scalability Considerations
- Techniques like incremental checkpointing, compression, and deduplication can be employed to reduce the size of checkpoints and improve storage efficiency
- Incremental checkpointing saves only the changes made since the previous checkpoint
- Compression algorithms (LZ4, Zstandard) can be used to reduce the size of checkpoint data
- Deduplication identifies and eliminates redundant data across multiple checkpoints
- The checkpoint storage location should be chosen based on factors like data locality, network bandwidth, and fault tolerance requirements
- Parallel and distributed checkpointing schemes can be designed to handle large-scale systems and improve checkpoint creation and recovery performance
- Distributing checkpoints across multiple nodes or storage devices
- Leveraging parallel I/O techniques to accelerate checkpoint writing and reading
Adaptive and Integrated Strategies
- Adaptive checkpointing strategies can dynamically adjust the checkpoint frequency based on system behavior, workload characteristics, and failure patterns
- Increasing checkpoint frequency during critical operations or periods of high failure probability
- Reducing checkpoint frequency during stable periods to minimize overhead
- The recovery process should be designed to minimize downtime and ensure data consistency, considering aspects like checkpoint validation, rollback procedures, and system state synchronization
- The checkpoint and recovery scheme should be integrated with other fault tolerance mechanisms, such as replication and failover, to provide comprehensive system resilience
- Combining checkpointing with replication to ensure data availability and minimize data loss
- Integrating checkpointing with failover mechanisms to enable seamless system recovery and service continuity
