11.3 Memory Virtualization and I/O Virtualization
7 min read•july 30, 2024
Memory and are crucial for running multiple virtual machines on shared hardware. These techniques provide isolation and efficient , but face challenges in and performance . Balancing security, , and performance is key.
and advanced techniques like and SR-IOV help mitigate these challenges. They improve memory management, reduce , and enable efficient I/O sharing among VMs, enhancing overall system performance and flexibility in virtualized environments.
Challenges of Memory Virtualization
Memory Isolation and Efficient Resource Utilization
Top images from around the web for Memory Isolation and Efficient Resource Utilization
data center virtualization — Define The Cloud View original
Is this image relevant?

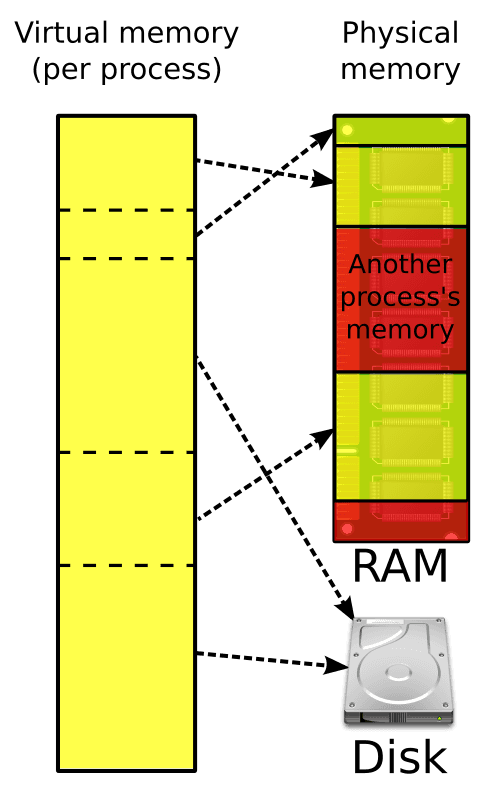

Virtual memory - Wikipedia View original
Is this image relevant?
virtual machine - Difference between bare metal (hypervisor based) and host virtualization types ... View original
Is this image relevant?
data center virtualization — Define The Cloud View original
Is this image relevant?
Virtual memory - Wikipedia View original
Is this image relevant?
1 of 3
Top images from around the web for Memory Isolation and Efficient Resource Utilization
data center virtualization — Define The Cloud View original
Is this image relevant?
Virtual memory - Wikipedia View original
Is this image relevant?
virtual machine - Difference between bare metal (hypervisor based) and host virtualization types ... View original
Is this image relevant?
data center virtualization — Define The Cloud View original
Is this image relevant?
Virtual memory - Wikipedia View original
Is this image relevant?
1 of 3
- aims to provide each with its own isolated memory address space, while efficiently utilizing the underlying physical memory resources
- Maintaining and protection between VMs prevents unauthorized access and ensures security
- Techniques like and are used to enforce isolation
- manages memory allocation and ensures VMs cannot access each other's memory
- Managing , where the total memory allocated to VMs exceeds the available physical memory, requires techniques like and
- Memory ballooning dynamically adjusts memory allocation based on VM demand and overall memory pressure
- Memory compression reduces memory usage by compressing infrequently accessed or idle memory pages
- Supporting large memory configurations and handling are challenges, especially in advanced computer architectures with large memory capacities
- Efficient memory management algorithms are needed to minimize fragmentation and optimize memory utilization
- Techniques like memory hotplug and memory migration help manage large memory configurations
Address Translation and Virtualization Overhead
- Memory virtualization needs to handle the mapping between guest virtual addresses, guest physical addresses, and host physical addresses efficiently
- Multiple levels of address translation are involved, adding complexity to memory management
- Efficient algorithms and data structures (, TLBs) are used to accelerate address translation
- Virtualization overhead can impact memory access performance due to the additional address translation steps required
- Each memory access from a VM goes through guest virtual to guest physical to host physical address translation
- Optimizations like shadow page tables and hardware-assisted virtualization help reduce translation overhead
- Efficient memory sharing and deduplication mechanisms are needed to reduce memory wastage when multiple VMs have identical or similar memory pages
- Identifying and merging identical pages across VMs saves memory and improves utilization
- Techniques like and enable memory deduplication
Techniques for Efficient Memory Virtualization
Hardware-Assisted Virtualization and Shadow Page Tables
- Hardware-assisted memory virtualization, such as and , provides hardware support for memory virtualization, reducing the overhead of address translation
- These techniques introduce an additional level of address translation in hardware, allowing the hypervisor to manage memory mappings more efficiently
- Hardware-assisted virtualization reduces the need for software-based shadow page tables and improves performance
- Shadow page tables are used to accelerate memory address translation by maintaining a separate page table for each VM, managed by the hypervisor, to directly map guest virtual addresses to host physical addresses
- The hypervisor keeps shadow page tables in sync with the guest page tables
- Shadow page tables eliminate the need for multiple levels of address translation in software, reducing overhead
Memory Sharing and Overcommitment Techniques
- Transparent Page Sharing (TPS) identifies identical memory pages across VMs and shares them, reducing memory usage and increasing memory utilization
- TPS uses hashing and comparison techniques to find identical pages and map them to a single physical page
- Memory deduplication through TPS helps in scenarios where VMs run similar operating systems or applications
- Memory ballooning is a technique used to dynamically adjust the memory allocation of VMs based on their memory demand and the overall memory pressure in the system
- The balloon driver in the guest OS communicates with the hypervisor to release or reclaim memory pages as needed
- Ballooning allows the hypervisor to efficiently allocate memory among VMs and handle memory overcommitment
- Memory compression is used to compress infrequently accessed or idle memory pages, allowing more memory to be available for active VMs
- Compressed memory pages are stored in a compressed cache and decompressed when accessed
- Memory compression helps in scenarios where memory is overcommitted and swapping to disk is expensive
- Memory overcommitment techniques, such as memory swapping and memory paging, enable the allocation of more memory to VMs than the available physical memory by leveraging disk storage
- Memory pages that are not actively used can be swapped out to disk to free up physical memory
- Memory paging algorithms determine which pages to swap out and when to bring them back into memory
I/O Virtualization in Virtualized Systems
I/O Virtualization Techniques
- I/O virtualization refers to the abstraction and sharing of I/O devices, such as network adapters and storage controllers, among multiple VMs
- is a technique where the hypervisor emulates a generic I/O device and translates the VM's I/O requests to the physical device
- The hypervisor presents a virtual I/O device to each VM, which appears as a dedicated resource
- Device emulation provides compatibility with a wide range of guest operating systems but introduces software overhead
- involves modifying the guest OS to be aware of the virtualized environment and communicate directly with the hypervisor for I/O operations
- The guest OS includes virtualization-aware drivers that interact with the hypervisor's I/O subsystem
- Para-virtualized I/O reduces the overhead of device emulation but requires guest OS modifications
- allows a VM to have direct access to a physical I/O device, bypassing the hypervisor and providing near-native performance
- The VM is granted exclusive access to the device, eliminating the need for emulation or translation
- Direct device assignment offers the best performance but sacrifices flexibility and device sharing
Hardware-Assisted I/O Virtualization
- is a hardware-assisted I/O virtualization technique that enables multiple VMs to share a single physical I/O device efficiently
- SR-IOV allows a physical device to be divided into multiple , each assigned to a VM
- VMs can directly access their assigned VFs, reducing the involvement of the hypervisor in I/O operations
- SR-IOV provides near-native I/O performance by allowing VMs to bypass the hypervisor and access the device directly
- Each VF appears as a separate virtual device to the VM, with its own resources and configuration
- SR-IOV requires hardware support from the I/O devices and the system chipset
- SR-IOV enables efficient sharing of I/O devices among multiple VMs while maintaining isolation and quality of service
- The of the device manages the allocation and configuration of VFs
- The hypervisor can dynamically assign VFs to VMs based on their I/O requirements and priorities
Performance of Virtualization Techniques
Memory Virtualization Performance
- Memory virtualization techniques, such as shadow page tables and hardware-assisted virtualization, can introduce additional overhead due to the extra levels of address translation, impacting memory access latency
- The overhead depends on the workload characteristics and the frequency of memory accesses
- Techniques like TLB (Translation Lookaside Buffer) and page table optimizations help mitigate the performance impact
- The effectiveness of memory sharing and deduplication techniques depends on the similarity of memory pages across VMs, and the overhead of identifying and managing shared pages can impact overall performance
- Workloads with high memory page similarity benefit more from memory sharing and deduplication
- The performance impact of memory sharing and deduplication varies based on the workload patterns and the efficiency of the deduplication algorithms
- Memory ballooning and compression techniques can help alleviate memory pressure, but they may introduce additional CPU overhead and impact the performance of VMs if not managed properly
- Ballooning and compression algorithms need to strike a balance between memory reclamation and performance impact
- Excessive ballooning or compression can lead to increased CPU utilization and slower memory access times
I/O Virtualization Performance
- I/O virtualization techniques, such as device emulation and para-virtualized I/O, can introduce software overhead and increase compared to direct device access
- Device emulation involves the hypervisor intercepting and translating I/O requests, adding latency to I/O operations
- Para-virtualized I/O reduces the emulation overhead but still involves the hypervisor in the I/O path
- Direct device assignment can provide near-native I/O performance for VMs, but it limits the flexibility and of the virtualized environment
- VMs have direct access to the physical I/O device, eliminating the virtualization overhead
- However, direct device assignment requires dedicated hardware resources for each VM and limits device sharing
- SR-IOV enables efficient I/O virtualization with reduced overhead, but it requires hardware support and may have limitations in terms of the number of virtual functions available per device
- SR-IOV allows VMs to directly access virtual functions, providing near-native I/O performance
- The scalability of SR-IOV depends on the number of virtual functions supported by the physical device
- The performance implications of I/O virtualization techniques should be carefully considered based on the workload requirements, hardware capabilities, and the trade-offs between performance, flexibility, and resource utilization
- I/O-intensive workloads may benefit from direct device assignment or SR-IOV for optimal performance
- Workloads with moderate I/O requirements can leverage para-virtualized I/O or device emulation for better flexibility and resource sharing
