4.2 Advanced Heat Transfer
5 min read•july 22, 2024
Heat transfer in advanced systems involves complex analytical and numerical methods. These techniques, including separation of variables and finite element analysis, solve intricate problems like transient and conjugate heat transfer. Understanding these methods is crucial for tackling real-world engineering challenges.
Heat exchangers are vital in various industries, from process engineering to HVAC. Design considerations like heat transfer area and fouling factors optimize performance. The LMTD and NTU methods are key tools for analyzing heat exchanger efficiency, enabling engineers to create more effective thermal management systems.
Advanced Heat Transfer Methods and Applications
Advanced heat transfer analysis
Top images from around the web for Advanced heat transfer analysis
Large Eddy Simulations with Conjugate Heat Transfer (CHT) modeling of Internal Combustion ... View original
Is this image relevant?

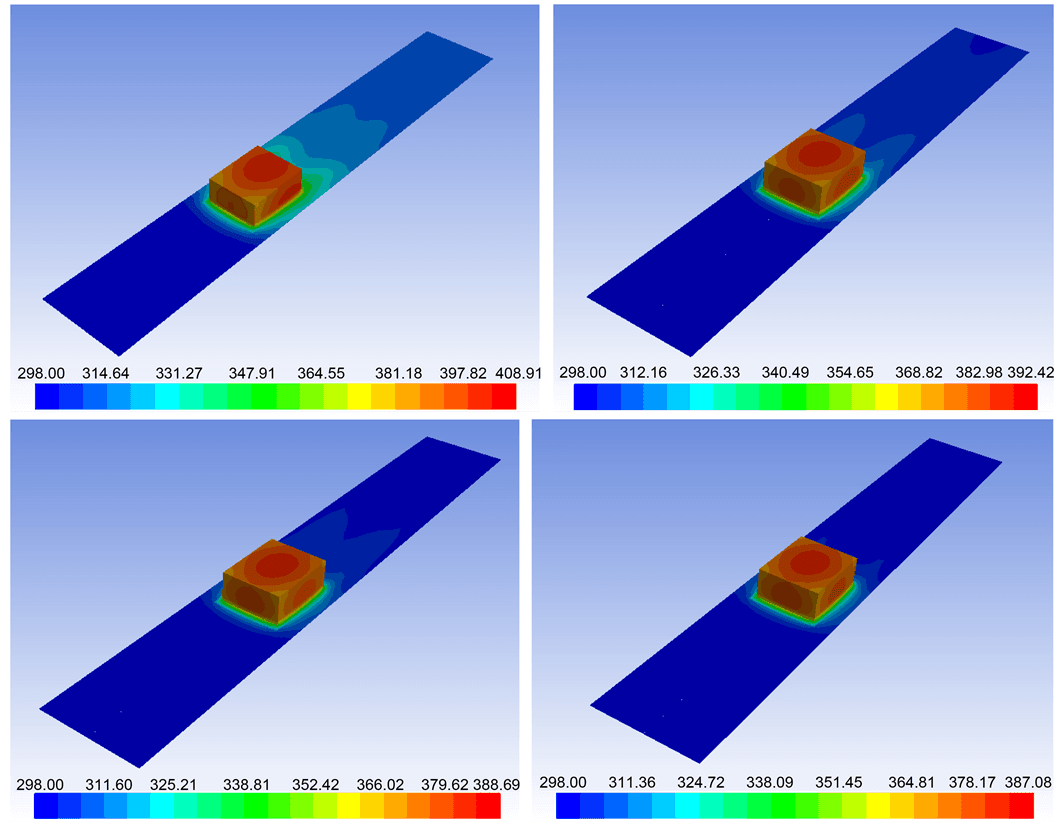

Numerical Study of Conjugate Heat Transfer for Cooling the Circuit Board View original
Is this image relevant?
Analytical Modeling and Computer Simulation of Heat Transfer Phenomena during Hydrothermal ... View original
Is this image relevant?
Large Eddy Simulations with Conjugate Heat Transfer (CHT) modeling of Internal Combustion ... View original
Is this image relevant?
Numerical Study of Conjugate Heat Transfer for Cooling the Circuit Board View original
Is this image relevant?
1 of 3
Top images from around the web for Advanced heat transfer analysis
Large Eddy Simulations with Conjugate Heat Transfer (CHT) modeling of Internal Combustion ... View original
Is this image relevant?
Numerical Study of Conjugate Heat Transfer for Cooling the Circuit Board View original
Is this image relevant?
Analytical Modeling and Computer Simulation of Heat Transfer Phenomena during Hydrothermal ... View original
Is this image relevant?
Large Eddy Simulations with Conjugate Heat Transfer (CHT) modeling of Internal Combustion ... View original
Is this image relevant?
Numerical Study of Conjugate Heat Transfer for Cooling the Circuit Board View original
Is this image relevant?
1 of 3
- Analytical methods solve heat transfer problems using mathematical techniques
- Separation of variables breaks down partial differential equations (PDEs) into ordinary differential equations (ODEs)
- Laplace transforms convert PDEs into algebraic equations in the frequency domain
- Green's functions provide a fundamental solution to inhomogeneous PDEs
- Numerical methods approximate solutions to complex heat transfer problems
- Finite difference method (FDM) discretizes the domain into a grid of nodes
- Explicit schemes calculate the future state based on the current state (forward Euler)
- Implicit schemes solve a system of equations involving both current and future states (backward Euler)
- Stability and convergence ensure the numerical solution remains bounded and approaches the exact solution
- Finite element method (FEM) divides the domain into smaller elements connected by nodes
- Weak formulation transforms the PDE into an integral equation using test functions
- Shape functions interpolate the solution within each element (linear, quadratic)
- Finite volume method (FVM) discretizes the domain into control volumes
- Conservation equations (mass, momentum, energy) are applied to each control volume
- Discretization techniques (upwind, central differencing) approximate the fluxes at the control volume faces
- Finite difference method (FDM) discretizes the domain into a grid of nodes
- Complex heat transfer problems involve multiple modes of heat transfer and intricate geometries
- Transient heat conduction describes time-dependent temperature variations (cooling of a hot plate)
- Conjugate heat transfer couples heat conduction in solids with in fluids (heat sink)
- Coupled heat and mass transfer considers the simultaneous exchange of thermal energy and mass (drying processes)
Heat exchanger design applications
- Types of heat exchangers facilitate heat transfer between two or more fluids
- Shell and tube heat exchangers consist of a bundle of tubes enclosed in a shell (oil coolers)
- Plate and frame heat exchangers use a series of corrugated plates to create flow channels (pasteurization)
- Compact heat exchangers have a high surface area to volume ratio (automotive radiators)
- Design considerations optimize heat exchanger performance and efficiency
- Heat transfer area determines the total surface available for heat exchange
- Overall heat transfer coefficient accounts for the thermal resistances of the fluids and the separating wall
- Fouling factors compensate for the accumulation of deposits on heat transfer surfaces
- Pressure drop affects the pumping power required to maintain the desired flow rates
- LMTD and NTU methods analyze heat exchanger performance
- represents the average temperature driving force
- Counter-flow arrangements have the highest LMTD (shell and tube heat exchangers)
- Parallel-flow arrangements have the lowest LMTD (double pipe heat exchangers)
- Effectiveness-NTU method relates the actual heat transfer to the maximum possible heat transfer
- Heat exchanger effectiveness () is the ratio of the actual heat transfer rate to the maximum possible heat transfer rate
- is a dimensionless parameter that characterizes the heat transfer size of the exchanger
- represents the average temperature driving force
- Industrial applications rely on heat exchangers for efficient heat transfer
- Process industry uses heat exchangers for heating, cooling, and energy recovery (distillation columns)
- HVAC systems employ heat exchangers for air conditioning and ventilation (air handling units)
- Power generation utilizes heat exchangers in steam generators and condensers (power plants)
Advanced Heat Transfer Phenomena
Radiation impact in high-temperature systems
- Fundamentals of thermal describe the emission, absorption, and reflection of electromagnetic waves
- Blackbody radiation represents an ideal surface that absorbs all incident radiation and emits the maximum possible energy
- Emissivity and absorptivity characterize the ability of a surface to emit and absorb radiation relative to a blackbody
- View factors quantify the geometric relationship between surfaces exchanging radiation
- Radiative heat transfer equations govern the energy exchange between surfaces and within participating media
- () relates the emissive power of a surface to its absolute temperature
- describes the spectral distribution of blackbody radiation as a function of wavelength and temperature
- gives the wavelength at which the spectral emissive power reaches its maximum
- Radiation in participating media considers the interaction of radiation with the intervening material
- Absorption, emission, and scattering attenuate and augment the radiative intensity
- Radiative transfer equation (RTE) describes the change in radiative intensity along a path through the medium
- Optical thickness measures the extent to which a medium absorbs or scatters radiation
- High-temperature applications involve significant radiative heat transfer
- Furnaces and combustion chambers operate at elevated temperatures where radiation dominates (steel production)
- Solar thermal systems harness concentrated solar radiation for power generation and heating (solar towers)
- Aerospace and defense applications deal with extreme thermal environments (rocket nozzles, hypersonic vehicles)
Phase change in heat transfer
- Melting and solidification involve the transition between solid and liquid phases
- Stefan problem describes the moving boundary between the solid and liquid regions
- Enthalpy method tracks the phase change using a single energy equation for both phases
- Mushy zone represents the two-phase region where solid and liquid coexist
- Boiling heat transfer occurs when a liquid is heated above its saturation temperature
- Nucleate boiling involves the formation and growth of vapor bubbles at the heated surface
- occurs when a stable vapor film separates the liquid from the heated surface
- is the maximum heat flux that can be achieved in nucleate boiling before transitioning to film boiling
- Condensation heat transfer happens when a vapor is cooled below its saturation temperature
- forms a continuous liquid film on the cooled surface (steam condensing on a cold pipe)
- occurs when discrete liquid droplets form on the surface (water condensing on a hydrophobic coating)
- Heat transfer correlations predict the condensation heat transfer coefficient based on fluid properties and surface geometry
- Applications involving phase change exploit the latent heat associated with the phase transition
- systems store and release energy during melting and solidification (ice storage tanks)
- transfer heat through the evaporation and condensation of a working fluid (laptop cooling)
- Refrigeration and air conditioning systems utilize the phase change of refrigerants to achieve cooling (vapor compression cycle)
