Catalysis is a game-changer in chemical engineering, speeding up reactions and making them more efficient. It comes in two flavors: heterogeneous, where the catalyst and reactants are in different phases, and homogeneous, where they're in the same phase.
Designing catalytic reactors is a balancing act. You need to consider catalyst properties, mass and heat transfer, and reaction kinetics. Different reactor types, like fixed-bed and fluidized-bed, have their own quirks. Economics and environmental impact are also key factors to weigh.
Principles and Applications of Catalysis
Principles of catalysis types
Top images from around the web for Principles of catalysis types

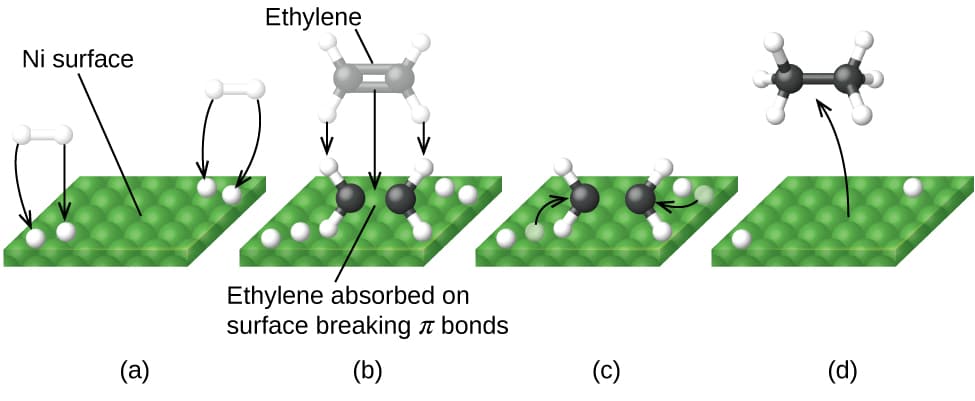

Catalysis · Chemistry View original
Is this image relevant?
12.7 Catalysis | General College Chemistry II View original
Is this image relevant?
Catalysis | Chemistry: Atoms First View original
Is this image relevant?
Catalysis · Chemistry View original
Is this image relevant?
12.7 Catalysis | General College Chemistry II View original
Is this image relevant?
1 of 3
Top images from around the web for Principles of catalysis types
Catalysis · Chemistry View original
Is this image relevant?
12.7 Catalysis | General College Chemistry II View original
Is this image relevant?
Catalysis | Chemistry: Atoms First View original
Is this image relevant?
Catalysis · Chemistry View original
Is this image relevant?
12.7 Catalysis | General College Chemistry II View original
Is this image relevant?
1 of 3
- Heterogeneous catalysis
- Occurs when catalyst and reactants are in different phases (catalyst typically solid, reactants gases or liquids)
- Reaction takes place on the surface of the catalyst
- Enables reactions through adsorption of reactants onto active sites, surface reaction, and desorption of products
- Widely used in industrial processes (petroleum refining, ammonia synthesis, catalytic converters)
- Homogeneous catalysis
- Takes place when catalyst and reactants are in the same phase (usually liquid)
- Catalyst is often a metal complex (organometallic compounds) or an enzyme (biocatalysis)
- Reaction occurs in the bulk of the solution, allowing for high catalytic activity and
- Employed in various applications (polymerization reactions, hydroformylation, carbonylation processes)
Design of catalytic reactors
- Catalyst properties
- High surface area, appropriate pore size distribution, and high density of active sites enhance catalytic performance
- Stability under reaction conditions, selectivity towards desired products, and high activity are crucial factors
- Catalyst properties dictate reactor design (bed geometry, flow configuration) and operating conditions (temperature, pressure, space velocity)
- Mass and heat transfer
- External mass transfer limitations arise from diffusion through boundary layer surrounding catalyst particles
- Internal mass transfer limitations caused by intraparticle diffusion, quantified by effectiveness factor
- Heat transfer limitations lead to temperature gradients within the reactor, affecting reaction rates and selectivity
- Proper reactor design minimizes mass and heat transfer limitations, ensuring efficient utilization of the catalyst
- Reaction kinetics
- Intrinsic reaction rates depend on the rate-limiting step, which can be adsorption, surface reaction, or desorption
- Langmuir-Hinshelwood mechanism assumes adsorption of both reactants, while Eley-Rideal mechanism involves adsorption of only one reactant
- Kinetic parameters (rate constants, activation energies) are determined from experimental data using appropriate reactor models
- Incorporation of accurate kinetic models is essential for optimal reactor design and process optimization
Performance of reactor types
- Fixed-bed reactors
- Modeled as plug flow reactors, assuming no radial gradients in concentration and temperature
- Non-isothermal behavior accounted for by energy balance, considering heat of reaction and heat transfer
- Pressure drop and flow distribution can impact reactor performance, requiring proper design of bed geometry and particle size
- Axial and radial dispersion effects may be significant in some cases, requiring more complex reactor models
- Fluidized-bed reactors
- Two-phase (bubbling) and three-phase (circulating) models describe the hydrodynamics and mass transfer in the reactor
- Bubble size distribution and gas-solid contact efficiency determine the effectiveness of the fluidized bed
- Elutriation and entrainment of catalyst particles must be minimized through appropriate operating conditions and particle size distribution
- Mass and heat transfer coefficients are estimated using correlations (Kunii-Levenspiel model for gas-solid systems)
- Slurry reactors
- Modeled as completely mixed reactors, assuming uniform concentration and temperature throughout the reactor
- Gas-liquid and liquid-solid mass transfer are key factors in determining the overall reaction rate
- Bubble size distribution and gas holdup affect the interfacial area available for mass transfer
- Mass transfer coefficients are estimated using correlations (Calderbank and Moo-Young model for gas-liquid systems)
Evaluation of catalytic processes
- Economic considerations
- Capital costs of catalytic reactors depend on materials of construction, size, and complexity of the design
- Operating costs include raw materials, utilities, catalyst replacement, and maintenance
- Process intensification and integration (heat exchanger reactors, reactive distillation) can improve economic viability
- Sensitivity analysis and optimization techniques identify key parameters and optimal operating conditions for profitability
- Environmental aspects
- Catalyst recycling and disposal strategies minimize environmental impact and reduce waste
- Process design aims to minimize emissions (greenhouse gases, pollutants) and waste generation
- Life cycle assessment evaluates the environmental footprint of catalytic processes, from raw materials to end-of-life
- Green chemistry principles (atom economy, less hazardous synthesis) guide the development of sustainable catalytic processes
